- (2) AMD 4th/5th Generation Processors
- (24) DDR5 6400MHz - Max Memory 6TB
- (2) PCIe5 x16 (16, 8, 4, 1)
- (1) OCP slot
- Supports up to (8SFF, 20 EDSFF, and GPU CTO servers) Drives
- HPE iLO 6 ASIC & TPM 2.0
- 2x SW or DW GPU
Other Versions
(Click to View)
Ideal for:- AI
- Edge Servers

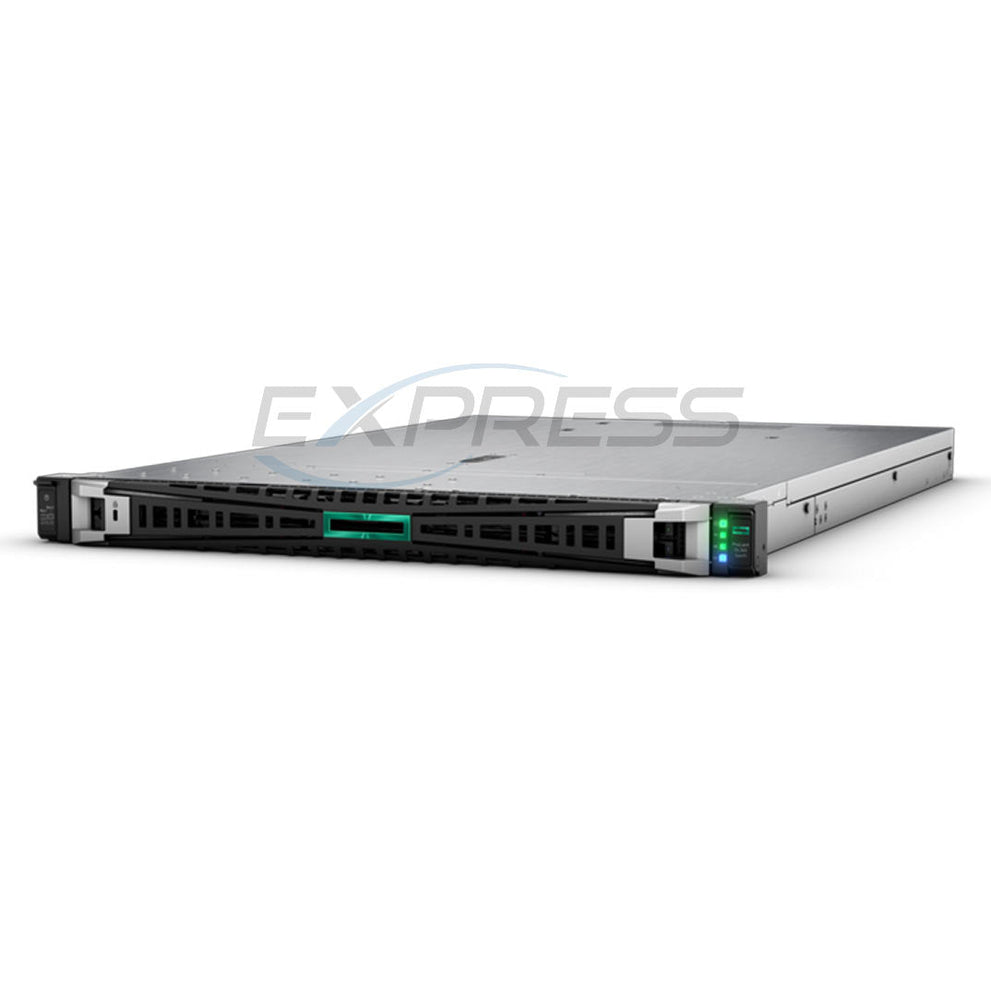

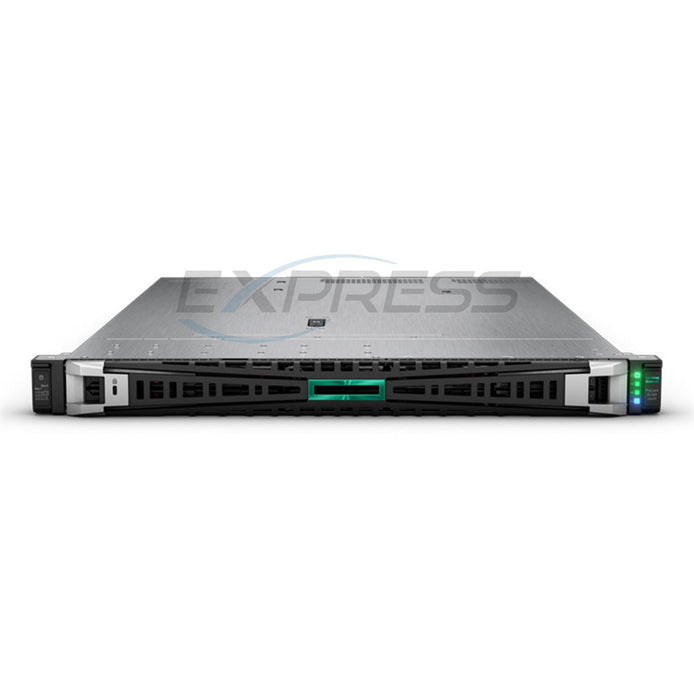

The HPE ProLiant DL365 Gen11 server is a rack-optimized 1U 2P dense solution that delivers exceptional compute performance, upgraded high-speed data transfer rate and memory depth at 2P compute capability.
Powered by 4th & 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with up to 160 cores, increased memory bandwidth and capacity, high-speed PCIe Gen5 I/O, Enterprise and Datacenter Standard Form Factor (EDSFF) and GPU support, the HPE ProLiant DL365 Gen11 server is a superb rack-optimized, 1U 2P, dense solution.
8 SFF P53933-B21
20 EDSFFP53934-B21
GPUP53935-B21 HPE DL365 Backplane / Drive Cages
8 SFF Backplane options
8SFF Tri-Mode U.3 x1P55020-B21
Drives: SAS/SATA/NVMe
Mixture of x1 U.3 8SFF and x4 U.3 8SFF backplanes is ALLOWED
8SFF Tri-Mode U.3 x4P55021-B21
Drives: SAS/SATA/NVMe
Required Tri-mode to mix drives
2SFF Tri-Mode U.3 x4P55025-B21
Drives: Supports SAS/SATA/NVMe drive
GPU Backplane options
4SFF Tri-Mode U.3 x4 P63212-B21
Drives: Supports NVMe drives only.
SAS/SATA drives are not supported.
If this drive cage is selected, then internal controllers cannot be selected. Will be direct attached to motherboard.
4SFF x2 OCP Tri-ModeP71757-B21
Drives: SAS/SATA/NVMe
If this drive cage is selected, then internal controllers cannot be selected. Will be direct attached to motherboard.
8EDSFF NVMe P63215-B21
Drives: Supports SAS/SATA/NVMe drive
MR408i-o controller must be selected.
Requires Tri-Mode to mix drives
HPE DL365 Heatsink
Standard Heatsink (STD) up to 240W
1U Performance Heatsinkmore than or equal to 240W
DLC from PCIeP62035-B21
DLC from NS204i-uP62032-B21
55cm Quick DisconnectP62042-B21
450mm Quick DisconnectP62046-B21
- DLC Required if a U.3 x4 drive cage selected
- If DLC Module is selected, then quantity 2 of Processor and 1 of Secondary LP module must be selected
- 1 PCIe Slot per server
- For EDSFF CTO model, if selected processor wattage is greater than or equal to 320W, then DLC module must be selected.
- 450mm Quick Disconnect for GPU CTO model only.
- 55cm Quick Disconnect for 8SFF/EDSFF CTO model only.
Standard Fan P58461-B21
Performance Fan KitP58462-B21
- 1-socket config 5 Fan kits, 2-socket config needs 7 Fan kits
- STD Fan Equal to or lower than cTDP 240W
-
Performance Fan Requirements
- Higher than cTDP 240W.
- When drive is NVMe or SAS4 drives
- When 10 SFF SAS/SATA/NVMe is configured.
- When EDSFF or GPU CTO Servers are configured.
A dedicated hot-plug boot device that mounts externally accessible at the rear of the server, housing two M.2 NVMe SSDs pre-configured in RAID 1 mirror. It does not occupy a PCIe slot but requires the secondary low-profile riser (P55029-B21)
- 7 quantities of fan must be selected.
- RAID 1 is pre-configured and cannot be changed
- NS204i-u is externally accessible.
- NS204i-u includes embedded 2x 480GB NVMe SSD.
- RAID 1 is supported on the NS204i-u boot optimized storage device
- NS204i-u V2 for 5th Gen AMD
NS204i-u Options
v1 2x 480GB NVMeP48183-B21
v2 2x 480GB NVMeP78279-B21
v2 2x 960GB NVMe P81160-B21
v2 2x 960GB NVMe SED P81162-B21
- v1 - Supported by AMD 4th Gen
- v2 - Supported by AMD 5th Gen
The MR (MegaRAID) and SR (SmartRAID) series use different RAID configuration tools and cannot be mixed in the same server. Both series support SAS, SATA, and NVMe drives when used with a tri-mode U.3 backplane, enabling mixed drive configurations. The server has no embedded software RAID — direct attached SATA drives operate in AHCI mode only, so a controller is required for any hardware RAID.
SR Series (SmartRAID)
SR Series
Installation Service Manual
The SR series is the high-end controller line, only available in type-p PCIe form factor.
This is the go-to choice for high drive count configurations or maximum storage throughput. Like the cached MR controllers it requires a battery or capacitor for cache protection.
MR Series (MegaRAID) - View PDF
MR Series
Installation Service Manual
The MR series is the broader, more flexible controller line available in both type-o and type-p form factors.
The cached models (MR408i-o, MR416i-o, MR416i-p) add a Flash-Backed Write Cache (FBWC)
Choosing Between MR and SR
- Need OCP slot deployment → MR type-o only
- Simple RAID, no cache needed → MR216i-o or MR216i-p
- Need cache, moderate drive count → MR408i-o or MR416i-o/p
- Maximum drive count or throughput → SR932i-p
- External SAS/SATA storage → E208e-p (Gen10, type-p, external only)
When installing a single OCP NIC, install it in OCP1.
x16 OCP1 OCP2 2P Upgrade Cable KitP57849-B21
Form Factor: OCP PCIe 5.0 x8
- Needs 2 configured processors
- OCP1 from x8 to x16 and OCP2 from x8 to x16
- Secondary Riser Upgrade Kit cannot be configured
x16 OCP1 1P Upgrade Cable KitP57882-B21
Form Factor: OCP PCIe 5.0 x8
- Cannot be selected when 2 processors are configured
- Upgrades OCP1 from x8 to x16
- Max 1 OCP card can be selected per server
Default
8SFF: 1 PCIe x16 Primary Riser
EDSFF: 1 PCIe x16 Primary Riser
GPU: 1x PCIe x16 Primary Riser &
1x GPU Riser (GPU Riser located in front chassis)
Low Profile P55029-B21
1x PCIe Gen5 x16 Slot 2
Requires HPE NS204i-u Gen11 NVMeboot device (P48183-B21)
Max = 1
Full Width - P56915-B21
1x PCIe Gen5 x16 Slot 2
Max = 1
HPE DL365 Gen11 GPUThe Manuals are very poor in this GPU section. They do not explain how 4 SW GPUs are installed in this server. They also dont have any information about supported GPUs other than the L4 SW GPU. Below are GPUs that work for the DL320 Gen 11.
NVIDIA L4 24GBS0K89C
- 24 GB GDDR6
- 72 W TDP
- SW FH/FL
- 4.0 x16
NVIDIA A16 64GBR8T26C
- 64 GB GDDR6
- 250 W TDP
- DW LP
- 4.0 x16
NVIDIA RTX PRO 4500S6W30C
- 24 GB GDDR6 with ECC
- 210 W TDP
- DW
- 4.0 x16
Notes:
- Supported with GPU CTO model only.
- Cannot mix GPUs Models.
- All 7 high-performance fans are required for any GPU installation
- NVIDIA L4 does not require Power Cable Kit.
- When NVIDIA A16 is selected, then "HPE DL365 Gen11 CPU 8p GPU Power Cable Kit" (P92166-B21) must be selected per Graphics Option
HPE iLO 6 is the 6th-generation Integrated Lights-Out management processor built into HPE ProLiant Gen11 servers (including the DL365 Gen11).
It delivers secure out-of-band remote management, allowing you to monitor, control, and troubleshoot the server even when the OS is down or the server is powered off.
Key features include a hardware Silicon Root of Trust, enhanced security (secure boot, attestation), Redfish-compliant RESTful API, improved remote console, virtual media, and seamless integration with HPE Compute Ops Management and OneView.
