- (1) AMD 4th/5th Generation Processors
- (12) DDR5 6400MHz - Max Memory 128 GB
- (2) PCIe5 x16 (16, 8, 4, 1)
- (1) OCP slot
- Supports up to (4 LFF or 10 SFF or 20 EDSFF) Drives
- Optional NS204i-u RAID 1 NVMe M.2 Boot device
- HPE iLO 6 ASIC & TPM 2.0
- (2x DW or 4x SW) GPU Supported
Other Versions
(Click to View)
Ideal for:- AI
- Edge Servers

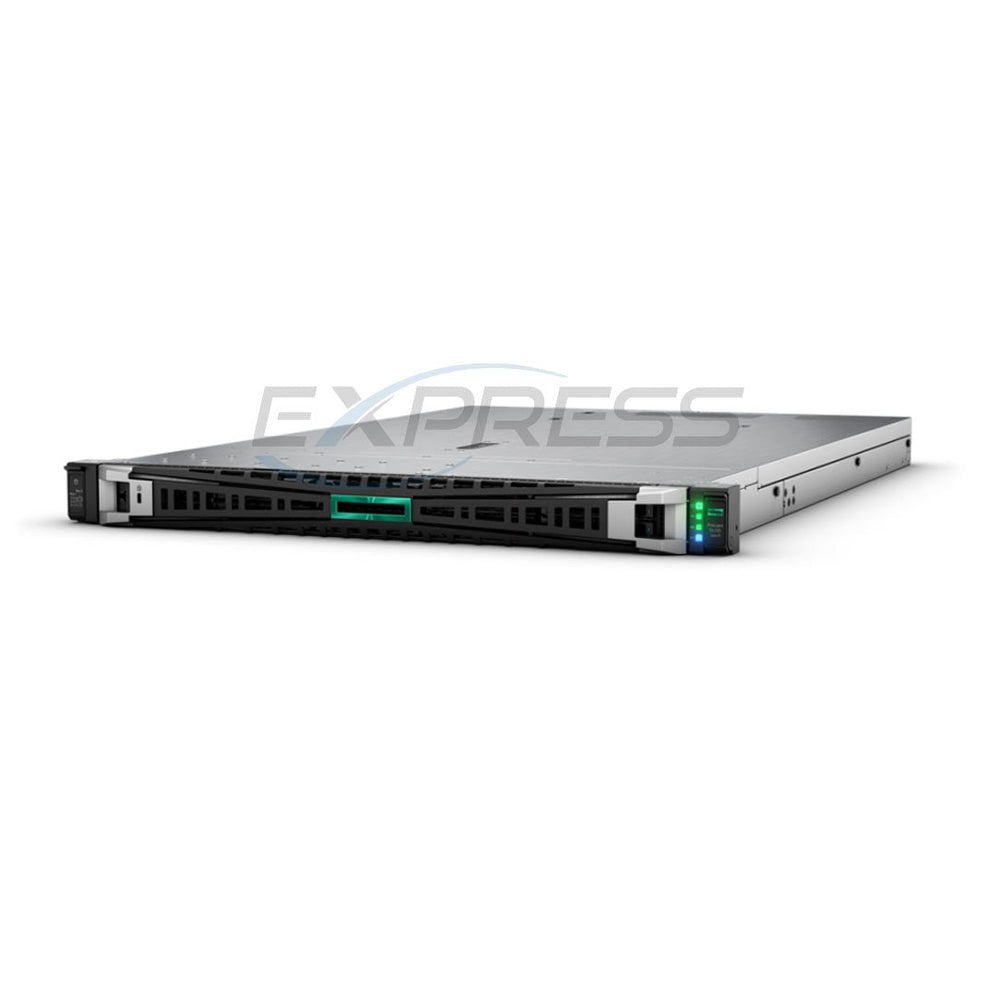

The HPE ProLiant DL325 Gen11 is a 1U 1P server with a unique compact design and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads.

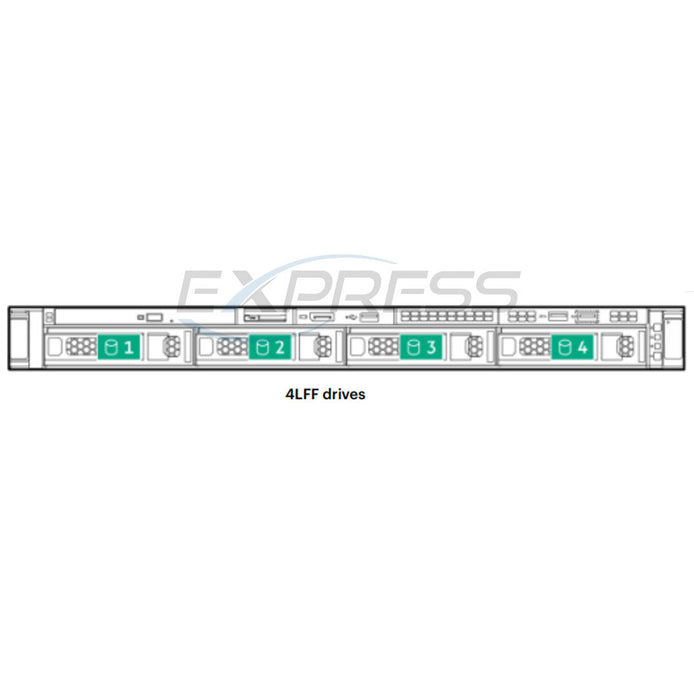

DL325 G11 4x 3.5" P54200-B21
DL325 G11 8x 2.5P54199-B21

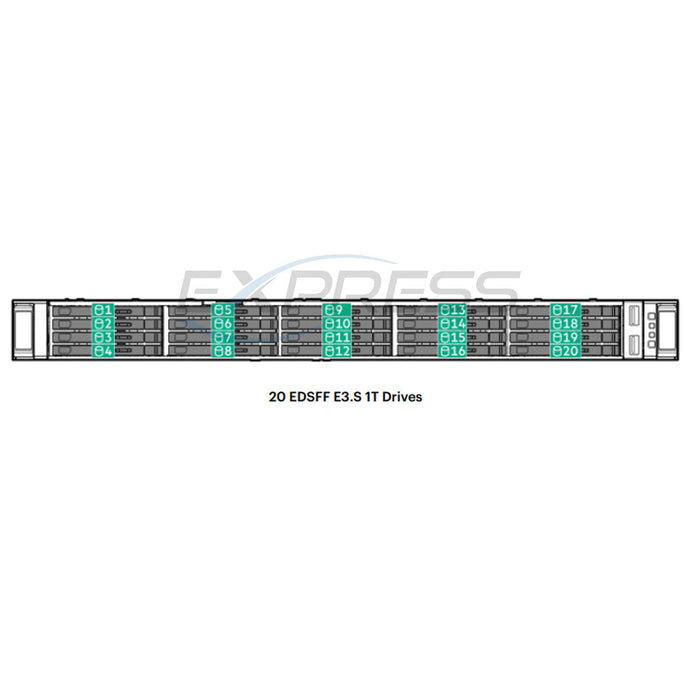

DL325 G11 20 EDSFFP54201-B21
DL325 G11 GPU ChassisP54202-B21 HPE DL325 Backplane / Drive Cages

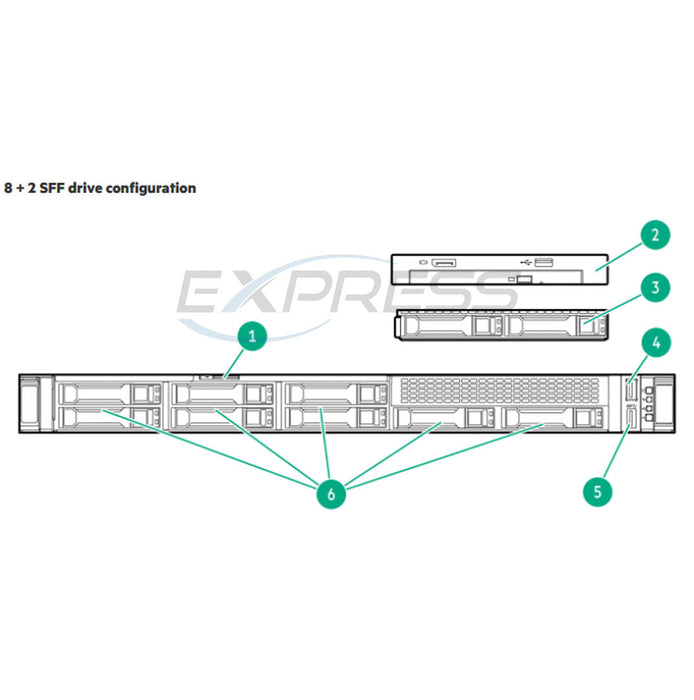

8x 2.5" Options
P54999-B21 - 8SFF x1 Tri-Mode U.3
P55000-B21 - 8SFF x4 Tri-Mode U.3
P56652-B21 - 2SFF x4 Tri-Mode U.3

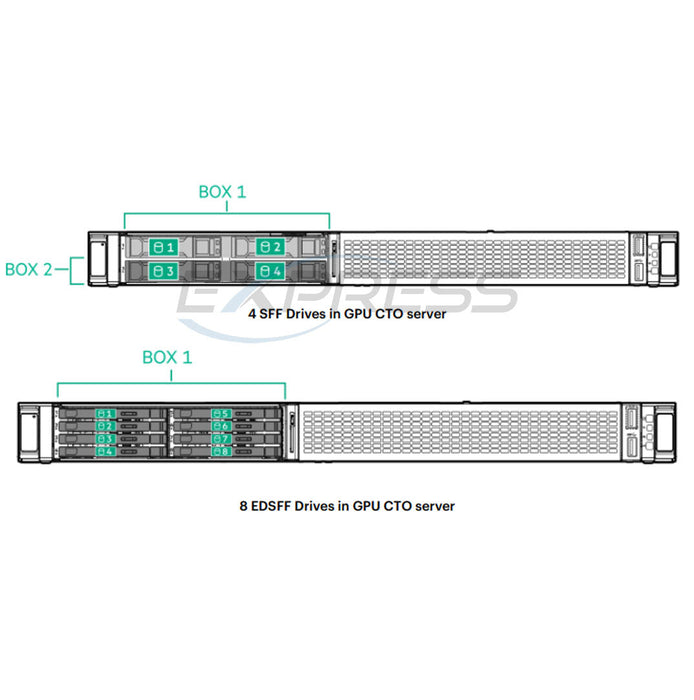

GPU CTO Options
P64521-B21 - 4SFF x4 NVMe Drive Cage Kit
P64522-B21 - 8EDSFF x4 Drive Cage Kit
P70287-B21 - 4SFF + Dual OCP Tri-Mode Kit
Notes 8SFF CTO- P54999-B21 - x1 Tri-Mode U.3 (lower performance)
- P55000-B21 - x4 Tri-Mode U.3 (more PCIe bandwidth)
- P56652-B21 - 2x 2.5" Drives Or ODD Media Bay
- P64521-B21 - Standard 4x NVMe drive cage.
- P64522-B21 - 8 EDSFF (E3.S) drive cage.
- P70287-B21 - Standard 4x NVMe + Dual OCP.
Standard Heatsink (STD) P58456-B21
TDP < 240W
Performance Heat SinkP58457-B21
260W - 300W
Closed Loop Liquid CoolingP58463-B21
TDP > 320W
Direct Liquid Cooling Options Below
TDP > 320W

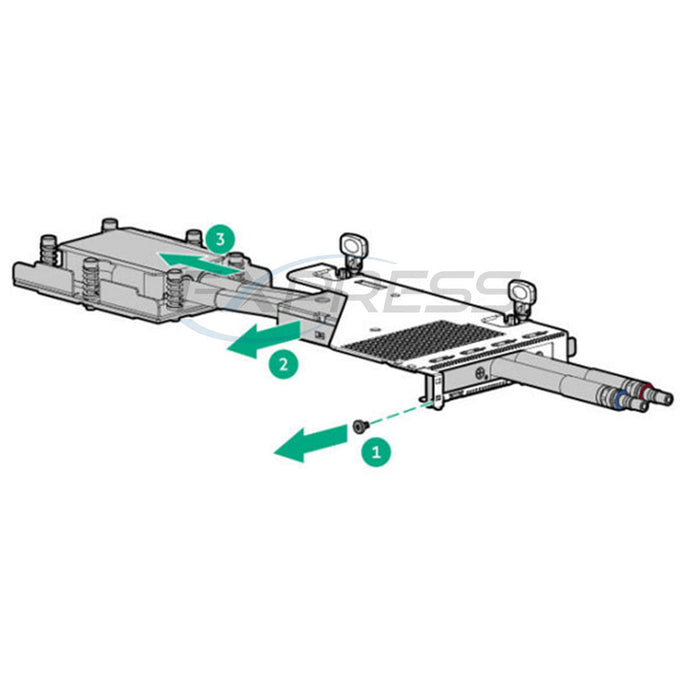

Cold Plate from PCIeP80871-B21

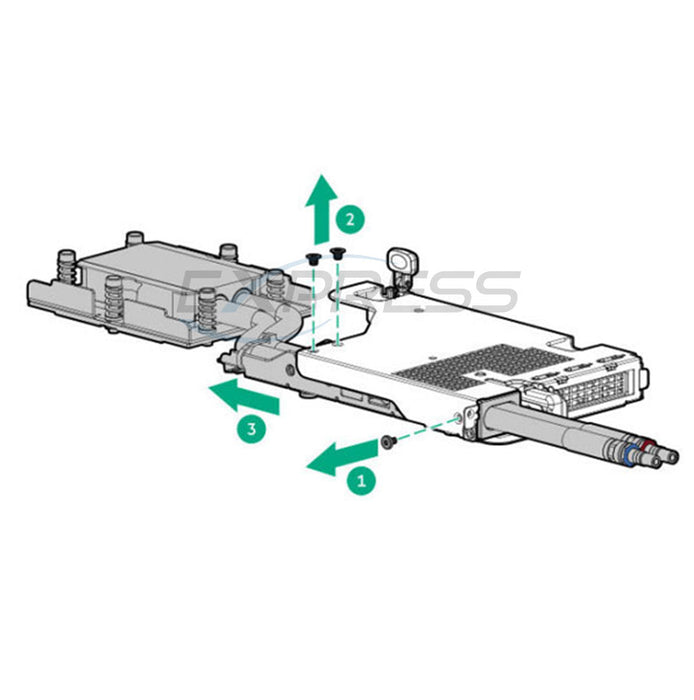

Cold Plate from NS204i-uP80876-B21

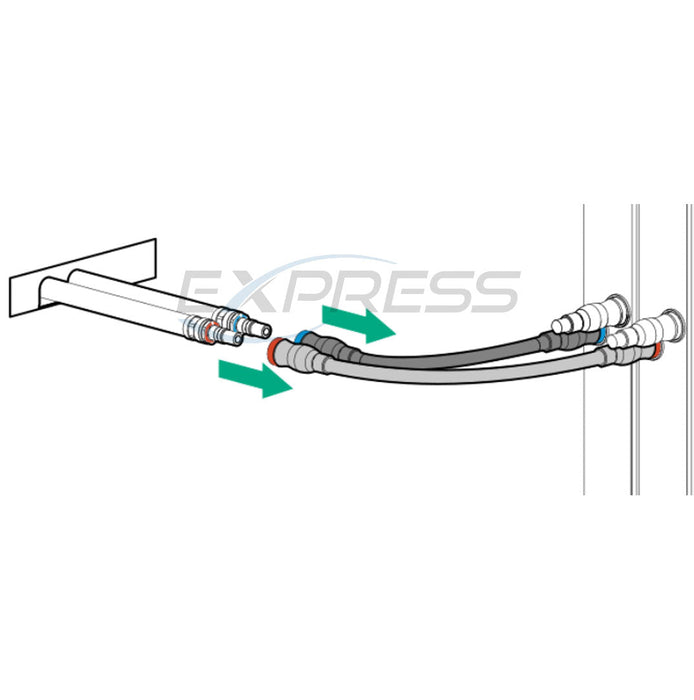

55cm Quick DisconnectP62042-B21
450mm Quick DisconnectP62046-B21
- Seven (7) performance fan kits are required.
- 450mm Quick Disconnect for GPU-optimized server.
- 55cm Quick Disconnect for non-GPU-optimized configuration

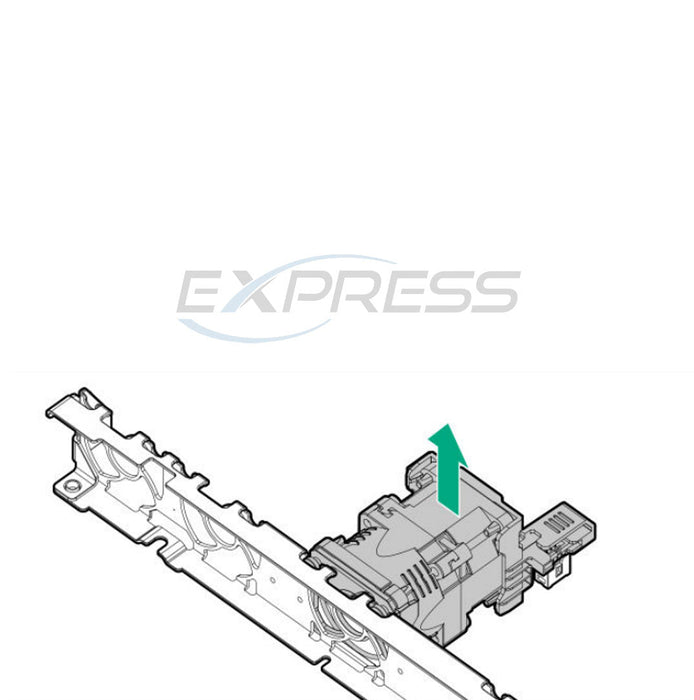

Standard Fan P58461-B21
Performance Heat SinkP58462-B21

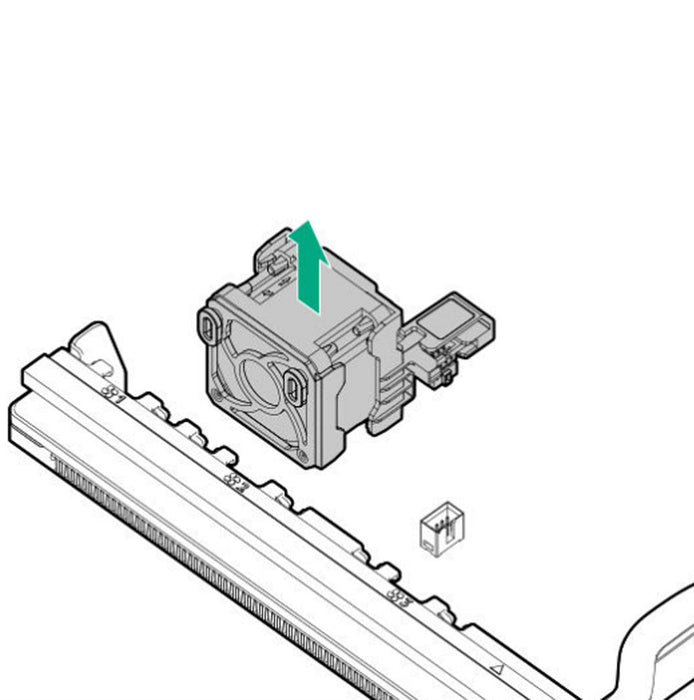

Liquid Cooling Fan KitP59668-B21
Liquid Cooling Fan Kit is Required with the Closed Loop Liquid Cooling Heat sink is selected.
M.2 Drive Options Device

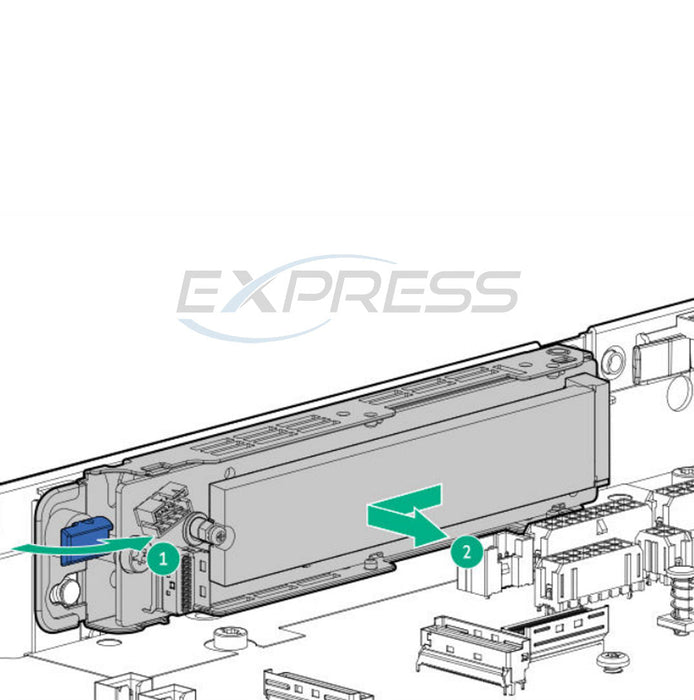

M.2 Enablement Pass Through Card - P57014-B21
A PCIe-based add-in card that provides two M.2 slots (supporting both 2280 and 22110 form factors) for either SATA or NVMe SSDs via SlimSAS connection. Places is Slot 1, takes a PCIe slot.
- No RAID supported on this option
- Cannot be selected with the NS204i-u boot device
- Not compatible with EDSFF CTO server + Liquid Cooling Fan Kit
- Requires Performance or Liquid Cooling fans if used with SFF/LFF servers
NS204i-u Boot Device
A dedicated hot-plug boot device that mounts externally accessible at the rear of the server, housing two M.2 NVMe SSDs pre-configured in RAID 1 mirror. It does not occupy a PCIe slot but requires the secondary low-profile riser (P55029-B21)
- RAID 1 is pre-configured and cannot be changed
- Cannot be selected with the M.2 enablement kit
- Requires Performance or Liquid Cooling fans
- Not compatible with EDSFF CTO + Liquid Cooling Fan Kit
NS204i-u Options
v1 2x 480GB NVMeP48183-B21
v2 2x 480GB NVMeP78279-B21
v2 2x 960GB NVMe P81160-B21
v2 2x 960GB NVMe SED P62046-B21
- v1 - Supported by AMD 4th Gen
- v2 - Supported by AMD 5th Gen
The MR (MegaRAID) and SR (SmartRAID) series use different RAID configuration tools and cannot be mixed in the same server. Both series support SAS, SATA, and NVMe drives when used with a tri-mode U.3 backplane, enabling mixed drive configurations. The server has no embedded software RAID — direct attached SATA drives operate in AHCI mode only, so a controller is required for any hardware RAID.
SR Series (SmartRAID)
SR Series
Installation Service Manual
The SR series is the high-end controller line, only available in type-p PCIe form factor.
This is the go-to choice for high drive count configurations or maximum storage throughput. Like the cached MR controllers it requires a battery or capacitor for cache protection.
MR Series (MegaRAID) - View PDF
MR Series
Installation Service Manual
The MR series is the broader, more flexible controller line available in both type-o and type-p form factors.
The cached models (MR408i-o, MR416i-o, MR416i-p) add a Flash-Backed Write Cache (FBWC)
Choosing Between MR and SR
- Need OCP slot deployment → MR type-o only
- Simple RAID, no cache needed → MR216i-o or MR216i-p
- Need cache, moderate drive count → MR408i-o or MR416i-o/p
- Maximum drive count or throughput → SR932i-p
- External SAS/SATA storage → E208e-p (Gen10, type-p, external only)
Non GPU Risers
Primary Riser installed by default (Slot 1)
P56915-B21 - Secondary Riser - x16 Riser Kit
P55029-B21 - Secondary Riser - x16 Low Profile Kit
GPU Risers
P64520-B21 - FHFL Add-on Cards Support Kit
- The Primary riser default - PCIe Gen5 x16 FH HL.
- P55029-B21 - Required if NS204i-u (P48183-B21) is selected
- P64520-B21 - In a GPU Server this provides extra PCIe Lanes to support FH/FL Cards in Slot 1
The Manuals are very poor in this GPU section. They do not explain how 4 SW GPUs are installed in this server. They also dont have any information about supported GPUs other than the L4 SW GPU. Below are GPUs that work for the DL320 Gen 11.
NVIDIA L4 24GBS0K89
- 24 GB GDDR6
- 72 W TDP
- SW FH/FL
- 4.0 x16
NVIDIA A16 64GBR8T26C
- 64 GB GDDR6
- 250 W TDP
- DW LP
- 4.0 x16
NVIDIA L40 48GBS0K90C
- 48 GB GDDR6
- 300 W TDP
- DW
- 4.0 x16
NVIDIA L40S 48GBS2L70C
- 48 GB GDDR6
- 350 W TDP
- DW
- 4.0 x16
Notes:
- Cannot mix GPUs Models.
- All 7 high-performance fans are required for any GPU installation

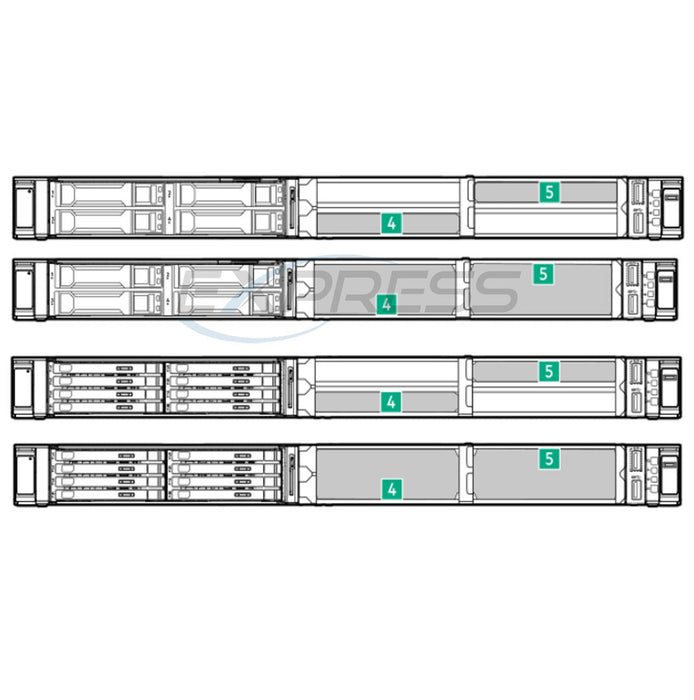

- Front-end GPU riser cage — Slot 4 and Slot 5
- Rear primary riser cage — Slot 1
HPE iLO 6 is the 6th-generation Integrated Lights-Out management processor built into HPE ProLiant Gen11 servers (including the DL325 Gen11).
It delivers secure out-of-band remote management, allowing you to monitor, control, and troubleshoot the server even when the OS is down or the server is powered off.
Key features include a hardware Silicon Root of Trust, enhanced security (secure boot, attestation), Redfish-compliant RESTful API, improved remote console, virtual media, and seamless integration with HPE Compute Ops Management and OneView.
