HPE ProLiant DL320 Rack Server (G11) Configuration
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE ProLiant DL320 Rack Server (G11) Configuration
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE ProLiant DL320 Rack Server (G11) Configuration
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE ProLiant DL320 Rack Server (G11) Configuration
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE ProLiant DL320 Rack Server (G11) Configuration
HPE ProLiant DL320 Rack Server (G11) Configuration

HPE ProLiant DL320 Rack Server (G11) Configuration

por HPE
R$ 0,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
Quick Specs
  • (1) Intel 4th/5th Generation XEON Processors
  • (16) DDR5 - Max Memory 128 GB
  • (2) PCIe5 x16 (16, 8, 4, 1)
  • (1) OCP slot
  • Supports up to (12 LFF or 10 SFF or 8 EDSFF) Drives
  • Optional RAID 1 NVMe M.2 Boot device
  • Embedded Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T Adapter
  • HPE iLO 6 ASIC & TPM 2.0
  • (2) GPU Supported
Other Versions

(Click to View)

 Ideal for:
  • AI
  • Edge Servers
 HPE DL320 G11 Chassis Options

The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact design and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads.

DL320 G11 4x 3.5 DL320 G11 4x 3.5"
P52765-B21 DL320 G11 12x 3.5 DL320 G11 12x 3.5
P52767-B21 DL320 G11 8+2 SFF DL320 G11 8+2 2.5" SAS/SATA/NVMe

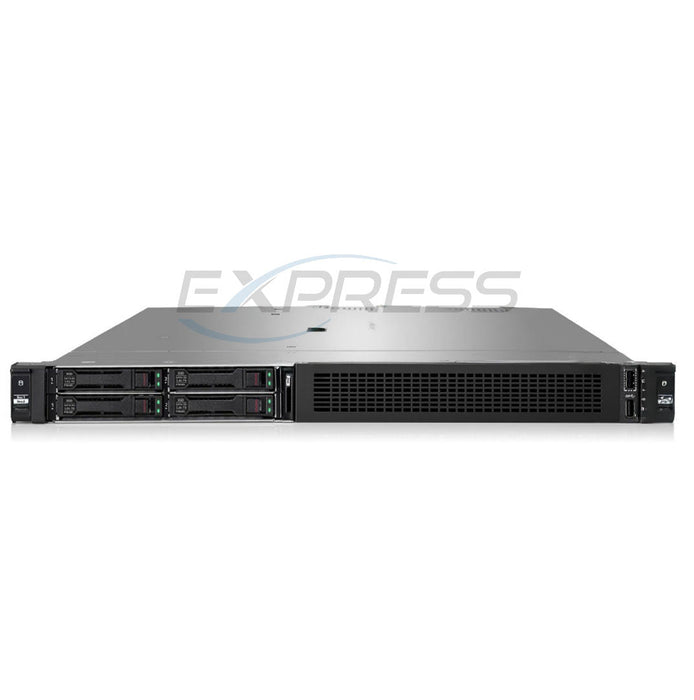

P52766-B21 DL320 G11 GPU Chassis DL320 G11 GPU Chassis
P61218-B21 HPE DL320 Backplane / Drive Cages HPE DL320 G11 Riser Assembly 4x 3.5" Options

P48928-B21 - LFF DisplayPort/USB Kit

 HPE DL320 G11 Riser Assembly 8x 2.5" Options

P52743-B21 - 8SFF x1 Tri-Mode 24G

P52747-B21 - 8SFF x4 Tri-Mode 24G

P52751-B21 - 2SFF x4 Tri-Mode 24G
OR

P48926-B21 - DisplayPort/USB/Optical Drive Blank Kit

 HPE DL320 G11 GPU CTO GPU CTO Options

P61219-B21 - 8xEDSFF x4 NVMe Drive Cage Kit

P61221-B21 - 4xSFF x4 Tri-Mode 24G U.3 BC Drive Cage Kit
Notes
  • DA = Direct Attached
  • P52743-B21 - DA supports 8 SATA Drives only
  • P52747-B21 - DA supports 8 NVMe U.3 Drives only
  • P52751-B21 - DA supports either 2x NVMe U.3 drives or SATA drives.
  • P61219-B21 - DA supports up to 4 EDSFF drives only
  • P61221-B21 - DA supports up to 4 NVMe U.3 drives only.
  • P62181-B21 - If 8EDSFF or 4SFF Drive cage is selected and MR416i-p is not selected, then "HPE DL320 G11 GPU 4xDC NVMe FIO Kit" must be selected.
    Cannot be selected if MR416i-p controller is selected
  • There are tons of rules and cable kit information in the manuals. Please open the manuals above to few all the detailed information.
 HPE DL320 Heatsink DL320 G11 tandard Heatsink (STD) Standard Heatsink (STD)
P48904-B21 DL320 G11 High Performance Heat Sink Performance Heat Sink
P52756-B21 DL320 G11 High Performance Fan High Performance Fan
P48908-B21
Notes
  • P52756-B21 & P48908-B21 - TDP > 185W Processors or NVMe Drives
  • If GPU CTO Model is selected, then Performance Heatsink must be selected
  • P48907-B21 - 5 Fans
  • P48908-B21 - 7 Fans
  • P54697-B21 - 2 Fans
 HPE DL320 Gen11 NS204i-u Boot Device

HPE NS204i-u Boot Device is an optional front-panel PCIe 5.0 module for the DL320 Gen11 with two hot-pluggable 2280 M.2 NVMe SSDs. It delivers dedicated hardware RAID 1 boot mirroring that auto-creates the volume at boot and supports Windows, Linux, and VMware via native drivers.

Requirements: N204i-u Boot device includes 2x 480GB M.2 NVMe SSDs, with pre-configured hardware RAID1. Server must use high performance fan kit when supporting NS204i-u for all CTO Configs. The specific cables needed to connect the NS204i-u in the DL320 Gen11 (P52786-B21)

 HPE DL320 G11 HPE DL320 Gen11 PCI Risers HPE DL320 G11 Riser Assembly Riser Assembly

Primary Riser installed by default (Slot 1)

P52753-B21 -Secondary Riser - 2x PCIe Gen5 x16 FHHL

 HPE DL320 G11 Riser Assembly Riser GPU

P62181-B21 - Supports 4x SW GPUs

P62197-B21 - Supports 2x DW GPUs

Max 2 of PCIe and OROC internal controllers can be selected per server.
Both Risers are Supported in the GPU CTO
If Full Length GPUS are installed the rear PCIe slots will support LP Adapters.

HPE DL320 Gen11 GPU HPE DL320 G11 L4 24GB NVIDIA L4 24GB
S0K89
  • 24 GB GDDR6
  • 72 W TDP
  • SW FH/FL
  • 4.0 x16
 HPE DL320 G11 A16 GPU NVIDIA A16 64GB
R8T26C
  • 64 GB GDDR6
  • 250 W TDP
  • DW LP
  • 4.0 x16
 HPE DL320 G11 l40s GPU NVIDIA L40 48GB
S0K90C
  • 48 GB GDDR6
  • 300 W TDP
  • DW
  • 4.0 x16
 HPE DL320 G11 l40s GPU NVIDIA L40S 48GB
S2L70C
  • 48 GB GDDR6
  • 350 W TDP
  • DW
  • 4.0 x16
Notes:
  • Cannot mix Doublewide and Singlewide GPU.
  • P62181-B21 - Allows installation and proper operation of 4 GPUs in the front GPU cage.
  • P62197-B21 - Allows installation and proper operation of 2 GPUs (typically double-wide cards) in the front GPU cage.
 HPE DL320 Gen11 Lights Out! iLO

HPE iLO 6 is the 6th-generation Integrated Lights-Out management processor built into HPE ProLiant Gen11 servers (including the DL320 Gen11).

It delivers secure out-of-band remote management, allowing you to monitor, control, and troubleshoot the server even when the OS is down or the server is powered off.

Key features include a hardware Silicon Root of Trust, enhanced security (secure boot, attestation), Redfish-compliant RESTful API, improved remote console, virtual media, and seamless integration with HPE Compute Ops Management and OneView.

 Key Configuration Notes

1. The GPU CTO chassis supports either 4x single-wide GPUs or 2x double-wide GPUs — these configurations cannot be mixed.

2. High Performance Fan Kit is recommended when installing GPUs..

3. When using GPUs in the front cage, rear PCIe slots become more limited due to power and thermal constraints.

4. The Standard chassis uses rear PCIe risers. The GPU CTO chassis uses a front GPU cage instead.

5. Not all storage controllers and networking cards are available in both PCIe (-p) and OCP (-o) versions.

6. Some configurations may require specific cable kits depending on the drive backplane and controller chosen.
