- (1) AMD 4th/5th Generation AMD EPYC™ Processors
- (6) 4800 or 6400 MT/s DDR5
- Max Memory 768 GB
- (3) PCIe5 x16 (16, 8, 4, 1)
- (1) OCP slot (External)
- Supports up to (2 SFF or 6 EDSFF) Drives
- Support NS204i-u v2 for boot
- HPE iLO 6 ASIC & TPM 2.0
- (3) GPU Supported
Other Versions
(Click to View)
Ideal for:- AI
- Edge Servers

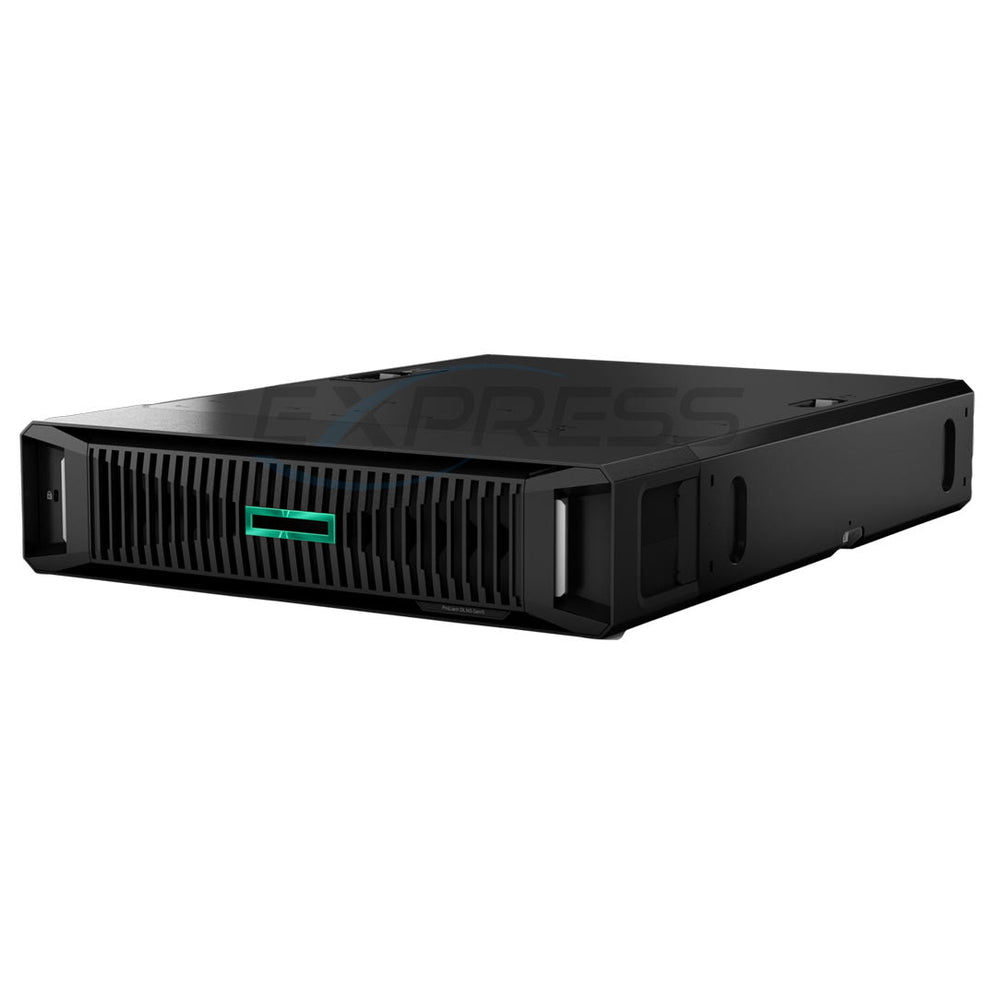

The HPE ProLiant DL145 Gen11 server is a 2U, single processor, robust edge computing server designed to cater to the needs of retail, manufacturing, telecommunications, and various other industries. It offers a compelling alternative to traditional servers with its sleek design, affordable pricing, and quiet operation.
DL145 G11 SFF P71977-B21
DL145 G11 4x EDSFFP71985-B21
DL145 G11 6x EDSFFP71981-B21 HPE DL145 G11 Heatsink
2U Heatsink (STD)
1U Heatsink
GPU air Baffle
Notes
- 1U Heat Sink is required for full length card.
- 2U heatsink is not supported with Nvidia L40S and RTX PRO 4500 GPU
- If DW GPU is selected, then 1U Heat Sink, DW GPU Cable Kit and DW GPU Air Baffle Kit must be selected
Up to 4 Fans
Standard Fan
High Performance Fan
Notes
- 2 SFF - STD Standard fan
- 4 E3.S, or 6 E3.S - HPR High performance fan
HPE NS204i-u Boot Device is an optional front-panel PCIe 5.0 module for the DL145 Gen11 with two hot-pluggable 2280 M.2 NVMe SSDs. It delivers dedicated hardware RAID 1 boot mirroring that auto-creates the volume at boot and supports Windows, Linux, and VMware via native drivers.
Requirements: NS204i-u enablement kit, matching SSD model/firmware on both bays, latest iLO and BIOS firmware, dedicated cables (blue power P54088-001 and orange signal P54087-001), T-10 Torx screwdriver, antistatic precautions, and populated bays or blanks for cooling. Manage via UEFI System Utilities.
HPE DL145 Gen11 PCI Risers
If "Slot 1 Riser Kit " is selected, then "Slot 2 Riser Kit " must be selected. These Riser cards are stacked ontop of eachother. To get power and PCIe lanes to the Slot 1 at the top. All risers cards need to be stacked.
Riser Assembly
3x PCIe Gen5 x16 FHHL
Shipping default in ALL CTO server
3x PCIe Slots
P60861-001 Slot 1 stacking riser
P60422-001 Slot 2 stacking riser
P59443-001 Slot 3 1U base riser
Stacking Riser Cards
If "Slot 1 Riser Kit " is selected, then "Slot 2 Riser Kit " must be selected (NOT VICE VERSA).
Notes:
- P71989-B21 - HPE ProLiant DL145 Gen11 Slot 2 Riser Kit
- P71991-B21 - HPE ProLiant DL145 Gen11 Slot 1 Riser Kit
If "Slot 1 Riser Kit " is selected, then "Slot 2 Riser Kit " must be selected. These Riser cards are stacked ontop of eachother. To get power and PCIe lanes to the Slot 1 at the top. All risers cards need to be stacked.
NVIDIA L4 24GBS0K89C
- Memory: 24 GB GDDR6
- Power: 72 W TDP
- Form Factor: SW LP
- PCIe: 4.0 x16
NVIDIA L40S 48GBS2L70C
- Memory: 48 GB GDDR6
- Power: 350 W TDP
- Form Factor: DW
- PCIe: 4.0 x16
NVIDIA RTX PRO 4500 32GBS6W30C
- Memory: 32 GB GDDR7 ECC
- Power: 165 W TDP
- Form Factor: SW FH/FL
- PCIe: 5.0 x16
Notes:
- Cannot mix Doublewide and Singlewide GPU.
- If Doublewide GPU is selected, then Slot 1 Riser Kit cannot be selected
- If DW GPU is selected, then 1U Heat Sink, DW GPU Cable Kit and DW GPU Air Baffle Kit must be selected
- 2U heatsink is not supported with Nvidia L40S and RTX PRO 4500 GPU
MIL-STD-810H testing was performed on the HPE ProLiant DL145 Gen11 configured with the Military Ruggedization FIO Kit (P87008 B21). This factory installed option reinforces internal mechanical structures including drives, network adapters, power supplies, and retention mechanisms. The kit enables the system configuration to meet MIL-STD-810H environmental requirements for altitude, temperature, humidity, vibration, and shock.
Contact us today about the DL145 MIL Server
| Test Category | Method | Procedures | Notes |
|---|---|---|---|
| Altitude Storage | 500.6 | I | 40Kft |
| Altitude Operation | 500.6 | II | 15Kft |
| Altitude Operation | 500.6 | III | 8Kft/40Kft |
| High Temp Storage | 501.7 | I | +85 °C |
| High Temp Operation | 501.7 | II | +55 °C |
| High Temp Tactical Standby | 501.7 | III | +60 °C |
| Low Temp Storage | 502.7 | I | -55 °C |
| Humidity | 507.6 | II | 95%, 10 cycles |
| Vibration | 514.8 | I | Category 8, Propeller Aircraft |
| Vibration | 514.8 | I | Category 12, Jet Aircraft |
| Vibration | 514.8 | I | Category 20, Ground Vehicles (Common Carrier Profile) |
| Vibration | 514.8 | I | Category 21, Shipboard Random Vibration |
| Shock | 516.8 | I | Functional Shock; 20g, 11ms |
HPE iLO 6 is the 6th-generation Integrated Lights-Out management processor built into HPE ProLiant Gen11 servers (including the DL145 Gen11).
It delivers secure out-of-band remote management, allowing you to monitor, control, and troubleshoot the server even when the OS is down or the server is powered off.
Key features include a hardware Silicon Root of Trust, enhanced security (secure boot, attestation), Redfish-compliant RESTful API, improved remote console, virtual media, and seamless integration with HPE Compute Ops Management and OneView.
