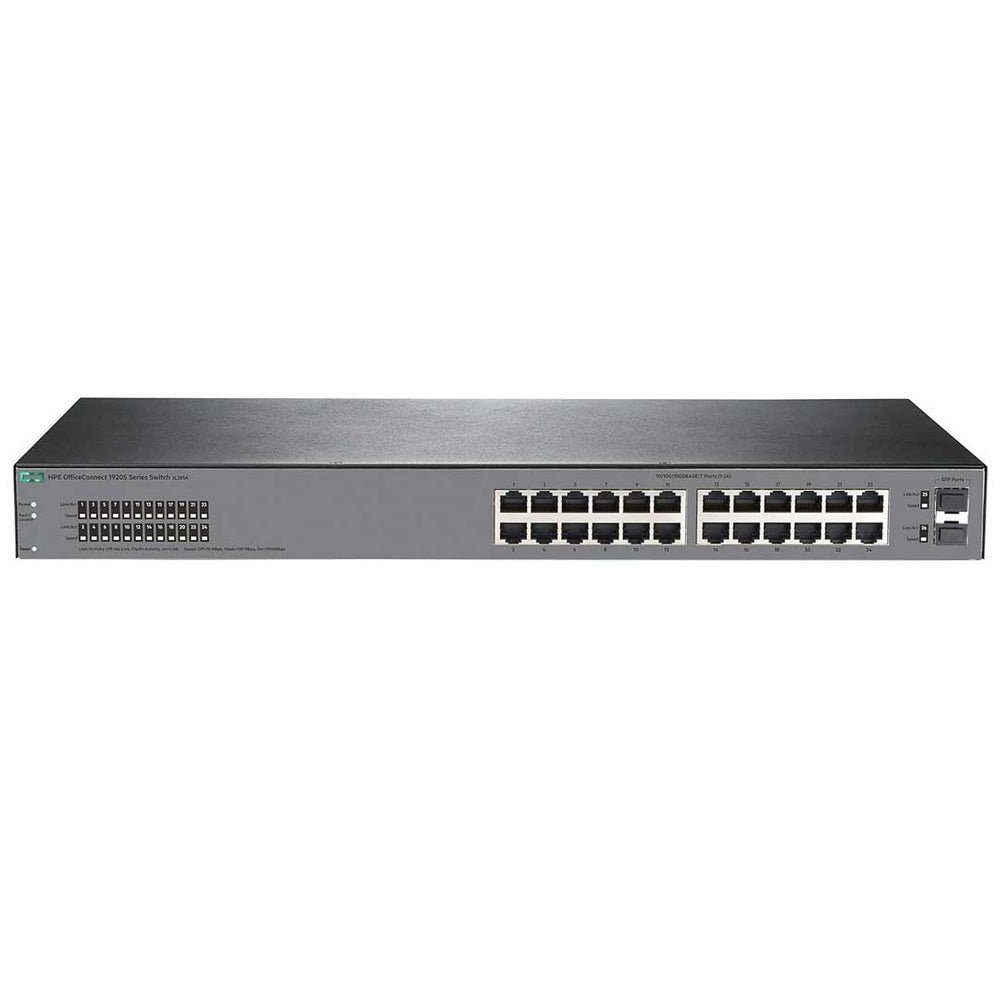

HPE OfficeConnect 1920S 24G + 2SFP Switch | JL381A
HPE OfficeConnect 1920S 24G + 2SFP Switch | JL381A

HPE OfficeConnect 1920S 24G + 2SFP Switch | JL381A

por HPE
R$ 0,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
Switch Specs:
Quick Specs:
  • HPE OfficeConnect 1920S 48G 4SFP Switch
    • 24 RJ-45 autosensing 10/100/1000 ports
    • 2 SFP 100/1000 Mbps ports (min=0 \ max=2 SFP Transceivers)
    • 1U - Height
    • 17.42(w) x 9.69(d) x 1.73(h) in (44.25 x 24.61 x 4.39 cm)
    • Weight 6 lb (2.72 kg)
  • PDU Cable NA/MX/TW/JP
    • C15 PDU Jumper Cord (NA/MX/TW/JP) | JL381A#B2B
  • PDU Cable ROW
    • C15 PDU Jumper Cord (ROW) | JL381A#B2C
  • No Power Cord
    • • No Localized Power Cord Selected | JL381A#AC3
  • Note 2: Localization (Wall Power Cord) required on orders without #B2B or #B2C (PDU Power Cord).
  • Note 3: The following Transceivers install into this switch:
    • Aruba 100M SFP LC FX 2km MMF XCVR J9054
    • Aruba 1G SFP LC SX 500m MMF XCVR J4858D
    • Aruba 1G SFP LC LX 10km SMF XCVR J4859D
    • Aruba 1G SFP RJ45 T 100m Cat5e XCVR J8177D
Key features
  • Customized operation using intuitive Web interface
  • Layer 3 static routing with 32 routes for network segmentation and expansion
  • Access control lists for granular security control
  • Spanning Tree Protocol: STP, RSTP, and MSTP
  • 8-, 24- and 48-port non-PoE+ models are fanless for quiet operation
  • HPE Limited Lifetime warranty

The HPE OfficeConnect 1920S Switch Series consists of advanced smart-managed fixed-configuration Gigabit switches designed for small businesses in an easy-to-administer solution.

The series consists of seven switches including 8- 24- and 48-port Gigabit Ethernet switches and 8-, 24- and 48-port PoE+ models of which half the ports are POE+ capable. An additional 24-port PoE+ model is available that provides PoE+ on all 24- ports. All ports provide non-blocking Gigabit per performance. Some models include SFP ports for fiber connectivity and the 8-, 24- and 48-port non PoE+ models are fanless, making them ideal for office deployments. All HPE OfficeConnect 1920S Switches support flexible installation options, including mounting on wall, under table, or on desktop. The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet switch for environments where no line power is available.
Features and benefits Management
  • Simple Web management Allows for easy management of the switch—even by nontechnical users—through an intuitive Web GUI; supports HTTP and HTTP Secure (HTTPS)
  • SNMPv1, v2c, and v3 Facilitate management of the switch, as the device can be discovered and monitored from an SNMP management station
  • Complete session logging Provides detailed information for problem identification and resolution
  • Port mirroring Enables traffic on a port or VLAN to be simultaneously sent to a network analyzer for monitoring
  • Dual flash images Provide independent primary and secondary operating system files for backup while upgrading
  • Network Time Protocol (NTP) Synchronizes timekeeping among distributed time servers; keeps timekeeping consistent among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time
  • Manual network time configuration Manually set the date and time on the switch in the absence of an NTP server
  • Default DHCP client mode Allows the switch to be directly connected to a network, enabling plug-and-play operation; in absence of a DHCP server on the network, the switch falls back to the static address 192.168.1.1
  • FTP and TFTP Provides different mechanisms for configuration updates; FTP allows bidirectional transfers over a TCP/IP network; trivial FTP (TFTP) is a simpler method using user Datagram Protocol (UDP)
  • Remote monitoring (RMON) Remote monitoring (RMON) provides advanced monitoring and reporting capabilities for statistics, history, alarms and events. RMON data is retrieved from the switch through a network management platform over SNMP.
Layer 3 services
  • Address Resolution Protocol (ARP) Displays the MAC address of another IP host in the same subnet; supports static ARPs; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
  • DHCP relay Simplifies management of DHCP addresses in networks with multiple subnets
Layer 3 routing
  • Static IPv4 routing Provides basic routing supporting up to 32 static routes to allow manual routing configuration
  • Link aggregation Groups together multiple ports up to a maximum of eight ports per trunk either automatically using Link Aggregation Control Protocol (LACP), or manually, to form an ultra-high-bandwidth connection to the network backbone; help prevent
  • traffic bottlenecks. The 8 port models support 4 trunks, 16 and 24 port models support 8 trunks, 48 port models support 16 trunks.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
Switch Specs:
Quick Specs:
  • HPE OfficeConnect 1920S 48G 4SFP Switch
    • 24 RJ-45 autosensing 10/100/1000 ports
    • 2 SFP 100/1000 Mbps ports (min=0 \ max=2 SFP Transceivers)
    • 1U - Height
    • 17.42(w) x 9.69(d) x 1.73(h) in (44.25 x 24.61 x 4.39 cm)
    • Weight 6 lb (2.72 kg)
  • PDU Cable NA/MX/TW/JP
    • C15 PDU Jumper Cord (NA/MX/TW/JP) | JL381A#B2B
  • PDU Cable ROW
    • C15 PDU Jumper Cord (ROW) | JL381A#B2C
  • No Power Cord
    • • No Localized Power Cord Selected | JL381A#AC3
  • Note 2: Localization (Wall Power Cord) required on orders without #B2B or #B2C (PDU Power Cord).
  • Note 3: The following Transceivers install into this switch:
    • Aruba 100M SFP LC FX 2km MMF XCVR J9054
    • Aruba 1G SFP LC SX 500m MMF XCVR J4858D
    • Aruba 1G SFP LC LX 10km SMF XCVR J4859D
    • Aruba 1G SFP RJ45 T 100m Cat5e XCVR J8177D
Key features
  • Customized operation using intuitive Web interface
  • Layer 3 static routing with 32 routes for network segmentation and expansion
  • Access control lists for granular security control
  • Spanning Tree Protocol: STP, RSTP, and MSTP
  • 8-, 24- and 48-port non-PoE+ models are fanless for quiet operation
  • HPE Limited Lifetime warranty

The HPE OfficeConnect 1920S Switch Series consists of advanced smart-managed fixed-configuration Gigabit switches designed for small businesses in an easy-to-administer solution.

The series consists of seven switches including 8- 24- and 48-port Gigabit Ethernet switches and 8-, 24- and 48-port PoE+ models of which half the ports are POE+ capable. An additional 24-port PoE+ model is available that provides PoE+ on all 24- ports. All ports provide non-blocking Gigabit per performance. Some models include SFP ports for fiber connectivity and the 8-, 24- and 48-port non PoE+ models are fanless, making them ideal for office deployments. All HPE OfficeConnect 1920S Switches support flexible installation options, including mounting on wall, under table, or on desktop. The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet switch for environments where no line power is available.
Features and benefits Management
  • Simple Web management Allows for easy management of the switch—even by nontechnical users—through an intuitive Web GUI; supports HTTP and HTTP Secure (HTTPS)
  • SNMPv1, v2c, and v3 Facilitate management of the switch, as the device can be discovered and monitored from an SNMP management station
  • Complete session logging Provides detailed information for problem identification and resolution
  • Port mirroring Enables traffic on a port or VLAN to be simultaneously sent to a network analyzer for monitoring
  • Dual flash images Provide independent primary and secondary operating system files for backup while upgrading
  • Network Time Protocol (NTP) Synchronizes timekeeping among distributed time servers; keeps timekeeping consistent among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time
  • Manual network time configuration Manually set the date and time on the switch in the absence of an NTP server
  • Default DHCP client mode Allows the switch to be directly connected to a network, enabling plug-and-play operation; in absence of a DHCP server on the network, the switch falls back to the static address 192.168.1.1
  • FTP and TFTP Provides different mechanisms for configuration updates; FTP allows bidirectional transfers over a TCP/IP network; trivial FTP (TFTP) is a simpler method using user Datagram Protocol (UDP)
  • Remote monitoring (RMON) Remote monitoring (RMON) provides advanced monitoring and reporting capabilities for statistics, history, alarms and events. RMON data is retrieved from the switch through a network management platform over SNMP.
Layer 3 services
  • Address Resolution Protocol (ARP) Displays the MAC address of another IP host in the same subnet; supports static ARPs; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
  • DHCP relay Simplifies management of DHCP addresses in networks with multiple subnets
Layer 3 routing
  • Static IPv4 routing Provides basic routing supporting up to 32 static routes to allow manual routing configuration
  • Link aggregation Groups together multiple ports up to a maximum of eight ports per trunk either automatically using Link Aggregation Control Protocol (LACP), or manually, to form an ultra-high-bandwidth connection to the network backbone; help prevent
  • traffic bottlenecks. The 8 port models support 4 trunks, 16 and 24 port models support 8 trunks, 48 port models support 16 trunks.
