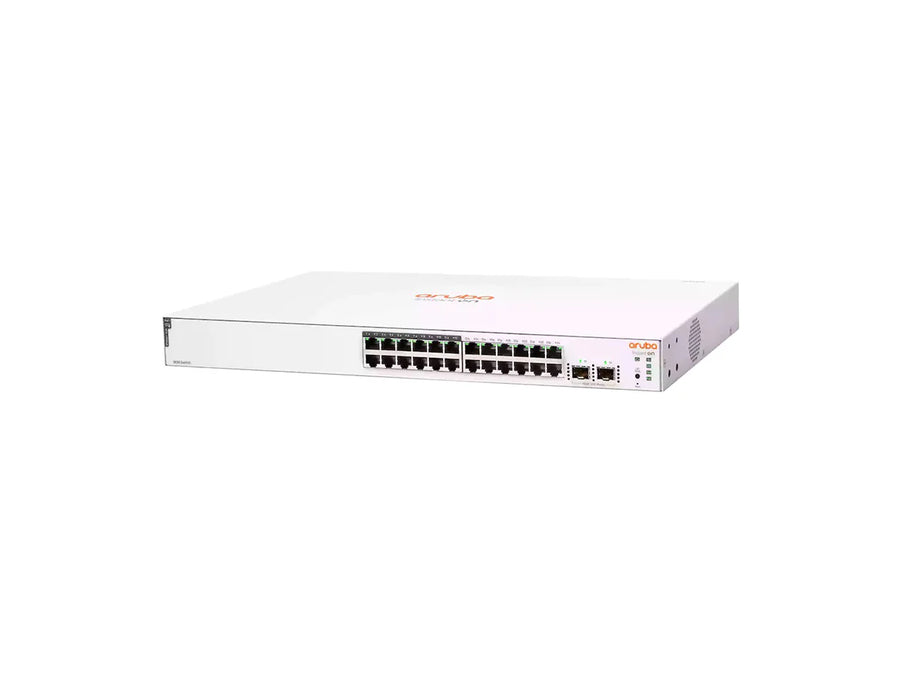

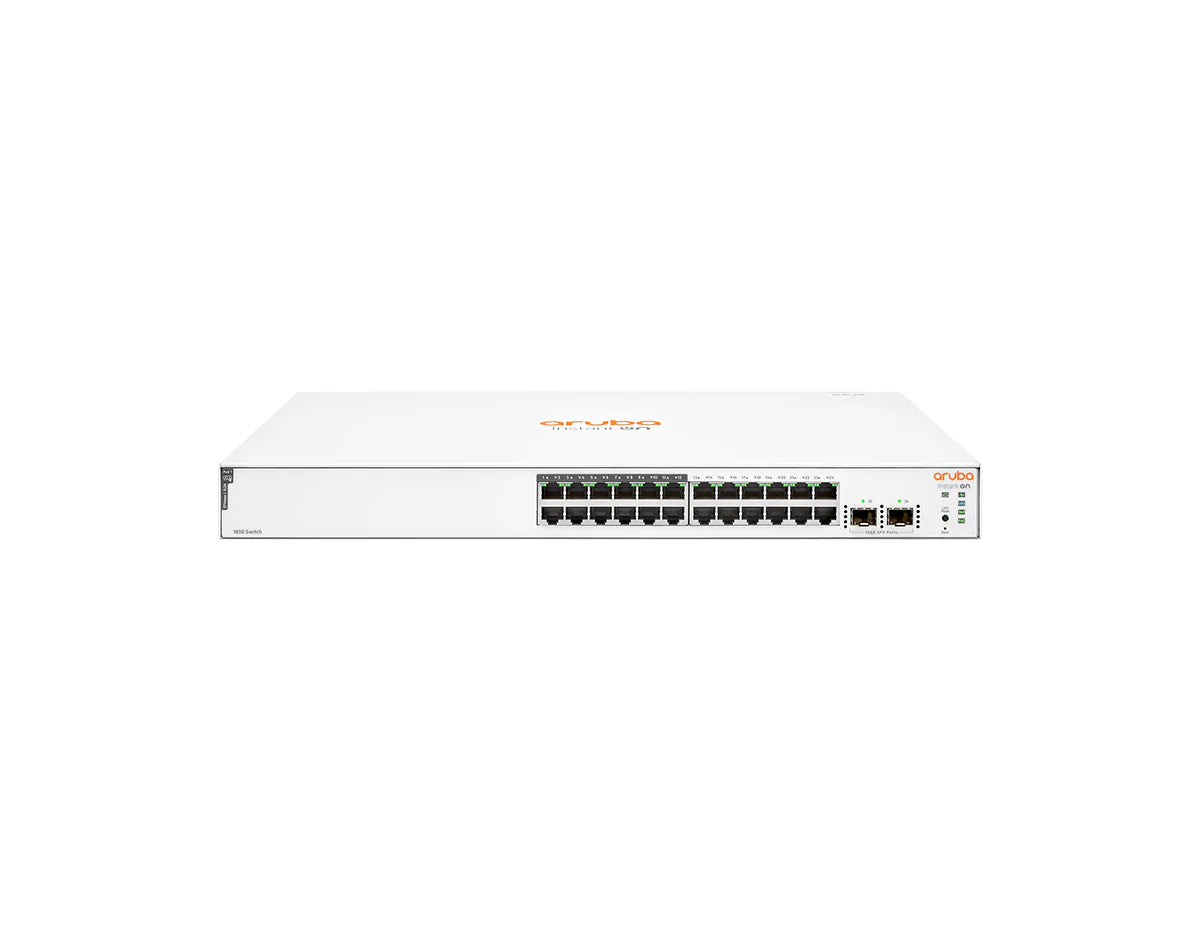

HPE Aruba Networking JL813A Instant On 1830 24G 12p Class4 PoE Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE Aruba Networking JL813A Instant On 1830 24G 12p Class4 PoE Switch
HPE Aruba Networking JL813A Instant On 1830 24G 12p Class4 PoE Switch

HPE Aruba Networking JL813A Instant On 1830 24G 12p Class4 PoE Switch

por HPE Aruba
R$ 3.900,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Smart-managed, Rack-mountable, 24 x 1G PoE+ ports, 2 x 1G SFP uplinks, PoE+ (195W), Layer 2

[/shortdesc]

[properties]

Properties Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch(JL813A)
Description Smart-managed Instant On 1830 Switch supports up to 195W PoE and has dedicated 1G SFP fiber ports for network traffic management. It comes with a mobile app and web-based GUI for easy setup and network management.
Product Family HPE Networking Instant On 1830 Switch Series
Product Type Ethernet Switch
I/O ports and slots I/O ports and slots 24 RJ-45 10/100/1000 Class 4 PoE ports (all 24 ports), 2 SFP 1GbE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports
Frequency 50/60 Hz
Input voltage 100 – 240 VAC
Current 2.7A/1.4A
Maximum power rating 100-127V: 244.6W 200- 220V: 237.2W
PoE power 195 W Class 4 PoE
Idle power 100-127V: 14.5W 200- 220V: 13.4W
Dimension 253.0(d) x 443.0(w) x 43.9(h) mm
Weight 7.65 lb (3.47 kg)

[/properties][specifications]

Specifications Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch(JL813A)
CPU ARM Cortex-A9 @ 800 MHz
Memory and Flash 512 MB SDRAM, 256 MB flash
Packet Buffer 1.5 MB
100 Mb Latency < 5.2µs
1000 Mb Latency < 2.8 µs
Throughput 38.68 Mpps
Routing/Switching capacity 52 Gbps
MAC address table size 16000 entries
Management HPE Networking Instant On Cloud; Web browser; SNMP Manager
Operating temperature  0–40°C, 0–10,000 ft
Altitude up to 10,000 ft (3 km)
MTBF (years) 96.6
Safety EN/IEC 60950-1:2006 + A11:2009 +A1:2010 + A12:2011 +A2:2013 EN/IEC 62368-1, 2nd. & 3rd.Ed.UL 62368-1,2nd. & 3rd. Ed.CAN/CSAC22.2 No.62368-1, 2nd.& 3rd. Ed.EN/IEC 60825-1:2014 Class 1
Emissions EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A

[/specifications][accesories]

Aruba 1G SFP LC LX 10km SMF Transceiver  J4859D
Aruba Instant On SFP LC SX 500M MMF Transceiver  R9D16A

[/accesories]


The HPE Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) is designed for small businesses looking to optimize their network infrastructure. This smart-managed switch offers 24 Gigabit Ethernet ports and 12 PoE-enabled ports, delivering up to 30W per port. The 2 SFP uplink ports provide high-speed connectivity, ensuring reliable performance for data-intensive applications. With a PoE budget of 195W, this switch is ideal for powering devices like IP cameras, wireless access points, and VoIP phones.

Key Features:

  • 12 x PoE-Enabled Ports: Provides up to 30W per port, perfect for powering devices such as access points and IP phones.
  • 24 x 1GbE Ports Total: Ensures fast and reliable network connections for various devices.
  • 2 x SFP Uplink Ports: Supports fiber uplinks for enhanced network scalability and performance.
  • 195W PoE Budget: Powers multiple PoE-enabled devices simultaneously, eliminating the need for external power supplies.
  • Cloud-Based Management: Easily monitor and manage the switch using the Aruba Instant On mobile app or cloud-based web interface.

Technical Overview:

  • Recommended for: Small businesses, retail environments, and branch offices.
  • Ports: 24 x 1GbE (12 PoE), 2 x 1GbE SFP uplinks.
  • Switching Capacity: 52 Gbps.
  • Forwarding Rate: 38.68 Mpps.
  • PoE Power Budget: 195W for powering connected PoE devices.
  • Management: Managed via Aruba Instant On cloud portal or web-based GUI.
  • Energy Efficiency: Compliant with IEEE 802.3az standards for energy-efficient operation.

You can check the related tab for the JL813A datasheet.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Smart-managed, Rack-mountable, 24 x 1G PoE+ ports, 2 x 1G SFP uplinks, PoE+ (195W), Layer 2

[/shortdesc]

[properties]

Properties Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch(JL813A)
Description Smart-managed Instant On 1830 Switch supports up to 195W PoE and has dedicated 1G SFP fiber ports for network traffic management. It comes with a mobile app and web-based GUI for easy setup and network management.
Product Family HPE Networking Instant On 1830 Switch Series
Product Type Ethernet Switch
I/O ports and slots I/O ports and slots 24 RJ-45 10/100/1000 Class 4 PoE ports (all 24 ports), 2 SFP 1GbE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports
Frequency 50/60 Hz
Input voltage 100 – 240 VAC
Current 2.7A/1.4A
Maximum power rating 100-127V: 244.6W 200- 220V: 237.2W
PoE power 195 W Class 4 PoE
Idle power 100-127V: 14.5W 200- 220V: 13.4W
Dimension 253.0(d) x 443.0(w) x 43.9(h) mm
Weight 7.65 lb (3.47 kg)

[/properties][specifications]

Specifications Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch(JL813A)
CPU ARM Cortex-A9 @ 800 MHz
Memory and Flash 512 MB SDRAM, 256 MB flash
Packet Buffer 1.5 MB
100 Mb Latency < 5.2µs
1000 Mb Latency < 2.8 µs
Throughput 38.68 Mpps
Routing/Switching capacity 52 Gbps
MAC address table size 16000 entries
Management HPE Networking Instant On Cloud; Web browser; SNMP Manager
Operating temperature  0–40°C, 0–10,000 ft
Altitude up to 10,000 ft (3 km)
MTBF (years) 96.6
Safety EN/IEC 60950-1:2006 + A11:2009 +A1:2010 + A12:2011 +A2:2013 EN/IEC 62368-1, 2nd. & 3rd.Ed.UL 62368-1,2nd. & 3rd. Ed.CAN/CSAC22.2 No.62368-1, 2nd.& 3rd. Ed.EN/IEC 60825-1:2014 Class 1
Emissions EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A

[/specifications][accesories]

Aruba 1G SFP LC LX 10km SMF Transceiver  J4859D
Aruba Instant On SFP LC SX 500M MMF Transceiver  R9D16A

[/accesories]

HPE Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A)


The HPE Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) is designed for small businesses looking to optimize their network infrastructure. This smart-managed switch offers 24 Gigabit Ethernet ports and 12 PoE-enabled ports, delivering up to 30W per port. The 2 SFP uplink ports provide high-speed connectivity, ensuring reliable performance for data-intensive applications. With a PoE budget of 195W, this switch is ideal for powering devices like IP cameras, wireless access points, and VoIP phones.

Key Features:

  • 12 x PoE-Enabled Ports: Provides up to 30W per port, perfect for powering devices such as access points and IP phones.
  • 24 x 1GbE Ports Total: Ensures fast and reliable network connections for various devices.
  • 2 x SFP Uplink Ports: Supports fiber uplinks for enhanced network scalability and performance.
  • 195W PoE Budget: Powers multiple PoE-enabled devices simultaneously, eliminating the need for external power supplies.
  • Cloud-Based Management: Easily monitor and manage the switch using the Aruba Instant On mobile app or cloud-based web interface.

Technical Overview:

  • Recommended for: Small businesses, retail environments, and branch offices.
  • Ports: 24 x 1GbE (12 PoE), 2 x 1GbE SFP uplinks.
  • Switching Capacity: 52 Gbps.
  • Forwarding Rate: 38.68 Mpps.
  • PoE Power Budget: 195W for powering connected PoE devices.
  • Management: Managed via Aruba Instant On cloud portal or web-based GUI.
  • Energy Efficiency: Compliant with IEEE 802.3az standards for energy-efficient operation.

You can check the related tab for the JL813A datasheet.
