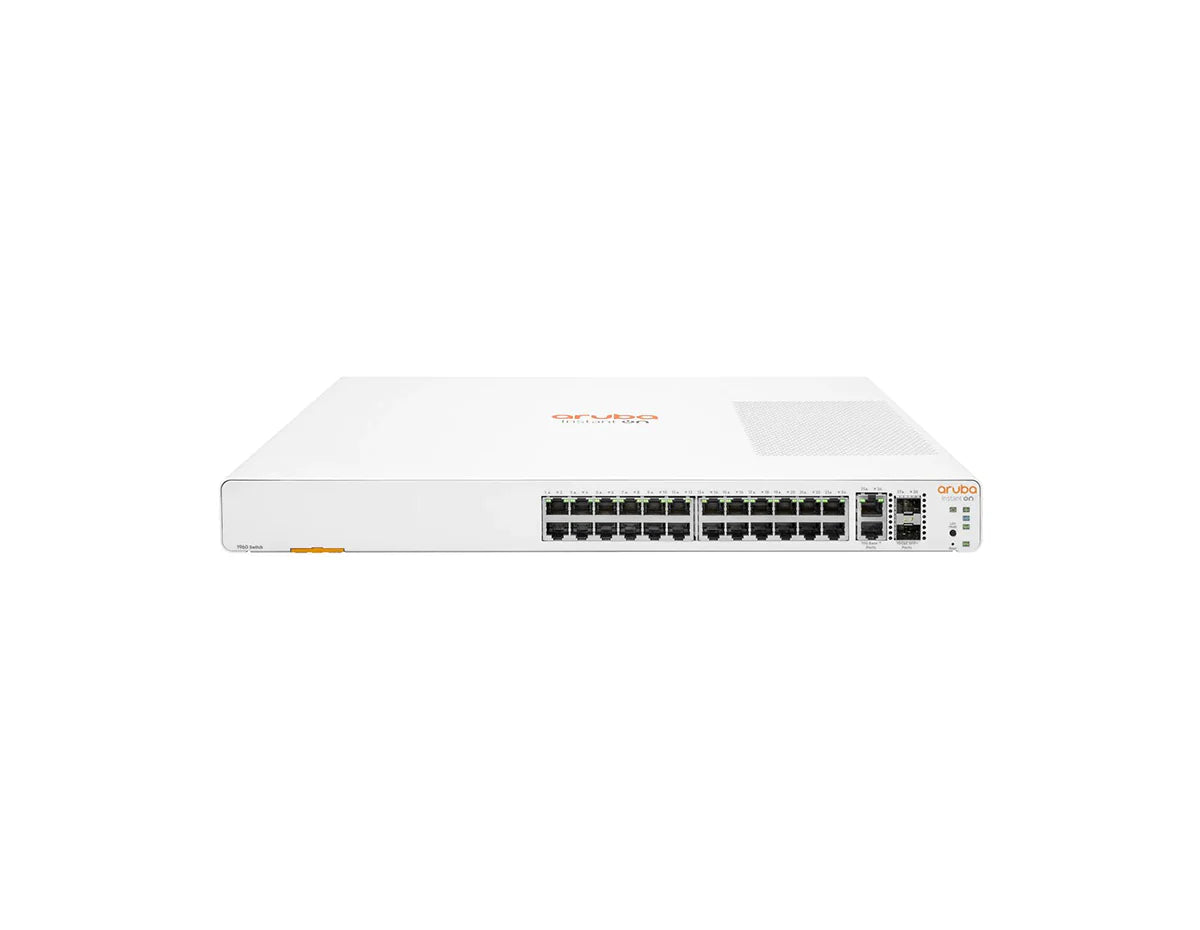

HPE Aruba Networking JL806A Instant On 1960 24-Port Smart Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE Aruba Networking JL806A Instant On 1960 24-Port Smart Switch
HPE Aruba Networking JL806A Instant On 1960 24-Port Smart Switch

HPE Aruba Networking JL806A Instant On 1960 24-Port Smart Switch

por HPE Aruba
Desconto de 32%
R$ 12.228,00
R$ 8.340,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 24x Gigabit ports, 2x 10GBase-T, 2x SFP+ uplinks, 128Gbps switching, 95Mpps throughput, stackable L2+ switch for small businesses. [/shortdesc]

[properties]

Model HPE Networking Instant On 1960 (JL806A)
Product Type Smart-managed Layer 2+ Gigabit Stackable Switch
Ports 24 × 10/100/1000BASE-T (RJ-45) autosensing ports
Uplink Ports 2 × 10GBASE-T, 2 × SFP+ 10 GbE
Switching Capacity 128 Gbps
Throughput 95 Mpps
Processor / Memory Single-Core ARM v7 Cortex-A9 @ 800 MHz, 1 GB DDR3, 512 MB NAND Flash
Packet Buffer 1.5 MB
Stacking Capability Up to 4 switches (cloud-managed or local stacking)
Power Consumption Max: 60 W (100–127V) / 80 W (200–220V); Idle: 30 W (100–127V) / 40 W (200–220V)
Input Voltage 100–127 VAC / 200–240 VAC
Operating Temperature 0°C to 40°C
Operating Altitude 0–10,000 ft
Product Dimensions (W × D × H) 44.25 × 35.05 × 4.4 cm
Weight 3.9 kg
Management HPE Networking Instant On Cloud, Local Web GUI, SNMP Manager
Mounting Rack-mountable (4H height)

[/properties]

[specifications]

Ethernet Standards IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.an (10GBASE-T)
Duplex Mode 100BASE-TX: Half or Full; 1000BASE-T and 10GBASE-T: Full only
Layer Support Smart-managed Layer 2+
Stacking Management Local and Cloud-managed stacking up to 4 members
PoE Support Non-PoE model (PoE is available on other 1960 models)
Security Features VLAN segmentation, ACL support, 802.1X authentication via RADIUS, DoS protection
Network Management HPE Instant On Mobile App, Cloud Web Portal, Local Web GUI, SNMP
Performance High-level Gigabit with 10 GbE Networking for Advanced Small Businesses
Reliability Automatic denial-of-service (DoS) monitors
Certifications Subject to change; covered by express warranty statements

[/specifications]

[accesories]

Included in the Box Switch unit, power cord, rack-mount kit, documentation (per QuickSpecs)
Optional Accessories HPE supported replacement parts and materials
Management Tools HPE Networking Instant On Mobile App, Cloud-based Web Portal, Local Web GUI

[/accesories]

The HPE Networking Instant On 1960 (JL806A) Switch is an advanced smart-managed Layer 2+ Gigabit stackable switch designed for small and growing businesses. It delivers enterprise-class connectivity for high-performance access and aggregation, offering 24 Gigabit ports and four 10 GbE uplinks to handle bandwidth-intensive workloads like voice and video conferencing, ensuring consistent connectivity. Its stackable architecture simplifies deployment and management through both local and cloud options.

  • 10G Uplink Performance: Two 10GBase-T and two SFP+ ports deliver lightning-fast network speeds, eliminating traffic bottlenecks to servers, storage, and core switches.
  • Smart Cloud Management: Easily manage your network via the HPE Instant On mobile app or cloud-based portal—on-site or remotely. The front panel's QR code simplifies onboarding.
  • Flexible Stacking: Stack up to four switches and manage them through a single IP address, supporting seamless scalability as your business grows.
  • Advanced Security: Safeguard sensitive data using VLANs, Access Control Lists (ACLs), and 802.1X authentication with a RADIUS server, along with automatic DoS protection.
  • Affordable & Efficient: An affordable solution for small businesses, providing maximum power efficiency with idle consumption as low as 30W (100–127V).
  • Small and medium-sized business networks requiring reliable Gigabit access with 10 GbE backbone.
  • Branch offices connecting multiple devices and users with unified cloud-managed control.
  • Voice over IP (VoIP) and video conferencing deployments needing stable, high-bandwidth links.
  • Server and network storage aggregation in compact environments.
  • Product Number: JL806A
  • Ports: 24 × 10/100/1000BASE-T, 2 × 10GBase-T, 2 × SFP+
  • Switching Capacity: 128 Gbps
  • Throughput: 95 Mpps
  • Processor/Memory: Single-Core ARM v7 Cortex-A9 @ 800 MHz, 1 GB DDR3
  • Packet Buffer: 1.5 MB
  • Input Voltage: 100–127 VAC / 200–240 VAC
  • Power Consumption: Max 60W (100–127V) / 80W (200–220V); Idle 30W (100–127V) / 40W (200–220V)
  • Dimensions (W × D × H): 44.25 × 35.05 × 4.4 cm
  • Weight: 3.9 kg
  • Operating Temperature: 0–40°C

Experience enterprise-grade switching with the HPE Instant On 1960 JL806A—built for speed, security, and simplicity. It's the ideal Gigabit Stackable Switch to scale your business connectivity with confidence. Order now to power your network's future.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 24x Gigabit ports, 2x 10GBase-T, 2x SFP+ uplinks, 128Gbps switching, 95Mpps throughput, stackable L2+ switch for small businesses. [/shortdesc]

[properties]

Model HPE Networking Instant On 1960 (JL806A)
Product Type Smart-managed Layer 2+ Gigabit Stackable Switch
Ports 24 × 10/100/1000BASE-T (RJ-45) autosensing ports
Uplink Ports 2 × 10GBASE-T, 2 × SFP+ 10 GbE
Switching Capacity 128 Gbps
Throughput 95 Mpps
Processor / Memory Single-Core ARM v7 Cortex-A9 @ 800 MHz, 1 GB DDR3, 512 MB NAND Flash
Packet Buffer 1.5 MB
Stacking Capability Up to 4 switches (cloud-managed or local stacking)
Power Consumption Max: 60 W (100–127V) / 80 W (200–220V); Idle: 30 W (100–127V) / 40 W (200–220V)
Input Voltage 100–127 VAC / 200–240 VAC
Operating Temperature 0°C to 40°C
Operating Altitude 0–10,000 ft
Product Dimensions (W × D × H) 44.25 × 35.05 × 4.4 cm
Weight 3.9 kg
Management HPE Networking Instant On Cloud, Local Web GUI, SNMP Manager
Mounting Rack-mountable (4H height)

[/properties]

[specifications]

Ethernet Standards IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.an (10GBASE-T)
Duplex Mode 100BASE-TX: Half or Full; 1000BASE-T and 10GBASE-T: Full only
Layer Support Smart-managed Layer 2+
Stacking Management Local and Cloud-managed stacking up to 4 members
PoE Support Non-PoE model (PoE is available on other 1960 models)
Security Features VLAN segmentation, ACL support, 802.1X authentication via RADIUS, DoS protection
Network Management HPE Instant On Mobile App, Cloud Web Portal, Local Web GUI, SNMP
Performance High-level Gigabit with 10 GbE Networking for Advanced Small Businesses
Reliability Automatic denial-of-service (DoS) monitors
Certifications Subject to change; covered by express warranty statements

[/specifications]

[accesories]

Included in the Box Switch unit, power cord, rack-mount kit, documentation (per QuickSpecs)
Optional Accessories HPE supported replacement parts and materials
Management Tools HPE Networking Instant On Mobile App, Cloud-based Web Portal, Local Web GUI

[/accesories]

Empower Your Network with High-Speed, Scalable Performance

The HPE Networking Instant On 1960 (JL806A) Switch is an advanced smart-managed Layer 2+ Gigabit stackable switch designed for small and growing businesses. It delivers enterprise-class connectivity for high-performance access and aggregation, offering 24 Gigabit ports and four 10 GbE uplinks to handle bandwidth-intensive workloads like voice and video conferencing, ensuring consistent connectivity. Its stackable architecture simplifies deployment and management through both local and cloud options.

Key Benefits & Features
  • 10G Uplink Performance: Two 10GBase-T and two SFP+ ports deliver lightning-fast network speeds, eliminating traffic bottlenecks to servers, storage, and core switches.
  • Smart Cloud Management: Easily manage your network via the HPE Instant On mobile app or cloud-based portal—on-site or remotely. The front panel's QR code simplifies onboarding.
  • Flexible Stacking: Stack up to four switches and manage them through a single IP address, supporting seamless scalability as your business grows.
  • Advanced Security: Safeguard sensitive data using VLANs, Access Control Lists (ACLs), and 802.1X authentication with a RADIUS server, along with automatic DoS protection.
  • Affordable & Efficient: An affordable solution for small businesses, providing maximum power efficiency with idle consumption as low as 30W (100–127V).
Ideal Use Cases
  • Small and medium-sized business networks requiring reliable Gigabit access with 10 GbE backbone.
  • Branch offices connecting multiple devices and users with unified cloud-managed control.
  • Voice over IP (VoIP) and video conferencing deployments needing stable, high-bandwidth links.
  • Server and network storage aggregation in compact environments.
Technical Specifications Summary
  • Product Number: JL806A
  • Ports: 24 × 10/100/1000BASE-T, 2 × 10GBase-T, 2 × SFP+
  • Switching Capacity: 128 Gbps
  • Throughput: 95 Mpps
  • Processor/Memory: Single-Core ARM v7 Cortex-A9 @ 800 MHz, 1 GB DDR3
  • Packet Buffer: 1.5 MB
  • Input Voltage: 100–127 VAC / 200–240 VAC
  • Power Consumption: Max 60W (100–127V) / 80W (200–220V); Idle 30W (100–127V) / 40W (200–220V)
  • Dimensions (W × D × H): 44.25 × 35.05 × 4.4 cm
  • Weight: 3.9 kg
  • Operating Temperature: 0–40°C
Upgrade Your Network Efficiency Today

Experience enterprise-grade switching with the HPE Instant On 1960 JL806A—built for speed, security, and simplicity. It's the ideal Gigabit Stackable Switch to scale your business connectivity with confidence. Order now to power your network's future.
