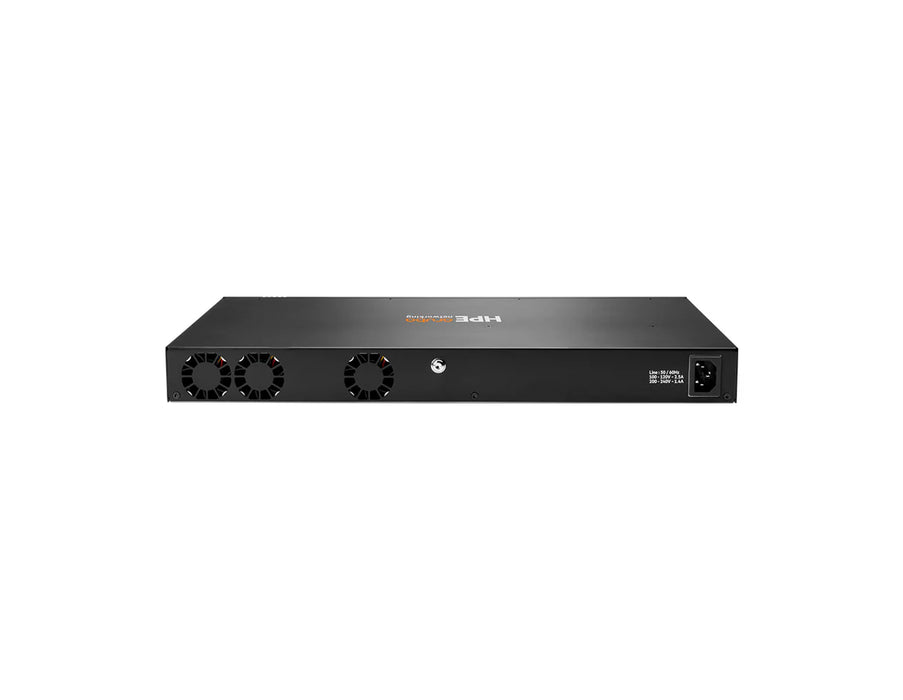

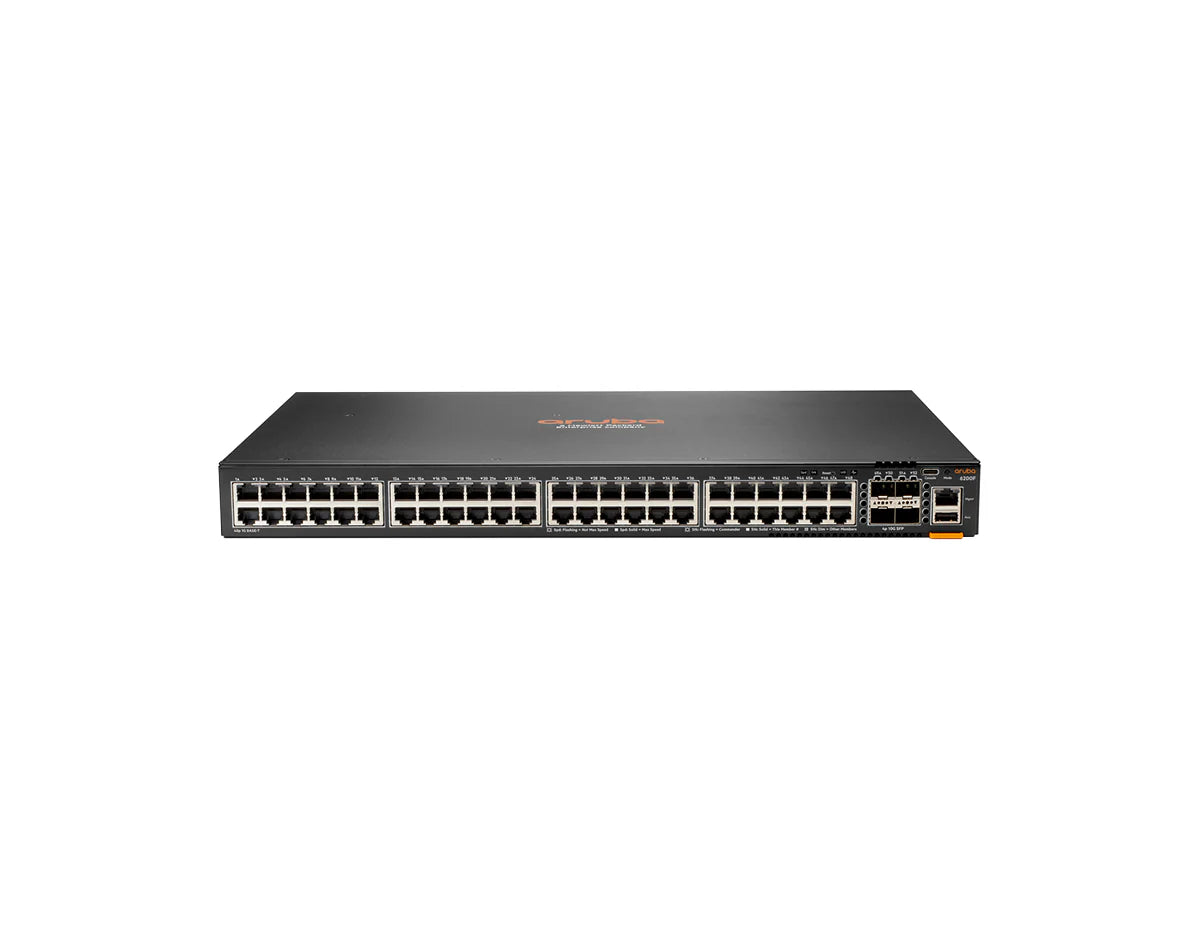

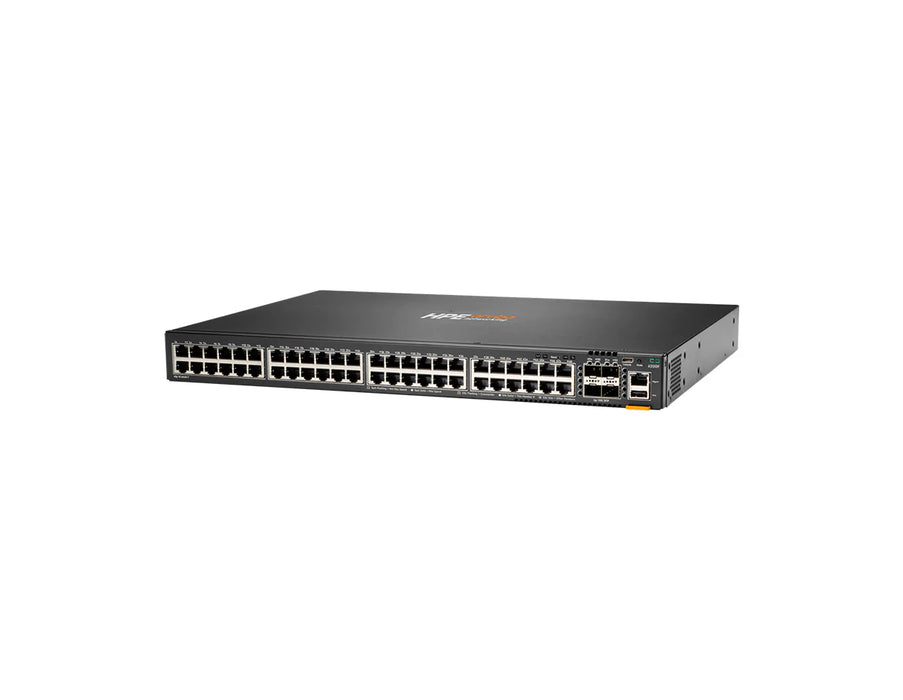

HPE Aruba Networking JL726A 6200F 48G 4SFP+ Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE Aruba Networking JL726A 6200F 48G 4SFP+ Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE Aruba Networking JL726A 6200F 48G 4SFP+ Switch
HPE Aruba Networking JL726A 6200F 48G 4SFP+ Switch

HPE Aruba Networking JL726A 6200F 48G 4SFP+ Switch

por HPE Aruba
Desconto de 70%
R$ 82.788,00
R$ 24.480,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Managed, Rack-mountable, 48 x 1G ports, Fixed Uplinks (4 x SFP+), No PoE (Data Only), Layer 2

[/shortdesc]

[properties]

Properties 6200F 48G 4SFP+ Switch (JL726A)
Description 48x 10/100/1000BASE-T ports, 4x 1/10G SFP+ ports (PHY-less), 1x USB-C Console Port, 1x RJ-45 Console Port, 1x OOBM Port, 1x USB Type-A Host Port, Bluetooth adapter supported via Aruba CX Mobile App
Product Family CX6200 Series
Product Type Ethernet Switch
Ports and Slots 48x 10/100/1000BASE-T Data ports
4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
1x Bluetooth Adapter to be used with Aruba CX Mobile App
1x RJ-45 Console Port
Power supplies Fixed power supply (200W)
Frequency 50/60 Hz
Voltage 100-127 VAC / 200-240 VAC
Current 2.5A/1.4A
Power Consumption 68W at 230 VAC
Fans Fixed fans
Dimensions 1.73” x 17.4” x 12.9”
Weight 4.45 kg (9.81 lbs)
Mounting and enclosure Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.

[/properties][specifications]

Specifications 6200F 48G 4SFP+ Switch (JL726A)
CPU Quad Core ARM Cortex™ A72 @ 1.8 GHz
Memory and Flash 8 GB DDR4 16 GB eMMC
Packet Buffer 8 MB Packet Buffer Memory
Model Switching Capacity 176 Gbps
Model Throughput Capacity Up to 130.9 Mpps
Average Latency (LIFO-64-bytes packets) 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec
Switched Virtual Interfaces (dual stack) 128
IPv4 Host Table (ARP) 8,192
IPv6 Host Table (ND) 8,192
IPv4 Unicast Routes 2,048
IPv6 Unicast Routes 1,024
MAC Table Capacity 32768
IGMP Groups 1,024
MLD Groups 1,024
IPv4/IPv6/MAC ACL Entries (ingress) 5,120/1,280/5,120
Stack Size 8 members
Max. Stacking Distance Up to 10 kms with long range transceivers
Operating Temperature 32°F to 113°F (0°C to 45°C) up to 5,000 ft derate -1°C for every 1,000 ft from 5,000 ft to 10,000 ft.
Acoustic Sound Power, LWAd= 4.9 Bel Sound Pressure, LpAm(Bystander) = 33.0 dB
Primary Airflow Front and side to back
Safety US: UL 60950-1 2nd Ed.
Emissions US: FCC 47 CFR part 15B, Class A
Lasers EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
Immunity
EN 55035:2017
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3

[/specifications][accesories]

Accessories
JL669B • Aruba X751 Port to Power Fan Tray
J9583A • HPE X410 1U Universal 4-post Rack Mount Kit
J9583B • Aruba X414 1U Universal 4-post Rack Mounting Kit
R9G48A • Aruba USB-A to RJ45 PC-to-Switch Cable
R8Q73A • Aruba 6200F 12-port Cable Guard
R8Z87A • Aruba USB-A to RJ45 PIN3TX-6RX Cable
R9J32A • Aruba USB-A to USB-C PC-to-Switch Cable
R9J33A • Aruba USB-C to USB-C PC-to-Switch Cable
JL448A • Aruba X2C2 RJ45 to DB9 Console Cable
S1H23A • HPE Aruba Networking CX Switch Bluetooth Adapter
Cables
J9281D • Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
J9283D • Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
Transceivers
J4858D • Aruba 1G SFP LC SX 500m MMF Transceiver
J4859D • Aruba 1G SFP LC LX 10km SMF Transceiver
J4860D • Aruba 1G SFP LC LH 70km SMF Transceiver
J8177D • Aruba 1G SFP RJ45 T 100m Cat5e Transceiver
J9150D • Aruba 10G SFP+ LC SR 300m MMF Transceiver
J9151E • Aruba 10G SFP+ LC LR 10km SMF Transceiver
J9153D • Aruba 10G SFP+ LC ER 40km SMF Transceiver
JL563B • Aruba 10GBASE-T SFP+ RJ-45 30m Cat6A Transceiver
J9152D • Aruba 10G SFP+ LC LRM 220m MMF Transceiver
R9X54A • Aruba 10G LC BiDi 40km-D 1330/1270 XCVR
R9X55A • Aruba 10G LC BiDi 40km-U 1270/1330 XCVR

[/accesories]

The HPE Aruba 6200F 48G 4SFP+ Switch (JL726A) is a next-generation, stackable access switch built for enterprise branch offices, SMB networks, and campus edge deployments. Equipped with 48 Gigabit Ethernet ports and 4 high-speed 1/10G SFP+ uplinks, this Layer 2 switch delivers reliable connectivity, scalability, and advanced traffic management for demanding environments.

Key Features:

  • 48 x Gigabit Ethernet Ports: Non-PoE access ports provide cost-efficient high-speed connectivity.
  • 4 x SFP+ Uplink Ports: High-performance fiber uplinks at up to 10Gbps enable seamless network expansion.
  • Enterprise-Grade Layer 2 Switching: VLAN, QoS, and link aggregation ensure efficient traffic handling.
  • Stackable Design: Supports up to 8 switches per stack with 176 Gbps switching capacity and 130.9 Mpps throughput.
  • Simplified Management: Flexible options including Aruba Central cloud, CLI, Web GUI, and SNMP.
  • Energy Efficient: IEEE 802.3az compliance reduces power consumption without sacrificing performance.

Technical Overview:

  • Recommended for: Enterprise branches, SMB networks, and campus edge.
  • Ports: 48 x 1GbE, 4 x 1/10GbE SFP+ uplinks, 1 x USB-C console, 1 x RJ-45 console, 1 x OOBM, 1 x USB Type-A host.
  • Switching Capacity: 176 Gbps.
  • Forwarding Rate: 130.9 Mpps.
  • MAC Table: 32,768 entries.
  • Stacking: Up to 8 members.
  • Power Consumption: 68W at 230 VAC.
  • Weight & Dimensions: 4.45 kg; 1.73" x 17.4" x 12.9"

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Managed, Rack-mountable, 48 x 1G ports, Fixed Uplinks (4 x SFP+), No PoE (Data Only), Layer 2

[/shortdesc]

[properties]

Properties 6200F 48G 4SFP+ Switch (JL726A)
Description 48x 10/100/1000BASE-T ports, 4x 1/10G SFP+ ports (PHY-less), 1x USB-C Console Port, 1x RJ-45 Console Port, 1x OOBM Port, 1x USB Type-A Host Port, Bluetooth adapter supported via Aruba CX Mobile App
Product Family CX6200 Series
Product Type Ethernet Switch
Ports and Slots 48x 10/100/1000BASE-T Data ports
4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
1x Bluetooth Adapter to be used with Aruba CX Mobile App
1x RJ-45 Console Port
Power supplies Fixed power supply (200W)
Frequency 50/60 Hz
Voltage 100-127 VAC / 200-240 VAC
Current 2.5A/1.4A
Power Consumption 68W at 230 VAC
Fans Fixed fans
Dimensions 1.73” x 17.4” x 12.9”
Weight 4.45 kg (9.81 lbs)
Mounting and enclosure Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.

[/properties][specifications]

Specifications 6200F 48G 4SFP+ Switch (JL726A)
CPU Quad Core ARM Cortex™ A72 @ 1.8 GHz
Memory and Flash 8 GB DDR4 16 GB eMMC
Packet Buffer 8 MB Packet Buffer Memory
Model Switching Capacity 176 Gbps
Model Throughput Capacity Up to 130.9 Mpps
Average Latency (LIFO-64-bytes packets) 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec
Switched Virtual Interfaces (dual stack) 128
IPv4 Host Table (ARP) 8,192
IPv6 Host Table (ND) 8,192
IPv4 Unicast Routes 2,048
IPv6 Unicast Routes 1,024
MAC Table Capacity 32768
IGMP Groups 1,024
MLD Groups 1,024
IPv4/IPv6/MAC ACL Entries (ingress) 5,120/1,280/5,120
Stack Size 8 members
Max. Stacking Distance Up to 10 kms with long range transceivers
Operating Temperature 32°F to 113°F (0°C to 45°C) up to 5,000 ft derate -1°C for every 1,000 ft from 5,000 ft to 10,000 ft.
Acoustic Sound Power, LWAd= 4.9 Bel Sound Pressure, LpAm(Bystander) = 33.0 dB
Primary Airflow Front and side to back
Safety US: UL 60950-1 2nd Ed.
Emissions US: FCC 47 CFR part 15B, Class A
Lasers EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
Immunity
EN 55035:2017
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3

[/specifications][accesories]

Accessories
JL669B • Aruba X751 Port to Power Fan Tray
J9583A • HPE X410 1U Universal 4-post Rack Mount Kit
J9583B • Aruba X414 1U Universal 4-post Rack Mounting Kit
R9G48A • Aruba USB-A to RJ45 PC-to-Switch Cable
R8Q73A • Aruba 6200F 12-port Cable Guard
R8Z87A • Aruba USB-A to RJ45 PIN3TX-6RX Cable
R9J32A • Aruba USB-A to USB-C PC-to-Switch Cable
R9J33A • Aruba USB-C to USB-C PC-to-Switch Cable
JL448A • Aruba X2C2 RJ45 to DB9 Console Cable
S1H23A • HPE Aruba Networking CX Switch Bluetooth Adapter
Cables
J9281D • Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
J9283D • Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
Transceivers
J4858D • Aruba 1G SFP LC SX 500m MMF Transceiver
J4859D • Aruba 1G SFP LC LX 10km SMF Transceiver
J4860D • Aruba 1G SFP LC LH 70km SMF Transceiver
J8177D • Aruba 1G SFP RJ45 T 100m Cat5e Transceiver
J9150D • Aruba 10G SFP+ LC SR 300m MMF Transceiver
J9151E • Aruba 10G SFP+ LC LR 10km SMF Transceiver
J9153D • Aruba 10G SFP+ LC ER 40km SMF Transceiver
JL563B • Aruba 10GBASE-T SFP+ RJ-45 30m Cat6A Transceiver
J9152D • Aruba 10G SFP+ LC LRM 220m MMF Transceiver
R9X54A • Aruba 10G LC BiDi 40km-D 1330/1270 XCVR
R9X55A • Aruba 10G LC BiDi 40km-U 1270/1330 XCVR

[/accesories]

HPE Aruba 6200F 48G 4SFP+ Switch (JL726A)

The HPE Aruba 6200F 48G 4SFP+ Switch (JL726A) is a next-generation, stackable access switch built for enterprise branch offices, SMB networks, and campus edge deployments. Equipped with 48 Gigabit Ethernet ports and 4 high-speed 1/10G SFP+ uplinks, this Layer 2 switch delivers reliable connectivity, scalability, and advanced traffic management for demanding environments.

Key Features:

  • 48 x Gigabit Ethernet Ports: Non-PoE access ports provide cost-efficient high-speed connectivity.
  • 4 x SFP+ Uplink Ports: High-performance fiber uplinks at up to 10Gbps enable seamless network expansion.
  • Enterprise-Grade Layer 2 Switching: VLAN, QoS, and link aggregation ensure efficient traffic handling.
  • Stackable Design: Supports up to 8 switches per stack with 176 Gbps switching capacity and 130.9 Mpps throughput.
  • Simplified Management: Flexible options including Aruba Central cloud, CLI, Web GUI, and SNMP.
  • Energy Efficient: IEEE 802.3az compliance reduces power consumption without sacrificing performance.

Technical Overview:

  • Recommended for: Enterprise branches, SMB networks, and campus edge.
  • Ports: 48 x 1GbE, 4 x 1/10GbE SFP+ uplinks, 1 x USB-C console, 1 x RJ-45 console, 1 x OOBM, 1 x USB Type-A host.
  • Switching Capacity: 176 Gbps.
  • Forwarding Rate: 130.9 Mpps.
  • MAC Table: 32,768 entries.
  • Stacking: Up to 8 members.
  • Power Consumption: 68W at 230 VAC.
  • Weight & Dimensions: 4.45 kg; 1.73" x 17.4" x 12.9"
