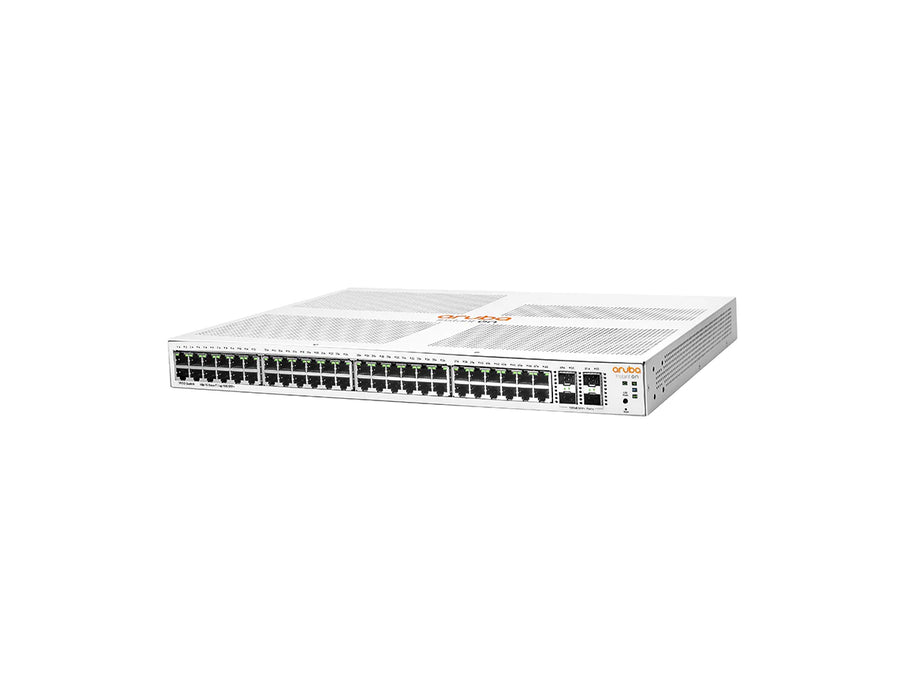

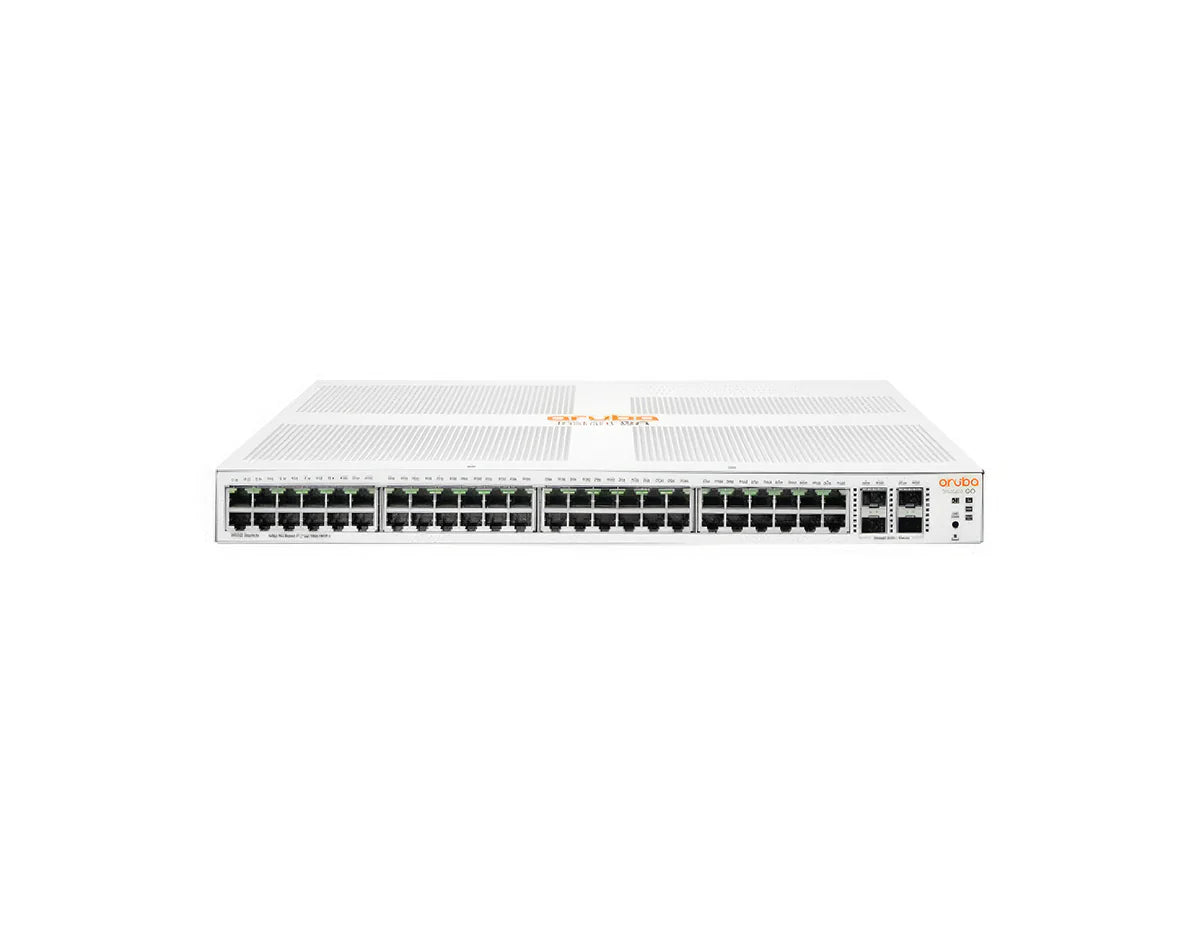

HPE Aruba Networking JL686A Instant On 1930 48G Class4 PoE Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE Aruba Networking JL686A Instant On 1930 48G Class4 PoE Switch
HPE Aruba Networking JL686A Instant On 1930 48G Class4 PoE Switch

HPE Aruba Networking JL686A Instant On 1930 48G Class4 PoE Switch

por HPE Aruba
Desconto de 30%
R$ 11.808,00
R$ 8.220,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 48x 10/100/1000 PoE+ ports with 370W budget, 4x 1/10G SFP+ uplinks, 176 Gbps switching, 130.95 Mpps throughput, smart-managed L2+, 1U rackmount [/shortdesc]

[properties]

Model JL686A (Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W)
Product Type Smart-managed Layer 2+ Gigabit Ethernet Switch
Form Factor Rack-mountable 1U
Access Ports 48 × 10/100/1000 RJ-45 (Class 4 PoE)
Uplink Ports 4 × 1/10GbE SFP+
Switching Capacity 176 Gbps
Forwarding Throughput 130.95 Mpps
PoE Budget 370 W (PoE+ / IEEE 802.3at)
Packet Buffer 1.5 MB
MAC Address Table 16K entries
Jumbo Frame Support 9216 bytes
Processor / Memory ARM Cortex-A9 @ 800 MHz; 512 MB SDRAM; 256 MB flash
Power Supply Internal; AC 120/230 V (50/60 Hz)
Power Consumption (Max) 460 W
Idle Power 34.5 W
Dimensions (W × D × H) 44.25 × 32.26 × 4.39 cm (17.42 × 12.7 × 1.73 in)
Weight
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity 15% to 95% @ 40 °C
Storage Temperature −40 °C to 70 °C (−40 °F to 158 °F)
Storage Humidity 15% to 95% @ 60 °C
Operating Altitude Up to 3 km (10,000 ft)

[/properties]

[specifications]

Management & Layer Smart-managed Layer 2+; mobile app & web GUI
Remote Management SNMP v1/v2c/v3, RMON, HTTP/HTTPS, TFTP, RADIUS
Performance Switching capacity 176 Gbps; forwarding 130.95 Mpps; latency ~2.2 µs (1G), ~1.2 µs (10G)
PoE 48 PoE+ ports; total budget 370 W
VLANs 256 VLANs supported
Link Aggregation 8 ports; LACP
ACL / Entries ACL supported; 480 entries per ACL
Layer 2 Features STP/RSTP/MSTP, IGMP snooping, LLDP, Auto MDI/MDI-X, Flow control
QoS 802.1p CoS, QoS features
Energy IEEE 802.3az Energy Efficient Ethernet
Standards IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3x, 802.3ad (LACP), 802.1D/W/S/Q/P/X, 802.1AB (LLDP), 802.3az
Status Indicators Port status, Power, PoE

[/specifications]

[accesories]

Optional – Transceivers J4858D (1G SFP LC SX 500 m MMF); J4859D (1G SFP LC LX 10 km SMF); J8177D (1G SFP RJ-45 T 100 m Cat5e); J9150D (10G SFP+ LC SR 300 m MMF); J9281D (10G SFP+ to SFP+ 1 m DAC); J9283D (10G SFP+ to SFP+ 3 m DAC)

[/accesories]

The Aruba Instant On 1930 JL686A delivers reliable Gigabit edge connectivity for growing offices, retail, and branches. With 48 Class 4 PoE+ ports and 4x 1/10G SFP+ uplinks, it powers access points, cameras, and phones while removing uplink bottlenecks. Smart-managed L2+ features and an intuitive app streamline setup, security, and ongoing operations.

  • 48 PoE+ access ports: Power APs, IP cameras, and VoIP endpoints with a 370W Class 4 PoE budget for flexible device rollouts.
  • High-speed fiber uplinks: Four dedicated 1/10G SFP+ ports help eliminate congestion and segment traffic cleanly.
  • Smart L2+ control: VLANs, ACLs, QoS, LACP, IGMP snooping, and static routing improve performance and traffic isolation.
  • Solid switching performance: 176 Gbps switching capacity and 130.95 Mpps forwarding keep latency low under load.
  • Simple management: Deploy and manage via mobile app or web GUI for quick troubleshooting and updates.
  • SMB offices needing PoE+ for APs, phones, and cameras
  • Retail stores consolidating wired and wireless edge with fiber backhaul
  • Healthcare or education floors segmenting users and devices with VLANs
  • Branch sites standardizing on app-driven, easy-to-manage switches
  • Ports: 48x 10/100/1000 RJ-45 Class 4 PoE, 4x 1/10G SFP+ uplinks
  • PoE Budget: 370 W (Class 4 PoE+)
  • Performance: 176 Gbps switching capacity; 130.95 Mpps throughput
  • Layer & Features: L2+ with VLANs, ACLs, QoS, LACP, STP/MSTP, IGMP snooping, LLDP; static IPv4 routing
  • Processor/Memory: ARM Cortex-A9 800 MHz; 512 MB SDRAM; 256 MB flash; 1.5 MB packet buffer
  • Form Factor: 1U rack-mount; 17.42 x 12.7 x 1.73 in (44.25 x 32.26 x 4.39 cm)
  • Operating Range: 0–40°C; 15–95% RH; up to 3 km altitude
  • Management: Mobile app and web GUI

Standardize on Aruba Instant On for dependable PoE, fiber uplinks, and fast deployment. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 48x 10/100/1000 PoE+ ports with 370W budget, 4x 1/10G SFP+ uplinks, 176 Gbps switching, 130.95 Mpps throughput, smart-managed L2+, 1U rackmount [/shortdesc]

[properties]

Model JL686A (Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W)
Product Type Smart-managed Layer 2+ Gigabit Ethernet Switch
Form Factor Rack-mountable 1U
Access Ports 48 × 10/100/1000 RJ-45 (Class 4 PoE)
Uplink Ports 4 × 1/10GbE SFP+
Switching Capacity 176 Gbps
Forwarding Throughput 130.95 Mpps
PoE Budget 370 W (PoE+ / IEEE 802.3at)
Packet Buffer 1.5 MB
MAC Address Table 16K entries
Jumbo Frame Support 9216 bytes
Processor / Memory ARM Cortex-A9 @ 800 MHz; 512 MB SDRAM; 256 MB flash
Power Supply Internal; AC 120/230 V (50/60 Hz)
Power Consumption (Max) 460 W
Idle Power 34.5 W
Dimensions (W × D × H) 44.25 × 32.26 × 4.39 cm (17.42 × 12.7 × 1.73 in)
Weight
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity 15% to 95% @ 40 °C
Storage Temperature −40 °C to 70 °C (−40 °F to 158 °F)
Storage Humidity 15% to 95% @ 60 °C
Operating Altitude Up to 3 km (10,000 ft)

[/properties]

[specifications]

Management & Layer Smart-managed Layer 2+; mobile app & web GUI
Remote Management SNMP v1/v2c/v3, RMON, HTTP/HTTPS, TFTP, RADIUS
Performance Switching capacity 176 Gbps; forwarding 130.95 Mpps; latency ~2.2 µs (1G), ~1.2 µs (10G)
PoE 48 PoE+ ports; total budget 370 W
VLANs 256 VLANs supported
Link Aggregation 8 ports; LACP
ACL / Entries ACL supported; 480 entries per ACL
Layer 2 Features STP/RSTP/MSTP, IGMP snooping, LLDP, Auto MDI/MDI-X, Flow control
QoS 802.1p CoS, QoS features
Energy IEEE 802.3az Energy Efficient Ethernet
Standards IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3x, 802.3ad (LACP), 802.1D/W/S/Q/P/X, 802.1AB (LLDP), 802.3az
Status Indicators Port status, Power, PoE

[/specifications]

[accesories]

Optional – Transceivers J4858D (1G SFP LC SX 500 m MMF); J4859D (1G SFP LC LX 10 km SMF); J8177D (1G SFP RJ-45 T 100 m Cat5e); J9150D (10G SFP+ LC SR 300 m MMF); J9281D (10G SFP+ to SFP+ 1 m DAC); J9283D (10G SFP+ to SFP+ 3 m DAC)

[/accesories]

Scale Fast with Smart-Managed Gigabit Power

The Aruba Instant On 1930 JL686A delivers reliable Gigabit edge connectivity for growing offices, retail, and branches. With 48 Class 4 PoE+ ports and 4x 1/10G SFP+ uplinks, it powers access points, cameras, and phones while removing uplink bottlenecks. Smart-managed L2+ features and an intuitive app streamline setup, security, and ongoing operations.

Key Benefits & Features
  • 48 PoE+ access ports: Power APs, IP cameras, and VoIP endpoints with a 370W Class 4 PoE budget for flexible device rollouts.
  • High-speed fiber uplinks: Four dedicated 1/10G SFP+ ports help eliminate congestion and segment traffic cleanly.
  • Smart L2+ control: VLANs, ACLs, QoS, LACP, IGMP snooping, and static routing improve performance and traffic isolation.
  • Solid switching performance: 176 Gbps switching capacity and 130.95 Mpps forwarding keep latency low under load.
  • Simple management: Deploy and manage via mobile app or web GUI for quick troubleshooting and updates.
Ideal Use Cases
  • SMB offices needing PoE+ for APs, phones, and cameras
  • Retail stores consolidating wired and wireless edge with fiber backhaul
  • Healthcare or education floors segmenting users and devices with VLANs
  • Branch sites standardizing on app-driven, easy-to-manage switches
Technical Specifications
  • Ports: 48x 10/100/1000 RJ-45 Class 4 PoE, 4x 1/10G SFP+ uplinks
  • PoE Budget: 370 W (Class 4 PoE+)
  • Performance: 176 Gbps switching capacity; 130.95 Mpps throughput
  • Layer & Features: L2+ with VLANs, ACLs, QoS, LACP, STP/MSTP, IGMP snooping, LLDP; static IPv4 routing
  • Processor/Memory: ARM Cortex-A9 800 MHz; 512 MB SDRAM; 256 MB flash; 1.5 MB packet buffer
  • Form Factor: 1U rack-mount; 17.42 x 12.7 x 1.73 in (44.25 x 32.26 x 4.39 cm)
  • Operating Range: 0–40°C; 15–95% RH; up to 3 km altitude
  • Management: Mobile app and web GUI
Ready to power and protect your edge

Standardize on Aruba Instant On for dependable PoE, fiber uplinks, and fast deployment. Order today.
