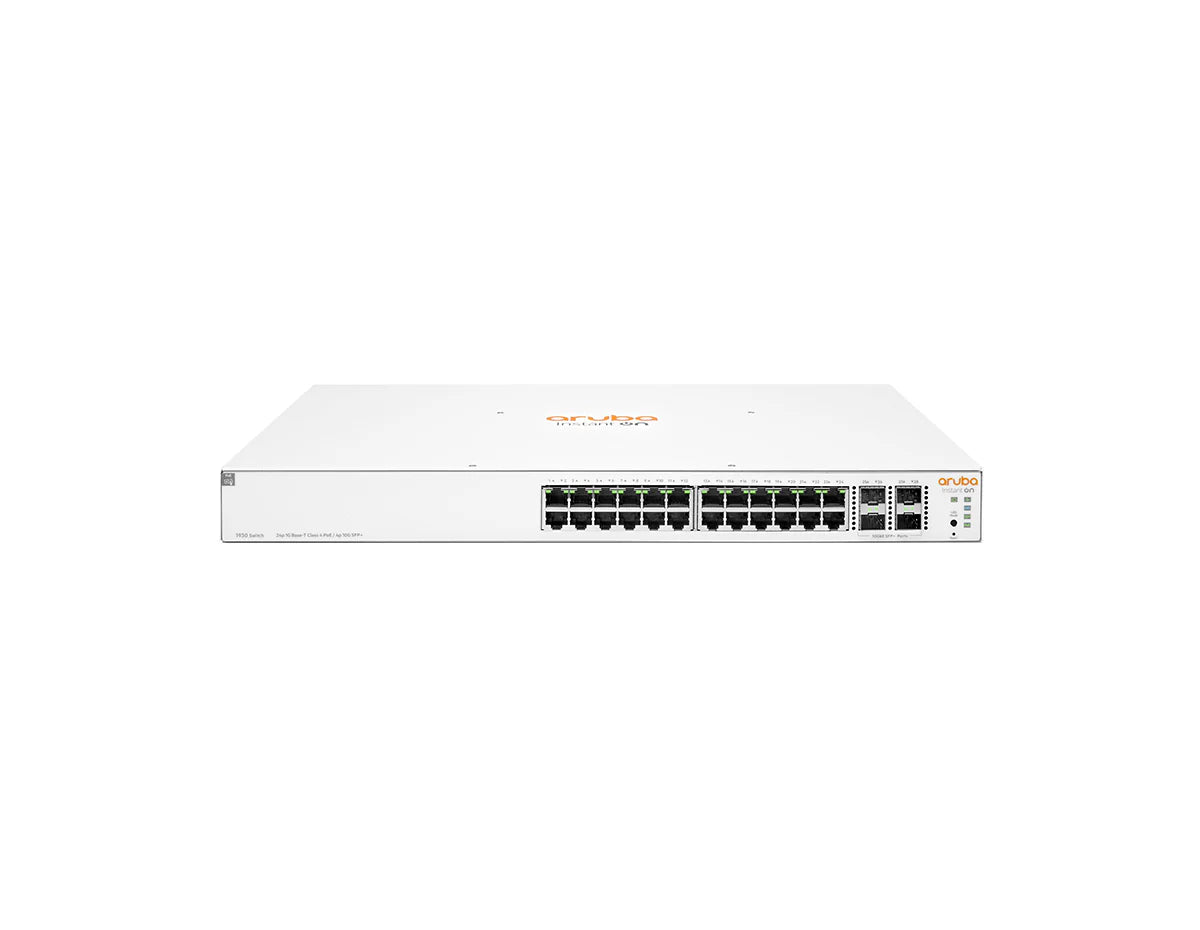

HPE Aruba Networking JL683B Instant On 1930 24-Port Smart Managed PoE Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE Aruba Networking JL683B Instant On 1930 24-Port Smart Managed PoE Switch
HPE Aruba Networking JL683B Instant On 1930 24-Port Smart Managed PoE Switch

HPE Aruba Networking JL683B Instant On 1930 24-Port Smart Managed PoE Switch

por HPE Aruba
Desconto de 30%
R$ 7.248,00
R$ 5.040,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Smart Managed, 24 x 1G Class 4 PoE ports, 4 x 1G/10G SFP+ uplinks, 195W PoE budget, Layer 2+


[/shortdesc]

[properties]

Frequency 50/60 Hz
AC voltage 100 - 240 VAC
Current 0.2 A
Power Consumption 280W maximum, 30W idle
PoE Power Budget 195W (Class 4 PoE)
Power Supply Internal (fixed)
Safety UL 60950-1; IEC 60950-1;
EN 60950-1; CAN/
CSA-C22.2 No. 60950-1;
EN 60825-1
UL 62368-1 Ed. 2; IEC 62368-1
Ed. 2; EN 62368-1:2014
Emissions VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47
Part 15, Class A;
EN 55032: 2015 +AC:2016 / CISPR-32, Class A

[/properties]

[specifications]

Dimensions (D x W x H) 17.42 x 10.42 x 1.73 in
(44.25 x 26.47 x 4.39 cm)
Weight 7.69 lb (3.49 kg)
Processor and memory ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash;
packet buffer: 1.5 MB
Performance
100 Mb Latency < 4.7 uSec
1000 Mb Latency <2.4 uSec
10000 Mb Latency < 1.3 uSec
Throughput (Mpps) 95.23 Mpps
Switching capacity 128 Gbps
Routing Table size (# of static entries) 32 static entries
MAC Address table size (# of entries) 16,000 entries
Reliability MTBF (years) 76
Environment
Operating temperature 32°F to 104°F (0°C to 40°C)
Operating relative humidity 15% to 95% @ 104°F (40°C)
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 15% to 95% @ 140°F (60°C)
Altitude up to 10,000 ft (3 km)

[/specifications]


The HPE Aruba Instant On 1930 24-port PoE Smart Managed Switch (JL683B) provides reliable, high-performance networking with advanced management features for small businesses. With 24 Gigabit Ethernet ports offering Power over Ethernet (PoE) and four SFP+ uplink ports, this switch allows seamless connectivity for devices like IP phones, access points, and security cameras. Its 195W PoE budget simplifies the deployment of powered devices while reducing cabling complexity.

Key Features:

  • 24 x 1GbE PoE Ports: Delivers up to 30W per port, making it ideal for powering access points, VoIP phones, and security cameras.
  • 4 x SFP+ Uplink Ports: Provides high-speed 10Gbps uplinks for fast, reliable connectivity to the network core or additional switches.
  • 195W PoE Power Budget: Supports a wide range of PoE devices, reducing the need for separate power sources.
  • Layer 2+ Management: Includes advanced traffic management features such as VLANs, link aggregation, static routing, and ACLs.
  • Cloud-Based and Mobile Management: Easily configure and manage your network from anywhere via the Aruba Instant On mobile app or cloud-based portal.

Technical Overview:

  • Recommended for: Small and medium businesses, branch offices, and retail locations.
  • Ports: 24 x 1GbE PoE ports, 4 x 1G/10G SFP+ uplink ports.
  • Switching Capacity: 128 Gbps.
  • Forwarding Rate: 95.23 Mpps.
  • PoE Power Budget: 195W for powering connected PoE devices.
  • Management: Managed through the Aruba Instant On mobile app and cloud-based web GUI.
  • Energy Efficiency: Compliant with IEEE 802.3az standards for reduced power consumption during low traffic periods.

You can check the related tab for the JL683B datasheet.

Specification Details
Product Number JL683B
Memory and Processor ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash, 1.5 MB packet buffer
Throughput 95.23 Mpps, maximum
Switching Capacity 128 Gbps
Power Consumption 280.0 W maximum, 30.0 W idle
Input Voltage 100 - 127 / 200 - 240 VAC
Dimensions 4.39 x 44.25 x 26.47 cm
Weight 3.49 kg (7.69 lb)

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Smart Managed, 24 x 1G Class 4 PoE ports, 4 x 1G/10G SFP+ uplinks, 195W PoE budget, Layer 2+


[/shortdesc]

[properties]

Frequency 50/60 Hz
AC voltage 100 - 240 VAC
Current 0.2 A
Power Consumption 280W maximum, 30W idle
PoE Power Budget 195W (Class 4 PoE)
Power Supply Internal (fixed)
Safety UL 60950-1; IEC 60950-1;
EN 60950-1; CAN/
CSA-C22.2 No. 60950-1;
EN 60825-1
UL 62368-1 Ed. 2; IEC 62368-1
Ed. 2; EN 62368-1:2014
Emissions VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47
Part 15, Class A;
EN 55032: 2015 +AC:2016 / CISPR-32, Class A

[/properties]

[specifications]

Dimensions (D x W x H) 17.42 x 10.42 x 1.73 in
(44.25 x 26.47 x 4.39 cm)
Weight 7.69 lb (3.49 kg)
Processor and memory ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash;
packet buffer: 1.5 MB
Performance
100 Mb Latency < 4.7 uSec
1000 Mb Latency <2.4 uSec
10000 Mb Latency < 1.3 uSec
Throughput (Mpps) 95.23 Mpps
Switching capacity 128 Gbps
Routing Table size (# of static entries) 32 static entries
MAC Address table size (# of entries) 16,000 entries
Reliability MTBF (years) 76
Environment
Operating temperature 32°F to 104°F (0°C to 40°C)
Operating relative humidity 15% to 95% @ 104°F (40°C)
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 15% to 95% @ 140°F (60°C)
Altitude up to 10,000 ft (3 km)

[/specifications]

HPE Aruba Instant On 1930 24G Class 4 PoE 4SFP+ 195W Smart Managed Switch (JL683B)


The HPE Aruba Instant On 1930 24-port PoE Smart Managed Switch (JL683B) provides reliable, high-performance networking with advanced management features for small businesses. With 24 Gigabit Ethernet ports offering Power over Ethernet (PoE) and four SFP+ uplink ports, this switch allows seamless connectivity for devices like IP phones, access points, and security cameras. Its 195W PoE budget simplifies the deployment of powered devices while reducing cabling complexity.

Key Features:

  • 24 x 1GbE PoE Ports: Delivers up to 30W per port, making it ideal for powering access points, VoIP phones, and security cameras.
  • 4 x SFP+ Uplink Ports: Provides high-speed 10Gbps uplinks for fast, reliable connectivity to the network core or additional switches.
  • 195W PoE Power Budget: Supports a wide range of PoE devices, reducing the need for separate power sources.
  • Layer 2+ Management: Includes advanced traffic management features such as VLANs, link aggregation, static routing, and ACLs.
  • Cloud-Based and Mobile Management: Easily configure and manage your network from anywhere via the Aruba Instant On mobile app or cloud-based portal.

Technical Overview:

  • Recommended for: Small and medium businesses, branch offices, and retail locations.
  • Ports: 24 x 1GbE PoE ports, 4 x 1G/10G SFP+ uplink ports.
  • Switching Capacity: 128 Gbps.
  • Forwarding Rate: 95.23 Mpps.
  • PoE Power Budget: 195W for powering connected PoE devices.
  • Management: Managed through the Aruba Instant On mobile app and cloud-based web GUI.
  • Energy Efficiency: Compliant with IEEE 802.3az standards for reduced power consumption during low traffic periods.

You can check the related tab for the JL683B datasheet.

Specifications
Specification Details
Product Number JL683B
Memory and Processor ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash, 1.5 MB packet buffer
Throughput 95.23 Mpps, maximum
Switching Capacity 128 Gbps
Power Consumption 280.0 W maximum, 30.0 W idle
Input Voltage 100 - 127 / 200 - 240 VAC
Dimensions 4.39 x 44.25 x 26.47 cm
Weight 3.49 kg (7.69 lb)
