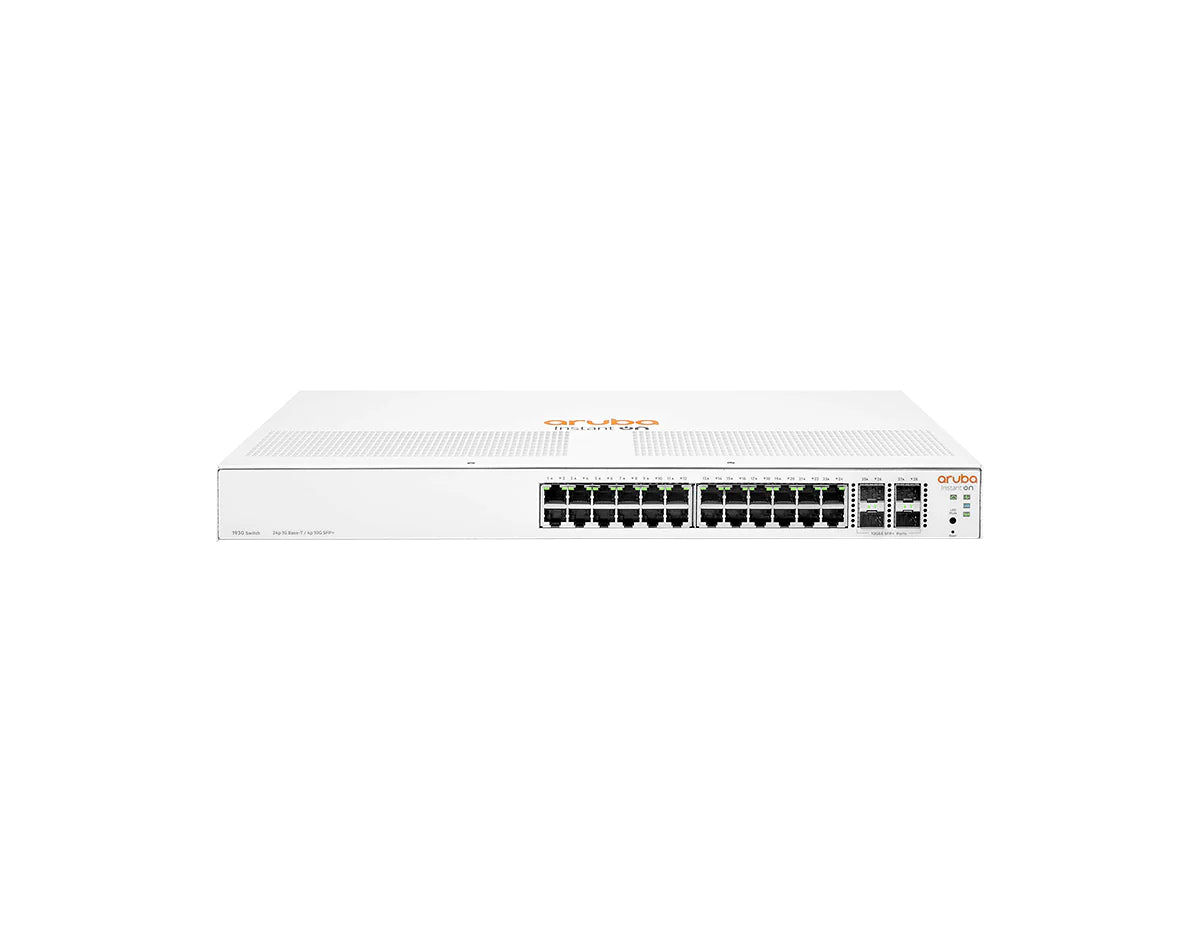

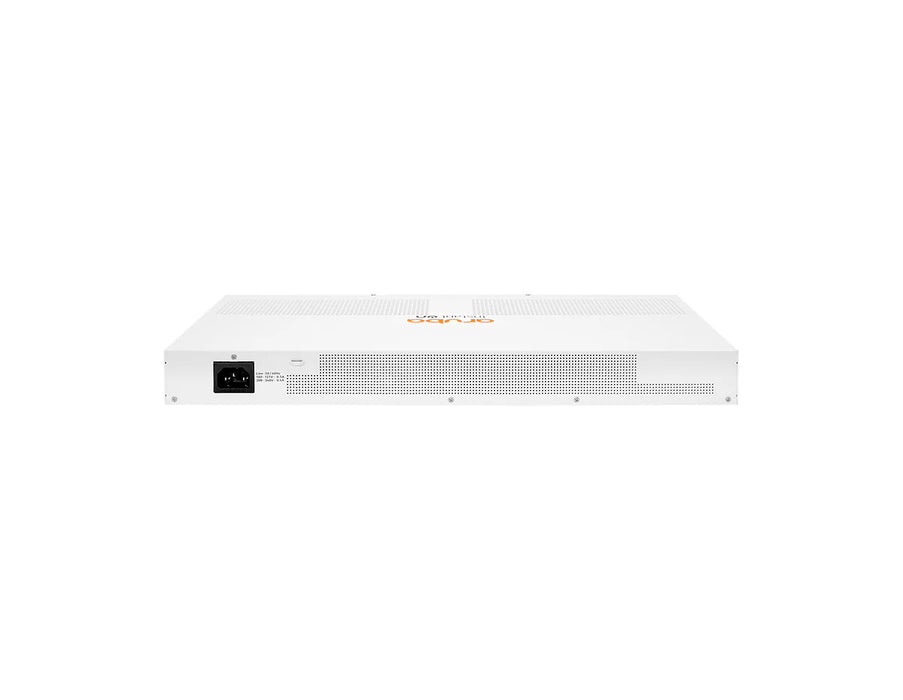

HPE Aruba Networking JL682A Instant On 1930 24G 4SFP/SFP+ Switch

[specifications] [/specifications]

The HPE Networking Instant On 1930 24G 4SFP+ Switch (JL682A) is a high-performance, smart-managed switch designed for small and growing businesses. Featuring 24 Gigabit Ethernet ports and 4 SFP+ uplink ports, this switch provides seamless and reliable connectivity for bandwidth-heavy applications such as video conferencing, VoIP, and large data transfers. With Layer 2+ switching and the ability to handle advanced networking features like VLANs and link aggregation, it ensures efficient network management with minimal effort.

Key Features:

• 24 x 1GbE Ports: Provides reliable Gigabit connectivity for a wide range of devices in small business environments.
• 4 x SFP+ Uplink Ports: Supports up to 10Gbps speeds, ensuring fast and efficient uplinks to the network core or other switches.
• Smart-Managed Layer 2+ Features: Includes support for VLANs, link aggregation, static routing, and ACLs, allowing for greater control and segmentation of network traffic.
• Energy-Efficient Operation: Built with IEEE 802.3az Energy Efficient Ethernet standards, reducing power consumption during periods of low traffic.
• Mobile and Web-Based Management: Easily configure, monitor, and manage the network using the Aruba Instant On mobile app or cloud-based web portal from anywhere, at any time.

Technical Overview:

• Recommended for: Small businesses, branch offices, and retail environments.
• Ports: 24 x 1GbE ports, 4 x 1G/10G SFP+ uplink ports.
• Switching Capacity: 128 Gbps.
• Forwarding Rate: 95.23 Mpps.
• Layer 2+ Features: Includes support for VLANs, static routing, link aggregation, and ACLs.
• Management: Managed via the Aruba Instant On mobile app and web-based GUI.
• Energy Efficiency: Meets IEEE 802.3az standards for reduced power consumption.
• Security: Supports IEEE 802.1X, MAC-based authentication, and Access Control Lists (ACLs) for enhanced network security.

You can check the related tab for the JL682A datasheet.
