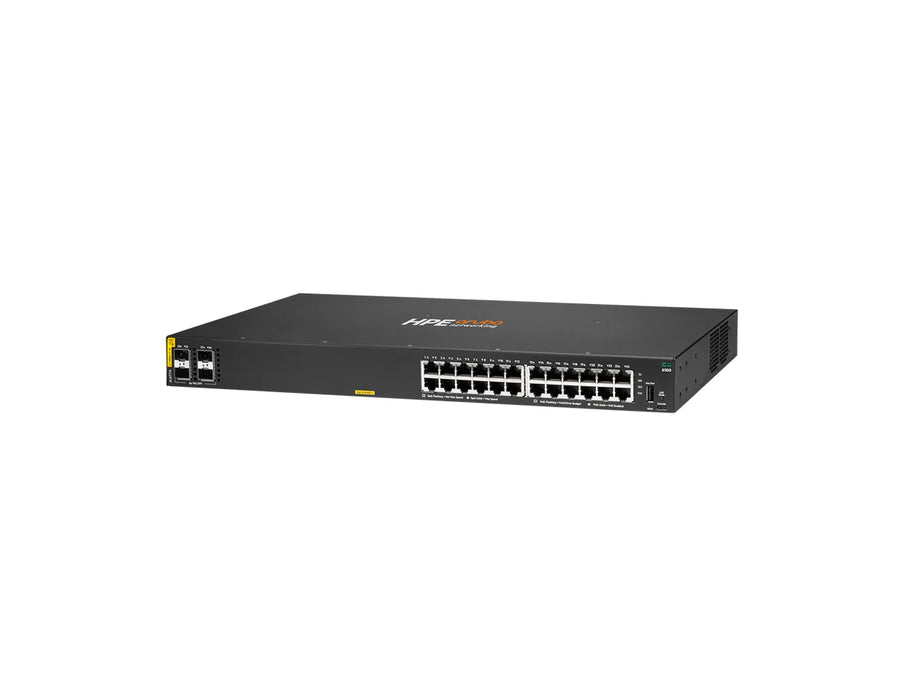

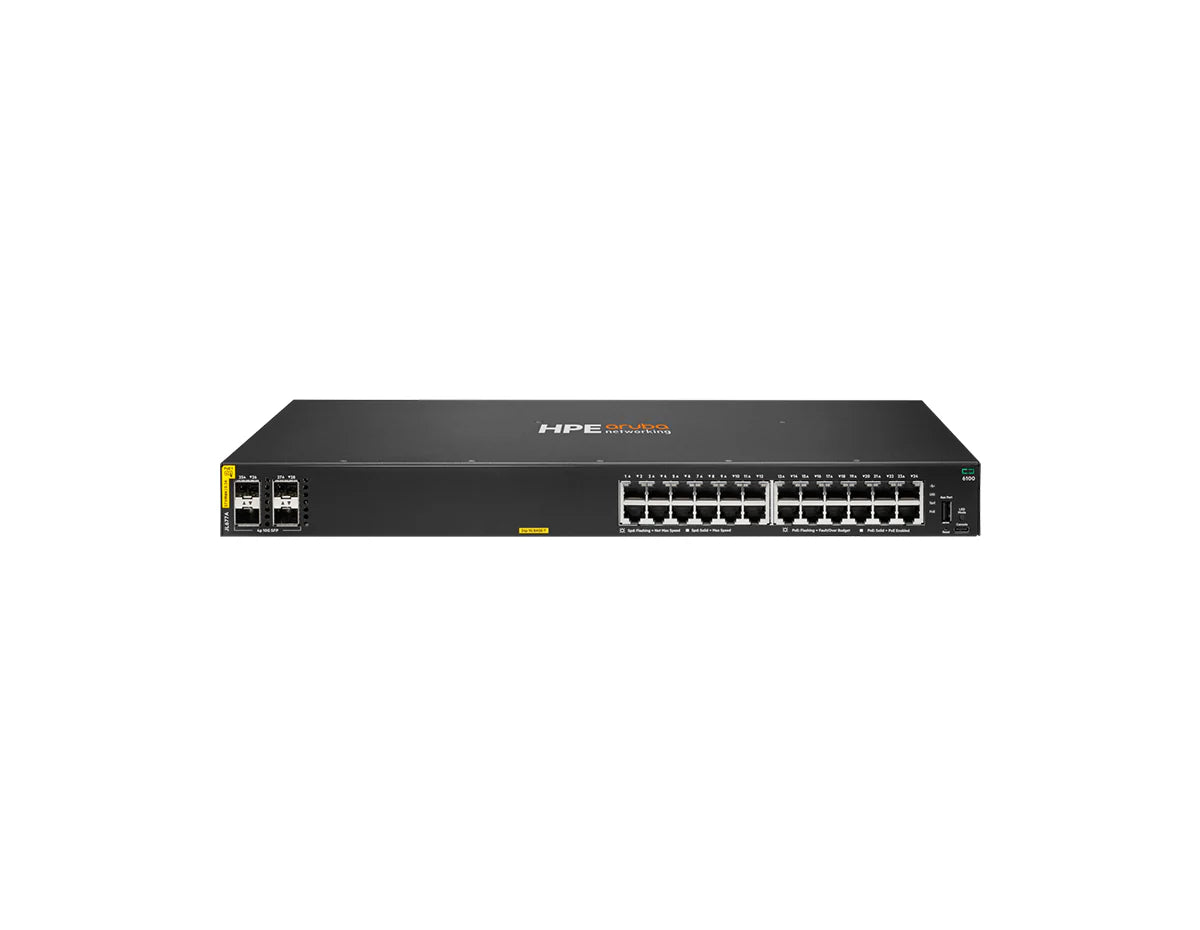

HPE Aruba Networking JL677A CX6100 24G Class4 PoE Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE Aruba Networking JL677A CX6100 24G Class4 PoE Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE Aruba Networking JL677A CX6100 24G Class4 PoE Switch
HPE Aruba Networking JL677A CX6100 24G Class4 PoE Switch

HPE Aruba Networking JL677A CX6100 24G Class4 PoE Switch

por HPE Aruba
Desconto de 62%
R$ 47.292,00
R$ 17.940,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Smart-managed, Rack-mountable, 24 x 1G Class 4 PoE+ ports, 4 x 1G/10G SFP+ Uplinks, PoE+ (370W), Layer 2
[/shortdesc]

[properties]

Properties 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A)
Description The Aruba CX 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) provides 24 Gigabit Class 4 PoE+ ports and 4 SFP+ uplinks, delivering secure, reliable, and cost-effective networking for SMB and branch offices.
Product Family CX6100 Series
Product Type Ethernet Switch
Ports and Slots 24x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port
Power supplies Fixed power supply Up to 370W of Class 4 PoE Power
Frequency 50/60 Hz
Voltage 100-127 VAC / 200-240 VAC
Current 4.6 A / 2.3 A
Power Consumption (230 VAC) Idle: 22.9W
Max Power (w/o PoE): 32.7W
Max Power (w/ PoE): 455W
Fans Fixed fans
Dimensions 4.4 x 44.2 x 26.8 cm (1.73 x 17.4 x 10.56 in)
Weight 4.2 kg (9.24 lbs)
Mounting and enclosure Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit included); horizontal surface mounting.

[/properties][specifications]

Specifications 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A)
CPU Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash 4 GB DDR3 16 GB eMMC
Packet Buffer 1 MB
Model Switching Capacity 128 Gbps
Model Throughput Capacity 95.2 Mpps
Average Latency (LIFO-64-bytes packets) 1 Gbps: 1.5 μSec , 10 Gbps: 1.8 μSec
Switched Virtual Interfaces (dual stack) 16
IPv4 Host Table (ARP) 1,024
IPv6 Host Table (ND) 512
IPv4 Unicast Routes 512
IPv6 Unicast Routes 512
MAC Table Capacity 8,192
IGMP Groups 512
MLD Groups 512
IPv4/IPv6/MAC ACL Entries (ingress) 256 / 128 / 256
Operating Temperature 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Acoustic Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander) = 24.3 dB
Primary Airflow Side-to-side
Safety EN 60950-1/IEC 60950-1
EN 60825
CAN/CSA C22.2 No. 60950, 2nd Edition
UL 60950-1, 2nd Edition
Emissions FCC Class A
VCCI Class A
EN 55022/CISPR 22 Class A
Lasers EN 60825-1:2007 / IEC 60825-
1:2007 Class 1
Class 1 Laser Products / Laser
Klasse 1
(Applicable for accessories - Optical
Transceivers only)
Immunity EN 55024, CISPR 24
EN 55024, CISPR 24
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3

[/specifications][accesories]

Accessories
JL742A Aruba X511 12-port Cable Guard
J9583B Aruba X414 1U Universal 4-post Rack Mounting Kit
R9G48A Aruba USB-A to RJ45 PC-to-Switch Cable
R8Z87A Aruba USB-A to RJ45 PIN3TX-6RX Cable
R9J32A Aruba USB-A to USB-C PC-to-Switch Cable
R9J33A Aruba USB-C to USB-C PC-to-Switch Cable
Cables
J9281D Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
J9283D Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
Transceivers
J4858D Aruba 1G SFP LC SX 500m MMF Transceiver
J4859D Aruba 1G SFP LC LX 10km SMF Transceiver
J8177D Aruba 1G SFP RJ45 T 100m Cat5e Transceiver
J9150D Aruba 10G SFP+ LC SR 300m MMF Transceiver
J9151E Aruba 10G SFP+ LC LR 10km SMF Transceiver

[/accesories]

The HPE Aruba CX 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) is an entry-level Layer 2 access switch built to deliver simple, reliable, and secure connectivity for small and medium businesses, branch offices, and remote sites. With 24 Gigabit Ethernet Class 4 PoE+ ports and 4 high-speed 1G/10G SFP+ uplinks, it combines affordable power delivery with scalable fiber connectivity, making it ideal for powering IP phones, security cameras, access points, and IoT devices.

Backed by the Aruba AOS-CX operating system, the 6100 series provides enterprise-grade features, intuitive cloud-based Aruba Central management, and seamless integration into modern networks all in a compact 1U design.

Key Features:

  • 24 x Gigabit Ethernet PoE Ports: Supports up to 30W per port, perfect for powering connected devices such as IP phones and cameras.
  • 4 x SFP+ Uplink Ports: Provides high-speed 10GbE fiber uplink options for flexible network expansion.
  • Layer 2 Switching: Includes VLAN, QoS, and traffic management features for optimized network performance.
  • 370W PoE Power Budget: Delivers sufficient power for multiple PoE-enabled devices across the network.
  • Energy-Efficient Design: Compliant with energy-saving standards, reducing power consumption during periods of low activity.

Technical Overview:

  • Recommended for: Small to medium-sized businesses, branch offices, and educational institutions.
  • Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet PoE Class4 ports.
  • Uplink Modules: 4 x SFP+ 10GbE uplinks for scalable fiber connectivity.
  • PoE Power Budget: 370W.
  • Switching Capacity: 128 Gbps.
  • Forwarding Rate: 95.23 Mpps.
  • Management: Managed via Aruba Central, Web GUI, CLI, SNMP.
  • Energy Efficiency: Compliant with energy-saving standards.
