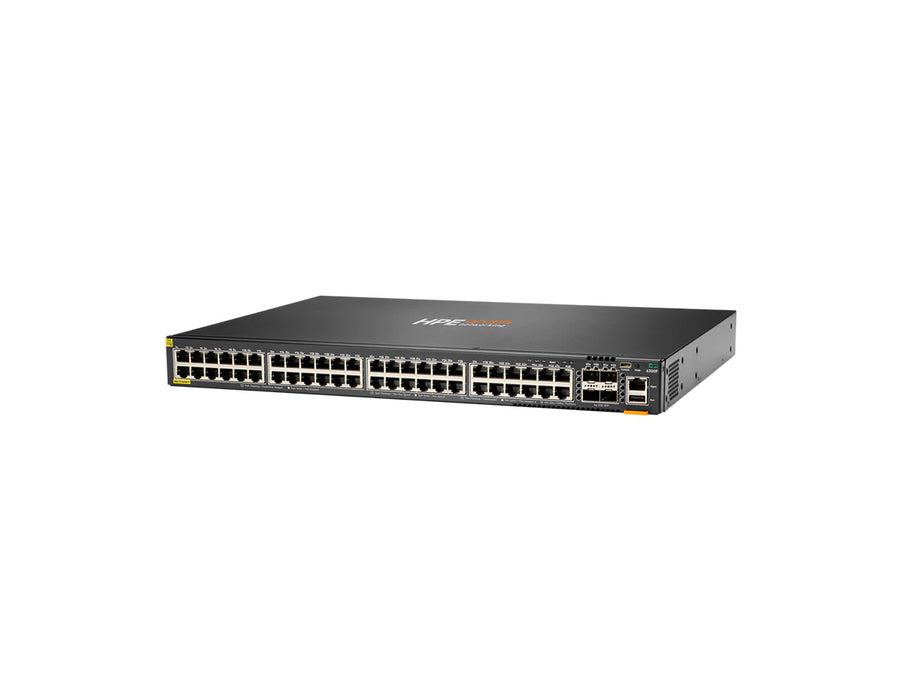

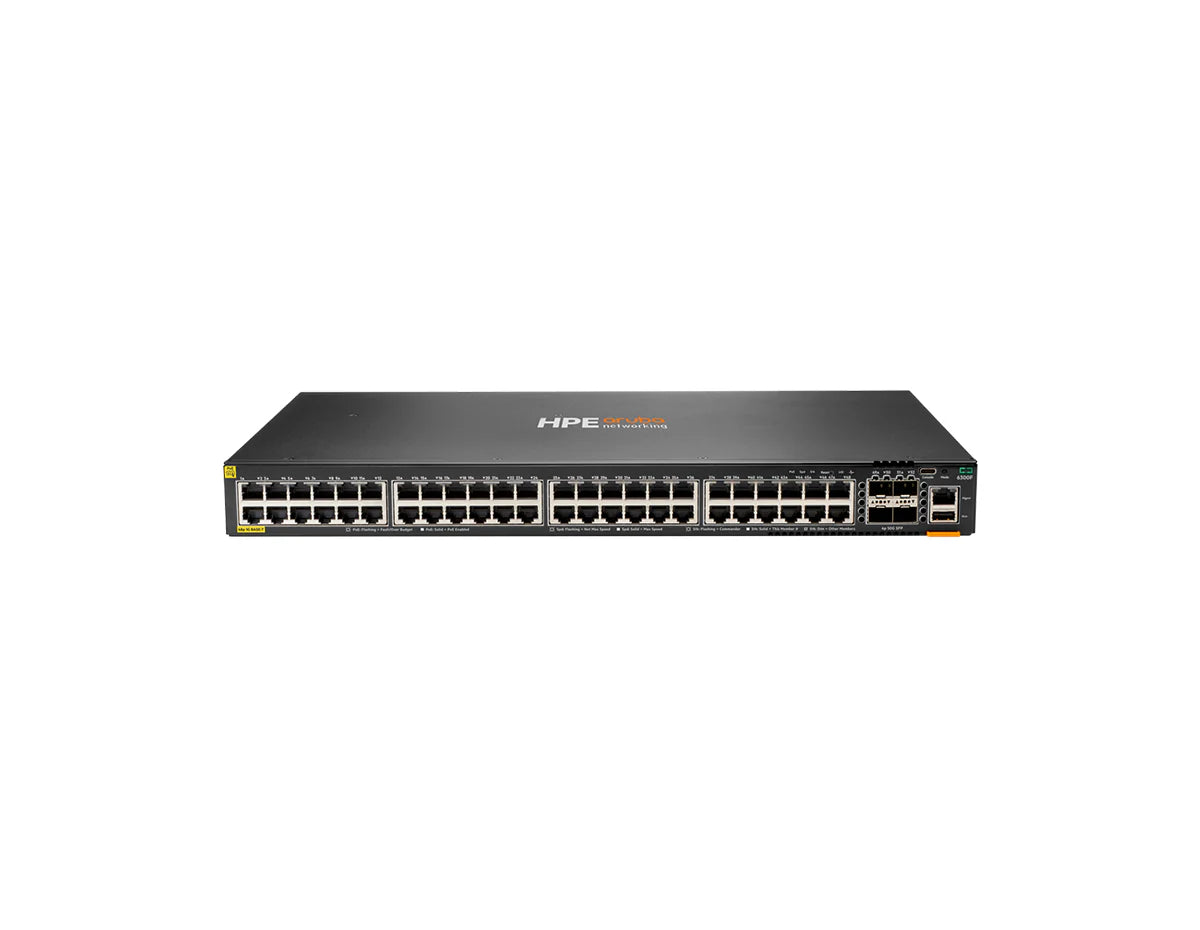

HPE Aruba Networking JL665A CX 6300F 48-Port 1GbE PoE+ Switch with 4‑port SFP56 Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE Aruba Networking JL665A CX 6300F 48-Port 1GbE PoE+ Switch with 4‑port SFP56 Switch
HPE Aruba Networking JL665A CX 6300F 48-Port 1GbE PoE+ Switch with 4‑port SFP56 Switch

HPE Aruba Networking JL665A CX 6300F 48-Port 1GbE PoE+ Switch with 4‑port SFP56 Switch

por HPE Aruba
R$ 58.740,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Managed, Rack-mountable, 48 x 1G ports, Fixed Uplinks (4 x SFP56), PoE+ (740W), Layer 3

[/shortdesc]

[properties]

Product Name JL665A
Description HPE Aruba Networking CX 6300F, a modular 48-port Gigabit Ethernet switch with Class 4 PoE and 4 SFP56 uplink ports, designed for scalable enterprise networking and advanced Layer 3 capabilities.
Switch Type Managed Layer 3 modular switch
Ports 48 x 10/100/1000BASE-T PoE+ (Class 4, up to 30W each), 4 x 1G/10G/25G/50G SFP ports
PoE Budget Up to 740W total (IEEE 802.3af/at supported)
Uplink Ports 4 x SFP56 slots for high-speed uplinks (up to 50 Gbps per port)
Management Aruba Central cloud-based management, CLI, and Web GUI
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5% to 95% non-condensing
Dimensions 4.4 x 44.2 x 32.7 cm (1.73 x 17.4 x 12.9 in)
Weight 5.10 kg (11.24 lbs)
Power Supply Fixed, non-pluggable internal PSU (redundancy not supported)
Cooling Fixed, non-pluggable internal fans
Usage Ideal for enterprise networks, high-density deployments, and critical applications
Durability Rated for continuous use with redundancy and failover support

[/properties]

[specifications]

Switching Capacity 496 Gbps
Forwarding Rate 369 Mpps
Latency 1Gbps: 2.28μSec,
10Gbps: 1.46μSec,
25Gbps: 1.90μSec,
50Gbps: 3.49μSec
Certifications CE, FCC, UL, RoHS compliant
Environmental Safety RoHS 3 compliant (Directive 2015/863/EU), low-halogen design
EMC Compliance Complies with EN 55032, EN 55024, CISPR 32, and FCC Part 15 Class A standards
MTBF >1,000,000 hours at 25°C
Power Efficiency 80 PLUS Platinum certification for power supply efficiency
Vibration Resistance Tested for 1.0 Grms (5-500 Hz) as per IEC 60068-2-6
Shock Resistance Tested up to 30 G for 11 ms according to IEC 60068-2-27
Redundancy Supports dual redundant power supplies and fans for high availability
Power Consumption Maximum 700W with full PoE load
Firmware Updates Supports secure, automated updates via Aruba Central
Network Security 802.1X, MAC-based authentication, Dynamic Segmentation, ACLs
Deployment Suitable for high-density, performance-critical enterprise installations
Reliability Tested for high availability in mission-critical environments
Advanced Features Supports VRF, VXLAN, EVPN, and QoS for advanced traffic management
Monitoring and Diagnostics Real-time network analytics and telemetry via Aruba NetEdit and Central

[/specifications]


The HPE Aruba Networking CX 6300F 48-port 1GbE Class 4 PoE Switch (JL665A) delivers advanced networking capabilities with power-over-Ethernet (PoE) for efficient device management and seamless data transfer. With 48 Gigabit Ethernet ports and four high-speed SFP56 uplinks, this switch is designed for enterprises that require flexible and scalable network solutions.

Key Features:

  • 48 x 1GbE PoE Ports: Supports Class 4 PoE, delivering up to 30W per port for powering connected devices such as IP phones, cameras, and wireless access points.
  • 4 x SFP56 Uplinks: Provides high-speed 50Gbps uplink options, ensuring high performance for data-intensive workloads.
  • Advanced Layer 3 Features: Supports routing protocols such as OSPF, BGP, and VRF for traffic segmentation and efficient management.
  • Energy-Efficient Design: Complies with IEEE 802.3az standards, minimizing power consumption while maintaining high performance.
  • High Availability and Stacking: Supports HPE Virtual Switching Framework (VSF), enabling stacking of up to 10 switches for simplified management and scalability.

Technical Overview:

  • Recommended for: Enterprise and campus environments with high device density.
  • Ports: 48 x 1GbE PoE+ ports, 4 x 50Gbps SFP56 uplink ports.
  • Switching Capacity: 496 Gbps.
  • Forwarding Rate: 369 Mpps.
  • Layer 3 Features: OSPF, BGP, VRF, VLAN, and ACLs for advanced traffic control.
  • PoE Power: Class 4 PoE with up to 30W per port.
  • Management: Managed via Web GUI, CLI, SNMP, and Aruba Central.
  • Stacking: Supports up to 10 switches with VSF technology.
  • Energy Efficiency: Complies with IEEE 802.3az for reduced power consumption.

You can check the related tab for the JL665A datasheet.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Managed, Rack-mountable, 48 x 1G ports, Fixed Uplinks (4 x SFP56), PoE+ (740W), Layer 3

[/shortdesc]

[properties]

Product Name JL665A
Description HPE Aruba Networking CX 6300F, a modular 48-port Gigabit Ethernet switch with Class 4 PoE and 4 SFP56 uplink ports, designed for scalable enterprise networking and advanced Layer 3 capabilities.
Switch Type Managed Layer 3 modular switch
Ports 48 x 10/100/1000BASE-T PoE+ (Class 4, up to 30W each), 4 x 1G/10G/25G/50G SFP ports
PoE Budget Up to 740W total (IEEE 802.3af/at supported)
Uplink Ports 4 x SFP56 slots for high-speed uplinks (up to 50 Gbps per port)
Management Aruba Central cloud-based management, CLI, and Web GUI
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5% to 95% non-condensing
Dimensions 4.4 x 44.2 x 32.7 cm (1.73 x 17.4 x 12.9 in)
Weight 5.10 kg (11.24 lbs)
Power Supply Fixed, non-pluggable internal PSU (redundancy not supported)
Cooling Fixed, non-pluggable internal fans
Usage Ideal for enterprise networks, high-density deployments, and critical applications
Durability Rated for continuous use with redundancy and failover support

[/properties]

[specifications]

Switching Capacity 496 Gbps
Forwarding Rate 369 Mpps
Latency 1Gbps: 2.28μSec,
10Gbps: 1.46μSec,
25Gbps: 1.90μSec,
50Gbps: 3.49μSec
Certifications CE, FCC, UL, RoHS compliant
Environmental Safety RoHS 3 compliant (Directive 2015/863/EU), low-halogen design
EMC Compliance Complies with EN 55032, EN 55024, CISPR 32, and FCC Part 15 Class A standards
MTBF >1,000,000 hours at 25°C
Power Efficiency 80 PLUS Platinum certification for power supply efficiency
Vibration Resistance Tested for 1.0 Grms (5-500 Hz) as per IEC 60068-2-6
Shock Resistance Tested up to 30 G for 11 ms according to IEC 60068-2-27
Redundancy Supports dual redundant power supplies and fans for high availability
Power Consumption Maximum 700W with full PoE load
Firmware Updates Supports secure, automated updates via Aruba Central
Network Security 802.1X, MAC-based authentication, Dynamic Segmentation, ACLs
Deployment Suitable for high-density, performance-critical enterprise installations
Reliability Tested for high availability in mission-critical environments
Advanced Features Supports VRF, VXLAN, EVPN, and QoS for advanced traffic management
Monitoring and Diagnostics Real-time network analytics and telemetry via Aruba NetEdit and Central

[/specifications]

HPE Aruba Networking CX 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL665A)


The HPE Aruba Networking CX 6300F 48-port 1GbE Class 4 PoE Switch (JL665A) delivers advanced networking capabilities with power-over-Ethernet (PoE) for efficient device management and seamless data transfer. With 48 Gigabit Ethernet ports and four high-speed SFP56 uplinks, this switch is designed for enterprises that require flexible and scalable network solutions.

Key Features:

  • 48 x 1GbE PoE Ports: Supports Class 4 PoE, delivering up to 30W per port for powering connected devices such as IP phones, cameras, and wireless access points.
  • 4 x SFP56 Uplinks: Provides high-speed 50Gbps uplink options, ensuring high performance for data-intensive workloads.
  • Advanced Layer 3 Features: Supports routing protocols such as OSPF, BGP, and VRF for traffic segmentation and efficient management.
  • Energy-Efficient Design: Complies with IEEE 802.3az standards, minimizing power consumption while maintaining high performance.
  • High Availability and Stacking: Supports HPE Virtual Switching Framework (VSF), enabling stacking of up to 10 switches for simplified management and scalability.

Technical Overview:

  • Recommended for: Enterprise and campus environments with high device density.
  • Ports: 48 x 1GbE PoE+ ports, 4 x 50Gbps SFP56 uplink ports.
  • Switching Capacity: 496 Gbps.
  • Forwarding Rate: 369 Mpps.
  • Layer 3 Features: OSPF, BGP, VRF, VLAN, and ACLs for advanced traffic control.
  • PoE Power: Class 4 PoE with up to 30W per port.
  • Management: Managed via Web GUI, CLI, SNMP, and Aruba Central.
  • Stacking: Supports up to 10 switches with VSF technology.
  • Energy Efficiency: Complies with IEEE 802.3az for reduced power consumption.

You can check the related tab for the JL665A datasheet.
