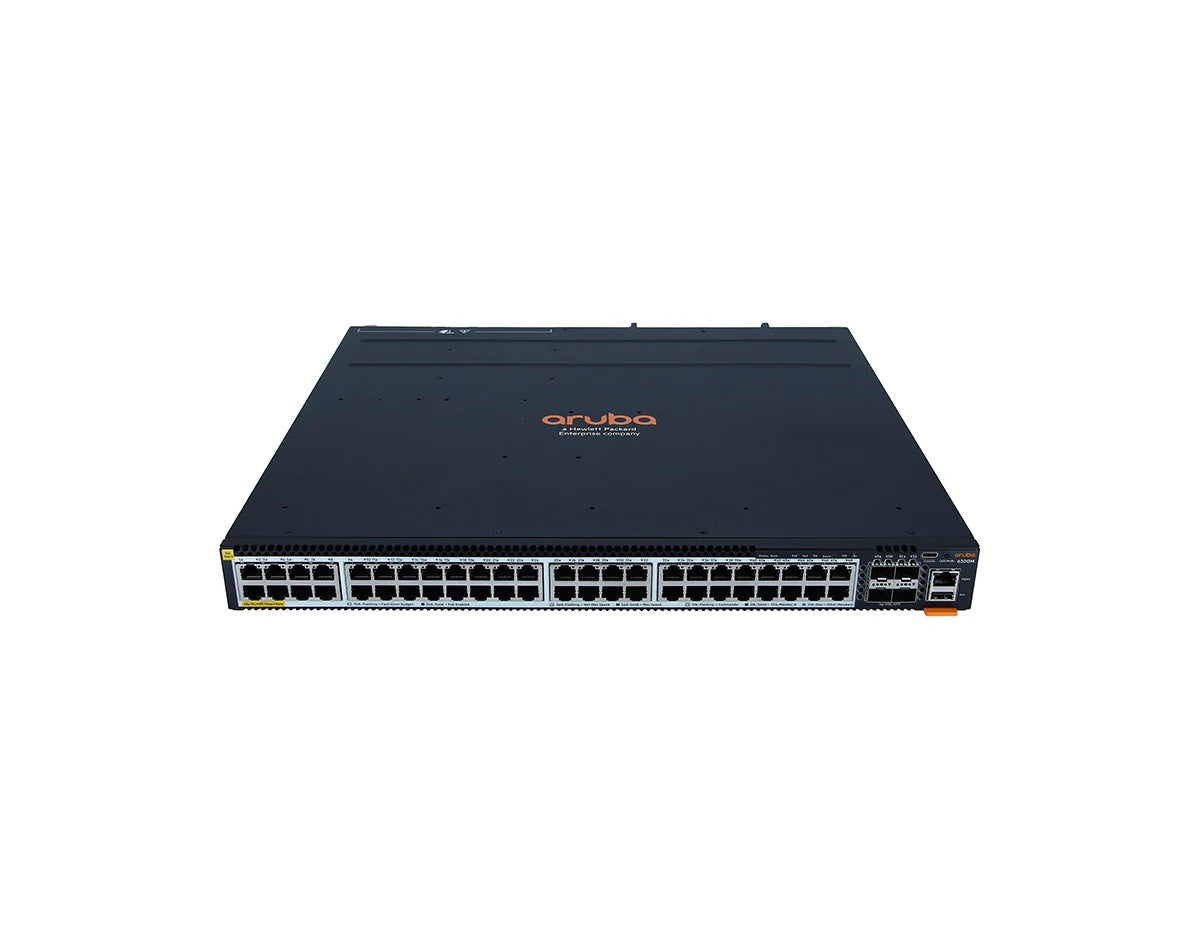

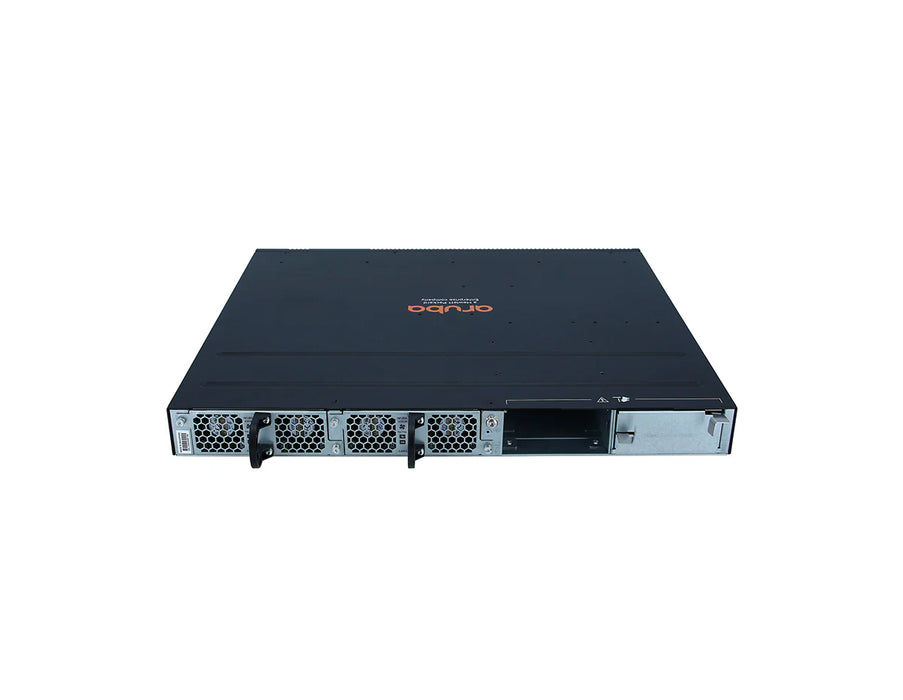

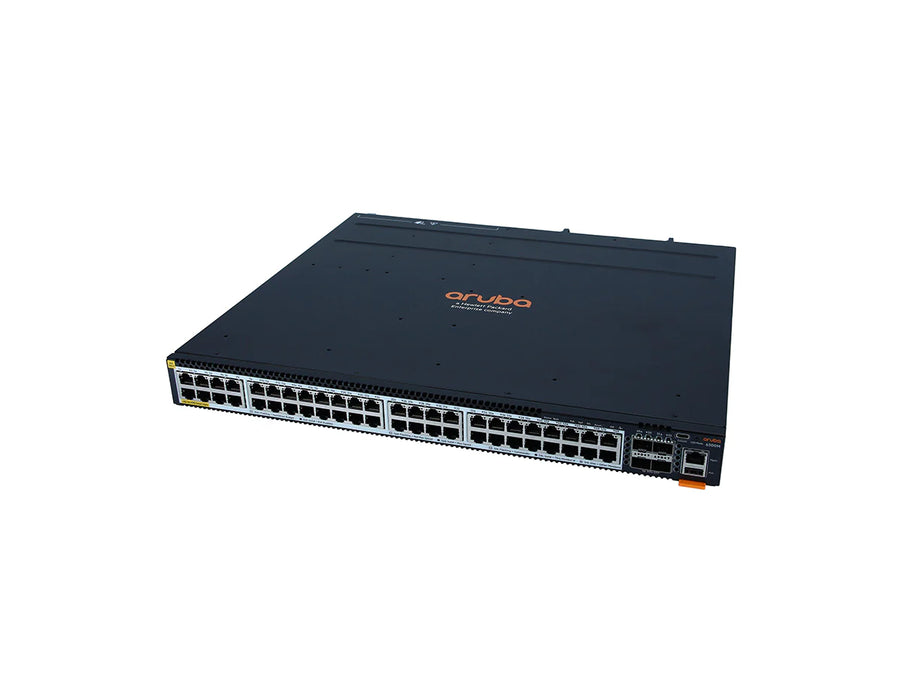

HPE Aruba Networking JL659A 6300M 48-Port Smart Rate PoE++ Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE Aruba Networking JL659A 6300M 48-Port Smart Rate PoE++ Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE Aruba Networking JL659A 6300M 48-Port Smart Rate PoE++ Switch
HPE Aruba Networking JL659A 6300M 48-Port Smart Rate PoE++ Switch

HPE Aruba Networking JL659A 6300M 48-Port Smart Rate PoE++ Switch

por HPE Aruba
Desconto de 81%
R$ 245.964,00
R$ 47.940,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Managed, rack-mountable, 48 x Smart Rate 100M/1/2.5/5GbE ports, 4 x SFP56 (1/10/25/50GbE) uplinks, Class 6 PoE (802.3bt) up to 60W/port, 2880W PoE budget, Layer 3
[/shortdesc]

[properties]

Properties JL659A
Description Aruba 6300M 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch JL659A

• 48x ports SmartRate 100M/1G/2.5G/5G BASE-T Class 6 PoE ports supporting up to 60W per port
• 4x SFP56 uplinks supporting 1/10/25/50GbE (*50G via DAC for VSF/interconnect*)
• Supports IEEE 802.3af/at and Class 6 (802.3bt, up to 60W per port)
• Must select PSU Min1 / Max2 (680W JL086A, 1050W JL087A, 1600W JL670A, 1050W JL758A) — mix OK
• Includes Fantrays Min2 / Max 2 (JL669B)
• Min=0 \ Max = 4 SFP/SFP+/SFP28/SFP56 1/10/25/50G Transceiver
• 1U - Height
Product Family Aruba CX 6300 Switch Series
Product Type Switch
Notes: Compatible with this PSU
System (std 2 // max 2) User Selection (min 0 // max 0) per enclosure
(Note: includes 2 Fan Trays. No additional Fan Trays necessary)

[/properties] [specifications]

Specifications
Additional Ports and Slots 1x USB‑C console port
1x OOBM
1x USB Type A host port
1x Bluetooth dongle to be used with CX Mobile App
Power Supplies 2 field-replaceable, hot-swappable power supply slots
1 minimum power supply required (ordered separately)
Supported PSUs: JL086A, JL087A, JL670A
Max PoE power: 2880W
Fan Tray Switch has two fan tray slots and comes with two fan trays installed.
Fan trays are field replaceable and hot-swappable. Minimum 2 fan trays required.
Each fan tray is comprised of two fans.
Physical Characteristics
Dimensions 17.4 (w) x 15.2 (d) x 1.73 (h) in (44.2 x 38.5 x 4.4 cm)
Weight 13.27 lbs (6.02 kg)
Mounting and Enclosure Mounts in an EIA- standard 19 in. telco rack or equipment cabinet.
Horizontal surface mounting only. 2-post rack kit included.
CPU Quad Core ARM Cortex™ A72 @ 1.8GHz
Memory and Flash 8 GBytes DDR4 32 GBytes eMMC
Packet Buffer Packet Buffer Shared 8/16/32 MB (model/config dependent)
Performance
System switching capacity 880 Gbps
System throughput capacity 660 Mpps
Model switching capacity  880 Gbps
Model throughput capacity 654 Mpps
Average latency
(LIFO, 64-byte packets)		 1Gbps: 4.24μSec
10Gbps: 1.50μSec
25Gbps: 2.91μSec
50Gbps: 3.49μSec
Stack size 10 members
Max stacking distance Up to 10 kms with long range transceivers
Stacking bandwidth 200 Gbps (400 Gbps at full duplex)
Switched virtual interfaces (dual stack) 1,024
IPv4 host table (ARP) 49,152
IPv6 host table (ND) 49,152
IPv4 unicast routes 61,000
IPv6 unicast routes 61,000
IPv4 multicast routes 8,192
IPv6 multicast routes 8,192
MAC table capacity 32,768
IGMP groups 8,192
MLD groups 8,192
IPv4/IPv6/MAC ACL entries (ingress) 20,480/5,120/20,480
IPv4/IPv6/MAC ACL entries (engress) 8,192/2,048/8,192
VRF 256
Environment
Operating temperature  32°F to 113°F (0°C to 45°C), up to 5,000 feet
32°F to 104°F (0°C to 40°C), 5,001 to 10,000 feet
1°C de‑rating per 1,000 feet above 5,000 feet
Operating humidity 15% to 95% relative humidity at 104°F (40°C), non‑condensing
Non-operating temperature ‑40°F to 158°F ('‑40°C to 70°C)
Non-operating humidity 15% to 95% relative humidity at 149°F(65°C), non‑condensing
Max operating altitude Up to 10,000ft (3.048 Km)
Max non-operating altitude Up to 15,000ft (4.572 Km)
Acoustic Sound power,
LWAd = 4.8 Bel
Sound pressure,
LpAm (bystander) = 30.6 dB
Primary airflow Front and side-to-back
Electrical Characteristics
Frequency 50-60 Hz
AC voltage JL670A PSU: 110V-120V/208V-240V
JL086A PSU: 100V-240V
JL087A PSU: 110V-240V
Current (for voltages listed above) JL670A PSU: 11A/8A
JL086A PSU: 8A/3.5A
JL087A PSU: 12A/5A
Power consumption (230VAC) With JL086A PSU:
Idle: 133W
100% traffic rate: 199W
With JL087A PSU:
Idle: 138W
100% traffic rate: 193W
With JL670A PSU:
Idle: 140W
100% traffic rate: 201W
Safety Europe: EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013
US: UL 60950-1 2nd Ed..
Canada: CAN/CSA-C22.2 No. 60950-1-07
Worldwide: IEC 60950-1:2005 w/all known National Deviations
Emissions Europe: EN 55022:2010, Class A EN 55032:2012, Class A EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-
3:2013
US: FCC part 15 Class A
Canada: ICES-003 Class A
Worldwide: VCCI Class A, CISPR 22 Class A CISPR 32 Class A CISPR 24:2010
Lasers EN 60825-1:2007 / IEC 60825-1:2007 Class 1
Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
Immunity
Generic CISPR 24 / CISPR 35
EN EN 55024:2010 / EN 55035:2017
ESD IEC 61000-4-2
Radiated IEC 61000-4-3
EFT/Burst IEC 61000-4-4
Surge IEC 61000-4-5
Conducted IEC 61000-4-6
Power frequency magnetic field IEC 61000-4-8
Voltage dips and interruptions IEC 61000-4-11
Harmonics IEC 61000-3-2, EN 61000-3-2
Flicker IEC 61000-3-3, EN 61000-3-3

 [/specifications] [accesories]

Accessories
USB Console Cables USB Console Cables System
(std 0 // max 99) User Selection (min 0 // max 99) per switch
• Aruba USBA-RJ45 PIN3TX-6RX 2.5m Cable R8Z87A
• Aruba USBA-RJ45 PC-to-Switch PIN6TX-3RX 2.5m Cable R9G48A
• Aruba USB-A reversible to USB-C PC-to-Switch 3m Cable R9J32A
• Aruba USB-C to USB-C PC-to-Switch 3m Cable
Bluetooth Adapter System (std 0 // max 99) User Selection (min 0 // max 99) per switch
HPE Aruba Networking CX Switch Bluetooth Adapter

 [/accesories]


The HPE Aruba 6300M 48-port Smart Rate Switch (JL659A) delivers versatile, high-performance networking for demanding enterprise environments. Featuring 48 HPE Smart Rate ports with speeds of 1Gbps, 2.5Gbps, and 5Gbps, and 4 high-speed SFP56 uplink ports supporting up to 50Gbps, this switch is ideal for powering advanced devices while delivering exceptional network performance and scalability.

Key Features:

  • 48 x 1/2.5/5GbE HPE Smart Rate Ports: Provides flexible connectivity for advanced devices requiring high-speed data transfer and efficient power delivery through Class 6 PoE.
  • 4 x 50Gbps SFP56 Uplinks: Supports high-bandwidth uplinks for data-intensive workloads and seamless inter-switch communication.
  • Layer 3 Routing: Includes advanced routing protocols like OSPF and BGP, enabling efficient network traffic segmentation and routing.
  • Power over Ethernet (PoE): Provides Class 6 PoE power to connected devices, offering up to 60W per port.
  • Energy Efficiency: Compliant with IEEE 802.3az standards, reducing energy consumption while maintaining top performance.

Technical Overview:

  • Recommended for: Enterprise data centers, large branch offices, and educational institutions.
  • Ports: 48 x 1GbE/2.5GbE/5GbE Smart Rate ports, 4 x 50Gbps SFP56 uplink ports.
  • Switching Capacity: 880 Gbps.
  • Forwarding Rate: 654 Mpps.
  • Layer 3 Features: OSPF, BGP, VLAN, and VRF for robust network control.
  • PoE Power: Supports up to 60W per port via Class 6 PoE.
  • Management: Managed through Web GUI, CLI, SNMP, and Aruba Central.
  • Energy Efficiency: Complies with IEEE 802.3az for reduced power usage.
  • Stacking: Supports Virtual Switching Framework (VSF) with stacking up to 10 switches.

You can check the related tab for the JL659A datasheet.
