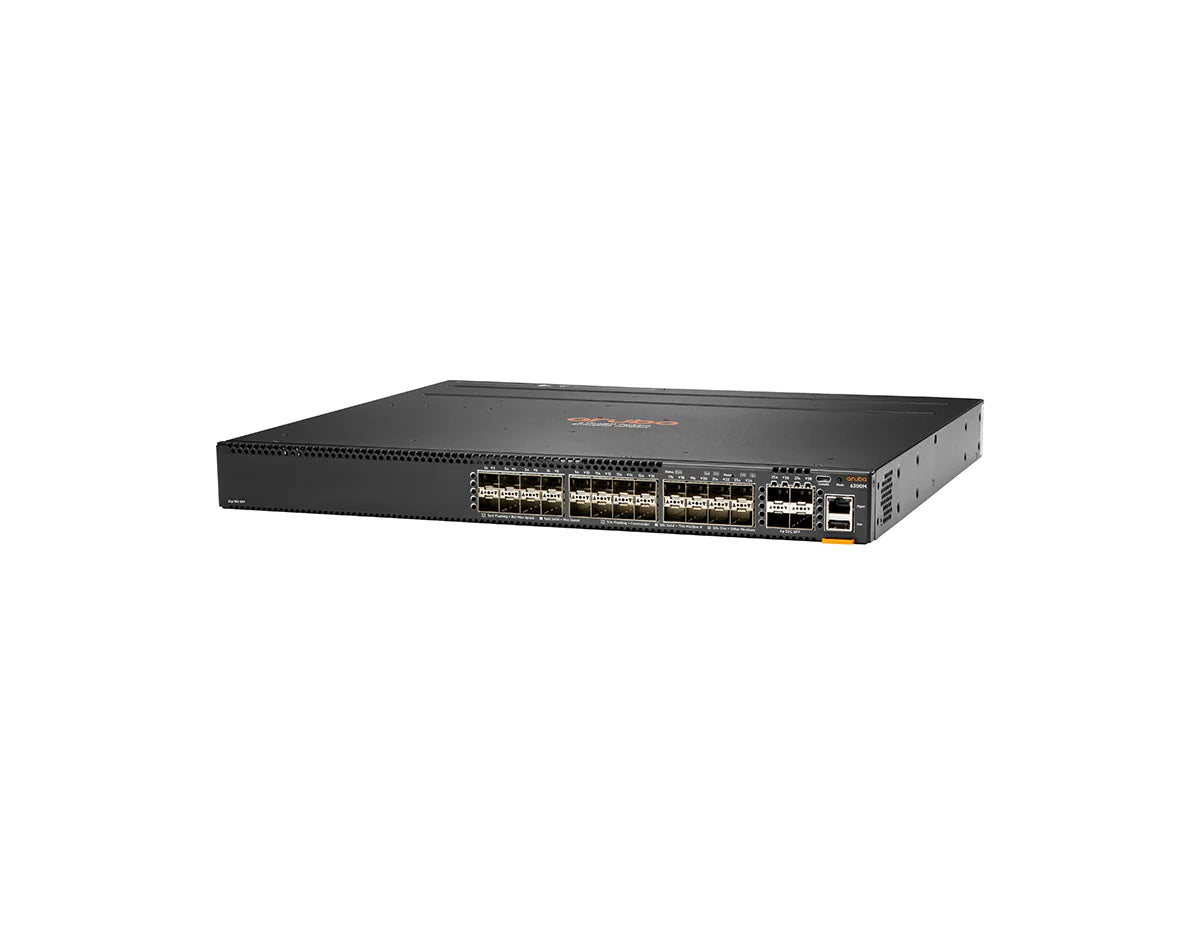

HPE Aruba Networking JL658A 6300M 24-port SFP+ and 4-port SFP56 Switch
HPE Aruba Networking JL658A 6300M 24-port SFP+ and 4-port SFP56 Switch

HPE Aruba Networking JL658A 6300M 24-port SFP+ and 4-port SFP56 Switch

por HPE Aruba
Desconto de 63%
R$ 249.948,00
R$ 92.940,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Managed, rack-mountable, 24 x 1/10GbE SFP+ ports, 4 x SFP56 (1/10/25/50GbE)* uplinks, No PoE (data only), Layer 3 (*50G via DAC for VSF/interconnect)

[/shortdesc]

[properties]

Properties JL658A
Description Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch JL658A
• 24x 1/10G SFP+ ports; 4x SFP56 1/10/25/50G uplinks (*50G via DAC for VSF/interconnect)
• Must Select PSU Min1 / Max2 (250W JL085A, 250W JL757A) Mix OK
• Includes Fantrays Min2 / Max 2 (JL669B)
• Min=0 \ Max= 24 SFP/SFP+ 100M/1/10G Transceivers
• Min=0 \ Max = 4 SFP/SFP+/SFP28/SFP56 1/10/25/50G Transceiver
• 1U – Height
Product Family Aruba CX 6300 Switch Series
Product Type Switch

 [/properties] [specifications]

Specifications
Additional Ports and Slots 1x USB‑C console port
1x OOBM
1x USB Type A host port
1x Bluetooth dongle to be used with CX Mobile App
Power Supplies 2 field-replaceable, hot-swappable power supply slots.
1 minimum power supply required (ordered separately)
Supports JL085A PSU
Fan Tray Switch has two fan tray slots and comes with two fan trays installed.
Fan trays are field replaceable and hot-swappable. Minimum 2 fan trays required.
Each fan tray is comprised of two fans.
Physical Characteristics
Dimensions 17.4 (w) x 15.2 (d) x 1.73 (h) in
(44.2 x 38.5 x 4.4 cm)
Weight 12.78 lbs (5.8 Kg)
Mounting and Enclosure Mounts in an EIA- standard 19 in. telco rack or equipment cabinet.
Horizontal surface mounting only. 2-post rack kit included.
CPU Quad Core ARM Cortex™ A72 @ 1.8GHz
Memory and Flash 8 GBytes DDR4
32 GBytes eMMC
Packet Buffer 8 MB packet buffer memory
Performance
System switching capacity 880 Gbps
System throughput capacity 660 Mpps
Model switching capacity  880 Gbps
Model throughput capacity 654 Mpps
Average latency
(LIFO, 64-byte packets)		 1Gbps: 1.99μSec
10Gbps: 1.49μSec
25Gbps: 2.85μSec
50Gbps: 2.82μSec
Stack size 10 members
Max stacking distance Up to 10 kms with long range transceivers
Stacking bandwidth 200 Gbps (400 Gbps at full duplex)
Switched virtual interfaces (dual stack) 1,024
IPv4 host table (ARP) 49,152
IPv6 host table (ND) 49,152
IPv4 unicast routes 61,000
IPv6 unicast routes 61,000
IPv4 multicast routes 8,192
IPv6 multicast routes 8,192
MAC table capacity 32,768
IGMP groups 8,192
MLD groups 8,192
IPv4/IPv6/MAC ACL entries (ingress) 20,480/5,120/20,480
IPv4/IPv6/MAC ACL entries (engress) 8,192/2,048/8,192
VRF 256
Environment
Operating temperature  32°F to 113°F (0°C to 45°C), up to 5,000 feet
32°F to 104°F (0°C to 40°C), 5,001 to 10,000 feet
1°C de‑rating per 1,000 feet above 5,000 feet
Can support excursion to 131°F (55°C) for short periods of time.
Operating temperature is reduced to 32°F (0°C) to 104°F (40°C) up to
5000ft when 10G SFP+ LR or ER Transceivers are installed. (Not more than 96 consecutive hours or 360 hours total or 15 occurrences in a 1-year period.)
Operating humidity 15% to 95% relative humidity at 104°F (40°C), non‑condensing
Non-operating temperature ‑40°F to 158°F ('‑40°C to 70°C)
Non-operating humidity 15% to 95% relative humidity at 149°F(65°C), non‑condensing
Max operating altitude Up to 10,000ft (3.048 Km)
Max non-operating altitude Up to 15,000ft (4.572 Km)
Acoustic Sound power,
LWAd = 4.9 Bel
Sound pressure,
LpAm (bystander) = 31.0 dB
Primary airflow Front and side-to-back
Electrical Characteristics
Frequency 50-60 Hz
AC voltage JL085A PSU: 100V-240V
Current (for voltages listed above) JL085A PSU: 3A/1.2A
Power consumption (230VAC) Idle: 51W
100% traffic rate: 85W
Safety Europe: EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013
US: UL 60950-1 2nd Ed
Canada: CAN/CSA-C22.2 No. 60950-1-07
Worldwide: IEC 60950-1:2005 w/all known National Deviations
Emissions Europe: EN 55022:2010, Class A EN 55032:2012, Class A EN 55024:2010, EN 61000-3-2:2014,
EN 61000-3-3:2013
US: FCC part 15 Class A
Canada: ICES-003 Class A
Worldwide: VCCI Class A, CISPR 22 Class A CISPR 32 Class A CISPR 24:2010
Lasers EN 60825-1:2007 / IEC 60825-1:2007 Class 1
Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
Immunity
Generic CISPR 24 / CISPR 35
EN EN 55024:2010 / EN 55035:2017
ESD IEC 61000-4-2
Radiated IEC 61000-4-3
EFT/Burst IEC 61000-4-4
Surge IEC 61000-4-5
Conducted IEC 61000-4-6
Power frequency magnetic field IEC 61000-4-8
Voltage dips and interruptions IEC 61000-4-11
Harmonics IEC 61000-3-2, EN 61000-3-2
Flicker IEC 61000-3-3, EN 61000-3-3

[/specifications] [accesories]

Accessories
Fan Trays System (std 2 // max 2) User Selection (min 0 // max 0) per enclosure
Note: This switch includes 2 Fan Trays. No additional Fan Trays necessary
JL669B Aruba X751 Front to Back Fan Tray
JL761A Aruba 6300M Power-to-Port Fan Tray
USB Console Cables System (std 0 // max 99) User Selection (min 0 // max 99) per switch
R8Z87A Aruba USBA-RJ45 PIN3TX-6RX 2.5m Cable
R9G48A Aruba USBA-RJ45 PC-to-Switch PIN6TX-3RX 2.5m Cable
R9J32A Aruba USB-A reversible to USB-C PC-to-Switch 3m Cable
R9J33A Aruba USB-C to USB-C PC-to-Switch 3m Cable
Bluetooth Adapter System (std 0 // max 99) User Selection (min 0 // max 99) per switch
S1H23A HPE Aruba Networking CX Switch Bluetooth Adapter

[/accesories]


The HPE Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch (JL658A) is designed for high-performance enterprise networks. Featuring 24 SFP+ ports for 1G/10G connectivity and four high-speed SFP56 uplinks, this switch ensures exceptional bandwidth and scalability for modern networks. With a compact design and robust feature set, it is ideal for data center top-of-rack (ToR) and aggregation layer deployments, providing flexibility, security, and high availability for critical applications.

Key Features:

  • 24 x 1G/10G SFP+ Ports: Supports high-speed connections for improved network performance and future growth.
  • 4 x SFP56 Uplinks: Enables uplink speeds of up to 50Gbps, providing high bandwidth for inter-switch communication and network expansion.
  • Advanced Layer 3 Capabilities: Includes robust routing protocols such as OSPF and BGP, offering efficient traffic management and segmentation.
  • Energy-Efficient Design: Optimizes power usage in compliance with IEEE 802.3az standards, lowering operational costs.
  • Stackable Architecture: Supports HPE Virtual Switching Framework (VSF) for stacking up to 10 switches, simplifying network management and scaling.

Technical Overview:

  • Recommended for: Enterprise networks, data centers, and branch offices.
  • Ports: 24 x 1G/10G SFP+ ports, 4 x 50G SFP56 uplink ports.
  • Switching Capacity: 880 Gbps.
  • Throughput: 654 Mpps.
  • Layer 3 Features: OSPF, BGP, VRF, and VLAN for advanced traffic routing.
  • Management: Web GUI, CLI, SNMP, and Aruba Central.
  • Energy Efficiency: IEEE 802.3az compliant for reduced power consumption.
  • Stacking: Supports up to 10 switches with VSF for simplified management.

You can check the related tab for the JL658A datasheet.
