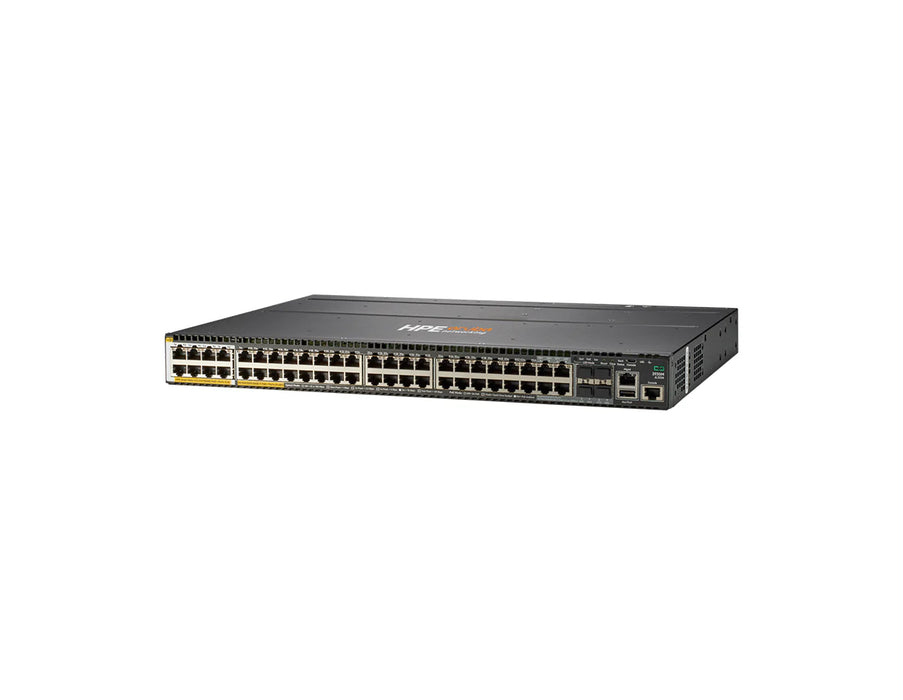

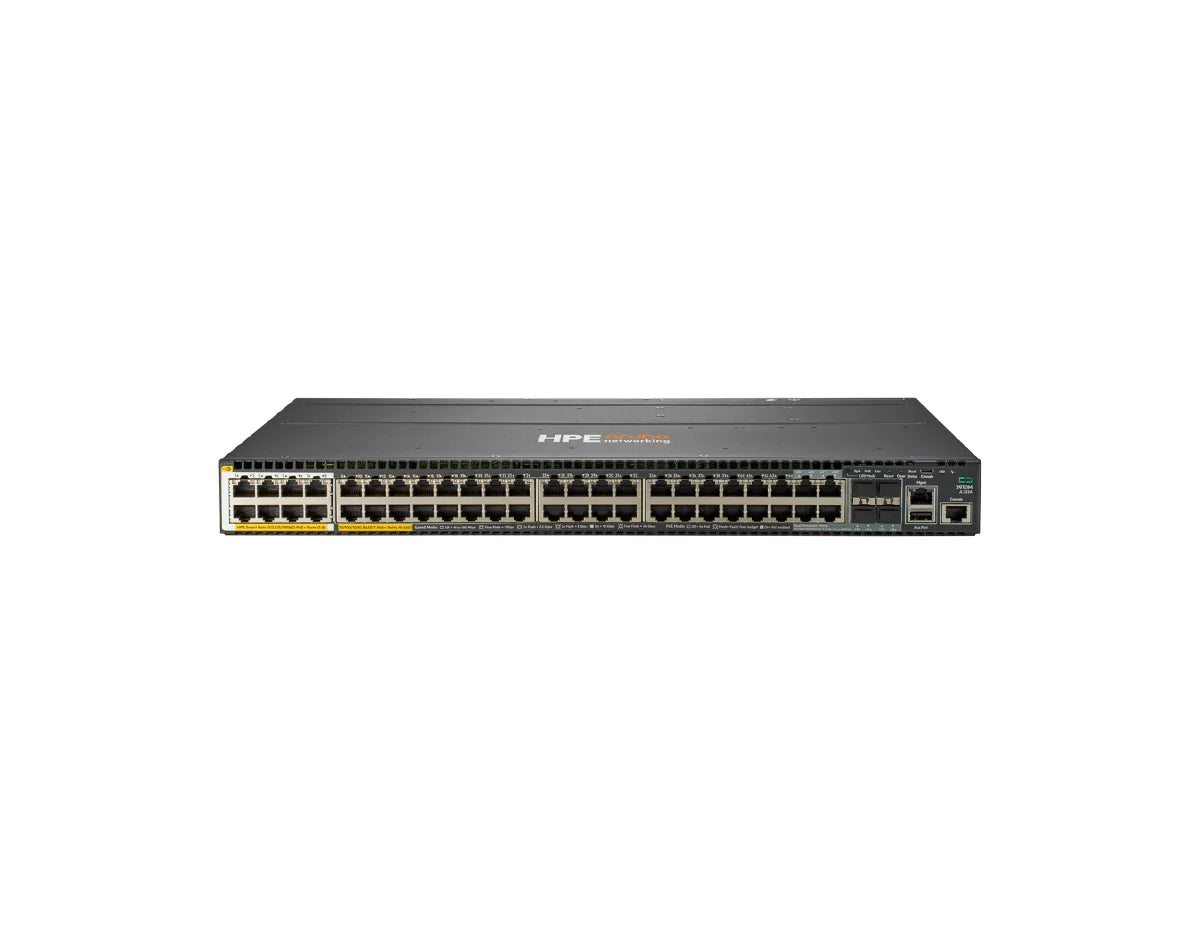

HPE Aruba Networking JL323A 2930M 48-Port Layer 3 Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE Aruba Networking JL323A 2930M 48-Port Layer 3 Switch
HPE Aruba Networking JL323A 2930M 48-Port Layer 3 Switch

HPE Aruba Networking JL323A 2930M 48-Port Layer 3 Switch

por HPE Aruba
R$ 25.740,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Managed, Rack-mountable, 36 x 1G PoE+ ports, 4 x combo 1G/SFP PoE+ ports, 8 x 1G/2.5G/5G/10G Smart Rate PoE+ ports, 1 uplink slot, PoE+ up to 1440W, Layer 3

[/shortdesc]

[properties]

Product Name HPE Aruba 2930M 40G 8 Smart Rate PoE+ 1-Slot Switch (JL323A)
Product Description High-density 1U Layer 3 PoE+ access switch with 36 x 1G ports, 4 combo 1G/SFP ports, 8 Smart Rate multi-gig (1/2.5/5/10G) PoE+ ports, and 1 uplink module slot
Port Configuration 48 x 1GbE ports; modular uplink slots supporting 1GbE or 10GbE
Switching Capacity 320 Gbps
Forwarding Rate 112 Mpps
Layer 3 Features OSPF, RIP, and static routing
Stacking Capability Supports Virtual Switching Framework (VSF) stacking of up to eight switches
Management Interfaces CLI, web-based GUI, SNMP, cloud-based platforms
Security Features ACLs, 802.1X authentication, dynamic segmentation
Energy Efficiency Compliant with IEEE 802.3az for reduced power consumption during low traffic periods
Physical Dimensions 1.73 x 17.42 x 12.77 in. (4.39 x 44.25 x 32.43 cm)
Weight 9.81 lbs (4.45 kg)

[/properties]

[specifications]

Recommended Use Cases Enterprise networks, campus environments, growing businesses
Uplink Options Modular slots supporting 1GbE or 10GbE uplinks
Stacking Bandwidth Up to 100 Gbps stacking bandwidth with VSF
VLAN Support Up to 4,094 VLANs
QoS Features Advanced QoS with traffic prioritization and bandwidth management
Operating Temperature 32°F to 113°F (0°C to 45°C)
Operating Humidity 15% to 95% non-condensing
Power Supply Dual, redundant, hot-swappable power supplies
Compliance Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x

[/specifications]

The Aruba JL323A 2930M Smart Rate PoE+ switch delivers enterprise-class performance, scalability, and flexibility in a compact 1U form factor. With 36 Gigabit PoE+ ports, 4 combo 1G/SFP ports, and 8 Smart Rate multi-gig (1/2.5/5/10G) PoE+ ports, it is purpose-built for high-density Wi-Fi 6 and IoT deployments.

This model supports PoE+ budgets up to 1440W (with JL086A/JL087A PSUs), powering demanding devices such as access points, IP phones, and cameras. With a switching capacity of 320 Gbps, forwarding rate of 112 Mpps, and sub-3.4 µs latency, it ensures high-performance networking at scale.

Featuring Virtual Switching Framework (VSF) stacking for up to 8 members, Layer 3 routing (OSPF, RIP, static), and centralized management via Aruba Central, AirWave, and CLI, the JL323A simplifies operations while enhancing security with 802.1X, ACLs, and dynamic segmentation.

Ideal for campus, enterprise, and advanced Wi-Fi environments, the Aruba JL323A is a future-ready switch that combines multi-gig PoE+, robust security, and stackable design into a single, powerful platform.

Key Features:

  • 48 x 1GbE Ports: Provides high-speed connectivity for enterprise-level networks, enabling smooth data transmission for various devices.
  • Modular Uplink Options: Supports 1GbE or 10GbE uplinks, allowing for network expansion and scalability.
  • Layer 3 Features: Includes OSPF, RIP, and static routing for advanced traffic management.
  • VSF Stacking: Enables stacking of up to eight switches for simplified management and improved network resiliency.
  • Energy Efficient Design: Compliant with IEEE 802.3az, reducing power consumption during low traffic periods.

Technical Overview:

  • Recommended for: Enterprise networks, campus environments, and growing businesses.
  • Ports: 48 x 1GbE ports, modular uplink slots for 1/10GbE.
  • Switching Capacity: 176 Gbps.
  • Forwarding Rate: 131 Mpps.
  • Management: Managed via CLI, web-based GUI, SNMP, or cloud-based platforms.
  • Security Features: Supports ACLs, 802.1X authentication, and dynamic segmentation for enhanced network security.

You can check the related tab for the JL323A datasheet.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Managed, Rack-mountable, 36 x 1G PoE+ ports, 4 x combo 1G/SFP PoE+ ports, 8 x 1G/2.5G/5G/10G Smart Rate PoE+ ports, 1 uplink slot, PoE+ up to 1440W, Layer 3

[/shortdesc]

[properties]

Product Name HPE Aruba 2930M 40G 8 Smart Rate PoE+ 1-Slot Switch (JL323A)
Product Description High-density 1U Layer 3 PoE+ access switch with 36 x 1G ports, 4 combo 1G/SFP ports, 8 Smart Rate multi-gig (1/2.5/5/10G) PoE+ ports, and 1 uplink module slot
Port Configuration 48 x 1GbE ports; modular uplink slots supporting 1GbE or 10GbE
Switching Capacity 320 Gbps
Forwarding Rate 112 Mpps
Layer 3 Features OSPF, RIP, and static routing
Stacking Capability Supports Virtual Switching Framework (VSF) stacking of up to eight switches
Management Interfaces CLI, web-based GUI, SNMP, cloud-based platforms
Security Features ACLs, 802.1X authentication, dynamic segmentation
Energy Efficiency Compliant with IEEE 802.3az for reduced power consumption during low traffic periods
Physical Dimensions 1.73 x 17.42 x 12.77 in. (4.39 x 44.25 x 32.43 cm)
Weight 9.81 lbs (4.45 kg)

[/properties]

[specifications]

Recommended Use Cases Enterprise networks, campus environments, growing businesses
Uplink Options Modular slots supporting 1GbE or 10GbE uplinks
Stacking Bandwidth Up to 100 Gbps stacking bandwidth with VSF
VLAN Support Up to 4,094 VLANs
QoS Features Advanced QoS with traffic prioritization and bandwidth management
Operating Temperature 32°F to 113°F (0°C to 45°C)
Operating Humidity 15% to 95% non-condensing
Power Supply Dual, redundant, hot-swappable power supplies
Compliance Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x

[/specifications]

HPE Aruba JL323A 2930M 40G 8 Smart Rate PoE+ 1-Slot Switch

The Aruba JL323A 2930M Smart Rate PoE+ switch delivers enterprise-class performance, scalability, and flexibility in a compact 1U form factor. With 36 Gigabit PoE+ ports, 4 combo 1G/SFP ports, and 8 Smart Rate multi-gig (1/2.5/5/10G) PoE+ ports, it is purpose-built for high-density Wi-Fi 6 and IoT deployments.

This model supports PoE+ budgets up to 1440W (with JL086A/JL087A PSUs), powering demanding devices such as access points, IP phones, and cameras. With a switching capacity of 320 Gbps, forwarding rate of 112 Mpps, and sub-3.4 µs latency, it ensures high-performance networking at scale.

Featuring Virtual Switching Framework (VSF) stacking for up to 8 members, Layer 3 routing (OSPF, RIP, static), and centralized management via Aruba Central, AirWave, and CLI, the JL323A simplifies operations while enhancing security with 802.1X, ACLs, and dynamic segmentation.

Ideal for campus, enterprise, and advanced Wi-Fi environments, the Aruba JL323A is a future-ready switch that combines multi-gig PoE+, robust security, and stackable design into a single, powerful platform.

Key Features:

  • 48 x 1GbE Ports: Provides high-speed connectivity for enterprise-level networks, enabling smooth data transmission for various devices.
  • Modular Uplink Options: Supports 1GbE or 10GbE uplinks, allowing for network expansion and scalability.
  • Layer 3 Features: Includes OSPF, RIP, and static routing for advanced traffic management.
  • VSF Stacking: Enables stacking of up to eight switches for simplified management and improved network resiliency.
  • Energy Efficient Design: Compliant with IEEE 802.3az, reducing power consumption during low traffic periods.

Technical Overview:

  • Recommended for: Enterprise networks, campus environments, and growing businesses.
  • Ports: 48 x 1GbE ports, modular uplink slots for 1/10GbE.
  • Switching Capacity: 176 Gbps.
  • Forwarding Rate: 131 Mpps.
  • Management: Managed via CLI, web-based GUI, SNMP, or cloud-based platforms.
  • Security Features: Supports ACLs, 802.1X authentication, and dynamic segmentation for enhanced network security.

You can check the related tab for the JL323A datasheet.
