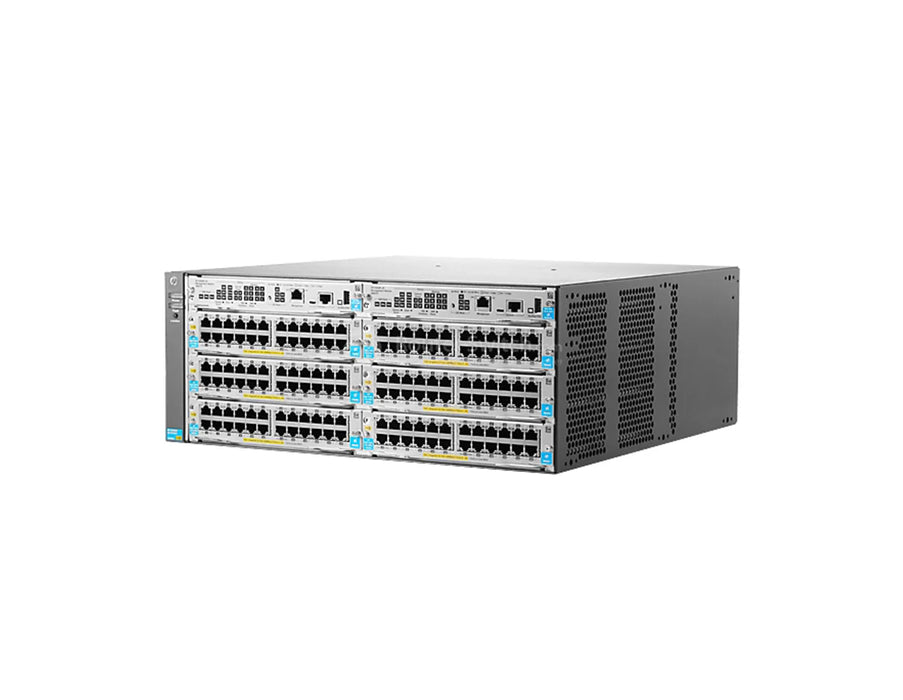

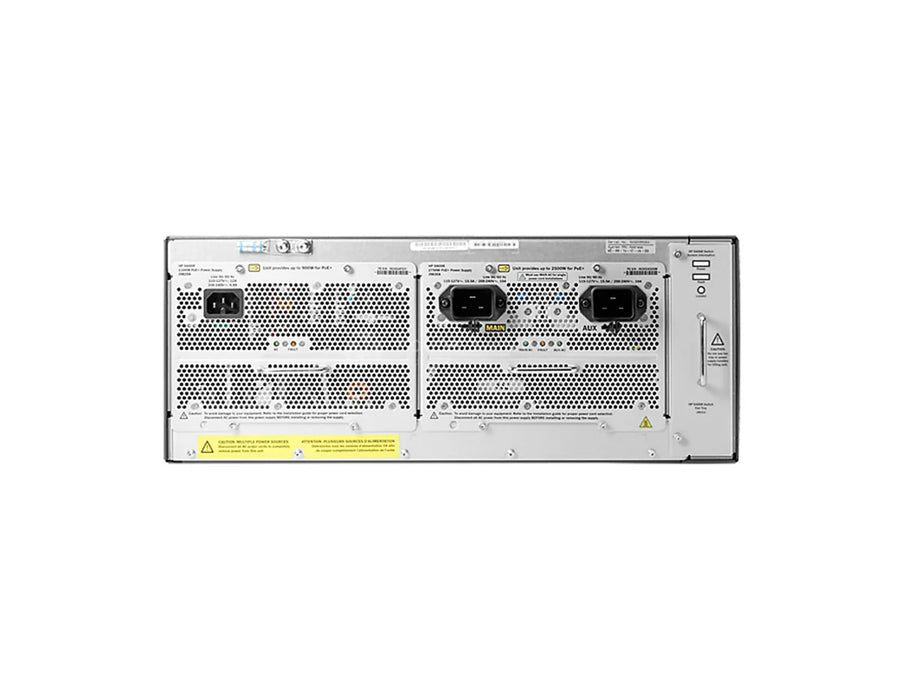

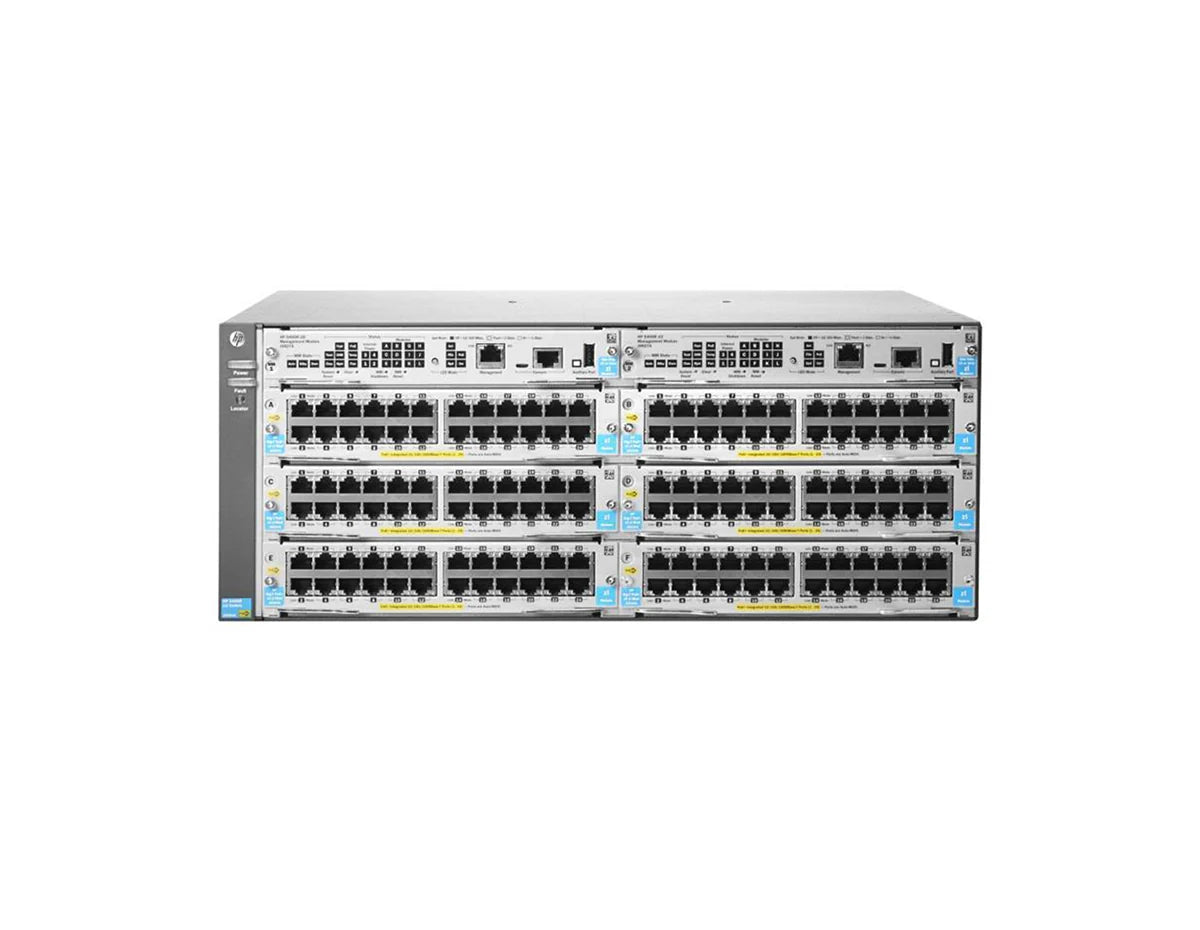

HPE Aruba Networking J9821A 5406R zl2 Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE Aruba Networking J9821A 5406R zl2 Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE Aruba Networking J9821A 5406R zl2 Switch
HPE Aruba Networking J9821A 5406R zl2 Switch

HPE Aruba Networking J9821A 5406R zl2 Switch

por HPE Aruba
Desconto de 39%
R$ 30.804,00
R$ 18.750,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Managed, Rack-mountable, 6 open module slots, supports up to 144 x 10/100/1000 or 144 SFP or 48 SFP+ or 48 HPE Smart Rate or 12 x 40 GbE (mix-and-match)s, No PoE (Data Only), Layer 3
[/shortdesc]

[properties]

Properties HPE Aruba Networking 5406R zl2 Switch (J9821A)
Description Switch, L3, managed, 6 open module slots, rack-mountable, does not come with power supply
Product Family 5400R Series
Product Type Ethernet Switch
I/O ports and slots 6 open module slots
Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi-Gigabit or 12 40GbE ports, or a combination
Included accessories 1 HPE Aruba Networking 5400R zl2 Management Module (J9827A)
1 HPE Aruba Networking 5406R zl2 Switch Fan Tray (J9831A)
Power supplies 2 power supply slots
1 minimum power supply required (ordered separately)
Fan tray Includes: 1 x J9831A 1 fan tray slot
Dimensions 17.5 (w) x 17.75 (d) x 6.9 (h) in (44.45 x 45.09 x 17.53 cm) (4U height)
Weight 24.5 lb (11.11 kg)
Electrical characteristics
Frequency 50/60 Hz
80plus.org Certification Gold
Description Does not come with power supply. Two power supply slots are available; three different power supplies are available. See power supply products for additional specifications.
Heat dissipation 2450 BTU/hr (2584 kJ/hr), (max. non‑PoE)
3700 BTU/hr (3903 kJ/hr) (max. using PoE)
Input voltage 100–127/200–240 VAC, rated (depending on power supply chosen)
Notes Heat dissipation does not include heat dissipated by the PoE-powered devices themselves.

[/properties]

[specifications]

Specifications 5406R-J9821A
Memory and processor
v3 Gigabit Module
v3 10G Module
v3 40G Module		 Dual ARM® Cortex A9 at 1 GHz @ 1 GHz; Packet buffer size: 13.5 MB internal
v2 Gigabit Module
v2 10G Module		 ARM 11 @ 450 MHz; Packet buffer size: 18 MB internal
Management Module Freescale P2020 dual core at 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM
Mounting and enclosure Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included); Horizontal surface mounting only
Performance
IPv6 Ready Certified
1000 Mb Latency < 2.8 µs (FIFO 64-byte packets)
10 Gbps Latency < 1.8 µs (FIFO 64-byte packets)
40 Gbps Latency < 1.5 µs (FIFO 64-byte packets)
Throughput up to 571.4 Mpps
Routing/Switching capacity 960 Gbps
Switch fabric speed 1015 Gbps
Routing table size 10000 entries (IPv4), 5000 entries (IPv6)
MAC address table size 64000 entries
Management HPE Aruba Networking Management Software
HPE Aruba Networking Central
HPE Intelligent Management Center Basic Software Platform (IMC)
Command-line interface
Web browser
Configuration menu
Out-of-band management (RJ-45 Ethernet)
Out-of-band management (serial RS-232C or micro USB)
SNMP manager
Operating temperature 32°F to 113°F (0°C to 45°C);
0°C to 40°C with J8177C transceiver installed, 0°C to
35°C with FIPS Opacity Shield installed
Operating relative humidity 15% to 95% @ 113°F (45°C), noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 15% to 95% @ 149°F (65°C), noncondensing
Altitude up to 10,000 ft (3 km)
Acoustic Power: 44 dB, Pressure: 31.7 dB
ISO 7779, ISO 9296
Safety CSA 22.2 No. 60950; UL 60950;
IEC 60950; EN 60950
Emissions FCC part 15 Class A; EN 55022/CISPR 22 Class A
Immunity EN 55024, CISPR 24
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3

[/specifications]

[accesories]

Transceivers
J9054D Aruba 100M SFP LC FX 2km MMF XCVR
J8177D Aruba 1G SFP RJ45 T 100m Cat5e XCVR
J4858D Aruba 1G SFP LC SX 500m MMF XCVR
J4859D Aruba 1G SFP LC LX 10km SMF XCVR
J4860D Aruba 1G SFP LC LH 70km SMF XCVR
J9150D Aruba 10G SFP+ LC SR 300m MMF XCVR
J9151E Aruba 10G SFP+ LC LR 10km SMF XCVR
J9152D Aruba 10G SFP+ LC LRM 220m MMF XCVR
J9153D Aruba 10G SFP+ LC ER 40km SMF XCVR
J9281D Aruba 10G SFP+ to SFP+ 1m DAC Cable
J9283D Aruba 10G SFP+ to SFP+ 3m DAC Cable
J9285D Aruba 10G SFP+ to SFP+ 7m DAC Cable
JL308A Aruba 40G QSFP+ LC BiDi 150m MMF XCVR
JH231A HPE X142 40G QSFP+ MPO SR4 Transceiver
JH232A HPE X142 40G QSFP+ LC LR4 SM Transceiver
JH233A HPE X142 40G QSFP+ MPO eSR4 300M XCVR
JH234A HPE X242 40G QSFP+ to QSFP+ 1m DAC Cable
JH235A HPE X242 40G QSFP+ to QSFP+ 3m DAC Cable
JH236A HPE X242 40G QSFP+ to QSFP+ 5m DAC Cable
TAA-Compliant Transceivers
JL745A Aruba 1G SFP LC SX 500m MMF TAA XCVR
JL746A Aruba 1G SFP LC LX 10km SMF TAA XCVR
JL747A Aruba 1G SFP RJ45 T 100m Cat5e TAA XCVR
JL748A Aruba 10G SFP+ LC SR 300m MMF TAA XCVR
JL749A Aruba 10G SFP+ LC LR 10km SMF TAA XCVR
Stacking cables
J9734A Aruba 2920/2930M 0.5M Stacking Cable
J9735A Aruba 2920/2930M 1m Stacking Cable
J9736A Aruba 2920/2930M 3m Stacking Cable
Power supplies
J9828A 5400R 700W PoE+ zl2 Power Supply
J9829A 5400R 1100W PoE+ zl2 Power Supply
J9830B 5400R 2750W PoE+ zl2 Power Supply
Mounting kit
J9852A HPE X450 4U/7U Universal 4-Post Rack Mounting Kit
Cables
JL448A Aruba X2C2 RJ45 to DB9 Console Cable
Aruba Central Foundation Licenses
R8L80AAE Aruba Central 64xx or 54xx Switch Foundation 1 year Subscription E-STU
R8L81AAE Aruba Central 64xx or 54xx Switch Foundation 3 year Subscription E-STU
R8L82AAE Aruba Central 64xx or 54xx Switch Foundation 5 year Subscription E-STU
R8L83AAE Aruba Central 64xx or 54xx Switch Foundation 7 year Subscription E-STU
R8L84AAE Aruba Central 64xx or 54xx Switch Foundation 10 year Subscription E-STU
R8M10AAE Aruba Central On-Premises 64xx or 54xx Switch Foundation 1 year Subscription E-STU
R8M11AAE Aruba Central On-Premises 64xx or 54xx Switch Foundation 3 year Subscription E-STU
R8M12AAE Aruba Central On-Premises 64xx or 54xx Switch Foundation 5 year Subscription E-STU
R8M13AAE Aruba Central On-Premises 64xx or 54xx Switch Foundation 7 year Subscription E-STU
R8M14AAE Aruba Central On-Premises 64xx or 54xx Switch Foundation 10 year Subscription E-STU
Support
H1NC1E JL001A: 4 Hour Onsite 3 Year
H1MT0E JL002A: 4 Hour Onsite 3 Year
H1MT0E JL003A: 4 Hour Onsite 3 Year
H1MT0E JL095A: 4 Hour Onsite 3 Year

[/accesories]

HPE Aruba 5406R zl2 Switch (J9821A)

The HPE Aruba 5406R zl2 Switch (J9821A) is a versatile and high-performance switch designed for enterprise networks that require scalable and secure network connectivity. Featuring a modular design, the 5406R zl2 offers six slots, providing flexibility for various networking requirements. With advanced Layer 2 and Layer 3 features, including routing, traffic management, and security capabilities, the switch is ideal for growing network environments such as campuses, data centers, and branch offices.

Key Features:

  • Modular Design: Six slots for flexible configuration options to meet diverse network requirements.
  • Advanced Layer 2 and Layer 3 Features: Supports VLANs, OSPF, BGP, and QoS for robust network management and traffic optimization.
  • High Performance: Offers wire-speed performance with low latency, ensuring seamless connectivity for mission-critical applications.
  • Redundant Power and High Availability: Supports dual power supplies and hot-swappable components for enhanced network uptime and reliability.
  • Energy Efficiency: Energy-efficient design with support for EEE (Energy Efficient Ethernet) for reducing operational costs.

Technical Overview:

  • Recommended for: Campus, branch, and data center environments requiring scalable and secure network solutions.
  • Ports: Modular, supporting multiple port options via expansion modules.
  • Form Factor: 6-slot chassis design for flexibility in network infrastructure deployments.
  • Power: Redundant, hot-swappable power supplies for high availability and continuous operation.
  • Management: Managed via Aruba Central, CLI, SNMP, and web-based GUI for comprehensive network control.

You can check the related tab for the HPE Aruba 5406R zl2 Switch (J9821A) datasheet.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.
