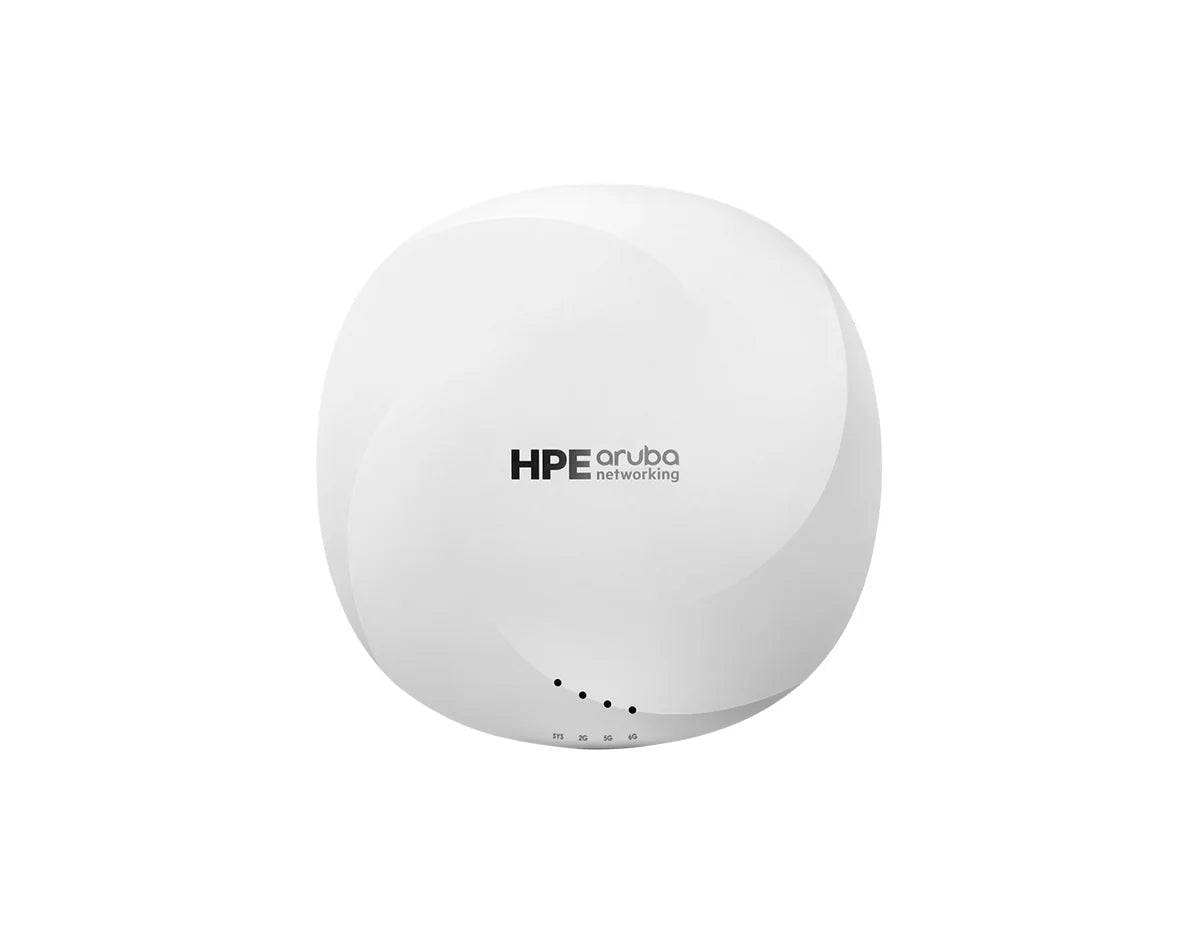

HPE Aruba Networking AP-635 Wi-Fi 6E Campus Access Point (R7J28A)
HPE Aruba Networking AP-635 Wi-Fi 6E Campus Access Point (R7J28A)

HPE Aruba Networking AP-635 Wi-Fi 6E Campus Access Point (R7J28A)

por HPE Aruba
R$ 10.020,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]Wi-Fi 6E, tri-radio, 2x2 MIMO, internal antennas, dual 2.5GbE, US model[shortdesc]

[properties]

Brand HPE Aruba Networking
Model AP-635 (US)
SKU R7J28A
Product Type Campus Access Point
Series 630 Series Campus Access Points
Wireless Standard Tri-radio 2x2:2 802.11ax Wi-Fi 6E
Antenna Type Internal Antennas
Form Factor Indoor
Port Count Two Ethernet wired network ports
Interface RJ-45, USB 2.0 Type A, DC power interface
PoE Support 802.3at/bt PoE, class 4 or higher

[/properties]

[specifications]

Access Point Type Indoor, tri radio, 2.4 GHz, 5 GHz and 6 GHz concurrent 802.11ax 2x2 MIMO
Maximum Data Rate 3.9 Gbps aggregate peak
2.4 GHz Radio Up to 287 Mbps peak data rate
5 GHz Radio Up to 1.2 Gbps with 2SS HE80 802.11ax client devices
6 GHz Radio Up to 2.4 Gbps with 2SS HE160 802.11ax client devices
MIMO Downlink multiuser MIMO supported on all radios but disabled by default
Client Capacity Up to 512 associated client devices per radio
BSSID Support Up to 16 BSSIDs per radio (limited to 8 for the 6 GHz radio when using version 8 software)
Supported Bands 2.400 to 2.4835 GHz, 5.150 to 5.895 GHz, 5.925 to 7.125 GHz
Radio Technologies 802.11b DSSS, 802.11a/g/n/ac OFDM, 802.11ax OFDMA
High Efficiency Support HE20/40/80/160
Antenna Gain 4.6 dBi in 2.4 GHz, 7.0 dBi in 5 GHz, 6.3 dBi in 6 GHz
Ethernet Ports Two RJ-45 ports with 100/1000/2500BASE-T auto-sensing link speed
Ethernet Standards NBase-T, 802.3bz, 802.3az Energy Efficient Ethernet
Link Aggregation LACP support between both network ports
DC Power Interface 12 Vdc nominal, +/− 5%, 2.1 mm/5.5 mm center-positive circular plug
USB Interface USB 2.0 Type A host interface, up to 1A/5W
IoT Radio Bluetooth Low Energy BLE5.0 and Zigbee 802.15.4 radio
GNSS Receiver GNSS L1 receiver supporting GPS, Galileo, GLONASS, and BeiDou signal
Security Features WPA3, Enhanced Open, WPA2-MPSK, built-in Trusted Platform Module
Power Sources Direct DC power and Power over Ethernet on port E0 and/or E1
Maximum Power Consumption 20.7W/26.4W DC powered, 23.8W/29.4W PoE powered
Idle Power Consumption 8.7W/14.2W DC or 11.7W/17.2W PoE
Deep-Sleep Power Consumption 1.1W DC or 1.9W PoE
Operating Humidity 5% to 95% relative humidity

[/specifications]

[accesories]

Included Mounting bracket preinstalled on the back of the access point
Optional Mounting Kit Mount kits sold separately
Optional Power Supply Power sources sold separately

[/accesories]

The HPE Aruba Networking R7J28A AP-635 is a US internal antenna campus access point designed for enterprise Wi-Fi 6E deployments. It uses three dedicated radios across 2.4 GHz, 5 GHz, and 6 GHz bands to expand wireless capacity, support wider channels, and reduce interference for modern client and IoT environments.

  • Tri-radio 802.11ax design with concurrent 2.4 GHz, 5 GHz, and 6 GHz operation.
  • Delivers up to 3.9 Gbps maximum aggregate data rate across supported bands.
  • Supports 2x2 MIMO for efficient wireless performance across all three radios.
  • Dual HPE Smart Rate Ethernet ports support 100/1000/2500BASE-T connectivity.
  • Integrated Bluetooth 5.0 and Zigbee radio supports IoT and location use cases.
  • Enterprise campus WLAN upgrades requiring Wi-Fi 6E capacity.
  • High-density offices using video, cloud apps, and many client devices.
  • Indoor deployments needing internal antennas and ceiling-oriented coverage.
  • Networks requiring dual Ethernet ports for redundancy and added capacity.
  • SKU: R7J28A
  • Model: HPE Aruba Networking AP-635 (US)
  • Product Type: Campus access point
  • Wi-Fi Standard: 802.11ax Wi-Fi 6E
  • Radio Design: Indoor tri-radio, 2.4 GHz, 5 GHz, and 6 GHz concurrent operation
  • MIMO: 2x2 MIMO
  • Maximum Aggregate Data Rate: 3.9 Gbps
  • Antenna Type: Internal antennas
  • Ethernet Ports: Two RJ-45 ports with 100/1000/2500BASE-T auto-sensing speed
  • Power Support: Direct DC power and PoE on port E0 and/or E1

Choose the HPE Aruba Networking R7J28A AP-635 for enterprise campus environments that need tri-band wireless capacity, Wi-Fi 6E performance, and flexible wired uplink options in a compact indoor access point.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]Wi-Fi 6E, tri-radio, 2x2 MIMO, internal antennas, dual 2.5GbE, US model[shortdesc]

[properties]

Brand HPE Aruba Networking
Model AP-635 (US)
SKU R7J28A
Product Type Campus Access Point
Series 630 Series Campus Access Points
Wireless Standard Tri-radio 2x2:2 802.11ax Wi-Fi 6E
Antenna Type Internal Antennas
Form Factor Indoor
Port Count Two Ethernet wired network ports
Interface RJ-45, USB 2.0 Type A, DC power interface
PoE Support 802.3at/bt PoE, class 4 or higher

[/properties]

[specifications]

Access Point Type Indoor, tri radio, 2.4 GHz, 5 GHz and 6 GHz concurrent 802.11ax 2x2 MIMO
Maximum Data Rate 3.9 Gbps aggregate peak
2.4 GHz Radio Up to 287 Mbps peak data rate
5 GHz Radio Up to 1.2 Gbps with 2SS HE80 802.11ax client devices
6 GHz Radio Up to 2.4 Gbps with 2SS HE160 802.11ax client devices
MIMO Downlink multiuser MIMO supported on all radios but disabled by default
Client Capacity Up to 512 associated client devices per radio
BSSID Support Up to 16 BSSIDs per radio (limited to 8 for the 6 GHz radio when using version 8 software)
Supported Bands 2.400 to 2.4835 GHz, 5.150 to 5.895 GHz, 5.925 to 7.125 GHz
Radio Technologies 802.11b DSSS, 802.11a/g/n/ac OFDM, 802.11ax OFDMA
High Efficiency Support HE20/40/80/160
Antenna Gain 4.6 dBi in 2.4 GHz, 7.0 dBi in 5 GHz, 6.3 dBi in 6 GHz
Ethernet Ports Two RJ-45 ports with 100/1000/2500BASE-T auto-sensing link speed
Ethernet Standards NBase-T, 802.3bz, 802.3az Energy Efficient Ethernet
Link Aggregation LACP support between both network ports
DC Power Interface 12 Vdc nominal, +/− 5%, 2.1 mm/5.5 mm center-positive circular plug
USB Interface USB 2.0 Type A host interface, up to 1A/5W
IoT Radio Bluetooth Low Energy BLE5.0 and Zigbee 802.15.4 radio
GNSS Receiver GNSS L1 receiver supporting GPS, Galileo, GLONASS, and BeiDou signal
Security Features WPA3, Enhanced Open, WPA2-MPSK, built-in Trusted Platform Module
Power Sources Direct DC power and Power over Ethernet on port E0 and/or E1
Maximum Power Consumption 20.7W/26.4W DC powered, 23.8W/29.4W PoE powered
Idle Power Consumption 8.7W/14.2W DC or 11.7W/17.2W PoE
Deep-Sleep Power Consumption 1.1W DC or 1.9W PoE
Operating Humidity 5% to 95% relative humidity

[/specifications]

[accesories]

Included Mounting bracket preinstalled on the back of the access point
Optional Mounting Kit Mount kits sold separately
Optional Power Supply Power sources sold separately

[/accesories]

Tri-Radio Wi-Fi 6E for High-Density Campus Networks

The HPE Aruba Networking R7J28A AP-635 is a US internal antenna campus access point designed for enterprise Wi-Fi 6E deployments. It uses three dedicated radios across 2.4 GHz, 5 GHz, and 6 GHz bands to expand wireless capacity, support wider channels, and reduce interference for modern client and IoT environments.

Key Benefits and Features
  • Tri-radio 802.11ax design with concurrent 2.4 GHz, 5 GHz, and 6 GHz operation.
  • Delivers up to 3.9 Gbps maximum aggregate data rate across supported bands.
  • Supports 2x2 MIMO for efficient wireless performance across all three radios.
  • Dual HPE Smart Rate Ethernet ports support 100/1000/2500BASE-T connectivity.
  • Integrated Bluetooth 5.0 and Zigbee radio supports IoT and location use cases.
Ideal Use Cases
  • Enterprise campus WLAN upgrades requiring Wi-Fi 6E capacity.
  • High-density offices using video, cloud apps, and many client devices.
  • Indoor deployments needing internal antennas and ceiling-oriented coverage.
  • Networks requiring dual Ethernet ports for redundancy and added capacity.
Technical Specifications
  • SKU: R7J28A
  • Model: HPE Aruba Networking AP-635 (US)
  • Product Type: Campus access point
  • Wi-Fi Standard: 802.11ax Wi-Fi 6E
  • Radio Design: Indoor tri-radio, 2.4 GHz, 5 GHz, and 6 GHz concurrent operation
  • MIMO: 2x2 MIMO
  • Maximum Aggregate Data Rate: 3.9 Gbps
  • Antenna Type: Internal antennas
  • Ethernet Ports: Two RJ-45 ports with 100/1000/2500BASE-T auto-sensing speed
  • Power Support: Direct DC power and PoE on port E0 and/or E1
Deploy HPE Aruba Wi-Fi 6E Capacity with Confidence

Choose the HPE Aruba Networking R7J28A AP-635 for enterprise campus environments that need tri-band wireless capacity, Wi-Fi 6E performance, and flexible wired uplink options in a compact indoor access point.
