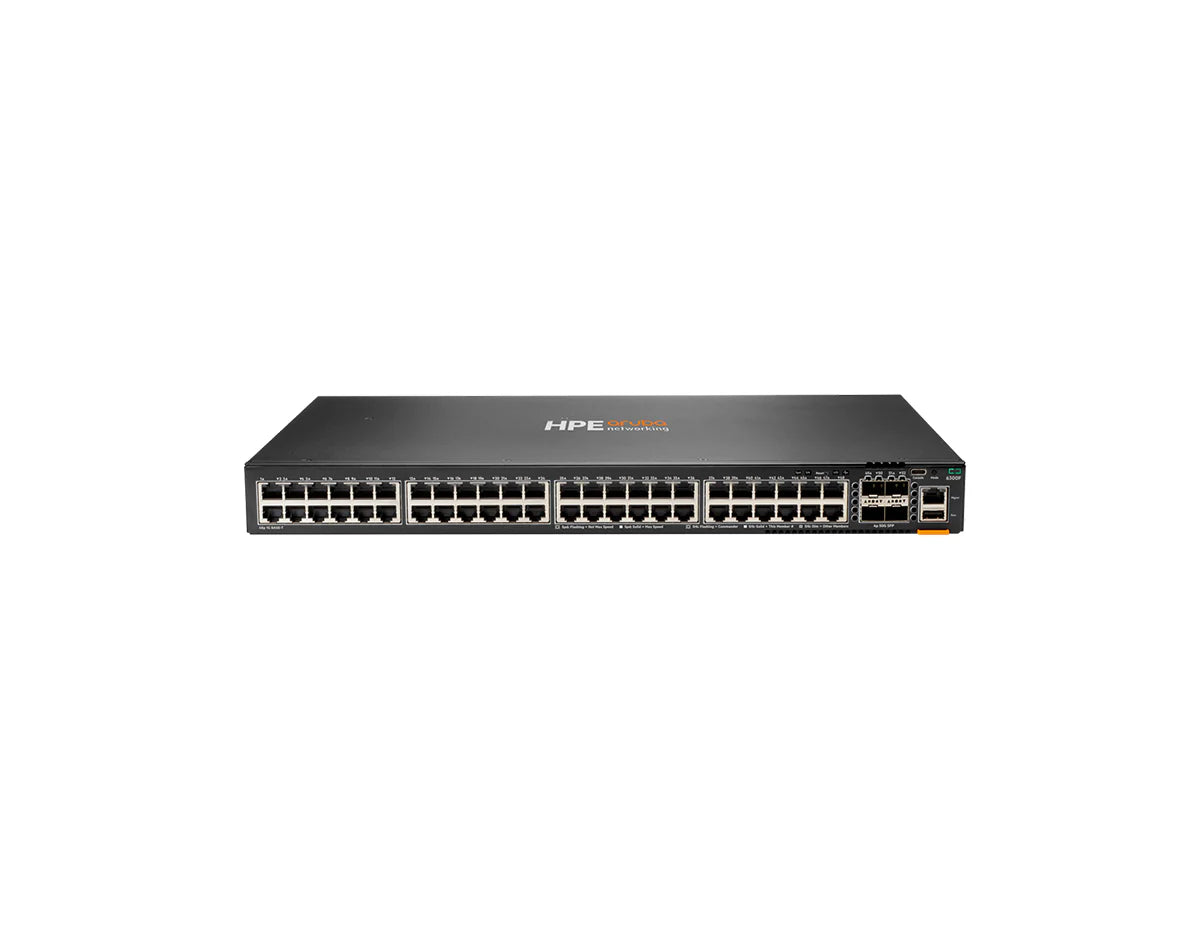

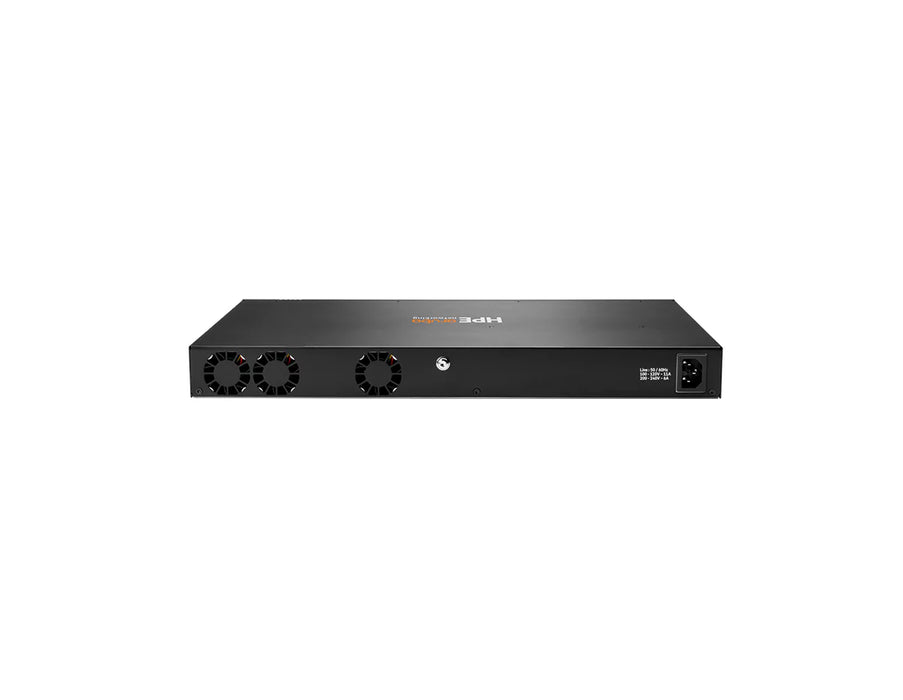

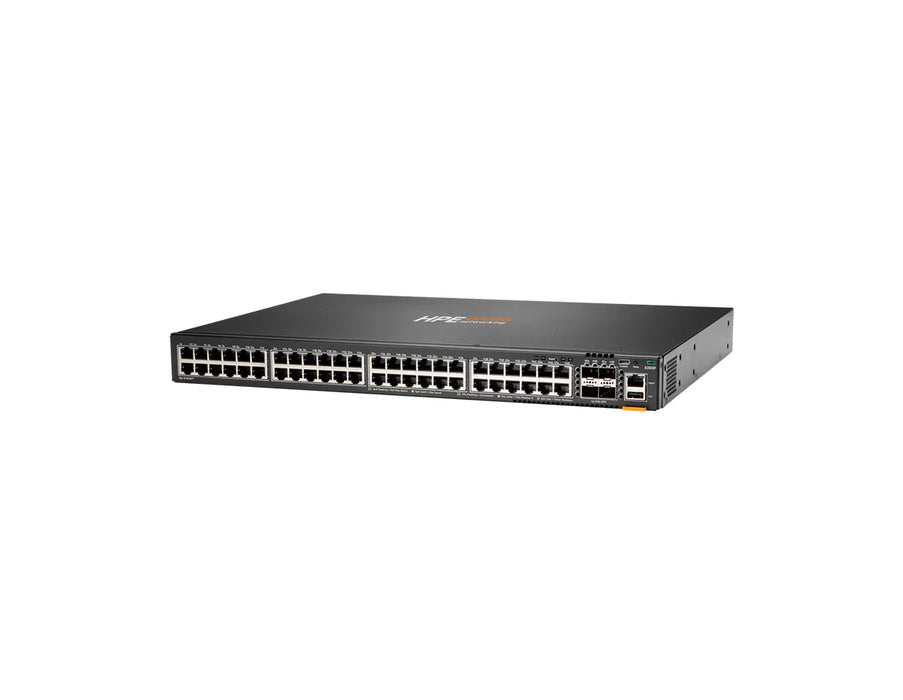

HPE Aruba JL667A 6300F 48-Port 1GbE 4x SFP56 Layer 3 Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE Aruba JL667A 6300F 48-Port 1GbE 4x SFP56 Layer 3 Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
HPE Aruba JL667A 6300F 48-Port 1GbE 4x SFP56 Layer 3 Switch
HPE Aruba JL667A 6300F 48-Port 1GbE 4x SFP56 Layer 3 Switch

HPE Aruba JL667A 6300F 48-Port 1GbE 4x SFP56 Layer 3 Switch

por HPE
R$ 25.740,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Enterprise-grade 48-port 1GbE access switch with 4x SFP56 uplinks. Features Layer 3 managed, stackable Aruba CX architecture, 496 Gbps switching capacity, and 400 Gbps stacking bandwidth. [/shortdesc]

[properties]

Model JL667A
Product Type Managed Stackable Switch
Switch Type Layer 3
Form Factor Rack-mountable (1U)
Ports 48 x 10/100/1000 Base-T RJ-45
Uplink Ports 4 x SFP56 (Supports 1G, 10G, 25G, 50G)
Switching Capacity 496 Gbps
Throughput 369 Mpps
Latency 1Gbps: 2.28 microseconds; 10Gbps: 1.46 microseconds
Stacking Bandwidth 400 Gbps
MAC Address Table Size 32,000 entries
Jumbo Frame Support 9198 bytes
Processor Dual-core ARM Cortex A9 (1.016 GHz)
Memory 8 GB DDR4
Flash Memory 32 GB eMMC
Power Supply Internal (fixed) 200W
Interfaces 1 x USB-C Console; 1 x RJ-45 Management Port; 1 x USB Type-A Host Port

[/properties]

[specifications]

Routing Protocols BGP, OSPFv2/v3, VRRP, IGMP, MSDP, Static IPv4/IPv6, ECMP, PIM
Management Aruba Central, Aruba NetEdit, CLI, SNMP v2c/v3, SSHv2, Web UI, REST API
Authentication 802.1X, MAC-auth, RADIUS, TACACS+
Layer 2 Features VLANs (4094), MSTP, RSTP, RPVST+, LLDP-MED, VXLAN, QinQ
Layer 3 Features IPv4/IPv6 Dual Stack, OSPF, BGP, PBR, BFD
QoS Features Strict Priority (SP), Deficit Weighted Round Robin (DWRR), 8 Egress Queues
Security Features ACLs (IPv4/IPv6/MAC), Port Security, DHCP Snooping, Dynamic ARP Protection
High Availability Virtual Switching Framework (VSF) up to 10 members
Advanced Analytics Aruba Network Analytics Engine (NAE)
Standards Compliance IEEE 802.1ak, 802.1t, 802.1v, 802.1ab, 802.3ae, 802.3ad
IPv4 Host Table 32,000
IPv4 Routes (Unicast) 32,000
IPv6 Routes (Unicast) 16,000

[/specifications]

[accessories]

Included 2-Post Rack Mount Kit, Power Cord
Optional SFP+ Transceivers, SFP28 Transceivers, SFP56 DAC Cables, 4-Post Rack Kit

[/accessories]

The HPE JL667A Aruba 6300F Switch delivers enterprise-grade Layer 3 performance, scalability, and intelligent automation for modern campus and data center networks. Built on the programmable Aruba CX architecture, this switch combines high-density Gigabit access with ultra-fast SFP56 uplinks, enabling seamless support for cloud, IoT, and bandwidth-intensive applications.

  • 48-Port Gigabit Access: Provides 48 x 10/100/1000 RJ-45 ports for reliable high-density connectivity across enterprise edge and access layers.
  • High-Speed SFP56 Uplinks: Includes 4 x 1G/10G/25G/50G SFP56 ports, enabling flexible uplink and high-performance stacking options.
  • Advanced Layer 3 Capabilities: Full routing stack including BGP, OSPF, VRRP, and VXLAN for scalable and resilient network fabrics.
  • Stackable Architecture: Aruba Virtual Switching Framework (VSF) supports stacking up to 10 switches, providing 400 Gbps of stacking bandwidth.
  • Enterprise-Class Performance: Robust 496 Gbps switching capacity and 369 Mpps throughput ensure non-blocking, wire-speed performance for all ports.
  • Enterprise campus access layer deployments
  • Branch office network modernizations
  • Data center Top-of-Rack (ToR) and Out-of-Band (OOBM) management
  • High-density IoT and wireless aggregation networks
  • Environments requiring deep analytics via Aruba Network Analytics Engine (NAE)
  • Ports: 48 x 10/100/1000 Base-T and 4 x SFP56 uplinks
  • Switching Capacity: 496 Gbps
  • Throughput: 369 Mpps
  • Latency: 1.46 microseconds (10GbE)
  • Stacking Bandwidth: 400 Gbps
  • MAC Table Size: 32,000 entries
  • Processor: Dual-core ARM Cortex A9 1.016 GHz
  • Memory: 8 GB DDR4
  • Form Factor: 1U rack-mountable
  • Management: Aruba Central, CLI, SNMP, REST API, NetEdit

Deploy scalable, high-speed switching with enterprise-grade reliability and built-in analytics. Order today to modernize your infrastructure with the Aruba 6300F series.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Enterprise-grade 48-port 1GbE access switch with 4x SFP56 uplinks. Features Layer 3 managed, stackable Aruba CX architecture, 496 Gbps switching capacity, and 400 Gbps stacking bandwidth. [/shortdesc]

[properties]

Model JL667A
Product Type Managed Stackable Switch
Switch Type Layer 3
Form Factor Rack-mountable (1U)
Ports 48 x 10/100/1000 Base-T RJ-45
Uplink Ports 4 x SFP56 (Supports 1G, 10G, 25G, 50G)
Switching Capacity 496 Gbps
Throughput 369 Mpps
Latency 1Gbps: 2.28 microseconds; 10Gbps: 1.46 microseconds
Stacking Bandwidth 400 Gbps
MAC Address Table Size 32,000 entries
Jumbo Frame Support 9198 bytes
Processor Dual-core ARM Cortex A9 (1.016 GHz)
Memory 8 GB DDR4
Flash Memory 32 GB eMMC
Power Supply Internal (fixed) 200W
Interfaces 1 x USB-C Console; 1 x RJ-45 Management Port; 1 x USB Type-A Host Port

[/properties]

[specifications]

Routing Protocols BGP, OSPFv2/v3, VRRP, IGMP, MSDP, Static IPv4/IPv6, ECMP, PIM
Management Aruba Central, Aruba NetEdit, CLI, SNMP v2c/v3, SSHv2, Web UI, REST API
Authentication 802.1X, MAC-auth, RADIUS, TACACS+
Layer 2 Features VLANs (4094), MSTP, RSTP, RPVST+, LLDP-MED, VXLAN, QinQ
Layer 3 Features IPv4/IPv6 Dual Stack, OSPF, BGP, PBR, BFD
QoS Features Strict Priority (SP), Deficit Weighted Round Robin (DWRR), 8 Egress Queues
Security Features ACLs (IPv4/IPv6/MAC), Port Security, DHCP Snooping, Dynamic ARP Protection
High Availability Virtual Switching Framework (VSF) up to 10 members
Advanced Analytics Aruba Network Analytics Engine (NAE)
Standards Compliance IEEE 802.1ak, 802.1t, 802.1v, 802.1ab, 802.3ae, 802.3ad
IPv4 Host Table 32,000
IPv4 Routes (Unicast) 32,000
IPv6 Routes (Unicast) 16,000

[/specifications]

[accessories]

Included 2-Post Rack Mount Kit, Power Cord
Optional SFP+ Transceivers, SFP28 Transceivers, SFP56 DAC Cables, 4-Post Rack Kit

[/accessories]

High-Performance Enterprise Switching with Flexible 50G Uplinks

The HPE JL667A Aruba 6300F Switch delivers enterprise-grade Layer 3 performance, scalability, and intelligent automation for modern campus and data center networks. Built on the programmable Aruba CX architecture, this switch combines high-density Gigabit access with ultra-fast SFP56 uplinks, enabling seamless support for cloud, IoT, and bandwidth-intensive applications.

Key Benefits & Features
  • 48-Port Gigabit Access: Provides 48 x 10/100/1000 RJ-45 ports for reliable high-density connectivity across enterprise edge and access layers.
  • High-Speed SFP56 Uplinks: Includes 4 x 1G/10G/25G/50G SFP56 ports, enabling flexible uplink and high-performance stacking options.
  • Advanced Layer 3 Capabilities: Full routing stack including BGP, OSPF, VRRP, and VXLAN for scalable and resilient network fabrics.
  • Stackable Architecture: Aruba Virtual Switching Framework (VSF) supports stacking up to 10 switches, providing 400 Gbps of stacking bandwidth.
  • Enterprise-Class Performance: Robust 496 Gbps switching capacity and 369 Mpps throughput ensure non-blocking, wire-speed performance for all ports.
Ideal Use Cases
  • Enterprise campus access layer deployments
  • Branch office network modernizations
  • Data center Top-of-Rack (ToR) and Out-of-Band (OOBM) management
  • High-density IoT and wireless aggregation networks
  • Environments requiring deep analytics via Aruba Network Analytics Engine (NAE)
Technical Specifications
  • Ports: 48 x 10/100/1000 Base-T and 4 x SFP56 uplinks
  • Switching Capacity: 496 Gbps
  • Throughput: 369 Mpps
  • Latency: 1.46 microseconds (10GbE)
  • Stacking Bandwidth: 400 Gbps
  • MAC Table Size: 32,000 entries
  • Processor: Dual-core ARM Cortex A9 1.016 GHz
  • Memory: 8 GB DDR4
  • Form Factor: 1U rack-mountable
  • Management: Aruba Central, CLI, SNMP, REST API, NetEdit
Upgrade Your Network with Aruba CX Performance

Deploy scalable, high-speed switching with enterprise-grade reliability and built-in analytics. Order today to modernize your infrastructure with the Aruba 6300F series.
