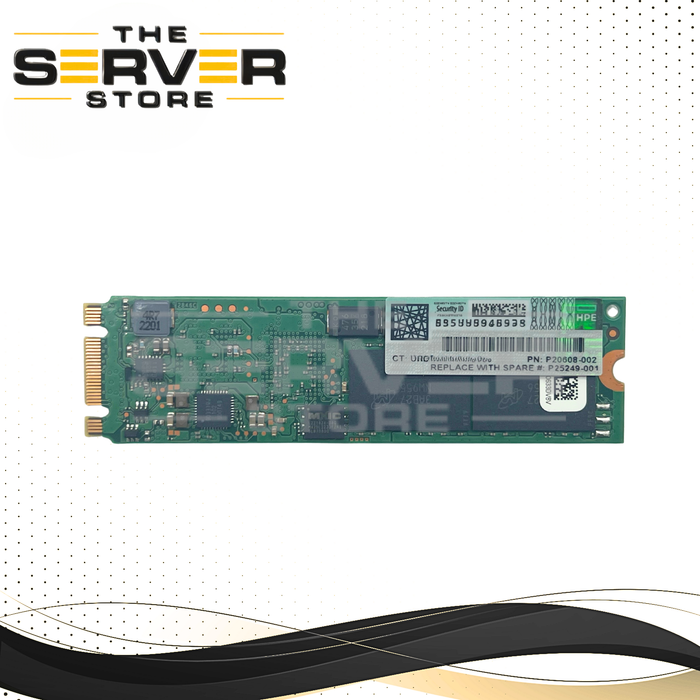

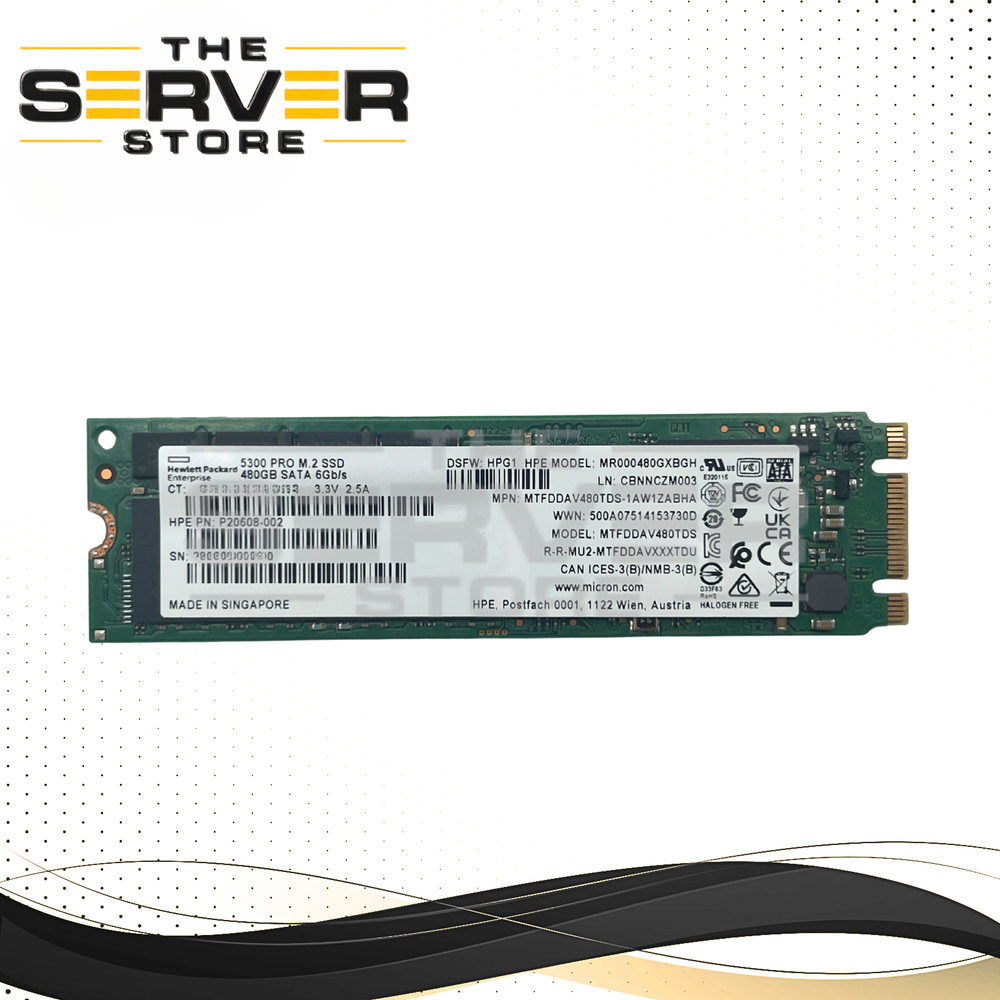

HPE 480GB SATA 6G 2280 M.2 RI SSD Micron 5300 PRO Series P19890-B21 P27212-001 P20608-002

HPE 480GB SATA 6G 2280 M.2 RI SSD Micron 5300 PRO Series P19890-B21 P27212-001

The HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (Option Part: P19890-B21, Spare Part: P27212-001) is an enterprise-class solid-state drive designed for read-heavy workloads such as boot drives, web hosting, and caching. Built on the Micron 5300 PRO series architecture, this SSD delivers reliability, efficiency, and consistent performance in HPE ProLiant environments.

Core Specifications

Capacity: 480GB
Form Factor: M.2 2280
Interface: SATA 6Gb/s
NAND Type: 96-layer 3D TLC (Triple-Level Cell)
Workload Type: Read Intensive (RI)
Plug Type: Hot-pluggable (when used with supported carriers)

Performance Metrics

Sequential Read: Up to 510 MB/s
Sequential Write: Up to 400 MB/s
Random Read (4KiB, Q16): 65,000 IOPS
Random Write (4KiB, Q16): 38,000 IOPS
Max Random Read: Up to 76,000 IOPS
Max Random Write: Up to 39,500 IOPS
Latency: ~125 µs (Read) / ~37 µs (Write)

Reliability & Endurance

Endurance: ~1.5 DWPD
Lifetime Writes: ~1,324 TBW
MTBF: 3,000,000 hours
Security: Digitally Signed Firmware (DS) for data protection and integrity

Physical & Power

Power Consumption:
Idle: ~1.03W
Read: ~1.89W
Write: ~2.50W

Operating Temperature: 0°C to 70°C
Dimensions (with carrier): 10.8 x 15.88 x 3.76 cm
Weight: ~0.5 kg (with carrier)

Compatibility

This SSD is primarily designed for HPE ProLiant Gen10 servers and enterprise platforms:

ProLiant DL Series (Rack Servers):
DL20, DL160, DL180, DL325, DL360, DL380, DL385, DL388, DL560, DL580

ProLiant ML Series (Tower Servers):
ML350 Gen10

HPE Synergy:
Synergy 480 Gen10 Compute Module

Carrier / Tray Compatibility:
This SSD can be installed using the following HPE carriers:
P25249-001
P19896-B21 (SFF SCM tray)

Direct & Related Part Numbers

Primary HPE Parts:
P19890-B21 (Option Part Number)
P27212-001 (Spare Part Number)

Assembly / Model Numbers:
MR000480GXBGH
MTFDDAV480TDS
MTFDDAK480TDS-1AW1ZABHA

Functional Equivalent Parts:
P48123-001
P47818-B21

The HPE 480GB M.2 SATA RI SSD delivers dependable enterprise performance, strong endurance, and seamless integration with HPE Gen10 server platforms, making it an excellent solution for boot optimization and read-intensive workloads.
