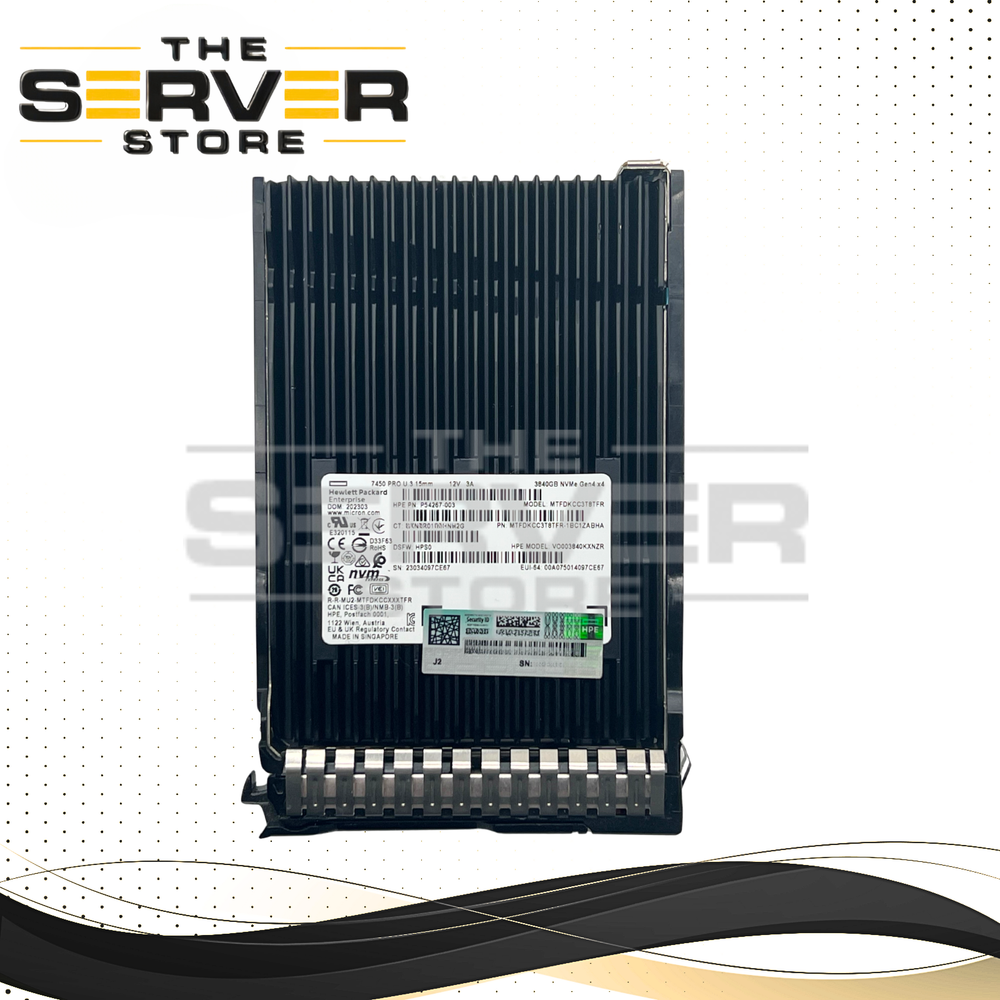

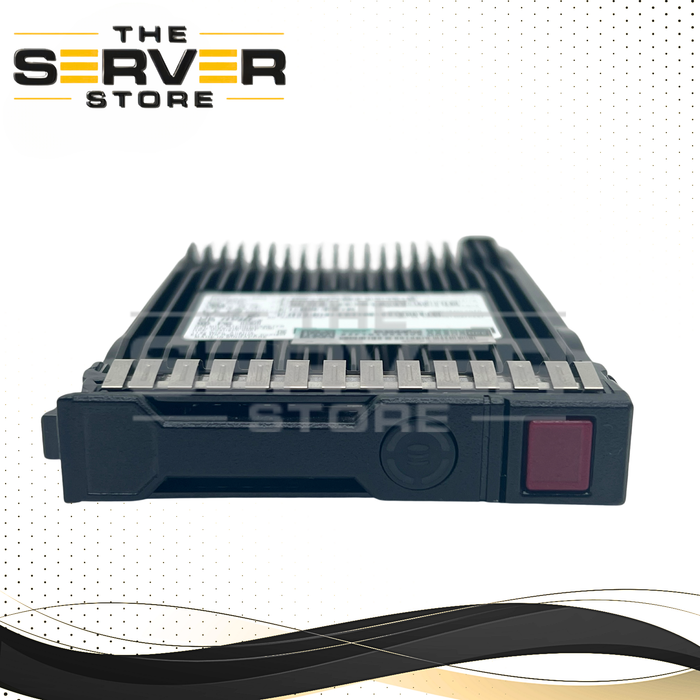

HPE 3.84TB NVMe U.3 G4 x4 RI SFF 2.5" SSD 7450 Pro MTFDKCC3T8TFR P54267-003 P47842-B21 P48221-001
Other Related Part Numbers: VO003840KXNZR, MTFDKCC3T8TFR, MTFDKCC3T8TFR-1BC1ZABHA, P16503-B21, P20736-001, P47842-B21, P48221-001, P50218-B21
Functional Equivalent Part Numbers: P07194-B21 / P10654-001 / P07195-B21, P10212-B21 / P10647-001 / P10213-B21, P10216-B21 / P10467-001 / P10217-B21, P13680-B21 / P13833-001 / P13681-B21, P20019-B21 / P20766-001 / P20020-B21, P20141-B21 / P20803-001 / P20142-B21, P19817-B21 / P20615-001 / P19818-B21, P22278-B21 / P26419-001, P36683-B21 / P36688-001 / P36684-B21, P47824-B21 / P48129-001, P50217-B21 / P50954-001, P51454-B21, P40491-B21 / P41516-001, P40566-B21 / P41564-001, P47846-B21 / P48225-001, P50219-B21 / P50956-001, P51455-B21 / P52325-001
The Micron 7450 Pro 3.84TB NVMe SSD (MTFDKCC3T8TFR) is an enterprise-grade, read-intensive PCIe Gen4 x4 storage solution in a 2.5-inch U.3 (15mm) form factor. Built with 176-layer 3D TLC NAND, it delivers high throughput, low latency, and consistent performance for HPE ProLiant environments. In HPE systems, this drive is commonly deployed as a Multi-Vendor NVMe SSD and is equivalent to HPE option kit P50217-B21.
Core Technical Specifications
- Capacity: 3.84TB
- Interface: PCIe Gen4 x4 (NVMe 1.4)
- Form Factor: 2.5-inch U.3 (15mm, U.2 backward compatible)
- NAND Type: 176-layer 3D TLC
- Workload Type: Read Intensive (RI)
Performance Metrics
- Sequential Read: Up to 6,800 MB/s
- Sequential Write: Up to 5,300 MB/s
- Random Read (4KB): Up to 1,000,000 IOPS
- Random Write (4KB): Up to 180,000 IOPS
- Latency: ~80µs Read / ~15µs Write
- QoS: Sub-2ms latency (99.9999%)
Reliability & Endurance
- Endurance: 1.0 DWPD (5 years)
- TBW: ~7,000 TB
- MTTF: 2,000,000 hours
- UBER: <1 per 10¹⁷ bits read
- Power Loss Protection: Yes
Security Features
- Encryption: TCG Opal 2.01
- Secure Execution Environment (SEE)
- End-to-end data protection
Power & Environmental
- Power Consumption: ~12W typical
- Operating Temperature: 0°C to 70°C
HPE ProLiant Compatibility
This SSD is supported in HPE systems with NVMe-enabled backplanes (U.2/U.3 or AnyBay).
Gen11 (PCIe Gen4/Gen5 – Full Performance, Basic Carrier Required)
- Rack: DL320 Gen11, DL325 Gen11, DL345 Gen11, DL360 Gen11, DL365 Gen11, DL380 Gen11, DL385 Gen11
- Tower: ML350 Gen11
- Compute: Apollo 2000 Gen11, Synergy 480 Gen11
Gen10 Plus (PCIe Gen4 – Full Performance, Basic Carrier Required)
- Rack: DL325 Gen10 Plus (v2), DL345 Gen10 Plus, DL360 Gen10 Plus, DL365 Gen10 Plus, DL380 Gen10 Plus, DL385 Gen10 Plus
- High-Density: Apollo 2000 Gen10 Plus
Gen10 (PCIe Gen3 – Performance Limited, Smart Carrier Required)
- Rack: DL160 Gen10, DL180 Gen10, DL325 Gen10, DL360 Gen10, DL380 Gen10, DL385 Gen10, DL560 Gen10, DL580 Gen10
- Tower: ML110 Gen10, ML350 Gen10
- Blade/Synergy: Synergy 480 Gen10, Synergy 660 Gen10
Critical Compatibility Requirements
-
Backplane: Must support NVMe / U.2 / U.3 (SAS/SATA-only backplanes NOT supported)
-
Drive Carrier:
- Gen10 → Smart Carrier (SC)
- Gen10 Plus / Gen11 → Basic Carrier (BC)
-
Firmware: Latest iLO & BIOS recommended for optimal compatibility
Important Notes
- Gen10 servers will limit performance to PCIe Gen3 speeds (~3,500 MB/s)
- Multi-vendor (non-HPE firmware) drives may trigger higher fan speeds in some systems
- Functionality is not affected, but monitoring may be limited in iLO
Summary
The Micron 7450 Pro 3.84TB NVMe SSD is a high-performance, enterprise-grade storage solution optimized for HPE ProLiant servers. With PCIe Gen4 speeds, low latency, and strong endurance, it is ideal for virtualization, databases, cloud workloads, and high-performance enterprise environments.
