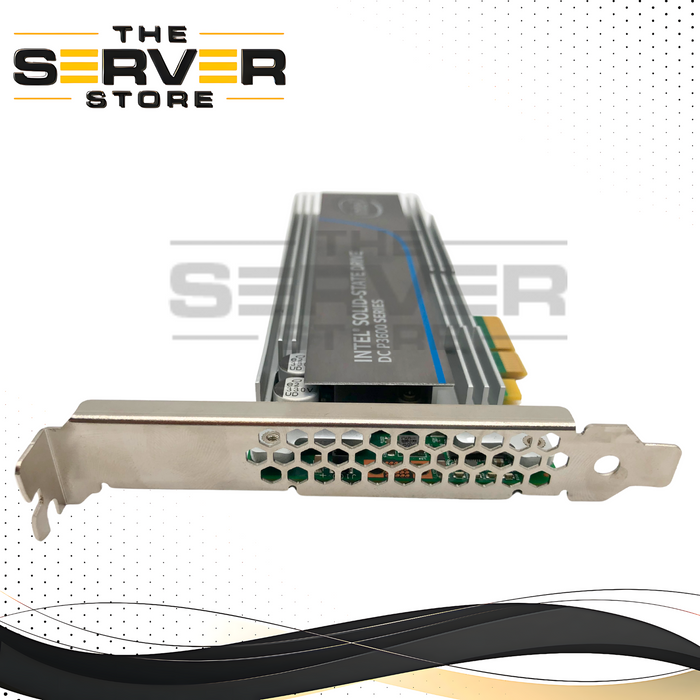

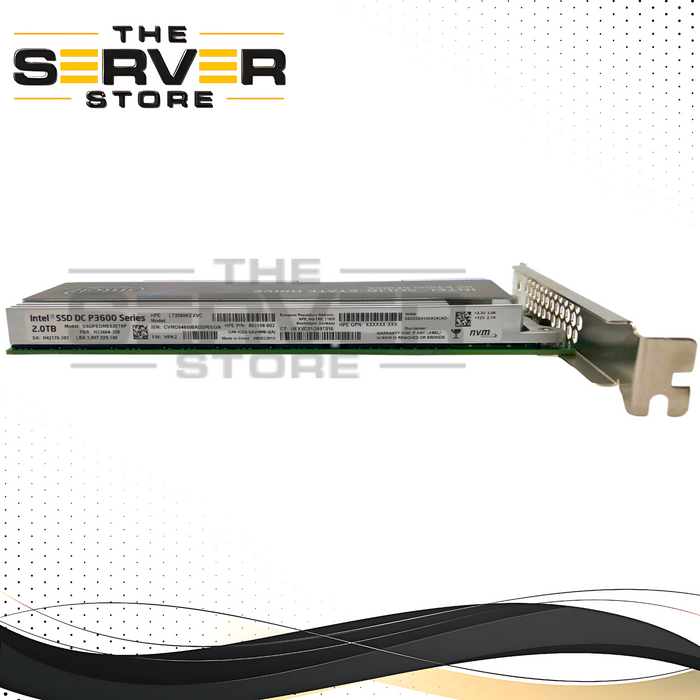

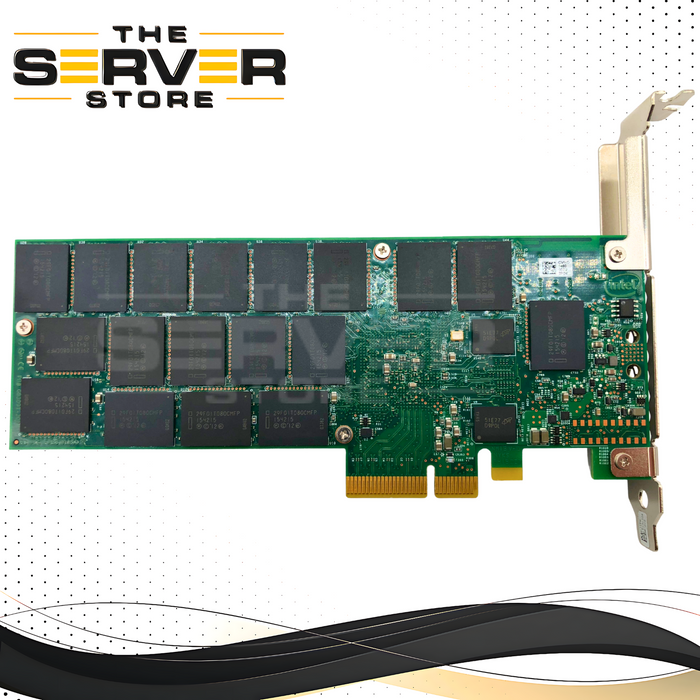

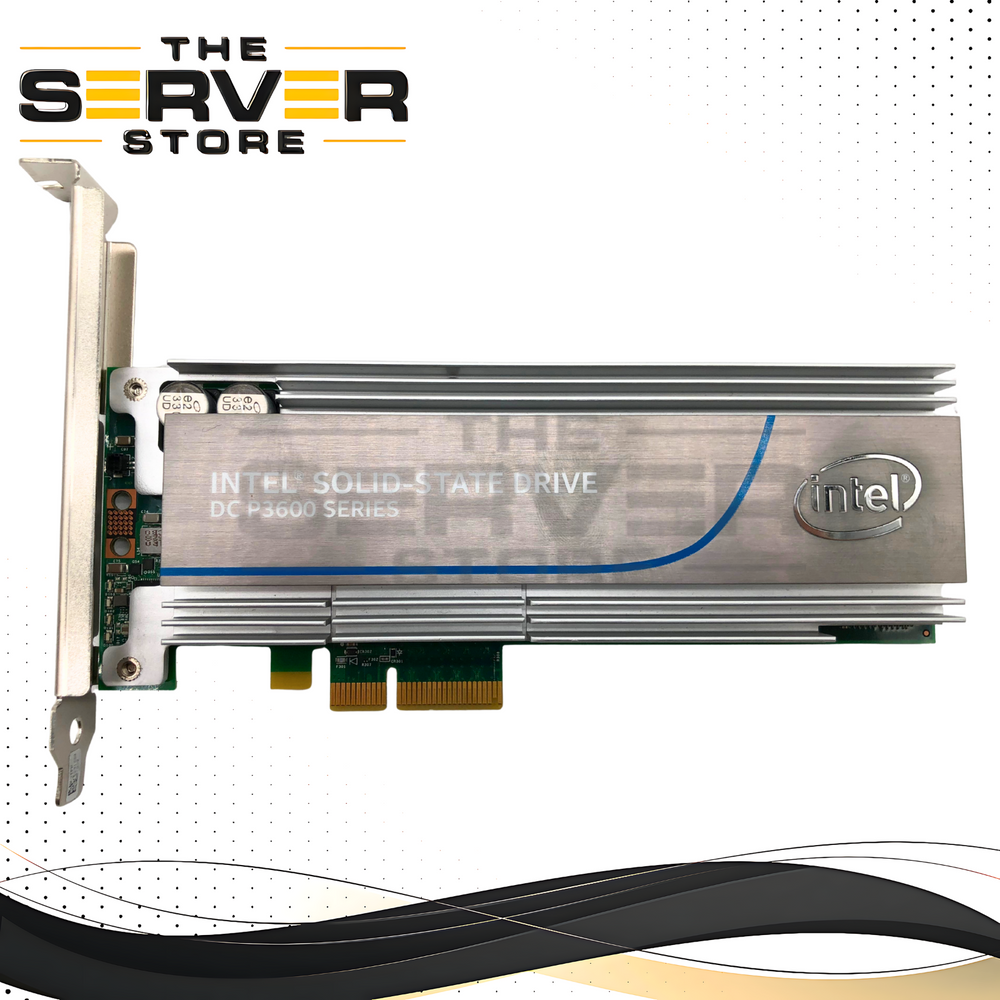

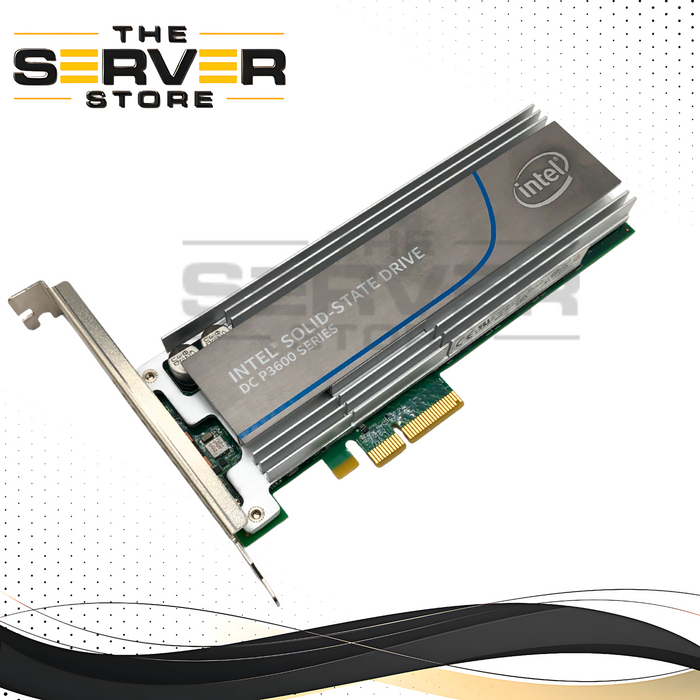

HPE 2TB NVMe HHHL MU PCIe G3 x4 SSD Intel DC P3600 Series 804570-001 803204-B21

HPE 2TB NVMe HHHL MU PCIe G3 x4 SSD Intel DC P3600 Series 804570-001 803204-B21

The HPE 2TB NVMe PCIe x4 HHHL SSD (803204-B21 / 804570-001) is a high-performance enterprise NVMe accelerator based on the Intel DC P3600 Series. Designed for mixed-use (MU) workloads, this solid-state drive delivers exceptional throughput and low latency for demanding applications such as online transaction processing (OLTP), virtualization, analytics, and big data environments.

Built in a Half-Height Half-Length (HHHL) add-in card (AIC) form factor, the drive installs directly into a PCIe 3.0 x4 slot, eliminating traditional storage controller bottlenecks and enabling ultra-fast NVMe performance in enterprise servers.

• 2TB enterprise NVMe SSD

• Half-Height Half-Length (HHHL) PCIe add-in card

• PCIe Gen3 x4 interface with NVMe 1.0

• Mixed-Use (MU) endurance profile

• Based on Intel DC P3600 enterprise NVMe platform

• 20nm MLC NAND flash

• Advanced power-loss data protection

• End-to-end data path protection

• Capacity: 2TB

• Form Factor: HHHL (Half-Height Half-Length) Add-In Card

• Interface: PCI Express 3.0 x4

• Protocol: NVMe 1.0

• NAND Type: 20nm MLC NAND

• Workload Type: Mixed Use (MU)

These specifications make the drive well-suited for transaction-heavy enterprise workloads and high-speed data processing environments.

• Endurance Rating: Up to 3 Drive Writes Per Day (DWPD)

• Total Bytes Written (TBW): Up to 10.95 PB

• Mean Time Between Failures (MTBF): 2,000,000 hours

• Data Protection:

  • Enhanced Power-Loss Protection (PLP)

  • End-to-End Data Path Protection

• Uncorrectable Bit Error Rate (UBER): ~1 sector per 10¹⁷ bits read

These enterprise-grade reliability features ensure consistent performance and data integrity for mission-critical workloads.

Power Consumption

• Active Write: Up to 25W

• Active Read: Up to 11W

• Idle: ~ 4W

Operating Conditions

• Operating Temperature: 0°C to 55°C

• Required Airflow: ~ 300 LFM (Linear Feet per Minute) for the 2TB model

Adequate server airflow is recommended to maintain optimal thermal performance.

This SSD is optimized for HPE ProLiant enterprise servers, particularly:

HPE ProLiant Gen9 and Gen10 Platforms

• DL Series: DL360, DL380, DL560, DL580

• ML Series: ML350, ML110

• SL Series: SL line compute servers

Compatible with many enterprise operating systems, including:

• Windows Server 2012 R2 / 2012 / 2008 R2

• Red Hat Enterprise Linux (RHEL) 6.5 and newer

• VMware ESXi 5.5 and newer

• Various Linux distributions

804570-001, 803204-B21, 803199-003, LT2000KEXVC, SSDPEDMED020T4P

The HPE 2TB NVMe HHHL PCIe SSD (803204-B21 / 804570-001) provides enterprise-grade NVMe acceleration, high endurance, and consistent performance, making it an excellent choice for data-intensive applications and modern HPE ProLiant server environments.
