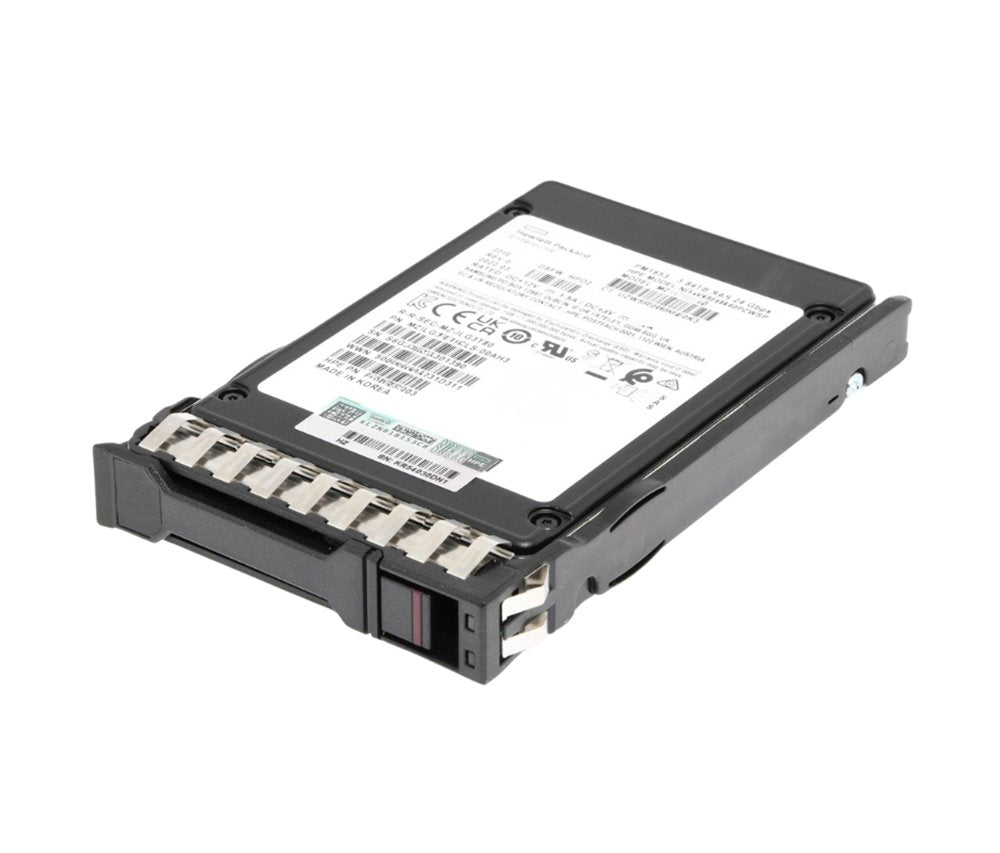

HPE 1.92TB PCI Express 4.0 NVMe Read Intensive U.3 2.5-inch Solid State Drive (SSD) with Basic Carrier - P65193-001

The HPE P65193-001 is a 1.92TB NVMe PCIe 4.0 read-intensive SSD in U.3 2.5-inch form factor with Basic Carrier, and is the spare part designation for the P64844-B21 option kit. Supporting U.3 tri-mode backplane compatibility across NVMe, SAS, and SATA, it delivers high-throughput, low-latency flash storage for read-dominant workloads on HPE ProLiant Gen10 Plus and Gen11 servers.

Key Features

• 1.92TB NVMe PCIe 4.0 read-intensive U.3 spare — field replacement for P64844-B21
• U.3 tri-mode backplane compatibility (NVMe/SAS/SATA) for flexible deployment
• Basic Carrier included for hot-swap installation in ProLiant U.3 NVMe bays
• PCIe 4.0 interface for high-bandwidth read-intensive enterprise storage workloads

Product Specifications

• Part Number: P65193-001
• Manufacturer: HPE
• Capacity: 1.92TB
• Interface: PCIe 4.0 NVMe (U.3)
• Form Factor: U.3 2.5-inch with Basic Carrier
• Workload Type: Read Intensive
• Target Platform: HPE ProLiant Gen10 Plus, Gen11

Storage Specifications

• Drive Type: NVMe SSD (PCIe 4.0)
• Form Factor: U.3 2.5-inch (tri-mode backplane compatible)
• Workload Class: Read Intensive (~1 DWPD)
• Carrier: Basic Carrier for hot-swap U.3 bay installation
• Interface: PCIe 4.0 NVMe via U.3 connector

Performance Specifications

• Interface Bandwidth: PCIe 4.0 NVMe — high sequential read throughput for read-dominant workloads
• Endurance: Read-intensive TLC — optimized for high read-to-write ratio enterprise workloads
• Latency: NVMe sub-100µs random read for low-latency enterprise applications

Use Cases

• HPE ProLiant Gen10 Plus/Gen11 field replacement for 1.92TB U.3 NVMe read-intensive drives
• Web serving, content delivery, and VDI boot storage requiring NVMe read performance
• Database read replicas and analytics workloads on Gen11 platforms
• U.3 tri-mode NVMe alongside SAS drives in mixed backplane configurations

Compatibility

• HPE ProLiant DL380/DL360 Gen10 Plus / Gen11 with U.3 tri-mode NVMe backplane
• HPE ProLiant ML350 Gen10 Plus / Gen11 supporting U.3 NVMe backplane
• Requires U.3 tri-mode or NVMe-only backplane — not compatible with SAS-only backplanes

Frequently Asked Questions

Is P65193-001 interchangeable with P64844-B21?

Yes — P65193-001 is the spare part and P64844-B21 is the option kit. Both are HPE 1.92TB NVMe PCIe 4.0 read-intensive U.3 SSDs with Basic Carrier — fully interchangeable in Gen10 Plus and Gen11 supported configurations.

What is the difference between U.3 and U.2 NVMe?

U.3 supports tri-mode NVMe/SAS/SATA through a single connector enabling flexible mixed-drive deployment. U.2 supports NVMe but lacks full tri-mode flexibility. U.3 simplifies configurations in backplanes supporting multiple drive types.

What is the endurance rating of a read-intensive NVMe SSD?

Read-intensive SSDs are typically rated at ~1 DWPD. They are optimized for high read-to-write ratio workloads such as web serving, analytics reads, and VDI. For higher write workloads, a mixed-use SSD rated at 3 DWPD is recommended.

The HPE P65193-001 1.92TB NVMe PCIe 4.0 U.3 spare delivers reliable field-replacement flash storage for HPE ProLiant Gen10 Plus and Gen11. Order today — in stock at the lowest price.
