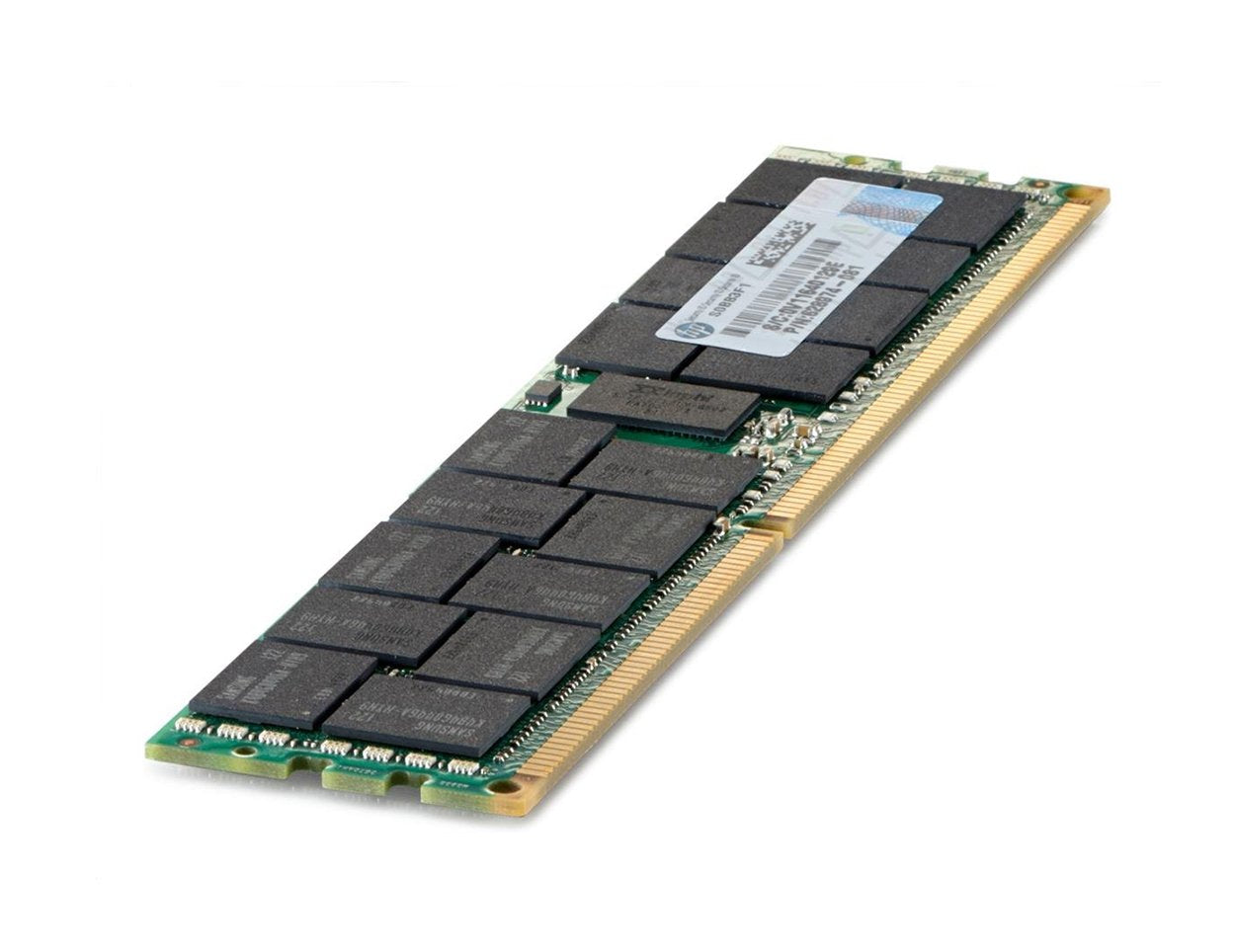

HPE 16GB 2666MHz DDR4 PC4-21300 ECC Registered CL19 288-Pin Non-Volatile DIMM 1.2V Single Rank x4 Memory Module - 825109-091

The HPE 825109-091 is a 16GB DDR4-2666 (PC4-21300) ECC Non-Volatile DIMM (NVDIMM) in single-rank 1Rx4 configuration and is a factory/OEM variant of the same NVDIMM platform as 845264-B21 and 874540-001. Delivering DRAM-speed persistent memory for HPE ProLiant Gen10, it is functionally identical and fully interchangeable with its option kit and spare counterparts in supported Gen10 configurations.

Key Features

• 16GB DDR4-2666 NVDIMM factory variant — identical specs to 845264-B21 and 874540-001
• Flash-backed non-volatile persistence for DRAM-speed data retention across power cycles
• 1Rx4 single-rank ECC at DDR4-2666 for persistent memory in ProLiant Gen10
• Factory/OEM configuration suffix — fully interchangeable with option kit and spare variants

Product Specifications

• Part Number: 825109-091
• Manufacturer: HPE
• Capacity: 16GB
• Type: DDR4 ECC Non-Volatile DIMM (NVDIMM)
• Speed: 2666MHz (PC4-21300)
• CAS Latency: CL19
• Voltage: 1.2V
• Ranks x Width: 1Rx4
• Pins: 288-pin

Memory Specifications

• Memory Standard: JEDEC DDR4-2666
• Error Correction: ECC (single-bit correction, multi-bit detection)
• Buffer Type: Registered Non-Volatile DIMM (NVDIMM)
• Persistence: Flash-backed — retains data on power loss via BBU

Performance Specifications

• Peak Bandwidth: ~42.7 GB/s (PC4-21300) at DRAM speed
• ECC Type: Single-bit error correction, multi-bit error detection
• Persistence: Transparent flash backup — DRAM latency during normal operation

Use Cases

• HPE ProLiant Gen10 factory-configured NVDIMM persistent memory replacement
• Database transaction log and checkpoint acceleration on Gen10 platforms
• In-memory computing with persistent data retention across system power cycles
• Mixed-procurement NVDIMM pool alongside 845264-B21 and 874540-001 variants

Compatibility

• HPE ProLiant DL380 Gen10, DL360 Gen10 with NVDIMM-capable memory slots
• Intel Xeon Scalable 1st/2nd Generation (Skylake-SP / Cascade Lake-SP) with NVDIMM support
• Requires HPE NVDIMM Backup Power Module (BBU) for data persistence on power loss

Frequently Asked Questions

What does the -091 suffix on 825109-091 mean?

HPE uses numeric suffixes to denote factory, OEM, or regional configuration variants. The -091 suffix indicates a factory/OEM configuration — the hardware is functionally identical to the 845264-B21 option kit and 874540-001 spare part.

Is 825109-091 interchangeable with 845264-B21 and 874540-001?

Yes — all three are HPE 16GB DDR4-2666 ECC NVDIMM 1Rx4 modules with identical specifications. They are fully interchangeable in HPE ProLiant Gen10 supported NVDIMM configurations with the appropriate BBU installed.

Can 825109-091 be used without the HPE NVDIMM BBU?

Without the BBU, the NVDIMM may operate in DRAM-only mode (non-persistent). Data will not be preserved on power loss without the backup power module. Always install the HPE NVDIMM BBU to enable full flash-backed persistence functionality.
