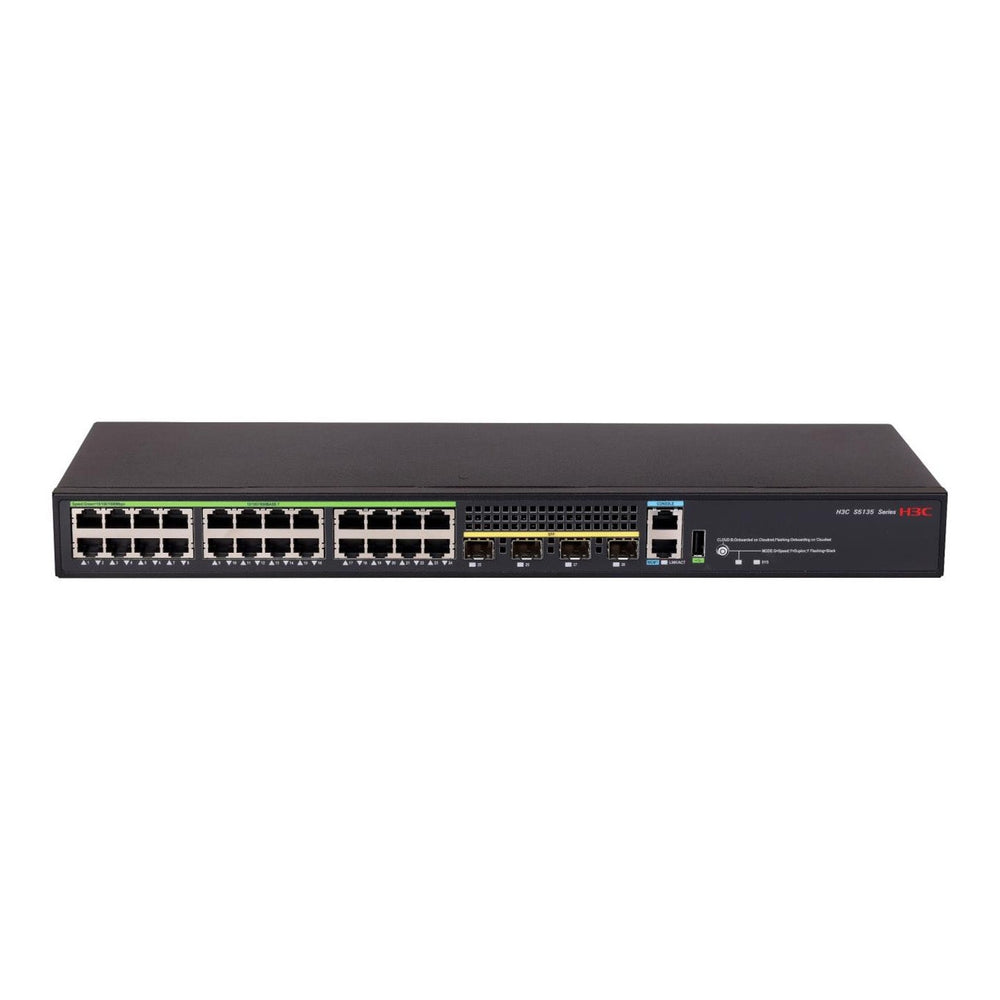

H3C S5136S-24T4X-EI-Q 24xGE + 4x10G Campus Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- 24×1G RJ45 + 4×10G SFP+ Quiet-Design High-Speed Access Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The H3C S5136S-24T4X-EI-Q is an enhanced quiet-design Gigabit access switch featuring 24 × 1G RJ45 access ports and 4 × 10G SFP+ high-speed uplink ports. As part of the EI-Q series, it offers reduced noise, improved thermal efficiency, and energy-optimized components while maintaining full enterprise switching and security capabilities.
With its 10G uplinks, it is ideal for offices, laboratories, server rooms, Wi-Fi 6/6E access layers, and high-density networks that need more uplink bandwidth than traditional 1G uplinks allow.
Highlights
1. 4 × 10G SFP+ High-Bandwidth Uplinks
Provides superior uplink capacity for connecting to distribution or core switches, supporting high-bandwidth applications.
2. Quiet EI-Q Hardware Architecture
Optimized fans and thermal design reduce acoustic noise and extend component life.
3. 24 × Full Gigabit Downlinks
Perfect for desktops, printers, IP cameras, VoIP terminals, and AP connections.
4. L2/L2+ & Static Routing
Includes VLAN, QinQ, MSTP, LACP, ACL, IGMP, MLD Snooping, and IPv4/IPv6 static routes.
5. Enterprise Security & Reliability
Supports port security, 802.1X authentication, DHCP Snooping, ARP attack defense, and loop protection.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| 10G SFP+ Transceivers | SFP-10G-SR / LR / ER | Optics | Used for 10G uplink connections |
| 1G/10G DAC/ACC Cables | SFP+ Direct Attach Cable | Cabling | Low-cost short-distance uplinks |
| Copper Patch Cable | Cat5e/Cat6 | Cabling | For 24 × 1G user access |
| Fiber Patch Cable | LC-LC | Cabling | For MMF/SMF uplinks |
| Rack Mount Kit | RM-1U | Mounting | Standard 1U rack installation |
Comparison with Similar Models
| Feature | S5136S-24T4X-EI-Q | S5136S-24T4S-EI-Q | S5136S-24P4X-EI |
|---|---|---|---|
| Downlink Ports | 24 × 1G RJ45 | 24 × 1G RJ45 | 24 × 1G PoE+ |
| Uplinks | 4 × 10G SFP+ | 4 × 1G SFP | 4 × 10G SFP+ |
| PoE | No | No | Yes |
| Best Use Case | High-bandwidth access | Basic L2 access | Powered devices with 10G uplinks |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5136S-24T4X-EI-Q |
| Downlink Ports | 24 × 1G RJ45 |
| Uplink Ports | 4 × 10G SFP+ |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.2 Mpps |
| MAC Address Table | 64K |
| VLAN | 4K |
| Multicast | IGMP Snooping, MLD Snooping |
| L2 Features | MSTP, QinQ, LACP, loop guard |
| Security | ACL, ARP protection, DHCP Snooping, MAC authentication |
| Routing | IPv4/IPv6 Static Routing (L3-Lite) |
| QoS | 8 queues, SP/WRR |
| Management | Web UI, CLI, SNMP, iMC |
| Power | Internal AC |
| Operating Temp | -5°C to 50°C |
| Dimensions | 440 × 160 × 43.6 mm |
| Weight | ≤ 3 kg |
| Best Deployment | High-speed access requiring 10G uplinks |
