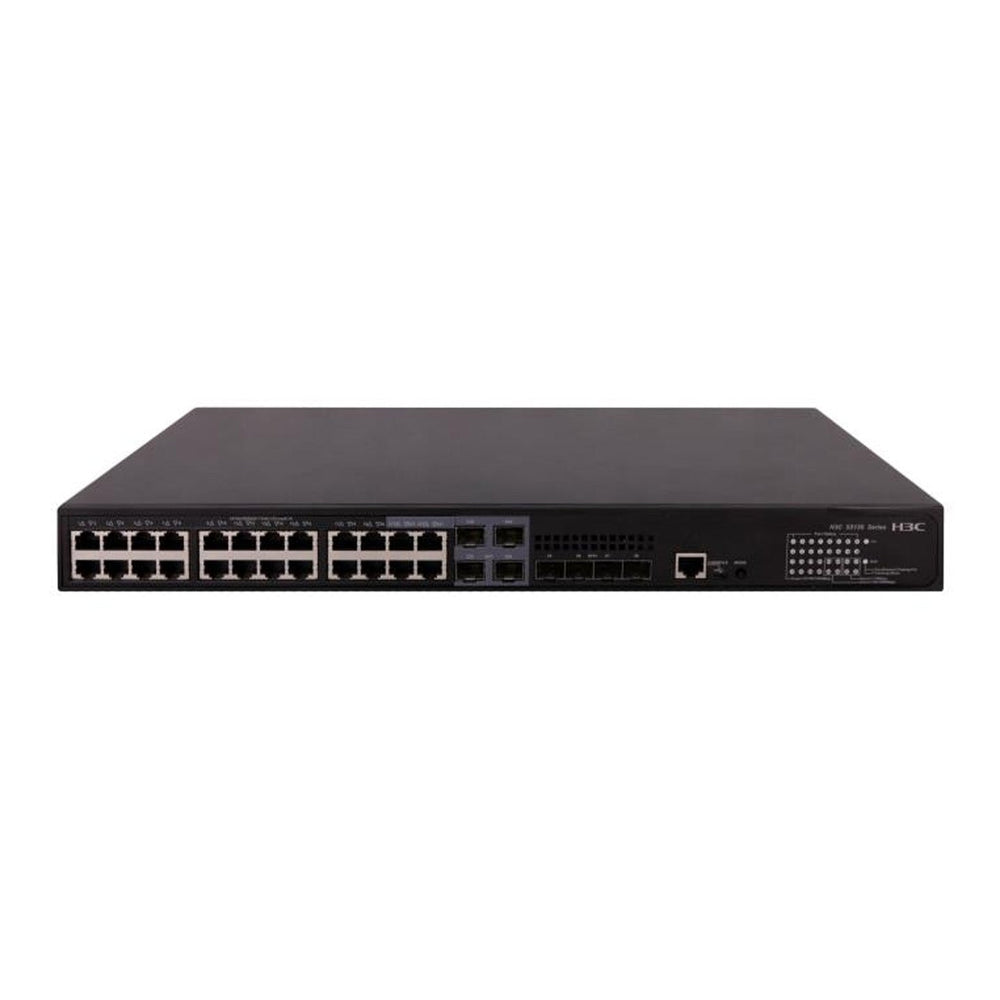

H3C S5130S-28S-HPWR-EI-AC PoE+ 1G/10G Access Switch with AC Power
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- H3C S5130S-28S-HPWR-EI-AC High-Power Fiber PoE Access Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The H3C S5130S-28S-HPWR-EI-AC is a high-power UPoE fiber-based access switch providing 24 × 1G SFP fiber downlinks, 4 × combo 1G copper PoE/UPoE ports, and 4 × 10GE uplinks. Designed for fiber-to-the-room and high-power wireless deployments, it supports advanced routing, IRF, and enterprise-grade security.
Note: Includes integrated high-power AC power module.
Highlights
1. High-Power PoE (UPoE) on Combo Ports
Supports 802.3af/at and UPoE for Wi-Fi 6 APs, advanced surveillance cameras, and IoT loads.
2. Fiber-Optimized 24-Port Access
Perfect for fiber-based campuses or EMI-sensitive environments.
3. 4 × 10GE Uplinks
Provides strong uplink redundancy and high-speed distribution connectivity.
4. Advanced L2/L3 Enterprise Features
Includes VLAN, ACL, IPv6, OSPF/RIP static routing, IRF virtualization, and strong security.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| Power | Integrated High-Power AC PSU | Power | Built-in HPWR PSU for UPoE support. |
| Cooling | Internal fan system | Cooling | Non-removable. |
| 1G SFP Optics | SFP-1G-SX / LX | Optics | Standard fiber downlink modules. |
| 10G Uplink Optics | SFP-10G-SR / LR | Optics | For uplink modules. |
| PoE Cabling | — | Cabling | Cat6A recommended for UPoE loads. |
Comparison with Similar Models
| Feature | S5130S-28S-HPWR-EI-AC | S5130S-28S-PWR-EI | S5130S-52S-PWR-EI-AC |
|---|---|---|---|
| Downlinks | 24×1G SFP + 4×Combo | 24×SFP + 4×PoE+ | 48×SFP + PoE+ |
| PoE Type | UPoE | PoE+ | PoE+ |
| Uplinks | 4×10G | 4×10G | 4×10G |
| Best Use | High-power fiber PoE | Standard fiber PoE | Large fiber PoE deployment |
Specifications
| Parameter | Specification |
|---|---|
| Model | S5130S-28S-HPWR-EI-AC |
| Downlink Ports | 24 × 1G SFP |
| Combo Ports | 4 × 1G RJ45 PoE+ / UPoE |
| Uplink Ports | 4 × 10GE SFP+ |
| PoE Standards | 802.3af/at/UPoE |
| Switching | Full wire-speed |
| Routing | Static, RIP, OSPF, VRRP |
| Security | ACL, ND/ARP protection, DHCP Snooping |
| VLAN | 4K |
| QoS | Traffic shaping, WRR/WFQ |
| IPv6 | Yes |
| Virtualization | IRF |
| O&M | Telemetry, sFlow, iMC |
| Power | Integrated AC HPWR PSU |
| Cooling | Built-in internal fan |
| Operating Temperature | 0°C to +50°C |
| Deployment | High-power Wi-Fi 6, fiber-to-room + PoE IoT |
