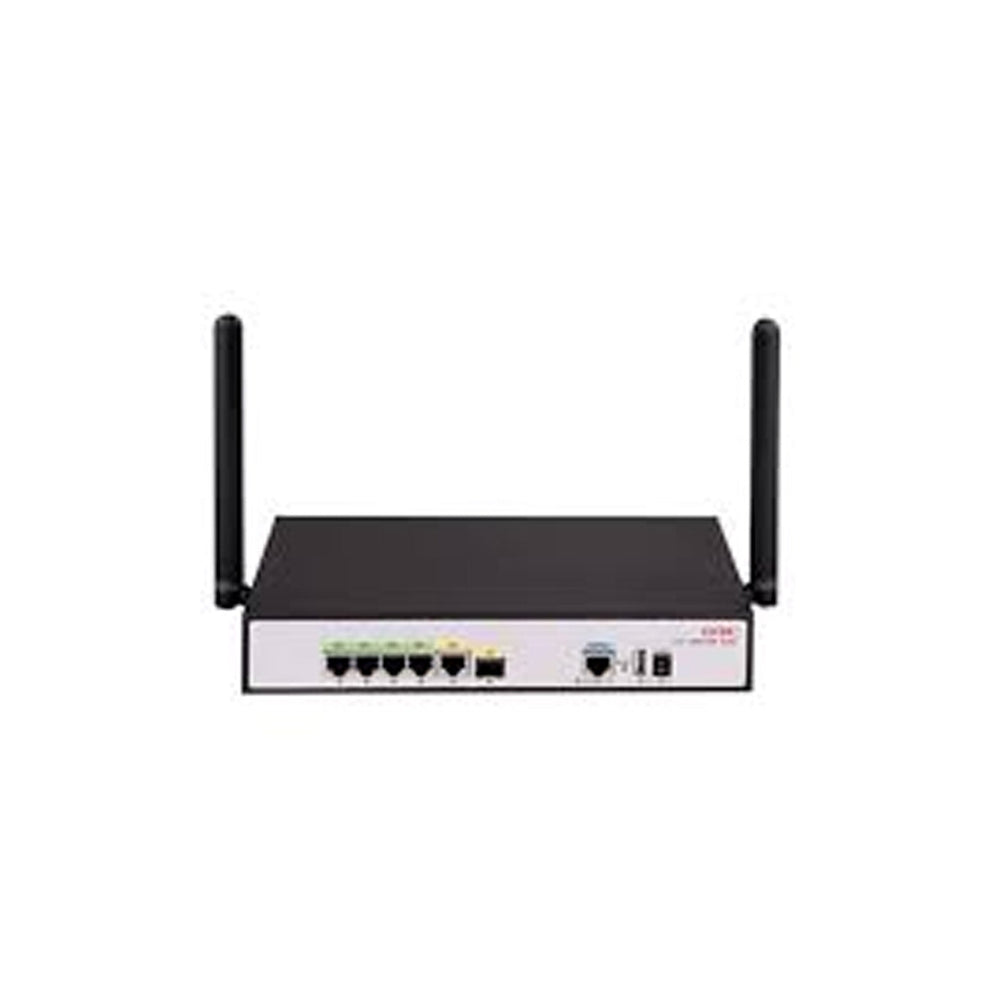

H3C MSR1104S-W GE WAN Wi-Fi Branch Router
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Branch Router with Wi-Fi, Wired WAN & Rich Feature Set
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The H3C MSR1104S-W is a versatile enterprise-branch router from the MSR1000 series, combining multi-WAN (GE copper + SFP), built-in dual-band WiFi (as wireless AP), and full Comware-based routing, VPN, and security capabilities.
Therefore, MSR1104S-W is well-suited for small-to-mid size business offices, retail branches, remote sites, hospitality, and multi-service branches needing stable wired Internet plus wireless access.
Highlights
-
Multi-WAN & Flexible Uplink Options - supports GE copper and SFP uplinks for flexible deployment of wired WAN or fiber uplinks.
-
Built-in Dual-Band WiFi (802.11ac / 2.4 + 5 GHz) - serves as both router and wireless AP, reducing need for standalone AP devices.
-
Comprehensive Security & VPN Support - IPSec, GRE, L2TP, firewall, ACL, NAT, user auth, ensuring secure branch connectivity.
-
SDN & AD-WAN Ready - supports modern SDN features, flexible forwarding, zero-touch deployment (ZTP), and integration with H3C AD-WAN controller for WAN orchestration.
-
Compact Desktop Design - suitable for office desktops, small wiring closets, or branch racks without dedicated server rooms.
Recommended Accessories
| Accessory | Description |
|---|---|
| Cat6 Patch Cables | For WAN/LAN connectivity |
| GE SFP Modules (SX / LX) | For fiber uplinks via SFP port |
| UPS / Surge Protector | Ensure stable power for WAN + AP usage |
| Rack / Wall Mount Kit | For office/retail installation |
| External Antenna (optional) | To improve WiFi coverage if used as AP |
Comparison with Similar Models
| Model | WiFi | WAN Ports | Best Use |
|---|---|---|---|
| MSR1104S-W | Built-in 802.11ac | GE + SFP | Small-to-mid branches needing both wired & WiFi |
| MSR1104S-W-CAT6 | Built-in WiFi + CAT6 LTE/4G | GE + SFP + LTE | Branches needing cellular backup or hybrid WAN |
| MSR1008 | No WiFi | Multi-GE/SFP/10GE | Larger branch or aggregation use with higher throughput |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C MSR1104S-W |
| Product Series | MSR1000 Router Series |
| WAN Ports | 1 × GE RJ45 copper (WAN), 1 × GE SFP fiber (WAN) |
| LAN Ports | 4 × GE RJ45 (LAN) |
| Wireless | Dual-band WiFi 2.4 GHz + 5 GHz (802.11ac/n) |
| CPU / Memory | 1 GB RAM, 256 MB Flash |
| Console / USB | 1 × RJ45 console, 1 × USB 2.0 port |
| Throughput (IMIX Routing) | ~1 Gbps |
| VPN & Security | IPSec, GRE, L2TP, NAT, firewall, ACL, URL filter, application-aware traffic control, DPI support, user auth (802.1X, portal, RADIUS/TACACS+) |
| SDN / AD-WAN / Advanced Routing | Supports NETCONF, Telemetry, OpenFlow; segment routing, EVPN/VXLAN, SR-EVPN/L3VPN, SRv6, SRv6-OAM, MPLS VPN, SRv6 policy-based forwarding, ZTP, DPI, traffic engineering options |
| Management | Web GUI, CLI, SSH, Telnet, SNMP v1/v2c/v3, Syslog, RMON, dual image, auto-config (USB/URL) |
| Power Supply / Consumption | External adapter 100-240 VAC, max ~18 W consumption (typical desktop router) |
| Dimensions (H × W × D) | 43.6 × 266 × 161 mm |
| Operating Env. | 0°C - 45°C, 5%-95% RH, non-condensing |
