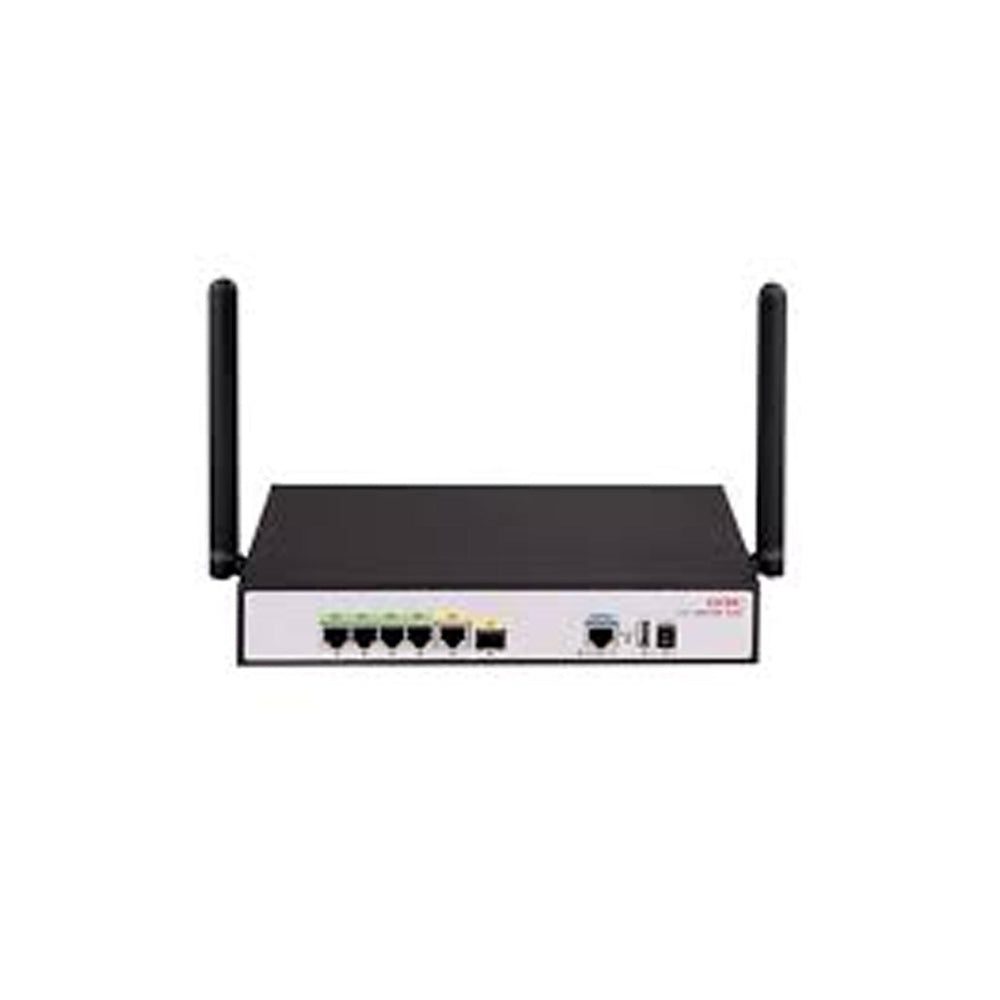

H3C MSR1104-G GE WAN Branch Router
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Enterprise Branch Router with Multi-WAN, Advanced Routing, Security & VPN
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The H3C MSR1104-G is a Gigabit enterprise branch router designed for mid-size offices, retail stores, remote branches, and small industrial sites that require robust wired WAN connectivity, full IPv4/IPv6 routing, and enterprise-class VPN/security.
It is positioned above entry-level MSR610/MSR810 routers and below the MSR830 series, offering an excellent balance of performance, networking flexibility, and service richness at the branch edge.
As part of the MSR1100 family, it provides:
-
Multi-WAN routing
-
IPSec/GRE/L2TP VPN
-
Stateful firewall & ACL
-
SD-WAN readiness
-
DPI (application identification)
-
Full Comware feature set
Highlights
1. Flexible Multi-WAN Design
-
Multiple Gigabit WAN/LAN interfaces
-
Supports load balancing, WAN backup, policy routing
-
Ideal for dual-ISP or multi-path routing scenarios
2. Enterprise Security & VPN
Supports:
-
IPSec VPN
-
GRE/mGRE
-
L2TP
-
SSL VPN (license dependent)
-
Stateful firewall & DoS protection
-
Application-aware policies based on DPI
3. SD-WAN Ready
Integrates with H3C AD-WAN controller for:
-
Centralized orchestration
-
SLA-based path selection
-
Zero-touch provisioning (ZTP)
4. Designed for Enterprise Branch Offices
-
Silent (fanless) design
-
Compact desktop form factor
-
Suitable for office desks or wiring cabinets
Recommended Accessories
| Accessory | Description |
|---|---|
| GE SFP Modules | For fiber uplink deployment |
| Cat6A Patch Cables | For high-performance LAN/WAN |
| Rack/Wall Mount Kit | For retail / office installation |
| Mini-UPS | Provides resilience during power fluctuations |
| USB Flash Drive | For auto-config via USB/ZTP |
Comparison with Similar Models
| Model | WAN Type | Performance Level | Best Use |
|---|---|---|---|
| MSR1104-G | GE copper/SFP | Medium | Standard wired enterprise branch |
| MSR1104-G-DSL-CAT6 | GE + DSL + LTE Cat6 | Medium-High | Branch needing DSL or LTE backup |
| MSR1008 | GE/SFP/10GE | High | Large branch / central office |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C MSR1104-G |
| Product Series | MSR1100 Enterprise Branch Router |
| WAN Ports | 1 × GE RJ45 WAN, 1 × GE SFP WAN |
| LAN Ports | 4 × GE RJ45 |
| Console | 1 × RJ45 |
| USB Port | 1 × USB 2.0 (file mgmt, ZTP) |
| CPU / Memory | 1 GB DRAM |
| Flash Storage | 256 MB |
| Routing Performance (IMIX) | Up to ~1 Gbps |
| Firewall | Stateful firewall, ACL, NAT, DoS protection |
| VPN Support | IPSec, GRE/mGRE, L2TP, SSL VPN (license-based), PKI/IKE |
| Advanced Routing | IPv4/IPv6, OSPF, OSPFv3, BGP, IS-IS, Static Routes, PBR |
| SD-WAN | Supported (AD-WAN controller) |
| QoS | Priority queuing, CAR/GTS, traffic shaping, DSCP mapping |
| Application Identification (DPI) | Supports >1000 application signatures |
| High Availability | Dual-ISP failover, load balancing, NQA/BFD probing |
| Management | Web, CLI, SSH, Telnet, SNMP, Syslog, RMON, ZTP |
| Dimensions (H × W × D) | 43.6 × 266 × 161 mm |
| Power Supply | External AC adapter 100-240 V |
| Power Consumption | ≤ 18 W |
| Operating Temperature | 0°C - 45°C |
| Humidity | 5% - 95% RH non-condensing |
