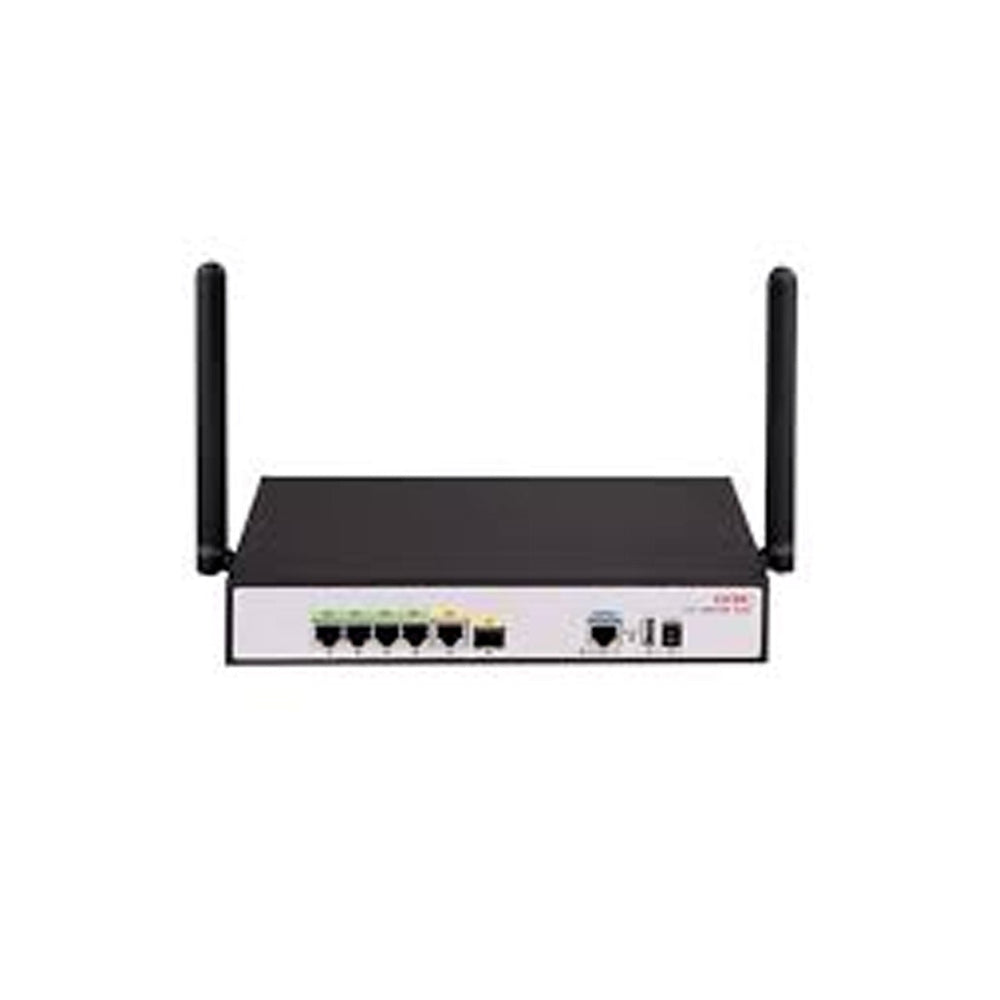

H3C MSR1104-G-DSL-CAT6 Dual-WAN LTE/DSL Router
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Enterprise Router with DSL WAN + LTE Cat6 + GE Multi-WAN + Wi-Fi Ready
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The H3C MSR1104-G-DSL-CAT6 integrates DSL WAN + LTE Cat6 WAN + Gigabit WAN/LAN, forming a highly resilient hybrid-WAN router designed for:
-
Rural sites
-
Financial branches
-
Government offices
-
Retail store chains
-
Sites lacking stable fiber/ISP access
It provides enterprise-grade routing, VPN, firewall, SD-WAN, and advanced traffic control through the Comware OS.
Highlights
1. Triple-WAN Hybrid Access
-
DSL WAN port (supports VDSL/ADSL depending on region)
-
LTE Cat6 4G modem (dual SIM)
-
Gigabit copper & SFP WAN
Delivers ISP redundancy, backup, and multi-path routing.
2. Embedded LTE Cat6 Wireless WAN
-
Provides ~300 Mbps LTE downlink (Cat6 theoretical rate)
-
Ideal for failover or primary WAN if no fiber available
3. Full Routing + VPN + Security
-
IPSec, GRE, L2TP
-
Full ACL firewall
-
NAT/PAT, session control
-
DPI-based application routing
4. SD-WAN + NQA + Path Steering
Allows intelligent traffic selection based on:
-
Link latency
-
Application type
-
Bandwidth usage
-
ISP quality
5. Designed for Harsh or Remote Deployments
-
Fanless
-
Stable voltage range
-
Supports 24×7 unattended operation
Recommended Accessories
| Accessory | Description |
|---|---|
| LTE Cat6 Antennas | Improve cellular reception |
| DSL Splitter/Filter | Required for ADSL/VDSL |
| 1G SFP Modules | Optional fiber WAN |
| Cat6 Cables | Standard WAN/LAN cabling |
| Mini UPS | Keeps router online when using LTE backup |
Comparison with Similar Models
| Model | WAN Types | Best Use |
|---|---|---|
| MSR1104-G-DSL-CAT6 | DSL + LTE Cat6 + GE + SFP | Sites needing maximum WAN redundancy |
| MSR1104-G | GE + SFP | Standard wired branch |
| MSR1104S-W-5GGL | 5G + GE + SFP | Branches requiring 5G bandwidth |
| MSR1008 | GE/SFP/10GE | Aggregation or high-performance branch |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C MSR1104-G-DSL-CAT6 |
| Product Series | MSR1100 Hybrid WAN Router |
| WAN Ports (Copper/Fiber) | 1 × GE RJ45 WAN, 1 × GE SFP WAN |
| DSL Port | 1 × DSL interface (ADSL/VDSL depending on region) |
| Cellular WAN | Built-in LTE Cat6 modem |
| SIM Slots | Dual SIM for carrier failover |
| LAN Ports | 4 × GE RJ45 |
| Console / USB | 1 × RJ45 console, 1 × USB 2.0 |
| Memory | 1 GB DDR3 |
| Flash | 256 MB |
| Routing Performance (IMIX) | Up to ~1 Gbps |
| Firewall | Stateful firewall, ACL, DoS/DDoS, NAT |
| VPN Support | IPSec, GRE, mGRE, L2TP, PKI, IKE |
| Advanced Routing | Static, OSPF, OSPFv3, BGP, IS-IS, IPv6 routing |
| SD-WAN | Fully supported via H3C AD-WAN controller |
| High Availability | Multi-WAN failover, load balancing, NQA probing |
| DPI Application ID | Supports >1000 applications |
| Management | Web/CLI/SSH/SNMP, Syslog, ZTP |
| Dimensions (H × W × D) | 43.6 × 266 × 161 mm |
| Power Supply | External AC adapter (100-240 V) |
| Max Power Consumption | ≤ 20 W |
| Operating Temperature | 0°C - 45°C |
| Humidity | 5% - 95% RH |
