GR56C-ZIK.GL.CR ZIEHL-ABEGG centrifugal fan 380/480V 5.4KW 8.60-6.80A 1800rpm
Clique ou role para ampliar
Toque ou belisque para ampliar
GR56C-ZIK.GL.CR ZIEHL-ABEGG centrifugal fan 380/480V 5.4KW 8.60-6.80A 1800rpm
Clique ou role para ampliar
Toque ou belisque para ampliar
GR56C-ZIK.GL.CR ZIEHL-ABEGG centrifugal fan 380/480V 5.4KW 8.60-6.80A 1800rpm
Clique ou role para ampliar
Toque ou belisque para ampliar
GR56C-ZIK.GL.CR ZIEHL-ABEGG centrifugal fan 380/480V 5.4KW 8.60-6.80A 1800rpm
Clique ou role para ampliar
Toque ou belisque para ampliar
GR56C-ZIK.GL.CR ZIEHL-ABEGG centrifugal fan 380/480V 5.4KW 8.60-6.80A 1800rpm
Clique ou role para ampliar
Toque ou belisque para ampliar
GR56C-ZIK.GL.CR ZIEHL-ABEGG centrifugal fan 380/480V 5.4KW 8.60-6.80A 1800rpm
Clique ou role para ampliar
Toque ou belisque para ampliar
GR56C-ZIK.GL.CR ZIEHL-ABEGG centrifugal fan 380/480V 5.4KW 8.60-6.80A 1800rpm
Clique ou role para ampliar
Toque ou belisque para ampliar
GR56C-ZIK.GL.CR ZIEHL-ABEGG centrifugal fan 380/480V 5.4KW 8.60-6.80A 1800rpm
Clique ou role para ampliar
Toque ou belisque para ampliar
GR56C-ZIK.GL.CR ZIEHL-ABEGG centrifugal fan 380/480V 5.4KW 8.60-6.80A 1800rpm
Clique ou role para ampliar
Toque ou belisque para ampliar
GR56C-ZIK.GL.CR ZIEHL-ABEGG centrifugal fan 380/480V 5.4KW 8.60-6.80A 1800rpm
GR56C-ZIK.GL.CR ZIEHL-ABEGG centrifugal fan 380/480V 5.4KW 8.60-6.80A 1800rpm

GR56C-ZIK.GL.CR ZIEHL-ABEGG centrifugal fan 380/480V 5.4KW 8.60-6.80A 1800rpm

R$ 22.080,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo p/ empresas
  • Impostos inclusos • até 12x sem juros
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

ZIEHL-ABEGG GR56C-ZIK.GL.CR Centrifugal Fan

Premium EC Technology Centrifugal Fan 5.4KW

Professional 5.4KW centrifugal fan featuring 1800 RPM operation with ECblue motor technology, 3-phase 380/480V compatibility, and exceptional airflow up to 19,000 m³/h. German-engineered with 62kg industrial construction for outstanding durability exceeding 10 years, ultra-quiet performance, high energy efficiency, and powerful centrifugal airflow for demanding industrial applications.
🏆

10+ Years Industrial Durability

German-engineered ZIEHL-ABEGG construction with 62kg robust industrial design ensures reliable, long-term operation exceeding 10+ years. Featuring ZAmid high-strength composite impeller, premium bearings, and enhanced corrosion protection for exceptional lifespan in demanding industrial environments with minimal maintenance requirements.

 🔇

Ultra-Quiet 1800 RPM Operation

Optimized 1800 RPM operation with backward curved blades and precision balancing delivers exceptionally quiet performance. Static and dynamic balancing of motor/wheel assembly minimizes vibration and noise, making it ideal for applications where quiet operation is essential for maintaining comfortable working environments.

 ⚡

Energy Efficient ECblue Technology

5.4KW ECblue motor technology provides superior energy efficiency with optimal power consumption (8.60-6.80A). Advanced electronic commutation maximizes airflow output per watt, significantly reducing operational costs while delivering powerful centrifugal airflow performance with intelligent speed control capabilities.

 💨

High-Performance Airflow: 19,000 m³/h

1800 RPM operation with backward curved blades delivers exceptional airflow up to 19,000 m³/h with pressure up to 1,800 Pa. Optimized for non-spiral housing operation, this centrifugal fan provides superior cooling and ventilation performance for large-scale industrial applications requiring substantial air movement.

The ZIEHL-ABEGG GR56C-ZIK.GL.CR is engineered for versatile applications across multiple industries requiring high-performance centrifugal airflow solutions.

🏭 Industrial Ventilation Systems ❄️ Commercial Air Conditioning 🧊 Industrial Refrigeration 🔥 Heating Systems ⚙️ Electrical Automation 🔌 Frequency Converters 🚄 Rail Transportation HVAC 🏢 HVAC (FFU/AHU) Systems 🌫️ Air Purification Systems 🚗 New Energy Vehicles 🏗️ Industrial Process Cooling 💻 Data Center Cooling ⚡ Power Plant Ventilation 🏥 Hospital HVAC Systems 🔬 Laboratory Ventilation 🍽️ Commercial Kitchen Exhaust

ECblue Motor Technology

Advanced electronically commutated motor with intelligent speed control, superior energy efficiency, and reduced electromagnetic interference. Thermal class THCL155 ensures reliable operation in demanding conditions.

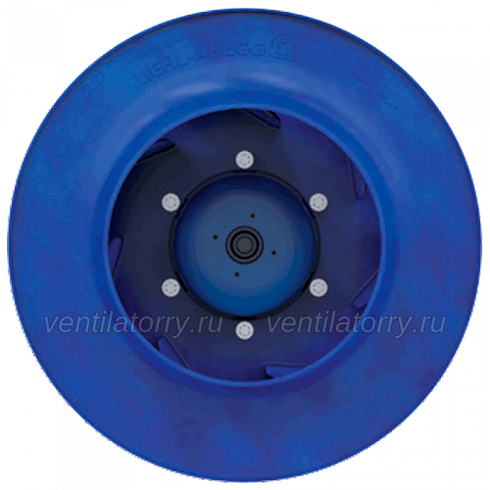

ZAmid Composite Impeller

High-strength composite material impeller with backward curved blades optimized for non-spiral housing operation, providing excellent aerodynamic performance and corrosion resistance.

Premium Protection Standards

IP54 protection class for dust and water resistance. Enhanced corrosion protection available on request. Suitable for ambient temperatures from -20°C to +60°C.

Precision Engineering

Statically and dynamically balanced motor/wheel assembly. Available in 9 sizes from 250mm to 630mm. Shaft mounting position: horizontal or vertical for flexible installation.
Model Number GR56C-ZIK.GL.CR
Article Number 114725/U01
Motor Number RH56C-ZIK.GL.CR
Manufacturer ZIEHL-ABEGG GERMANY
Product Type Centrifugal Fan EC TECHNOLOGY
Condition Original new from manufacturer
Rated Power 5.4 KW ECBLUE TECHNOLOGY
Rated Voltage 3~380/480 V THREE PHASE
Frequency 50/60 Hz
Rated Current 8.60-6.80 A (50/60Hz)
Speed 1800 rpm HIGH AIRFLOW
Maximum Airflow Up to 19,000 m³/h
Maximum Pressure Up to 1,800 Pa
Net Weight 62 kg INDUSTRIAL GRADE
Shipping Dimension 88 × 88 × 60 cm
Protection Class IP54
Thermal Class THCL155
Ambient Temperature -20°C to +60°C
Country of Origin Germany
HS Code 8414599099
Warranty 1 Year Manufacturer Warranty

Shipping From: Dispatched from Hong Kong for efficient global distribution.

Processing Time: Orders are processed and ready to ship within 5 business days.

Express Delivery: Estimated delivery in 3-8 business days worldwide via DHL or UPS.

Warranty: Backed by a full 1-year manufacturer's warranty from ZIEHL-ABEGG.

Product Guarantee: We sell only genuine ZIEHL-ABEGG products guaranteed to meet all factory specifications for fit, form, and function.

Customer Satisfaction: Enjoy a 30-day return policy and our commitment to 100% customer satisfaction.

For Large Quantity Inquiries: Please contact our sales team at sales@axialfanz.com for volume pricing and custom quotations.

Q1: What are the key advantages of ECblue motor technology in the GR56C-ZIK.GL.CR?

A: ECblue technology offers superior energy efficiency, intelligent speed control, reduced electromagnetic interference, and excellent part-load efficiency. The electronically commutated motor provides precise control, lower operating costs, and better overall performance compared to traditional AC motors, making it ideal for applications requiring variable airflow.

Q2: How does the backward curved blade design enhance performance?

A: Backward curved blades create a non-overloading characteristic, providing stable operation across the entire performance curve. This design offers higher efficiency, better pressure development, and quieter operation compared to forward curved blades. The ZAmid composite material ensures excellent strength-to-weight ratio and corrosion resistance.

Q3: What makes this fan suitable for harsh industrial environments?

A: With IP54 protection class, THCL155 thermal class, enhanced corrosion protection options, and operation range from -20°C to +60°C, this fan is engineered for demanding conditions. The 62kg robust construction, statically and dynamically balanced assembly, and high-strength ZAmid impeller ensure reliable performance in challenging industrial applications.

Q4: How does the airflow of 19,000 m³/h benefit large-scale applications?

A: The exceptional airflow capacity makes this fan ideal for large industrial ventilation systems, data center cooling, commercial HVAC systems, and process cooling applications. Combined with pressure up to 1,800 Pa, it can efficiently move air through ductwork, filters, and heat exchangers in large facilities requiring substantial air movement.

Contact our technical specialists for application-specific recommendations, performance data, or volume pricing for your industrial ventilation and cooling requirements.

Request Technical Support Request Volume Pricing



Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

ZIEHL-ABEGG GR56C-ZIK.GL.CR Centrifugal Fan

Premium EC Technology Centrifugal Fan 5.4KW

Professional 5.4KW centrifugal fan featuring 1800 RPM operation with ECblue motor technology, 3-phase 380/480V compatibility, and exceptional airflow up to 19,000 m³/h. German-engineered with 62kg industrial construction for outstanding durability exceeding 10 years, ultra-quiet performance, high energy efficiency, and powerful centrifugal airflow for demanding industrial applications.
Core Performance Advantages
🏆

10+ Years Industrial Durability

German-engineered ZIEHL-ABEGG construction with 62kg robust industrial design ensures reliable, long-term operation exceeding 10+ years. Featuring ZAmid high-strength composite impeller, premium bearings, and enhanced corrosion protection for exceptional lifespan in demanding industrial environments with minimal maintenance requirements.

 🔇

Ultra-Quiet 1800 RPM Operation

Optimized 1800 RPM operation with backward curved blades and precision balancing delivers exceptionally quiet performance. Static and dynamic balancing of motor/wheel assembly minimizes vibration and noise, making it ideal for applications where quiet operation is essential for maintaining comfortable working environments.

 ⚡

Energy Efficient ECblue Technology

5.4KW ECblue motor technology provides superior energy efficiency with optimal power consumption (8.60-6.80A). Advanced electronic commutation maximizes airflow output per watt, significantly reducing operational costs while delivering powerful centrifugal airflow performance with intelligent speed control capabilities.

 💨

High-Performance Airflow: 19,000 m³/h

1800 RPM operation with backward curved blades delivers exceptional airflow up to 19,000 m³/h with pressure up to 1,800 Pa. Optimized for non-spiral housing operation, this centrifugal fan provides superior cooling and ventilation performance for large-scale industrial applications requiring substantial air movement.
Industry Applications

The ZIEHL-ABEGG GR56C-ZIK.GL.CR is engineered for versatile applications across multiple industries requiring high-performance centrifugal airflow solutions.

🏭 Industrial Ventilation Systems ❄️ Commercial Air Conditioning 🧊 Industrial Refrigeration 🔥 Heating Systems ⚙️ Electrical Automation 🔌 Frequency Converters 🚄 Rail Transportation HVAC 🏢 HVAC (FFU/AHU) Systems 🌫️ Air Purification Systems 🚗 New Energy Vehicles 🏗️ Industrial Process Cooling 💻 Data Center Cooling ⚡ Power Plant Ventilation 🏥 Hospital HVAC Systems 🔬 Laboratory Ventilation 🍽️ Commercial Kitchen Exhaust
Advanced Technical Features

ECblue Motor Technology

Advanced electronically commutated motor with intelligent speed control, superior energy efficiency, and reduced electromagnetic interference. Thermal class THCL155 ensures reliable operation in demanding conditions.

ZAmid Composite Impeller

High-strength composite material impeller with backward curved blades optimized for non-spiral housing operation, providing excellent aerodynamic performance and corrosion resistance.

Premium Protection Standards

IP54 protection class for dust and water resistance. Enhanced corrosion protection available on request. Suitable for ambient temperatures from -20°C to +60°C.

Precision Engineering

Statically and dynamically balanced motor/wheel assembly. Available in 9 sizes from 250mm to 630mm. Shaft mounting position: horizontal or vertical for flexible installation.
Technical Specifications
Model Number GR56C-ZIK.GL.CR
Article Number 114725/U01
Motor Number RH56C-ZIK.GL.CR
Manufacturer ZIEHL-ABEGG GERMANY
Product Type Centrifugal Fan EC TECHNOLOGY
Condition Original new from manufacturer
Rated Power 5.4 KW ECBLUE TECHNOLOGY
Rated Voltage 3~380/480 V THREE PHASE
Frequency 50/60 Hz
Rated Current 8.60-6.80 A (50/60Hz)
Speed 1800 rpm HIGH AIRFLOW
Maximum Airflow Up to 19,000 m³/h
Maximum Pressure Up to 1,800 Pa
Net Weight 62 kg INDUSTRIAL GRADE
Shipping Dimension 88 × 88 × 60 cm
Protection Class IP54
Thermal Class THCL155
Ambient Temperature -20°C to +60°C
Country of Origin Germany
HS Code 8414599099
Warranty 1 Year Manufacturer Warranty
Shipping, Warranty & Service

Shipping From: Dispatched from Hong Kong for efficient global distribution.

Processing Time: Orders are processed and ready to ship within 5 business days.

Express Delivery: Estimated delivery in 3-8 business days worldwide via DHL or UPS.

Warranty: Backed by a full 1-year manufacturer's warranty from ZIEHL-ABEGG.

Product Guarantee: We sell only genuine ZIEHL-ABEGG products guaranteed to meet all factory specifications for fit, form, and function.

Customer Satisfaction: Enjoy a 30-day return policy and our commitment to 100% customer satisfaction.

For Large Quantity Inquiries: Please contact our sales team at sales@axialfanz.com for volume pricing and custom quotations.
Frequently Asked Questions

Q1: What are the key advantages of ECblue motor technology in the GR56C-ZIK.GL.CR?

A: ECblue technology offers superior energy efficiency, intelligent speed control, reduced electromagnetic interference, and excellent part-load efficiency. The electronically commutated motor provides precise control, lower operating costs, and better overall performance compared to traditional AC motors, making it ideal for applications requiring variable airflow.

Q2: How does the backward curved blade design enhance performance?

A: Backward curved blades create a non-overloading characteristic, providing stable operation across the entire performance curve. This design offers higher efficiency, better pressure development, and quieter operation compared to forward curved blades. The ZAmid composite material ensures excellent strength-to-weight ratio and corrosion resistance.

Q3: What makes this fan suitable for harsh industrial environments?

A: With IP54 protection class, THCL155 thermal class, enhanced corrosion protection options, and operation range from -20°C to +60°C, this fan is engineered for demanding conditions. The 62kg robust construction, statically and dynamically balanced assembly, and high-strength ZAmid impeller ensure reliable performance in challenging industrial applications.

Q4: How does the airflow of 19,000 m³/h benefit large-scale applications?

A: The exceptional airflow capacity makes this fan ideal for large industrial ventilation systems, data center cooling, commercial HVAC systems, and process cooling applications. Combined with pressure up to 1,800 Pa, it can efficiently move air through ductwork, filters, and heat exchangers in large facilities requiring substantial air movement.
Need High-Performance Centrifugal Fan Solutions?

Contact our technical specialists for application-specific recommendations, performance data, or volume pricing for your industrial ventilation and cooling requirements.

Request Technical Support Request Volume Pricing
