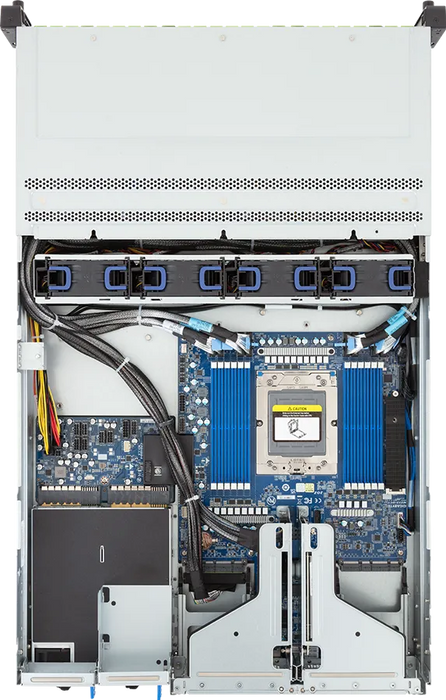

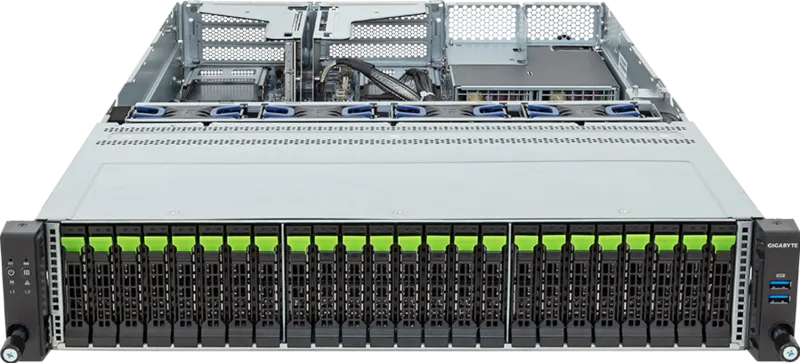

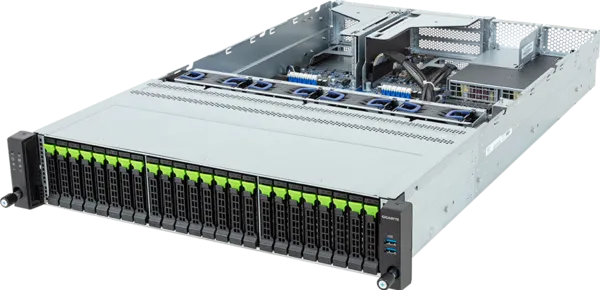

Gigabyte R263-Z36-AAD1 2U AMD EPYC 9005/9004 12-Channel DDR5 1600W Server

Gigabyte R263-Z36-AAD1 2U server with MZ33-DC1 motherboard supports AMD EPYC 9005 and 9004 series processors, offering up to 500W cTDP and 12-channel DDR5 RDIMM memory. It includes 24 hot-swap 2.5" Gen5 NVMe storage, PCIe Gen5 slots for expansion, dual 1600W redundant power supplies, and integrated ASPEED AST2600 for system management in a 10°C to 30°C operating range.

Specifications

Model Number:  R263-Z36-AAD1

Brand:  Gigabyte

Alt Part Number(s):  R263-Z36-AAD1

Product Type: Server

Technical Description

Brand: Gigabyte

Model:  R263-Z36-AAD1

Form Factor: 2U

Dimensions: W438 x H87.5 x D710 mm

Motherboard: MZ33-DC1

CPU: AMD EPYC 9005 Series Processors; AMD EPYC 9004 Series Processors
Single processor, cTDP up to 400W; At 25°C ambient, cTDP up to 500W; At 30°C ambient, cTDP up to 500W with optional heatsink

Socket: 1 x LGA 6096 (Socket SP5)

Chipset: System on Chip

Memory: 12-Channel DDR5 RDIMM, 12 x DIMMs
[EPYC 9005] Up to 6400 MT/s
[EPYC 9004] Up to 4800 MT/s

LAN: 1 x 1Gb/s LAN (1 x Intel I210-AT); Support NCSI
1 x 10/100/1000 Mbps Management LAN

Video: Integrated in ASPEED AST2600: 1 x Mini-DP

Storage: Front hot-swap: 24 x 2.5" Gen5 NVMe
Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4, NVMe supported only

RAID: Require RAID add-in cards
Optional compatible RAID Cards: NVMe/NVMe-oF RAID Cards with SupremeRAID by Graid Technology
RAID Card models: SR-1000-FD32, SR-1010-FD32
Support RAID 0/1/5/6/10

PCIe Expansion Slots: 1 x FHHL PCIe Gen5 x16
1 x OCP NIC 3.0 PCIe Gen5 x16, Support NCSI

I/O Ports: Front: 2 x USB 3.2 Gen1
Rear: 2 x USB 3.2 Gen1; 1 x Mini-DP; 1 x RJ45; 1 x MLAN

Backplane Board: PCIe Gen5 x4

TPM: 1 x TPM header (SPI), Optional TPM2.0 kit: CTM012

Power Supply: 1+1 1600W 80 PLUS Platinum redundant power supplies

AC Input: 100-240V

System Management: ASPEED AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

System Fans: 4 x 80x80x38mm

Operating Properties: Operating: 10°C to 30°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing)
