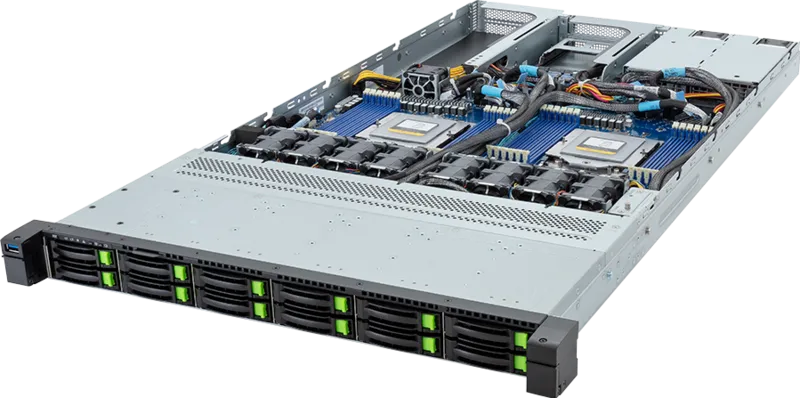

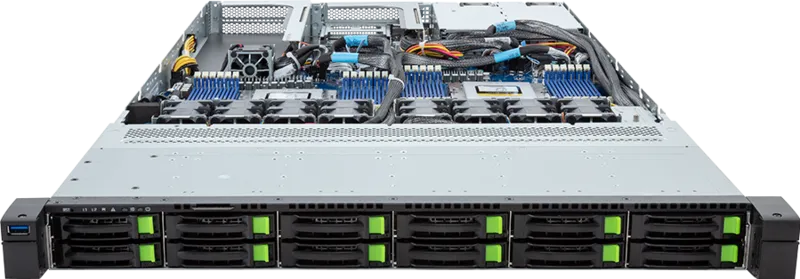

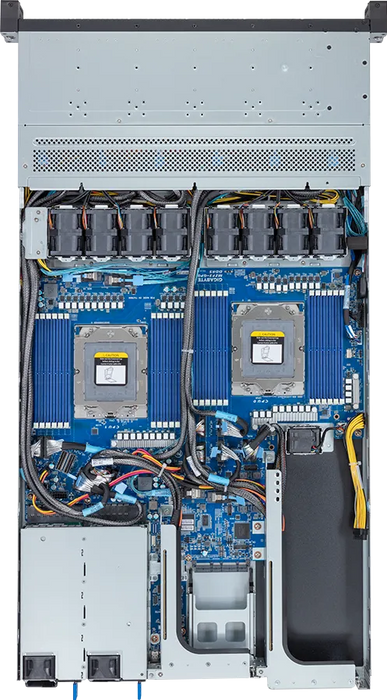

Gigabyte R183-ZF1-AAJ1 1U AMD EPYC Dual Processor 12 x 2.5in NVMe 2000W Server

Gigabyte R183-ZF1-AAJ1 1U server, equipped with AMD EPYC 9005 and 9004 series processors, supports dual processors with up to 400W cTDP and 12-channel DDR5 memory. It features 12 hot-swappable 2.5" Gen5 NVMe/SATA/SAS-4 bays, PCIe Gen5 slots for GPUs and expansion, and dual 2000W redundant power supplies, making it ideal for high-performance, scalable computing in a compact 1U form factor.

Specifications

Model Number:  R183-ZF1-AAJ1

Brand:  Gigabyte

Alt Part Number(s):  R183-ZF1-AAJ1

Product Type: Server

Technical Description

Brand: Gigabyte

Model:  R183-ZF1-AAJ1

Form Factor: 1U

Dimensions: W438 x H43.5 x D815 mm

Motherboard: MZF3-GP0

CPU: AMD EPYC™ 9005 Series Processors; AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W

Socket: 2 x LGA 6096 (Socket SP5)

Chipset: System on Chip

Memory: 12-Channel DDR5 RDIMM, 24 x DIMMs
Up to 4800 MT/s

LAN: 1 x 10/100/1000 Mbps Management LAN

Video: Integrated in ASPEED AST2600: 1 x Mini-DP

Storage: Front hot-swap: 12 x 2.5" Gen5 NVMe/SATA/SAS-4
SAS card is required to support SAS drives

RAID: Require RAID add-in cards

PCIe Expansion Slots: 1 x FHFL PCIe Gen5 x16, for GPUs
1 x FHFL PCIe Gen5 x16
1 x FHHL PCIe Gen5 x16
1 x OCP NIC 3.0 PCIe Gen5 x16, Support NCSI

I/O Ports: Front: 1 x USB 3.2 Gen1
Rear: 2 x USB 3.2 Gen1; 1 x Mini-DP; 1 x MLAN

Backplane Board: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

TPM: 1 x TPM header (SPI), Optional TPM2.0 kit: CTM010

Power Supply: 1+1 2000W 80 PLUS Titanium redundant power supplies

AC Input: 100-240V

System Management: ASPEED AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

System Fans: 1 x 40x40x28mm
8 x 40x40x56mm

Operating Properties: Operating: 10°C to 30°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing)
