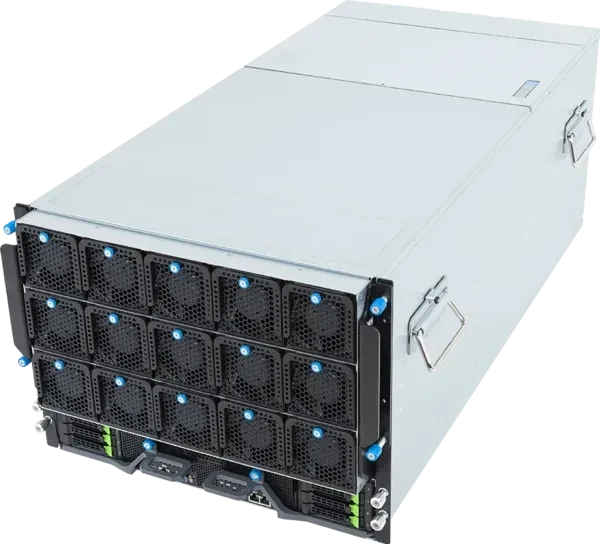

Gigabyte G894-ZD3-AAX7 HPC/AI AMD EPYC DP NVIDIA HGX B300 8U Server

Overview

Gigabyte G894-ZD3-AAX7 HPC/AI Server starts with powerful AMD EPYC 9005 and 9004 dual-socket support and the NVIDIA HGX B300 platform to deliver extreme compute performance. This 8U system features 24 DDR5 DIMM slots, Gen5 NVMe storage, high-bandwidth 800 Gb/s networking, and robust 3000W redundant power for demanding AI and data centre workloads.

Specifications

Model Number: G894-ZD3-AAX7

Brand: Gigabyte

Alt Part Number(s):G894-ZD3-AAX7

Product Type: Server

Technical Description

Brand: Gigabyte

Model: G894-ZD3-AAX7

Form Factor: 8U, GPU Server

Dimensions: 447 x 351 x 923

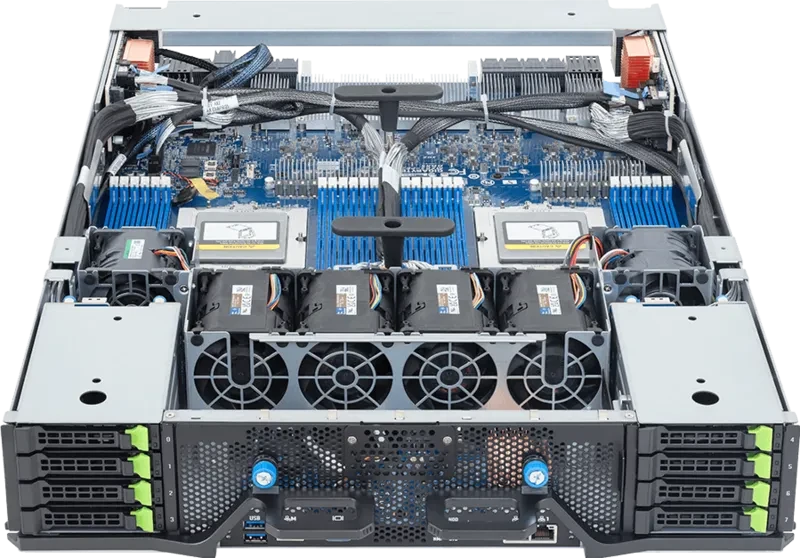

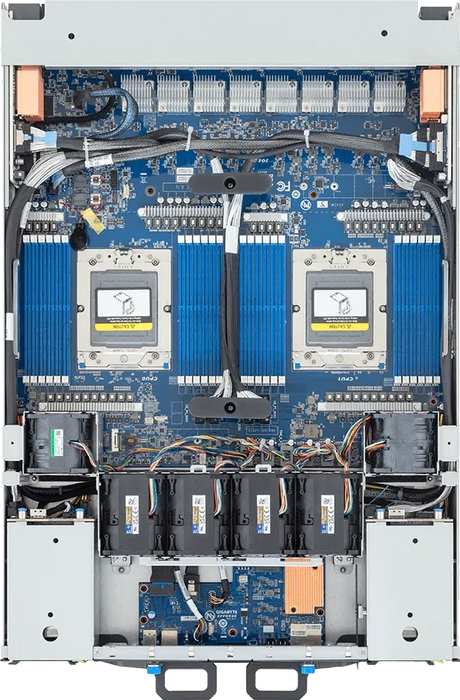

Motherboard: MZB3-PE2

CPU: AMD EPYC™ 9005 Series Processors; AMD EPYC™ 9004 Series Processors; Dual processor, cTDP up to 500W; [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket: 2 x LGA 6096; Socket SP5

Chipset: System on Chip

Memory: 24 x DIMM slots; Support DDR5 RDIMM; 12-Channel memory per processor; AMD EPYC™ 9005: Up to 6400 MT/s; AMD EPYC™ 9004: Up to 4800 MT/s

LAN: Front (I/O board - CFPG540): 2 x 10Gb/s LAN (1 x Intel® X710-AT2) - Support NCSI function; 1 x 10/100/1000 Mbps Management LAN; Rear: 8 x 800 Gb/s OSFP InfiniBand XDR / Dual 400 Gb/s Ethernet via NVIDIA ConnectX®-8 SuperNIC™; Rear (MLAN board - CDB66): 1 x 10/100/1000 Mbps Management LAN; [Note] When both MLAN ports are connected, front MLAN becomes default.

Video: Integrated in ASPEED® AST2600; 1 x VGA port

Storage: Front hot-swap: 8 x 2.5" Gen5 NVMe (NVMe from PEX89072); Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1; 1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0

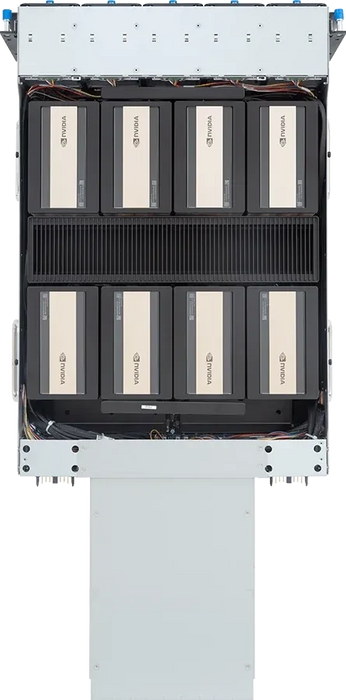

Modular GPU: NVIDIA HGX™ B300 with 8 x SXM GPUs

PCIe Expansion Slots: PCIe Bridge Board - CPBG045 x 2: 4 x FHHL x16 (Gen5 x16), from PEX89072

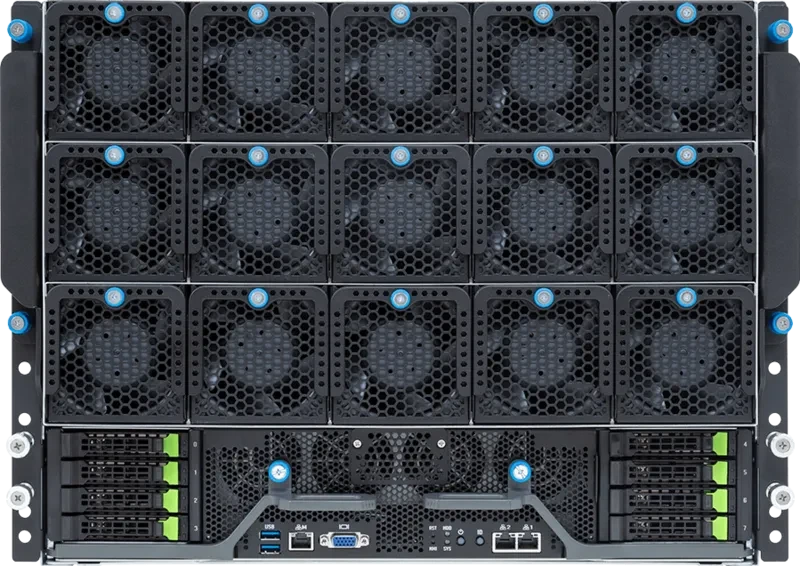

Front I/O: 2 x USB 3.2 Gen1 ports (Type-A); 1 x VGA port; 2 x RJ45 ports; 1 x MLAN port (default); 1 x Power button with LED; 1 x ID button with LED; 1 x NMI button; 1 x Reset button; 1 x Storage activity LED; 1 x System status LED

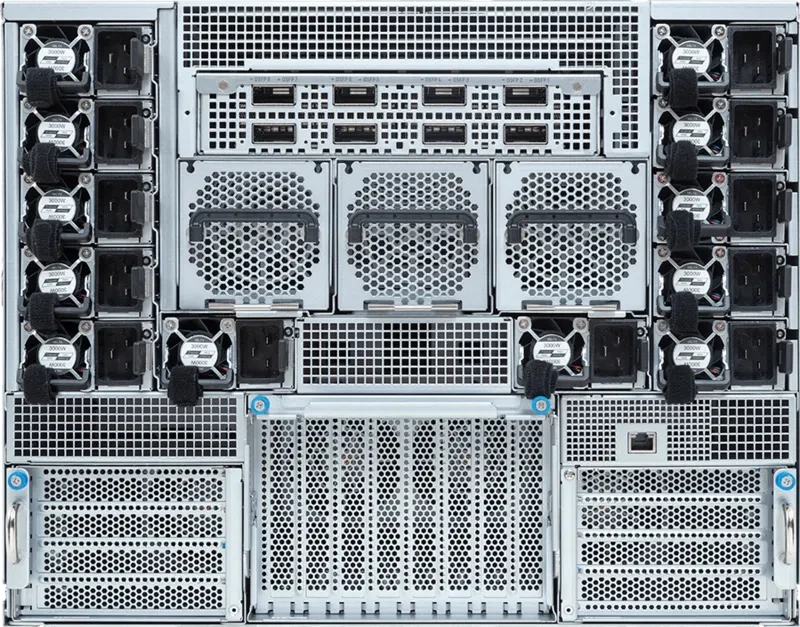

Rear I/O: 8 x OSFP ports; MLAN board - CDB66: 1 x MLAN port

Security Modules: 1 x TPM header with SPI interface; Optional TPM2.0 kit: CTM012

Power Supply[#1]: 12 x 3000W 80 PLUS Titanium redundant power supplies; [1] The system power supply requires C19 power cord.

System Fans: Motherboard: 2 x 60x60x56mm; 4 x 60x60x76mm; OSFP ports: 4 x 40x40x56mm; PCIe slots: 2 x 80x80x56mm; GPU tray: 15 x 80x80x80mm

Operating Properties: Operating temperature: 10°C to 30°C; Operating humidity: 8% to 80% (non-condensing); Non-operating temperature: -40°C to 60°C; Non-operating humidity: 20% to 95% (non-condensing)

*
