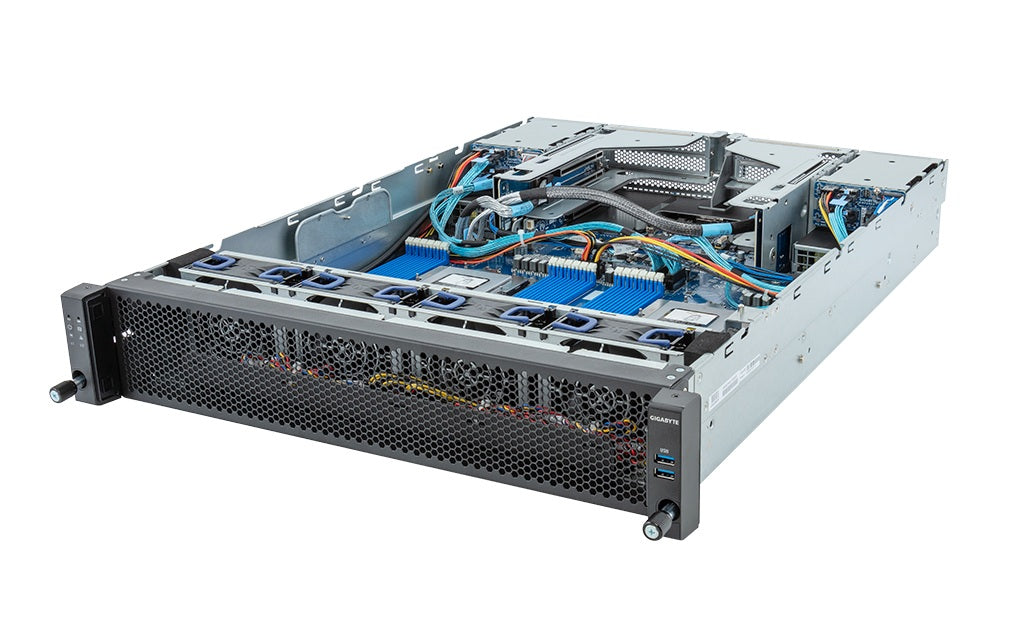

The E283-Z90-ACV1 is a high-performance 2U Edge Rackmount Server Barebone manufactured by Gigabyte. It is built around a dual-socket AMD platform designed specifically for edge computing, hybrid cloud deployment, and networking workloads
Specifications
Model Number: E283-Z90-ACV1
Brand: Gigabyte
Alt Part Number(s): E283-Z90-ACV1
Product Type: Barebone Server
Technical Description
Brand: Gigabyte
Model Number: E283-Z90-ACV1
Processor Type: Dual AMD EPYC 9005 Series / AMD EPYC 9004 Series processors
Processor Core: 384 Core/768 Thread
Processor Power: Up to 400W
Processor Socket: 2 × SP5 (LGA6096)
Motherboard: MZ93-FS0
Chipset: System on Chip (SoC)
Networking: 2 × 1GbE + 1 × dedicated management LAN
Video: Integrated in ASPEED AST2600
Number of Drive Bays: 4 × 2.5" Gen4 NVMe/SATA/SAS hot-swap
M.2: 2 × M.2 PCIe Gen3
PCIe Expansion Slots: 6 × PCIe Gen5 FHHL slots + 2 × OCP 3.0 Gen5 x16
Memory Supported: 6TB
Memory Technology: DDR5
Memory Speed: Up to 6400 MT/s (EPYC 9005), 4800 MT/s (EPYC 9004)
Memory Slots: 24 × DDR5 RDIMM slots
Memory Channels: 12 channels per CPU (24 channels total)
Cooling System: 4 System Cooling Fans
Power Supply: Dual 1600W 80 Plus Titanium redundant PSUs
Form Factor: 2U Rackmount
