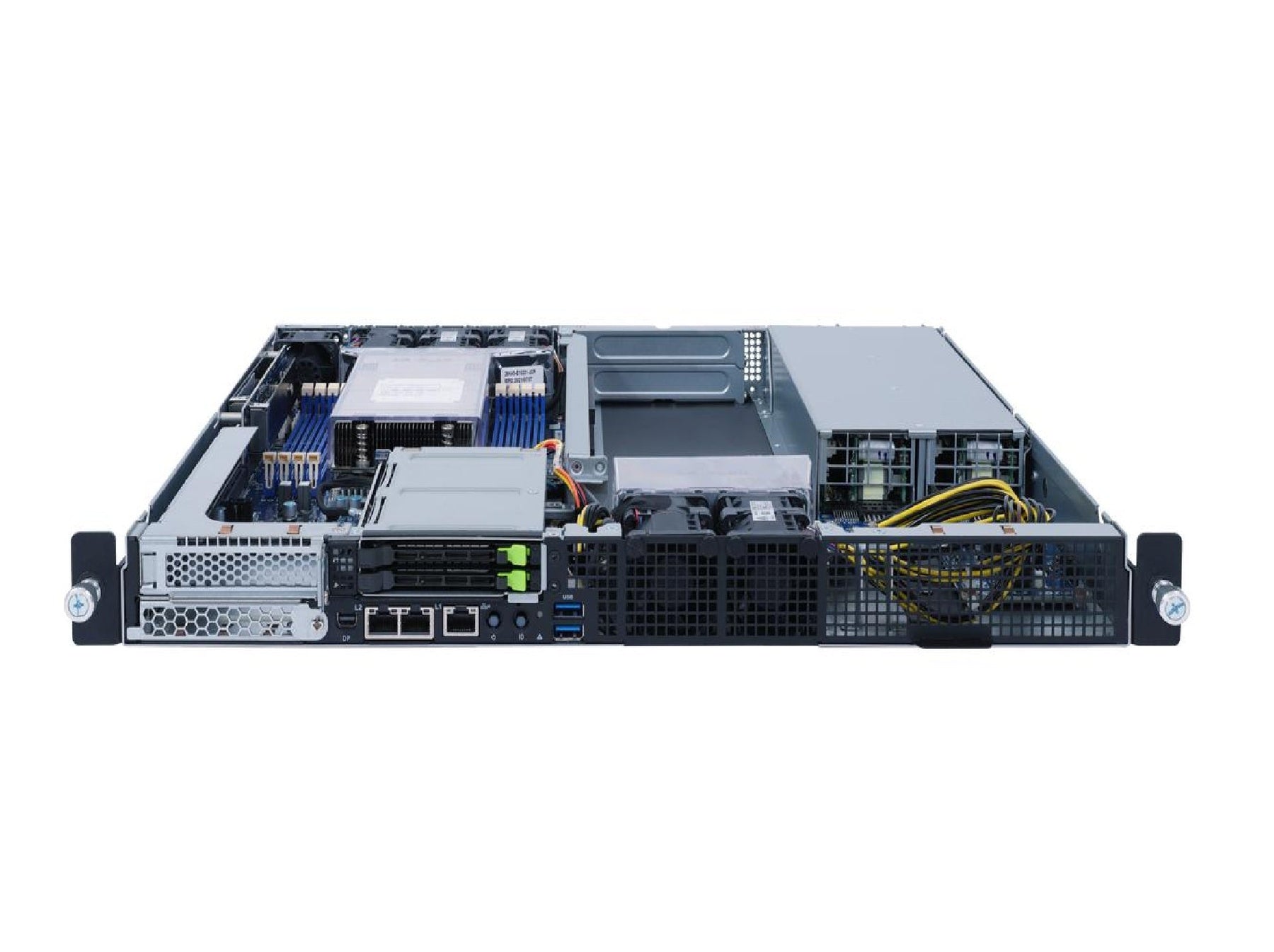

The E152-ZE1-EV is a 1U short-depth edge server from Gigabyte designed for edge computing, AI inference, and GPU acceleration. It supports a single AMD EPYC processor and multiple expansion options
Specifications
Model Number: E152-ZE1-EV
Brand: Gigabyte
Alt Part Number(s): E152-ZE1-EV
Product Type: Server
Technical Description
Brand: Gigabyte
Model Number: E152-ZE1-EV
Processor Supported: Single Processor
Processor Type: AMD EPYC 7003/7002 series processor
Processor Core: 64 Core/128 Thread
Processor Power: CPU TDP Up to 240W
Processor Socket: Socket SP3
Chipset: System on Chip
Motherboard: MZE2-G10
Graphics Controller: ASPEED AST2600 BMC
GPU Supported: 1 × double-slot GPU or 2 × single-slot GPUs
Networking: 2 x 1GbE LAN (Intel I350-AM2), 1 x MGMT LAN, 1 x Mini-DP
Number of Drive Bays: 2 x 2.5" Gen4 NVMe/SATA hot-swap bays + 2 x M.2 slots
Expansion Slots: 2 x FHFL PCIe Gen4 x16, 1 x LP PCIe Gen4 x16, 1 x OCP 3.0 slot
Memory Supported: Up to 2TB
Memory Technology: Support DDR4
Number of Memory Slots: 8 × DIMM slots
Memory Speed: 3200 MT/s
Memory Channels: 8 Channel
Power Supply: 1+1 1000W 80 PLUS Platinum redundant PSUs
Number of Fans: 6 High-static Pressure Internal System Fans
Form Factor: 1U Rackmount
