por GEMAC
R$ 47.040,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

Perform startup operations, troubleshooting, and maintenance with ease using the efficient and precise software. The compact device was designed with an intuitive user experience in mind. Servicing on the go is made simple with a robust carry case and rechargeable battery.

PRODUCT CHANGE NOTIFICATION (PCN) OBSOLETE ON 03/31/2027

(Available while stock lasts / Discontinuation or phase-out of components may lead to an earlier production stop, no further technical changes will be made.)

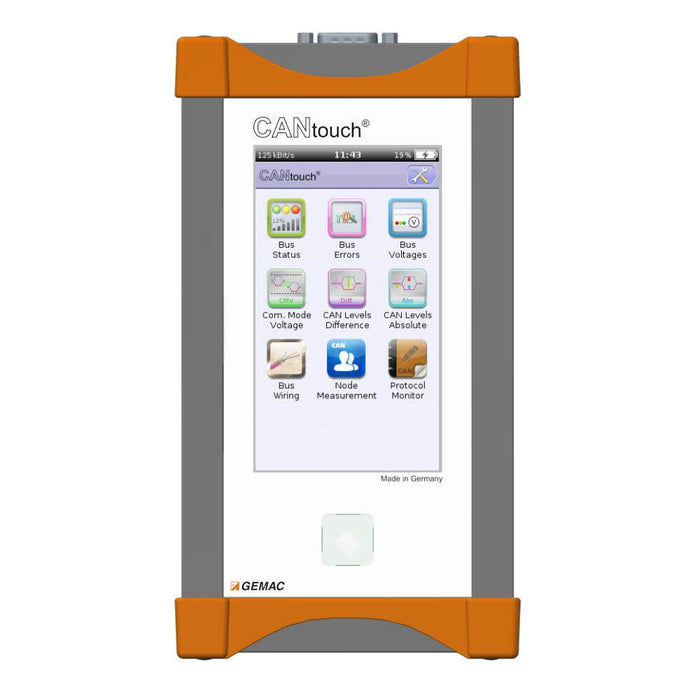

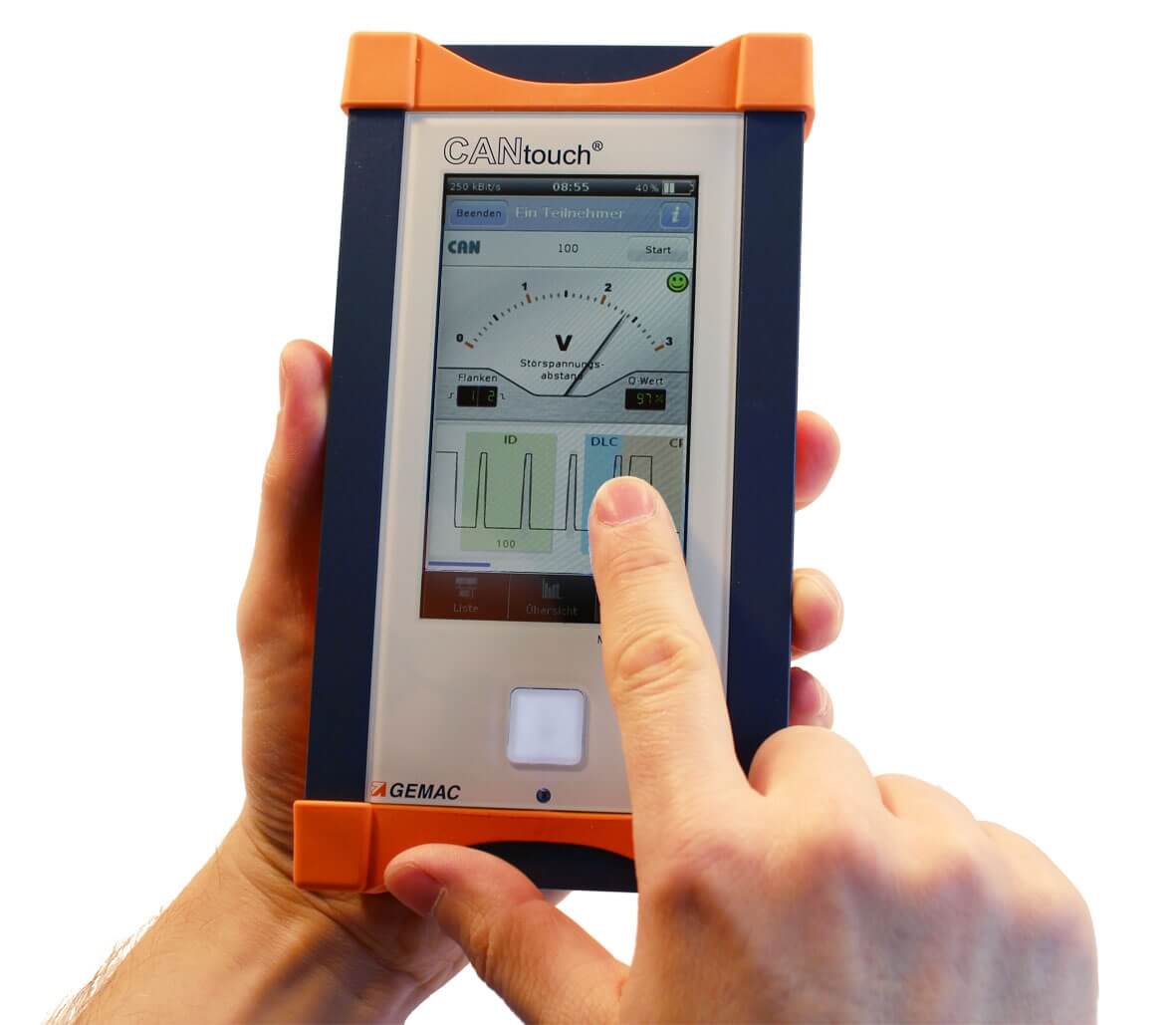

The CANtouch® is a universal diagnosis tool for the start-up, analysis, monitoring, troubleshooting and service/maintenance of CAN bus systems:

  • Latest measuring functions with easy and intuitive touchscreen operations
  • Physical and logical analysis for determining the quality of the CAN network
  • Measuring of Common-Mode-Voltage
  • Mobile and ready for use
  • Tap directly into a CAN bus and start measuring - without the need for a PC or laptop
  • Simplified evaluation system using a combination of traffic lights and smileys
  • From the developers of CAN-Bus Tester - world-wide CAN diagnostics market leaders

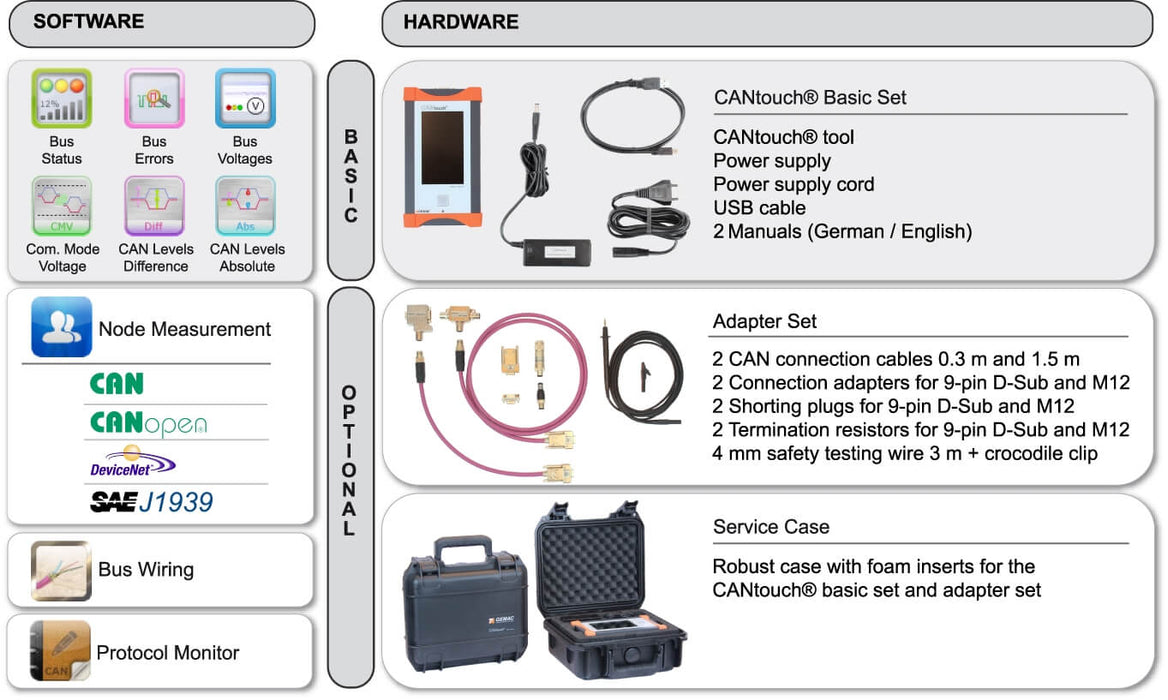

Licenses for optional software apps:
License, Node Measurement
CAN License key for node related physical layer measurement in bus system CAN
SW-22580-00
CANopen License key for node related physical layer measurement in bus system CANopen
SW-22580-01
DeviceNet License key for node related physical layer measurement in bus system DeviceNet
SW-22580-02
SAE J1939 License key for node related physical layer measurement in bus system SAE J1939
SW-22580-03
License Bus Wiring
License key for bus wiring measurements SW-22580-10
License Protocol monitor
License key for protocol monitor CAN (transmit/ receive) SW-22580-11
Property Value
The information herein is subject to change without notice.
General parameters and overview of functions:
Bus systems CAN (ISO11898-2), CANopen (CiA301), DeviceNet (EN 50325–2), SAE J1939
Bit sampling 64-fold, 10240 sampling points
Bit timing Adjustable BTL cycles (tq), sample point and resynchronization jump width (SJW)
Supported baud rates Depending on bus system: 10; 20; 50; 100; 125; 250; 500; 800; 1000 kbit/s
Additionally, user-defined: 5; 33.3; 62.5; 75; 83.3; 200 kbit/s
Automatic detection via baud rate scan, bit timing adjustable
Bus status Bus traffic detection (display: dominant, recessive, not defined, bus traffic)
Display of the Bus traffic load (0 … 100 %)
characteristic, minimum and maximum value saving
Bus errors Display of detected frame errors
Distinction between active and passive error frames (0 … >50,000), trend chart
Bus voltages Display of the optional CAN supply voltage and shield voltage
Characteristic, minimum and maximum value saving
Common mode voltage Acquisition of the maximum voltage offset between the individual bus nodes
CAN level (absolute /differential) Acquisition and evaluation of the differential and absolute CAN levels of all bus nodes during operation
Node measurement Node related measurements
Quality value (signal quality), Disturbance-free voltage range, Edge steepness (falling and rising) and Oscilloscope display with message frame analysis
Online Trigger Error analysis with adjustable values, variable time slices and trigger function
Protocol monitor Send and receive of CAN messages
Electrical parameters
Power supply and battery* Integrated, rechargeable lithium-ion battery
External power input: SELV d.c. voltage 14 V, internal fused with 2.5 A
Operating with the supplied 35 W wide-range power supply unit only (SAW-14.0–2500)
Times-to-empty: Standby: up to 500 hours
Use: up to 36 hours
Measuring: up to 6 hours
Charge times: Quick charge to 80% in approx. 1 h
Full charge in approx. 2 h
Potential difference between the CAN bus and USB connections > 500 V AC
Voltage between any two terminals of the CAN connection or external ground, resp. > ±30 V DC
Measurements
Quality value Range: 0,0 % … 100,0 %
Resolution: 0,1 %
Accuracy (typ.):
Edge steepness Range: 0/64 … 64/64
Resolution: 1/64
Accuracy (typ.):
Disturbance-free voltage range Range: -0,75 V … +3,25 V
Resolution: 0,05 V
Accuracy (typ.): 1,90 % ±100 mV
Measuring of the differential voltage Range: -0,75 V … +3,25 V
Resolution: 0,01 V
Accuracy (typ.): 0,50 % ±10 mV (calibrated)
Measuring of the absolute voltage Range: -5,00 V … +10,00 V
Resolution: 0,05 V
Accuracy (typ.): 0,50 % ±50 mV (calibrated)
Measuring of the shield voltage Range: -10,0 V … +1,0 V
Resolution: 0,1 V
Accuracy (typ.): 0,25 % ±100 mV (calibrated)
Measuring of the CAN supply voltage Range: 0.0 V … 32,0 V
Resolution: 0,1 V
Accuracy (typ.): 0,25 % ±100 mV (calibrated)
Measuring of the loop resistances Range:
0 Ω … 100 Ω
100 Ω … 1000 Ω
Resolution:
0,1 Ω
1,0 Ω
Accuracy (typ.):
0,85 % ±0,2 Ω
0,85 % ±2,0 Ω
Measuring of the cable length Range: 2 m … 1000 m
Resolution: 1 m
Accuracy (typ.): 5 % ±2 m
(signal propagation delay: 4.5 ns/m)
Mechanical parameters
Power supply unit connection Extra-low voltage socket
CAN connection 9‑pin D‑Sub connector
PC connection Self-powered device to USB Specification 2.0, full speed, in addition, electrically isolated
Connection of a drive for exchange of measuring data (USB mass storage device)
Housing Aluminum housing, cover glass
Ambient conditions Operation temperature: 5 °C … 40 °C
Storage temperature: ‑20 °C … 60 °C
Atmospheric humidity: 20 % … 80 %, non-condensing
Degree of protection of the housing IP20 to EN 60529
Dimensions 186 mm x 102 mm x 37 mm
Weight Approx. 860 g
CE conformity to EC Directive 2006/42/EC EC Directives
RL 2011/65/EG Restriction of the use of certain hazardous substances (RoHS)
RL 2012/19/EG Waste Electrical and Electronic Equipment
RL 2006/95/EG Low Voltage Directive (LVD)
RL 2004/108/EG EMC Directive
Harmonized standards
EN 60950–1:2006
+A11:2009 +A1:2010 +A12:2011
+A2:2013		 Information technology equipment. Safety. General requirements
EN 61000-32:2006 +A1:2009
+A2:2009		 Limits – Limits for harmonic current emissions
EN 61000–3-3:2008 Limits. Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current 16 A per phase and not subject to conditional connection
EN 55011:2009 +A1:2010 Radio-frequency disturbance characteristics – Limits and methods of measurement
EN 61000 – 6‑2:2005 Generic standards – Immunity for industrial environments
EN 61000 – 6‑4:2007 +A1:2011 Generic standards – Emission standard for industrial environments
EN 61326–1:2006 Electrical equipment for measurement, control and laboratory use – EMC requirements
Flyer CANtouch®
CANtouch® Flyer in PDF format
Datasheet CANtouch®
CANtouch® Datasheet in PDF format
Manual CANtouch®
CANtouch® Manual in PDF format
Video CANtouch®
CANtouch® Product Video

Benefit From Our Price Match Guarantee

Phytools is dedicated to providing the best possible price for networking solutions and industrial automation. If you find a lower price elsewhere for the GEMAC CANtouch, we will match it or beat it.

GEMAC CANtouch FAQs

Which bus systems does the CANtouch support?

The CANtouch from GEMAC is a versatile device compatible with a range of CAN bus systems such as CAN, CANopen, SAE J1939, ISOBUS, NMEA2000, and DeviceNet, and more.

What measurements and analyses does the GEMAC CANtouch perform?

Key functions of the GEMAC CANtouch include:

  • Physical Layer Measurement & Diagnosis - Measures signal integrity and signal quality using parameters such as dominant and recessive voltage levels, signal-to-noise ratio, and waveform shape.
  • Logical Analysis of CAN Traffic - Detects bus errors and monitors and decodes CAN messages in real-time, providing details about message IDs, data lengths, and payload.
  • Error Frame Analysis - Identifies error frames on the bus to troubleshoot network faults such as faulty nodes, incorrect termination, or signal reflections.
  • Bus Load Analysis - Monitors the CAN bus load and utilization in real-time, providing statistics on message frequency and bus traffic distribution.

What makes the GMAC CANtouch a future-proof device?

The GMAC CANtouch supports both Classical CAN and CAN FD protocols, ensuring compatibility with evolving standards. Its modular firmware allows updates to add new features and protocol support. New features include, for example, additional measurements and enhanced usability for CAN-Bus Tester 2. Additionally, some updates require an extra license, although many updates from GEMAC are available at no cost.

What are some key features of the GMAC CANtouch?

The GMAC Cantouch’s touchscreen interface allows for easy navigation and fast diagnostics. Its portable, lightweight design makes it suitable for a number of applications in automotive, industrial, and embedded systems. Moreover, the device offers superior accuracy levels.

What are some use cases for the GMAC CANtouch?

The CANtouch can be used across a number of industries for the following:

  • Automotive Diagnostics - Analyze and troubleshoot in-vehicle networks, including ECUs, sensors, and control modules, ensuring proper communication and fault detection.
  • Industrial Automation - Monitor and diagnose CAN systems in manufacturing equipment, robotics, and control systems to ensure optimal operation and prevent downtime.
  • Embedded Systems - Test and debug embedded devices that rely on CAN communication such as medical devices, agricultural machinery, and transportation systems.
  • Maintenance and Service - In service centers, the GMAC CANtouch helps technicians quickly identify and resolve network issues in CAN-equipped devices, reducing downtime.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Handheld for analyzing CAN bus systems without the need for an additional computer

Perform startup operations, troubleshooting, and maintenance with ease using the efficient and precise software. The compact device was designed with an intuitive user experience in mind. Servicing on the go is made simple with a robust carry case and rechargeable battery.

PRODUCT CHANGE NOTIFICATION (PCN) OBSOLETE ON 03/31/2027

(Available while stock lasts / Discontinuation or phase-out of components may lead to an earlier production stop, no further technical changes will be made.)

The CANtouch® is a universal diagnosis tool for the start-up, analysis, monitoring, troubleshooting and service/maintenance of CAN bus systems:

  • Latest measuring functions with easy and intuitive touchscreen operations
  • Physical and logical analysis for determining the quality of the CAN network
  • Measuring of Common-Mode-Voltage
  • Mobile and ready for use
  • Tap directly into a CAN bus and start measuring - without the need for a PC or laptop
  • Simplified evaluation system using a combination of traffic lights and smileys
  • From the developers of CAN-Bus Tester - world-wide CAN diagnostics market leaders
Licenses for optional software apps:
License, Node Measurement
CAN License key for node related physical layer measurement in bus system CAN
SW-22580-00
CANopen License key for node related physical layer measurement in bus system CANopen
SW-22580-01
DeviceNet License key for node related physical layer measurement in bus system DeviceNet
SW-22580-02
SAE J1939 License key for node related physical layer measurement in bus system SAE J1939
SW-22580-03
License Bus Wiring
License key for bus wiring measurements SW-22580-10
License Protocol monitor
License key for protocol monitor CAN (transmit/ receive) SW-22580-11
Property Value
The information herein is subject to change without notice.
General parameters and overview of functions:
Bus systems CAN (ISO11898-2), CANopen (CiA301), DeviceNet (EN 50325–2), SAE J1939
Bit sampling 64-fold, 10240 sampling points
Bit timing Adjustable BTL cycles (tq), sample point and resynchronization jump width (SJW)
Supported baud rates Depending on bus system: 10; 20; 50; 100; 125; 250; 500; 800; 1000 kbit/s
Additionally, user-defined: 5; 33.3; 62.5; 75; 83.3; 200 kbit/s
Automatic detection via baud rate scan, bit timing adjustable
Bus status Bus traffic detection (display: dominant, recessive, not defined, bus traffic)
Display of the Bus traffic load (0 … 100 %)
characteristic, minimum and maximum value saving
Bus errors Display of detected frame errors
Distinction between active and passive error frames (0 … >50,000), trend chart
Bus voltages Display of the optional CAN supply voltage and shield voltage
Characteristic, minimum and maximum value saving
Common mode voltage Acquisition of the maximum voltage offset between the individual bus nodes
CAN level (absolute /differential) Acquisition and evaluation of the differential and absolute CAN levels of all bus nodes during operation
Node measurement Node related measurements
Quality value (signal quality), Disturbance-free voltage range, Edge steepness (falling and rising) and Oscilloscope display with message frame analysis
Online Trigger Error analysis with adjustable values, variable time slices and trigger function
Protocol monitor Send and receive of CAN messages
Electrical parameters
Power supply and battery* Integrated, rechargeable lithium-ion battery
External power input: SELV d.c. voltage 14 V, internal fused with 2.5 A
Operating with the supplied 35 W wide-range power supply unit only (SAW-14.0–2500)
Times-to-empty: Standby: up to 500 hours
Use: up to 36 hours
Measuring: up to 6 hours
Charge times: Quick charge to 80% in approx. 1 h
Full charge in approx. 2 h
Potential difference between the CAN bus and USB connections > 500 V AC
Voltage between any two terminals of the CAN connection or external ground, resp. > ±30 V DC
Measurements
Quality value Range: 0,0 % … 100,0 %
Resolution: 0,1 %
Accuracy (typ.):
Edge steepness Range: 0/64 … 64/64
Resolution: 1/64
Accuracy (typ.):
Disturbance-free voltage range Range: -0,75 V … +3,25 V
Resolution: 0,05 V
Accuracy (typ.): 1,90 % ±100 mV
Measuring of the differential voltage Range: -0,75 V … +3,25 V
Resolution: 0,01 V
Accuracy (typ.): 0,50 % ±10 mV (calibrated)
Measuring of the absolute voltage Range: -5,00 V … +10,00 V
Resolution: 0,05 V
Accuracy (typ.): 0,50 % ±50 mV (calibrated)
Measuring of the shield voltage Range: -10,0 V … +1,0 V
Resolution: 0,1 V
Accuracy (typ.): 0,25 % ±100 mV (calibrated)
Measuring of the CAN supply voltage Range: 0.0 V … 32,0 V
Resolution: 0,1 V
Accuracy (typ.): 0,25 % ±100 mV (calibrated)
Measuring of the loop resistances Range:
0 Ω … 100 Ω
100 Ω … 1000 Ω
Resolution:
0,1 Ω
1,0 Ω
Accuracy (typ.):
0,85 % ±0,2 Ω
0,85 % ±2,0 Ω
Measuring of the cable length Range: 2 m … 1000 m
Resolution: 1 m
Accuracy (typ.): 5 % ±2 m
(signal propagation delay: 4.5 ns/m)
Mechanical parameters

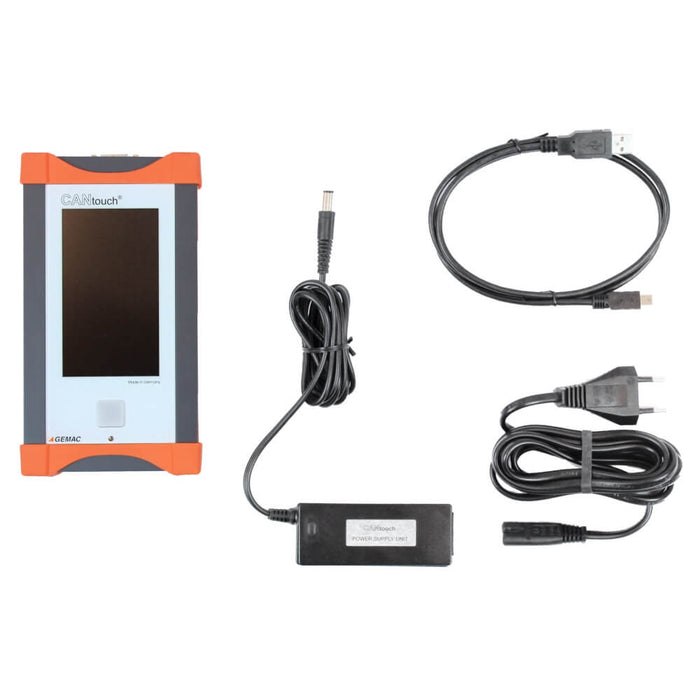

Power supply unit connection Extra-low voltage socket
CAN connection 9‑pin D‑Sub connector
PC connection Self-powered device to USB Specification 2.0, full speed, in addition, electrically isolated
Connection of a drive for exchange of measuring data (USB mass storage device)
Housing Aluminum housing, cover glass
Ambient conditions Operation temperature: 5 °C … 40 °C
Storage temperature: ‑20 °C … 60 °C
Atmospheric humidity: 20 % … 80 %, non-condensing
Degree of protection of the housing IP20 to EN 60529
Dimensions 186 mm x 102 mm x 37 mm
Weight Approx. 860 g
CE conformity to EC Directive 2006/42/EC EC Directives
RL 2011/65/EG Restriction of the use of certain hazardous substances (RoHS)
RL 2012/19/EG Waste Electrical and Electronic Equipment
RL 2006/95/EG Low Voltage Directive (LVD)
RL 2004/108/EG EMC Directive
Harmonized standards
EN 60950–1:2006
+A11:2009 +A1:2010 +A12:2011
+A2:2013		 Information technology equipment. Safety. General requirements
EN 61000-32:2006 +A1:2009
+A2:2009		 Limits – Limits for harmonic current emissions
EN 61000–3-3:2008 Limits. Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current 16 A per phase and not subject to conditional connection
EN 55011:2009 +A1:2010 Radio-frequency disturbance characteristics – Limits and methods of measurement
EN 61000 – 6‑2:2005 Generic standards – Immunity for industrial environments
EN 61000 – 6‑4:2007 +A1:2011 Generic standards – Emission standard for industrial environments
EN 61326–1:2006 Electrical equipment for measurement, control and laboratory use – EMC requirements
Flyer CANtouch®
CANtouch® Flyer in PDF format
Datasheet CANtouch®
CANtouch® Datasheet in PDF format
Manual CANtouch®
CANtouch® Manual in PDF format
Video CANtouch®
CANtouch® Product Video

Benefit From Our Price Match Guarantee

Phytools is dedicated to providing the best possible price for networking solutions and industrial automation. If you find a lower price elsewhere for the GEMAC CANtouch, we will match it or beat it.

GEMAC CANtouch FAQs

Which bus systems does the CANtouch support?

The CANtouch from GEMAC is a versatile device compatible with a range of CAN bus systems such as CAN, CANopen, SAE J1939, ISOBUS, NMEA2000, and DeviceNet, and more.

What measurements and analyses does the GEMAC CANtouch perform?

Key functions of the GEMAC CANtouch include:

  • Physical Layer Measurement & Diagnosis - Measures signal integrity and signal quality using parameters such as dominant and recessive voltage levels, signal-to-noise ratio, and waveform shape.
  • Logical Analysis of CAN Traffic - Detects bus errors and monitors and decodes CAN messages in real-time, providing details about message IDs, data lengths, and payload.
  • Error Frame Analysis - Identifies error frames on the bus to troubleshoot network faults such as faulty nodes, incorrect termination, or signal reflections.
  • Bus Load Analysis - Monitors the CAN bus load and utilization in real-time, providing statistics on message frequency and bus traffic distribution.

What makes the GMAC CANtouch a future-proof device?

The GMAC CANtouch supports both Classical CAN and CAN FD protocols, ensuring compatibility with evolving standards. Its modular firmware allows updates to add new features and protocol support. New features include, for example, additional measurements and enhanced usability for CAN-Bus Tester 2. Additionally, some updates require an extra license, although many updates from GEMAC are available at no cost.

What are some key features of the GMAC CANtouch?

The GMAC Cantouch’s touchscreen interface allows for easy navigation and fast diagnostics. Its portable, lightweight design makes it suitable for a number of applications in automotive, industrial, and embedded systems. Moreover, the device offers superior accuracy levels.

What are some use cases for the GMAC CANtouch?

The CANtouch can be used across a number of industries for the following:

  • Automotive Diagnostics - Analyze and troubleshoot in-vehicle networks, including ECUs, sensors, and control modules, ensuring proper communication and fault detection.
  • Industrial Automation - Monitor and diagnose CAN systems in manufacturing equipment, robotics, and control systems to ensure optimal operation and prevent downtime.
  • Embedded Systems - Test and debug embedded devices that rely on CAN communication such as medical devices, agricultural machinery, and transportation systems.
  • Maintenance and Service - In service centers, the GMAC CANtouch helps technicians quickly identify and resolve network issues in CAN-equipped devices, reducing downtime.
Informações e formas de pagamento

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.
