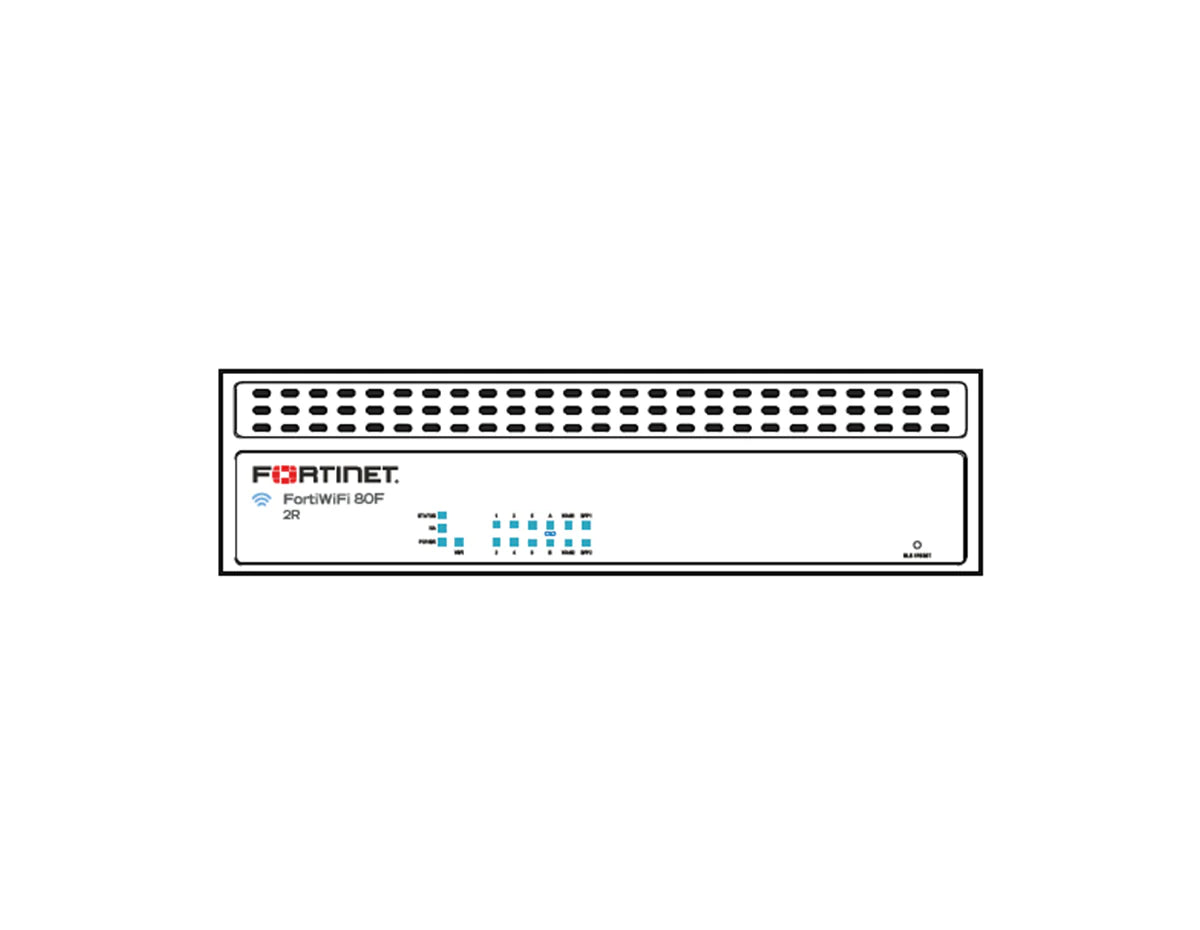

Fortinet FortiWiFi FWF-80F-2R-A Next Generation Firewall
Clique ou role para ampliar
Toque ou belisque para ampliar
Fortinet FortiWiFi FWF-80F-2R-A Next Generation Firewall
Fortinet FortiWiFi FWF-80F-2R-A Next Generation Firewall

Fortinet FortiWiFi FWF-80F-2R-A Next Generation Firewall

por Fortinet
Desconto de 15%
R$ 27.684,00
R$ 23.532,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 6 (802.11ax) and 2x GE SFP/RJ45 shared media ports, powered by SP4 ASIC, delivering up to 10/10/7 Gbps firewall throughput for flexible branch connectivity [/shortdesc]

[properties]

SKU FWF-80F-2R-A
Form Factor Desktop/Wall Mount/Rack Tray
Wireless Standard 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Firewall Throughput 10/10/7 Gbps (1518/512/64 byte UDP)

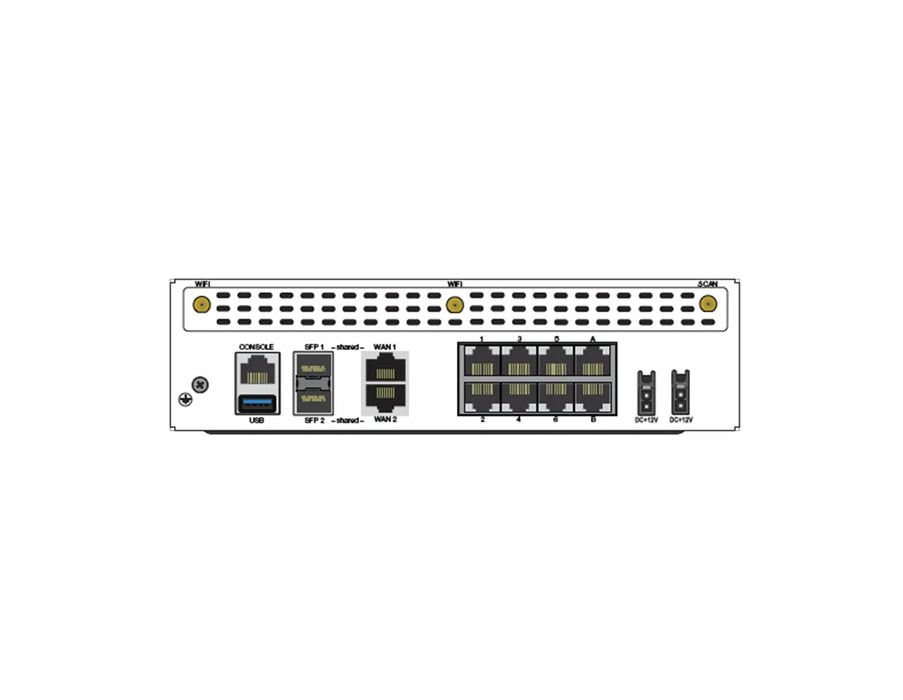

Interfaces 2x GE RJ45/SFP Shared Media Pairs, 6x GE RJ45 Internal Ports, 2x GE RJ45 FortiLink Ports (Default)
Dimensions (H x W x L) 60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches)
Weight 1.5 kg (3.3 lbs)
Power Input 12V DC, 5A (dual redundancy optional)

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput 1.4 Gbps
NGFW Throughput 1 Gbps
Threat Protection Throughput 900 Mbps
System Performance & Capacity
Firewall Latency 3.23 μs
Concurrent Sessions (TCP) 1.5 Million
New Sessions/Second (TCP) 45,000
Firewall Policies 5,000
IPsec VPN Throughput 6.5 Gbps
SSL-VPN Throughput 950 Mbps
SSL Inspection Throughput 715 Mbps
Wireless Specifications
Radio Dual WiFi Radio (5 GHz, 2.4 GHz) 802.11a/b/g/n/ac/ax + 1 Scanning Radio
MU-MIMO 2x2
Max WiFi Speeds 574 Mbps @ 2.4 GHz, 1201 Mbps @ 5 GHz
Antenna Ports 3x SMA (External)
Hardware Specifications
GE RJ45/SFP Shared Media Pairs 2
GE RJ45 Internal Ports 6
GE RJ45 FortiLink Ports (Default) 2
USB Ports 1
Console Port 1
Trusted Platform Module (TPM) Yes
Environment & Power
Power Consumption (Avg / Max) 22.9 W / 27.9 W
Heat Dissipation 95.26 BTU/h
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Humidity 10% to 90% non-condensing
Noise Level 24.14 dBA
Certifications
Compliance FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FWF80F-PDC-5), 1 GE SFP RJ45 Transceiver Module (FN-TRAN-GC), 1 GE SFP SX Transceiver Module (FN-TRAN-SX), 1 GE SFP LX Transceiver Module (FN-TRAN-LX), 1GE SFP Transceiver 90km Range (FR-TRAN-ZX)

[/accesories]

The FortiWiFi 80F-2R (FWF-80F-2R-A) is a high-performance desktop firewall designed for modern branch environments that require flexible connectivity and integrated wireless. Powered by the Fortinet SP4 ASIC, it delivers consistent firewall performance while combining wired, fiber-ready, and Wi-Fi 6 networking in a compact form factor.

With 2x GE RJ45/SFP shared media pairs, the FortiWiFi 80F-2R supports both copper and fiber uplinks, enabling adaptable WAN and LAN deployment options. Integrated dual-band Wi-Fi 6 with a dedicated scanning radio provides reliable wireless access while supporting secure network operations across distributed sites.

  • Flexible SFP Connectivity: Two GE RJ45/SFP shared media pairs support copper or fiber connections for adaptable network design.
  • Integrated Wi-Fi 6: Dual-band 802.11ax wireless with an additional scanning radio delivers high-speed and resilient wireless access.
  • Powered by SP4 ASIC: Hardware acceleration enables consistent firewall and SD-WAN performance for branch deployments.
  • SD-Branch Ready: Includes two GE RJ45 FortiLink ports (default) to extend network connectivity to access-layer devices.
  • Compact Deployment Options: Desktop, wall-mount, or rack-tray installation flexibility for space-constrained environments.
  • Hardware-Based Security: Integrated Trusted Platform Module (TPM) enhances device integrity and cryptographic protection.
  • Branch Offices: Consolidates wired, fiber, and wireless connectivity into a single edge device.
  • Retail Locations: Supports flexible WAN options and reliable Wi-Fi connectivity for distributed sites.
  • Small to Medium Businesses: Enterprise-grade firewall hardware with integrated Wi-Fi 6 in a compact form factor.
  • Firewall Throughput (UDP): 10/10/7 Gbps (1518/512/64 byte)
  • IPS Throughput: 1.4 Gbps
  • NGFW Throughput: 1 Gbps
  • Threat Protection Throughput: 900 Mbps
  • IPsec VPN Throughput (512 byte): 6.5 Gbps
  • SSL-VPN Throughput: 950 Mbps
  • Wireless: Dual Wi-Fi radio (2.4 GHz and 5 GHz) with 802.11a/b/g/n/ac/ax support plus a dedicated scanning radio
  • Interfaces: 2x GE RJ45/SFP shared media pairs, 6x GE RJ45 internal ports, 2x GE RJ45 FortiLink ports (default)
  • Physical: 60 x 216 x 178 mm, 1.5 kg

Deploy flexible wired and wireless connectivity at the network edge with the FortiWiFi 80F-2R.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 6 (802.11ax) and 2x GE SFP/RJ45 shared media ports, powered by SP4 ASIC, delivering up to 10/10/7 Gbps firewall throughput for flexible branch connectivity [/shortdesc]

[properties]

SKU FWF-80F-2R-A
Form Factor Desktop/Wall Mount/Rack Tray
Wireless Standard 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Firewall Throughput 10/10/7 Gbps (1518/512/64 byte UDP)
Interfaces 2x GE RJ45/SFP Shared Media Pairs, 6x GE RJ45 Internal Ports, 2x GE RJ45 FortiLink Ports (Default)
Dimensions (H x W x L) 60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches)
Weight 1.5 kg (3.3 lbs)
Power Input 12V DC, 5A (dual redundancy optional)

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput 1.4 Gbps
NGFW Throughput 1 Gbps
Threat Protection Throughput 900 Mbps
System Performance & Capacity
Firewall Latency 3.23 μs
Concurrent Sessions (TCP) 1.5 Million
New Sessions/Second (TCP) 45,000
Firewall Policies 5,000
IPsec VPN Throughput 6.5 Gbps
SSL-VPN Throughput 950 Mbps
SSL Inspection Throughput 715 Mbps
Wireless Specifications
Radio Dual WiFi Radio (5 GHz, 2.4 GHz) 802.11a/b/g/n/ac/ax + 1 Scanning Radio
MU-MIMO 2x2
Max WiFi Speeds 574 Mbps @ 2.4 GHz, 1201 Mbps @ 5 GHz
Antenna Ports 3x SMA (External)
Hardware Specifications
GE RJ45/SFP Shared Media Pairs 2
GE RJ45 Internal Ports 6
GE RJ45 FortiLink Ports (Default) 2
USB Ports 1
Console Port 1
Trusted Platform Module (TPM) Yes
Environment & Power
Power Consumption (Avg / Max) 22.9 W / 27.9 W
Heat Dissipation 95.26 BTU/h
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Humidity 10% to 90% non-condensing
Noise Level 24.14 dBA
Certifications
Compliance FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FWF80F-PDC-5), 1 GE SFP RJ45 Transceiver Module (FN-TRAN-GC), 1 GE SFP SX Transceiver Module (FN-TRAN-SX), 1 GE SFP LX Transceiver Module (FN-TRAN-LX), 1GE SFP Transceiver 90km Range (FR-TRAN-ZX)

[/accesories]

Integrated SFP, Wi-Fi 6, and Secure SD-WAN for Branch Offices

The FortiWiFi 80F-2R (FWF-80F-2R-A) is a high-performance desktop firewall designed for modern branch environments that require flexible connectivity and integrated wireless. Powered by the Fortinet SP4 ASIC, it delivers consistent firewall performance while combining wired, fiber-ready, and Wi-Fi 6 networking in a compact form factor.

With 2x GE RJ45/SFP shared media pairs, the FortiWiFi 80F-2R supports both copper and fiber uplinks, enabling adaptable WAN and LAN deployment options. Integrated dual-band Wi-Fi 6 with a dedicated scanning radio provides reliable wireless access while supporting secure network operations across distributed sites.

Key Benefits
  • Flexible SFP Connectivity: Two GE RJ45/SFP shared media pairs support copper or fiber connections for adaptable network design.
  • Integrated Wi-Fi 6: Dual-band 802.11ax wireless with an additional scanning radio delivers high-speed and resilient wireless access.
  • Powered by SP4 ASIC: Hardware acceleration enables consistent firewall and SD-WAN performance for branch deployments.
  • SD-Branch Ready: Includes two GE RJ45 FortiLink ports (default) to extend network connectivity to access-layer devices.
  • Compact Deployment Options: Desktop, wall-mount, or rack-tray installation flexibility for space-constrained environments.
  • Hardware-Based Security: Integrated Trusted Platform Module (TPM) enhances device integrity and cryptographic protection.
Ideal Use Cases
  • Branch Offices: Consolidates wired, fiber, and wireless connectivity into a single edge device.
  • Retail Locations: Supports flexible WAN options and reliable Wi-Fi connectivity for distributed sites.
  • Small to Medium Businesses: Enterprise-grade firewall hardware with integrated Wi-Fi 6 in a compact form factor.
Technical Specifications Summary
  • Firewall Throughput (UDP): 10/10/7 Gbps (1518/512/64 byte)
  • IPS Throughput: 1.4 Gbps
  • NGFW Throughput: 1 Gbps
  • Threat Protection Throughput: 900 Mbps
  • IPsec VPN Throughput (512 byte): 6.5 Gbps
  • SSL-VPN Throughput: 950 Mbps
  • Wireless: Dual Wi-Fi radio (2.4 GHz and 5 GHz) with 802.11a/b/g/n/ac/ax support plus a dedicated scanning radio
  • Interfaces: 2x GE RJ45/SFP shared media pairs, 6x GE RJ45 internal ports, 2x GE RJ45 FortiLink ports (default)
  • Physical: 60 x 216 x 178 mm, 1.5 kg
Upgrade Your Network Infrastructure

Deploy flexible wired and wireless connectivity at the network edge with the FortiWiFi 80F-2R.
