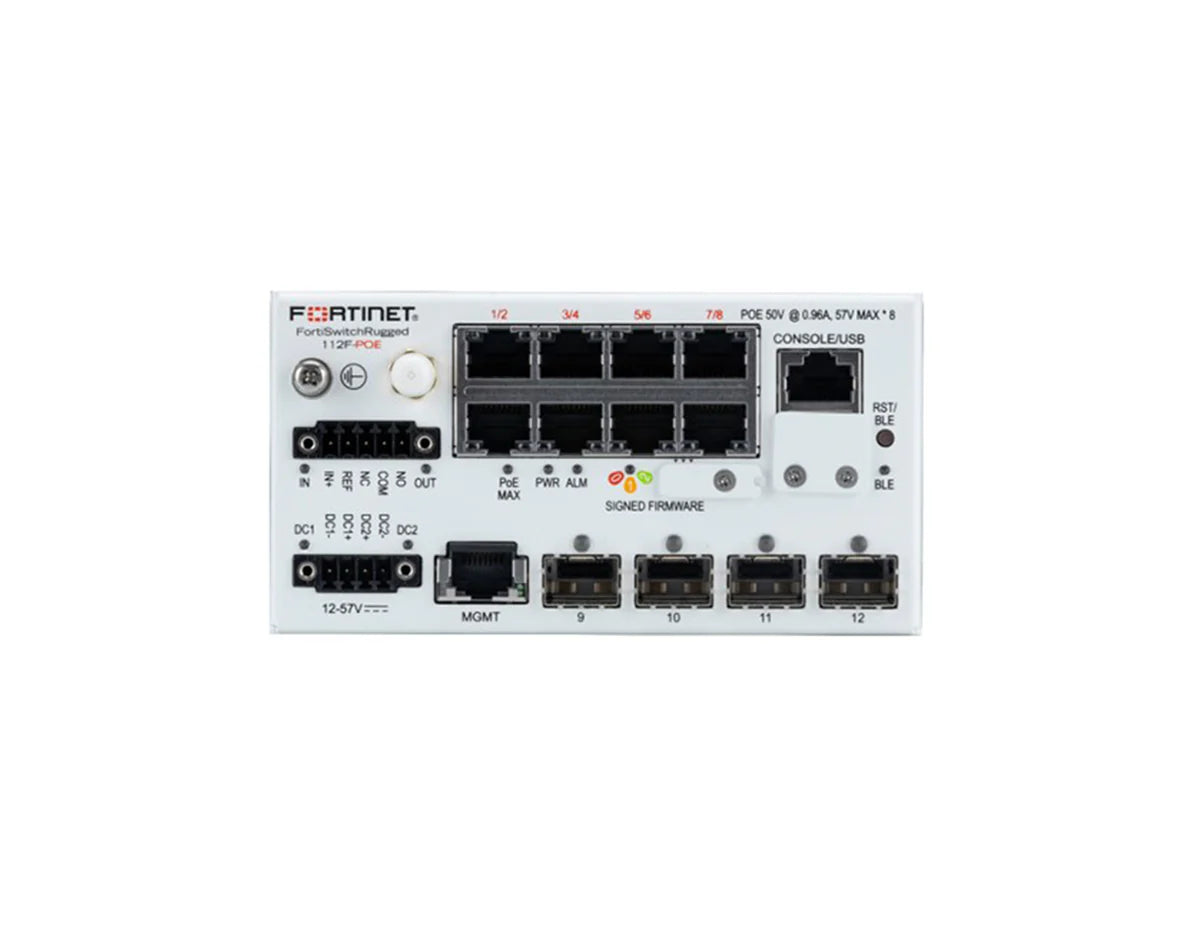

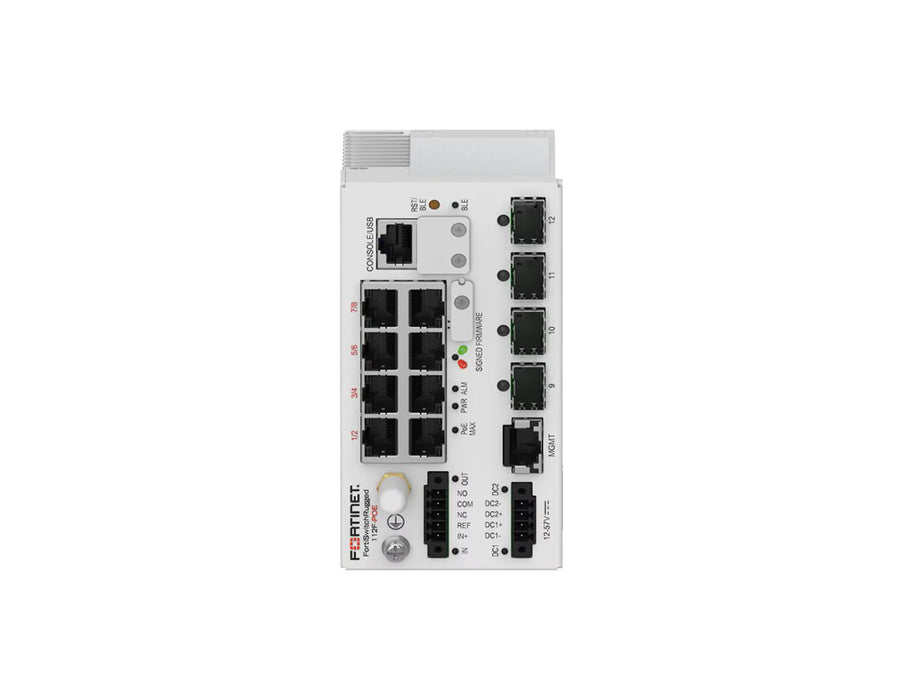

Fortinet FortiSwitch FSR-112F-POE Layer 2 PoE Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Fortinet FortiSwitch FSR-112F-POE Layer 2 PoE Switch
Fortinet FortiSwitch FSR-112F-POE Layer 2 PoE Switch

Fortinet FortiSwitch FSR-112F-POE Layer 2 PoE Switch

por Fortinet
Desconto de 15%
R$ 25.140,00
R$ 21.372,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Layer 2 managed switch, 8x GE PoE++ ports, 240W PoE budget, 4x SFP uplinks, fanless IP40 design [/shortdesc]

[properties]

Brand Fortinet
Model FortiSwitch Rugged 112F-POE
SKU FSR-112F-POE
Product Type Managed Ethernet Switch
Switching Layer Layer 2
Form Factor DIN rail mountable
Total Network Ports 8 x 10/100/1000Base-T RJ45
PoE Ports 8 x RJ45 (IEEE 802.3af/at/bt Type 4)
Maximum PoE Power per Port Up to 90 W
Total PoE Budget 240 W
SFP Uplink Ports 4 x 1G/100M SFP
Switching Capacity 24 Gbps
Forwarding Rate 35.7 Mpps
MAC Address Table 16,000 entries
IP Rating IP40
Cooling Fanless
Redundant Power Input Yes
Dimensions (H x W x D) 127 x 66.5 x 150 mm
Weight 1023 g

[/properties]

[specifications]

Supported Ethernet Standards IEEE 802.3, 802.3u, 802.3ab, 802.3z
PoE Standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
VLAN Support Up to 4,000 VLANs
Spanning Tree STP, RSTP, MSTP
Link Aggregation LACP, up to 8 groups
Latency < 1 µs
Packet Buffer 1.5 MB
Memory 1 GB DDR4 RAM
Flash Storage 32 MB SPI + 1 GB NAND
Management Interfaces CLI, Web GUI, SNMP v1/v2c/v3, SSH, HTTPS
Operating Temperature -40°C to 75°C
Storage Temperature -40°C to 85°C
Operating Humidity 5% to 90% RH (non-condensing)
MTBF More than 30 years
Certifications CE, FCC Class A, RoHS, IEC 61850-3, IEEE 1613

[/specifications]

[accesories]

Included in the Box FortiSwitch Rugged 112F-POE unit; User documentation
Optional Power Supply FortiPSU Rugged DIN Rail 240W PSU (SP-RGDIN-240-PS)
Optional Transceivers Fortinet SFP fiber transceiver modules

[/accesories]

The Fortinet FortiSwitch Rugged 112F-POE is engineered for demanding industrial and outdoor-adjacent deployments where reliability, power delivery, and centralized control are critical. Designed as a FortiGate switch controller compatible device, it integrates seamlessly into Fortinet Security Fabric environments while delivering enterprise-grade Layer 2 switching in a hardened form factor.

With high-power PoE++ support and a fanless IP40-rated chassis, the 112F-POE is ideal for operational technology, industrial automation, and remote edge networks that require consistent performance under extreme temperatures and challenging conditions.

  • High-Power PoE++ Capability: Eight Gigabit Ethernet ports support IEEE 802.3bt Type 4 PoE, delivering up to 90W per port with a total PoE budget of 240W for powering cameras, sensors, and access points.
  • Industrial-Grade Rugged Design: Fanless, IP40-rated enclosure built to operate in extreme temperatures from -40°C to 75°C, ensuring reliability in harsh environments.
  • FortiLink Centralized Management: Operates as a logical extension of FortiGate firewalls, enabling unified policy control, simplified deployment, and Security Fabric integration.
  • Flexible Fiber Uplinks: Four SFP ports provide resilient fiber connectivity for aggregation or long-distance links in industrial networks.
  • High Availability Architecture: Supports redundant power inputs and advanced Layer 2 features to maintain network continuity in mission-critical deployments.
  • Industrial automation and OT networks
  • Transportation, railway, and roadside infrastructure
  • IP surveillance and high-power camera deployments
  • Manufacturing floors and remote facilities
  • Rugged branch or edge network extensions
  • Switch Type: Layer 2 managed Ethernet switch
  • Downlink Ports: 8x 10/100/1000 RJ45 PoE++
  • PoE Standard: IEEE 802.3af/at/bt (up to 90W per port)
  • Total PoE Budget: 240W
  • Uplink Ports: 4x 1G/100M SFP
  • Switching Capacity: 24 Gbps
  • Packet Forwarding Rate: 35.7 Mpps
  • Cooling: Fanless, passive cooling
  • Ingress Protection: IP40
  • Mounting: DIN-rail mountable

Power and connect critical devices in extreme environments with the FortiSwitch Rugged 112F-POE. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Layer 2 managed switch, 8x GE PoE++ ports, 240W PoE budget, 4x SFP uplinks, fanless IP40 design [/shortdesc]

[properties]

Brand Fortinet
Model FortiSwitch Rugged 112F-POE
SKU FSR-112F-POE
Product Type Managed Ethernet Switch
Switching Layer Layer 2
Form Factor DIN rail mountable
Total Network Ports 8 x 10/100/1000Base-T RJ45
PoE Ports 8 x RJ45 (IEEE 802.3af/at/bt Type 4)
Maximum PoE Power per Port Up to 90 W
Total PoE Budget 240 W
SFP Uplink Ports 4 x 1G/100M SFP
Switching Capacity 24 Gbps
Forwarding Rate 35.7 Mpps
MAC Address Table 16,000 entries
IP Rating IP40
Cooling Fanless
Redundant Power Input Yes
Dimensions (H x W x D) 127 x 66.5 x 150 mm
Weight 1023 g

[/properties]

[specifications]

Supported Ethernet Standards IEEE 802.3, 802.3u, 802.3ab, 802.3z
PoE Standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
VLAN Support Up to 4,000 VLANs
Spanning Tree STP, RSTP, MSTP
Link Aggregation LACP, up to 8 groups
Latency < 1 µs
Packet Buffer 1.5 MB
Memory 1 GB DDR4 RAM
Flash Storage 32 MB SPI + 1 GB NAND
Management Interfaces CLI, Web GUI, SNMP v1/v2c/v3, SSH, HTTPS
Operating Temperature -40°C to 75°C
Storage Temperature -40°C to 85°C
Operating Humidity 5% to 90% RH (non-condensing)
MTBF More than 30 years
Certifications CE, FCC Class A, RoHS, IEC 61850-3, IEEE 1613

[/specifications]

[accesories]

Included in the Box FortiSwitch Rugged 112F-POE unit; User documentation
Optional Power Supply FortiPSU Rugged DIN Rail 240W PSU (SP-RGDIN-240-PS)
Optional Transceivers Fortinet SFP fiber transceiver modules

[/accesories]

Rugged Switching Power for Harsh Industrial Networks

The Fortinet FortiSwitch Rugged 112F-POE is engineered for demanding industrial and outdoor-adjacent deployments where reliability, power delivery, and centralized control are critical. Designed as a FortiGate switch controller compatible device, it integrates seamlessly into Fortinet Security Fabric environments while delivering enterprise-grade Layer 2 switching in a hardened form factor.

With high-power PoE++ support and a fanless IP40-rated chassis, the 112F-POE is ideal for operational technology, industrial automation, and remote edge networks that require consistent performance under extreme temperatures and challenging conditions.

Key Benefits & Features
  • High-Power PoE++ Capability: Eight Gigabit Ethernet ports support IEEE 802.3bt Type 4 PoE, delivering up to 90W per port with a total PoE budget of 240W for powering cameras, sensors, and access points.
  • Industrial-Grade Rugged Design: Fanless, IP40-rated enclosure built to operate in extreme temperatures from -40°C to 75°C, ensuring reliability in harsh environments.
  • FortiLink Centralized Management: Operates as a logical extension of FortiGate firewalls, enabling unified policy control, simplified deployment, and Security Fabric integration.
  • Flexible Fiber Uplinks: Four SFP ports provide resilient fiber connectivity for aggregation or long-distance links in industrial networks.
  • High Availability Architecture: Supports redundant power inputs and advanced Layer 2 features to maintain network continuity in mission-critical deployments.
Ideal Use Cases
  • Industrial automation and OT networks
  • Transportation, railway, and roadside infrastructure
  • IP surveillance and high-power camera deployments
  • Manufacturing floors and remote facilities
  • Rugged branch or edge network extensions
Technical Specifications
  • Switch Type: Layer 2 managed Ethernet switch
  • Downlink Ports: 8x 10/100/1000 RJ45 PoE++
  • PoE Standard: IEEE 802.3af/at/bt (up to 90W per port)
  • Total PoE Budget: 240W
  • Uplink Ports: 4x 1G/100M SFP
  • Switching Capacity: 24 Gbps
  • Packet Forwarding Rate: 35.7 Mpps
  • Cooling: Fanless, passive cooling
  • Ingress Protection: IP40
  • Mounting: DIN-rail mountable
Deploy Rugged PoE with Confidence

Power and connect critical devices in extreme environments with the FortiSwitch Rugged 112F-POE. Order today.
