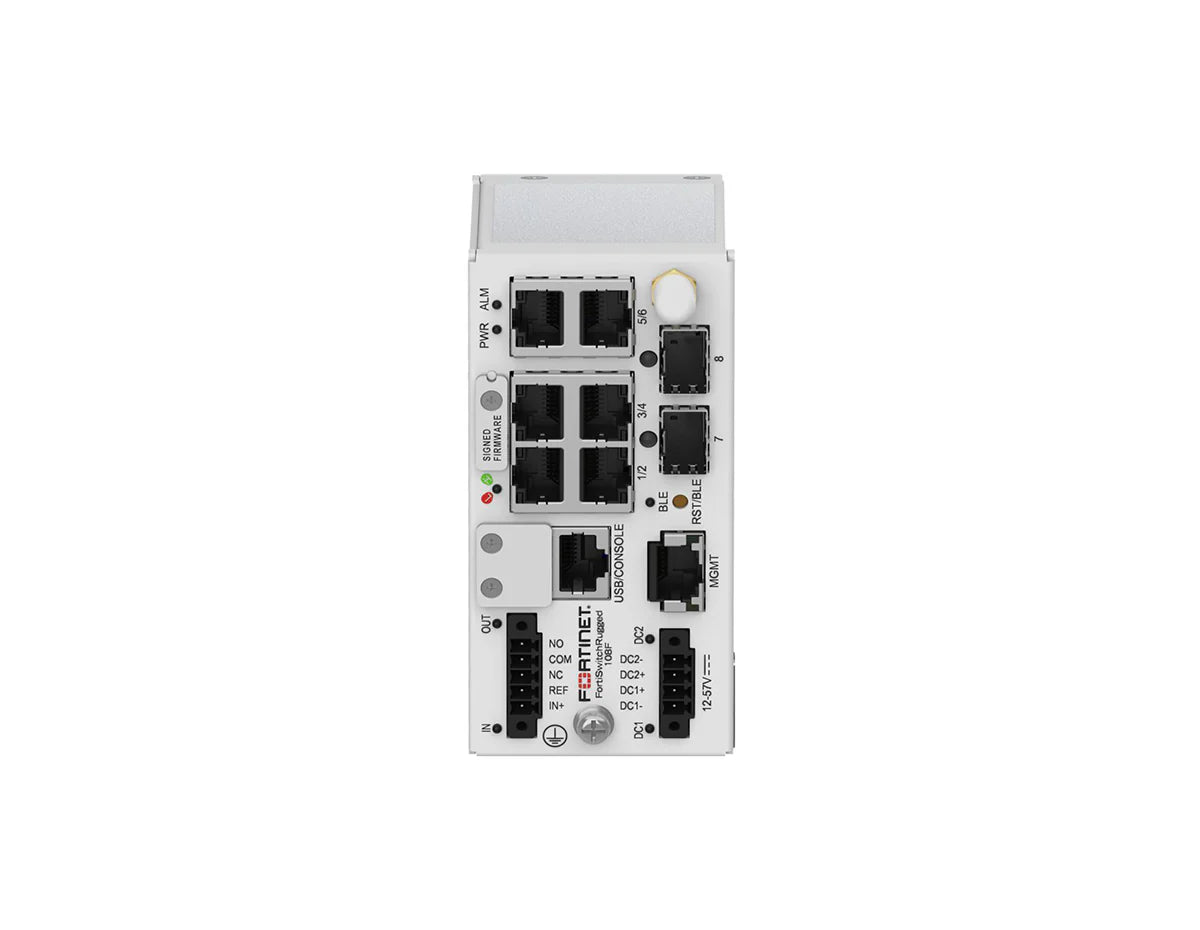

Fortinet FortiSwitch FSR-108F Rugged Industrial Switch
Fortinet FortiSwitch FSR-108F Rugged Industrial Switch

Fortinet FortiSwitch FSR-108F Rugged Industrial Switch

por Fortinet
Desconto de 15%
R$ 17.016,00
R$ 14.472,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Layer 2 managed industrial switch, 6x Gigabit RJ45 ports, 2x Gigabit SFP uplinks, IP40 fanless rugged design, DIN-rail mount, -40°C to 75°C operating range. [/shortdesc]

[properties]

Model FortiSwitch Rugged 108F
SKU FSR-108F
Product Type Ruggedized Managed Ethernet Switch
Layer Support Layer 2
Total Network Interfaces 8 Ports (6x Copper, 2x Fiber)
RJ45 Ports 6 x 10/100/1000Base-T RJ45
Uplink Ports 2 x 1 GE/100M SFP
Console Port 1 x RJ45 Serial
Switching Capacity 16 Gbps
Forwarding Rate 23.8 Mpps
MAC Address Table 16,000 entries
VLAN Support 4,000 VLANs
Link Aggregation Up to number of ports
Management FortiLink, CLI, Web GUI, SNMP v1/v2c/v3, Telnet/SSH
Form Factor DIN-rail mountable
Ingress Protection IP40
Cooling Fanless (Passive)
Power Input Redundant DC input terminals
Input Voltage Range ±12 V to ±57 V DC
Power Consumption 17 W (maximum)
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Operating Humidity 5% to 90% RH (non-condensing)
Dimensions (H x W x D) 113 x 55 x 140 mm (4.45 x 2.17 x 5.52 in)
Weight 566 g (1.25 lbs)

[/properties]

[specifications]

Network Standards IEEE 802.1D, 802.1Q, 802.1ad, 802.1AX, 802.1s, 802.1w, 802.1X, 802.3, 802.3ab, 802.3ad, 802.3az, 802.3u, 802.3x, 802.3z
Latency < 1 µs
Packet Buffer 1.5 MB
Memory 1 GB DDR4 DRAM
Flash Storage 32 MB SPI + 1 GB NAND
ACL Entries 240
Spanning Tree Instances 32
High Availability HSR (High-availability Seamless Redundancy), PRP (Parallel Redundancy Protocol), MRP, MCLAG
Time Synchronization IEEE 1588v2 PTP (Transparent and Boundary Clock)
Security Features 802.1X (Port/MAC-based), DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, Private VLAN, Storm Control
Certifications (EMI/EMS) FCC Part 15 Class A, CE, RCM, VCCI, BSMI, ICES, UKCA
Industrial Certifications IEC 61850-3, IEEE 1613, EN 50155 (Railway), EN 50121-4
Safety Standards UL/cUL 62368-1, IEC 62368-1
MTBF > 30 years

[/specifications]

[accesories]

Included FortiSwitch Rugged 108F, DIN-rail mounting kit, Console cable, Grounding cable, Rubber feet
Optional Power Supply FortiPSU Rugged DIN Rail 240W PSU (SP-RGDIN-240-PS)
Compatible Transceivers Fortinet FG-TRAN-SX, FG-TRAN-LX, and other compatible Gigabit SFP modules

[/accesories]

The Fortinet FortiSwitch Rugged 108F (FSR-108F) is a high-performance Layer 2 managed Ethernet switch engineered specifically for Operational Technology (OT) and harsh industrial environments. Built to withstand extreme temperature fluctuations, electrical interference, and physical stress, this ruggedized solution ensures mission-critical connectivity where standard commercial switches fail.

As a key component of the Fortinet Security Fabric, the FSR-108F can be managed directly via FortiLink from a FortiGate Next-Generation Firewall. This integration converges networking and security, providing centralized visibility, granular control, and automated policy enforcement across the entire network edge.

  • Ruggedized Hardware Design: Features an IP40-rated metal enclosure with a fanless, passive cooling system. It operates reliably in temperatures ranging from -40°C to 75°C, making it ideal for outdoor cabinets and industrial floors.
  • High-Speed Performance: Delivers 16 Gbps switching capacity and a forwarding rate of 23.8 Mpps with ultra-low latency (< 1 µs), ensuring real-time data transmission for time-sensitive industrial protocols.
  • Versatile Connectivity: Equipped with six Gigabit RJ45 ports and two Gigabit SFP uplink slots, allowing for flexible copper and fiber deployments over long distances.
  • Zero-Touch Management: Supports FortiLink for auto-discovery and one-touch configuration via FortiGate, reducing deployment complexity and operational costs.
  • Industrial Redundancy: Supports advanced redundancy protocols including HSR (High-availability Seamless Redundancy), PRP (Parallel Redundancy Protocol), and redundant DC power inputs to maximize uptime.
  • Power Substation Compliance: Meets strict IEEE 1613 and IEC 61850-3 standards for utility substation environments.
  • Industrial Automation: Connecting PLCs, HMIs, and sensors in manufacturing plants.
  • Power & Utilities: Reliable networking for electrical substations and energy distribution grids.
  • Intelligent Transportation Systems: Roadside traffic control, railway signaling, and surveillance.
  • Outdoor Surveillance: Backhauling IP camera data from remote locations exposed to weather elements.

Enhance your network resilience with the Fortinet FortiSwitch Rugged 108F. Designed for durability and integrated security, it is the optimal choice for converging IT and OT networks. Order today to future-proof your critical infrastructure.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Layer 2 managed industrial switch, 6x Gigabit RJ45 ports, 2x Gigabit SFP uplinks, IP40 fanless rugged design, DIN-rail mount, -40°C to 75°C operating range. [/shortdesc]

[properties]

Model FortiSwitch Rugged 108F
SKU FSR-108F
Product Type Ruggedized Managed Ethernet Switch
Layer Support Layer 2
Total Network Interfaces 8 Ports (6x Copper, 2x Fiber)
RJ45 Ports 6 x 10/100/1000Base-T RJ45
Uplink Ports 2 x 1 GE/100M SFP
Console Port 1 x RJ45 Serial
Switching Capacity 16 Gbps
Forwarding Rate 23.8 Mpps
MAC Address Table 16,000 entries
VLAN Support 4,000 VLANs
Link Aggregation Up to number of ports
Management FortiLink, CLI, Web GUI, SNMP v1/v2c/v3, Telnet/SSH
Form Factor DIN-rail mountable
Ingress Protection IP40
Cooling Fanless (Passive)
Power Input Redundant DC input terminals
Input Voltage Range ±12 V to ±57 V DC
Power Consumption 17 W (maximum)
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Operating Humidity 5% to 90% RH (non-condensing)
Dimensions (H x W x D) 113 x 55 x 140 mm (4.45 x 2.17 x 5.52 in)
Weight 566 g (1.25 lbs)

[/properties]

[specifications]

Network Standards IEEE 802.1D, 802.1Q, 802.1ad, 802.1AX, 802.1s, 802.1w, 802.1X, 802.3, 802.3ab, 802.3ad, 802.3az, 802.3u, 802.3x, 802.3z
Latency < 1 µs
Packet Buffer 1.5 MB
Memory 1 GB DDR4 DRAM
Flash Storage 32 MB SPI + 1 GB NAND
ACL Entries 240
Spanning Tree Instances 32
High Availability HSR (High-availability Seamless Redundancy), PRP (Parallel Redundancy Protocol), MRP, MCLAG
Time Synchronization IEEE 1588v2 PTP (Transparent and Boundary Clock)
Security Features 802.1X (Port/MAC-based), DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, Private VLAN, Storm Control
Certifications (EMI/EMS) FCC Part 15 Class A, CE, RCM, VCCI, BSMI, ICES, UKCA
Industrial Certifications IEC 61850-3, IEEE 1613, EN 50155 (Railway), EN 50121-4
Safety Standards UL/cUL 62368-1, IEC 62368-1
MTBF > 30 years

[/specifications]

[accesories]

Included FortiSwitch Rugged 108F, DIN-rail mounting kit, Console cable, Grounding cable, Rubber feet
Optional Power Supply FortiPSU Rugged DIN Rail 240W PSU (SP-RGDIN-240-PS)
Compatible Transceivers Fortinet FG-TRAN-SX, FG-TRAN-LX, and other compatible Gigabit SFP modules

[/accesories]

Industrial-Grade Connectivity for Harsh Environments

The Fortinet FortiSwitch Rugged 108F (FSR-108F) is a high-performance Layer 2 managed Ethernet switch engineered specifically for Operational Technology (OT) and harsh industrial environments. Built to withstand extreme temperature fluctuations, electrical interference, and physical stress, this ruggedized solution ensures mission-critical connectivity where standard commercial switches fail.

As a key component of the Fortinet Security Fabric, the FSR-108F can be managed directly via FortiLink from a FortiGate Next-Generation Firewall. This integration converges networking and security, providing centralized visibility, granular control, and automated policy enforcement across the entire network edge.

Key Benefits & Features
  • Ruggedized Hardware Design: Features an IP40-rated metal enclosure with a fanless, passive cooling system. It operates reliably in temperatures ranging from -40°C to 75°C, making it ideal for outdoor cabinets and industrial floors.
  • High-Speed Performance: Delivers 16 Gbps switching capacity and a forwarding rate of 23.8 Mpps with ultra-low latency (< 1 µs), ensuring real-time data transmission for time-sensitive industrial protocols.
  • Versatile Connectivity: Equipped with six Gigabit RJ45 ports and two Gigabit SFP uplink slots, allowing for flexible copper and fiber deployments over long distances.
  • Zero-Touch Management: Supports FortiLink for auto-discovery and one-touch configuration via FortiGate, reducing deployment complexity and operational costs.
  • Industrial Redundancy: Supports advanced redundancy protocols including HSR (High-availability Seamless Redundancy), PRP (Parallel Redundancy Protocol), and redundant DC power inputs to maximize uptime.
  • Power Substation Compliance: Meets strict IEEE 1613 and IEC 61850-3 standards for utility substation environments.
Ideal Use Cases
  • Industrial Automation: Connecting PLCs, HMIs, and sensors in manufacturing plants.
  • Power & Utilities: Reliable networking for electrical substations and energy distribution grids.
  • Intelligent Transportation Systems: Roadside traffic control, railway signaling, and surveillance.
  • Outdoor Surveillance: Backhauling IP camera data from remote locations exposed to weather elements.
Secure Your Industrial Edge

Enhance your network resilience with the Fortinet FortiSwitch Rugged 108F. Designed for durability and integrated security, it is the optimal choice for converging IT and OT networks. Order today to future-proof your critical infrastructure.
