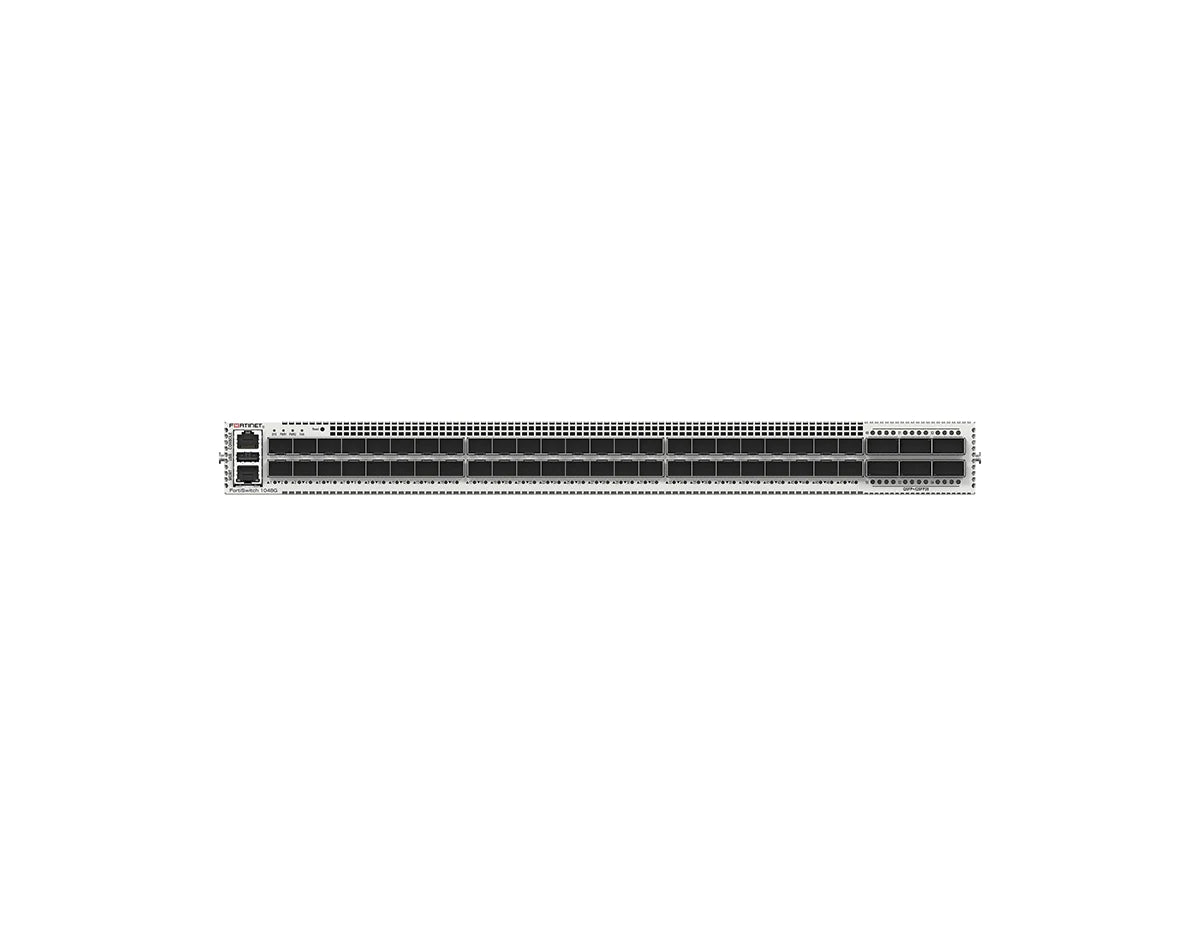

Fortinet FortiSwitch FS-1048G 48-Port Layer 3 Managed Switch
Fortinet FortiSwitch FS-1048G 48-Port Layer 3 Managed Switch

Fortinet FortiSwitch FS-1048G 48-Port Layer 3 Managed Switch

por Fortinet
Desconto de 32%
R$ 325.920,00
R$ 221.628,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] High-performance Layer 3 switch featuring 48x 1G/10G SFP+ ports, 6x 40G/100G QSFP28 uplinks, dual hot-swappable power supplies, and advanced Fortinet Security Fabric integration for data center and campus core environments. [/shortdesc]

[properties]

Model FortiSwitch 1048G
SKU FS-1048G
Product Type Managed Ethernet Switch
Series FortiSwitch Campus Core and Data Center G Series
Form Factor Rack-mountable 1 RU
Switching Layer Layer 2 / Layer 3
Total Ports 48 x 1G/10G SFP+ ports
Uplink Ports 6 x 40G/100G QSFP28/QSFP+
MAC Address Table 32K entries
Switching Capacity 2160 Gbps (full duplex)
Forwarding Rate 2000 Mpps
Latency < 1 µs
Airflow Front to back
Power Supply Dual hot-swappable AC power supplies
Redundancy 1+1 redundant power
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -13°F to 158°F (-25°C to 70°C)
Operating Humidity 10% to 90% RH non-condensing
Dimensions (H x D x W) 1.69 x 18.11 x 17.27 in (43 x 460 x 438.5 mm)
Weight 20.06 lbs (9.1 kg)

[/properties]

[specifications]

System Memory 8 GB DDR4
Flash Memory 32 MB
Packet Buffer 32 MB
Queues per Port 8
VLAN Support Up to 4000 VLANs
Spanning Tree Instances 64
Link Aggregation Up to 48 ports per LAG
Routing Protocols BGP, OSPF, OSPFv3, IS-IS, RIP, RIP-2, VRRP
Multicast IGMP Snooping, IGMP Proxy, PIM-SSM
Security Features ACL, Dynamic ARP Inspection, DHCP Snooping, MACsec, Private VLAN, Sticky MAC
Authentication 802.1X, RADIUS, MAC-based authentication
Management Protocols SNMP v1/v2c/v3, RMON, Telnet, SSH, HTTP, HTTPS, SFTP
High Availability Multi-Chassis Link Aggregation (MCLAG)
Power Input AC 100–240 V, 50–60 Hz
Maximum Power Consumption 585.78 W
MTBF > 10 years
Certifications FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS 2

[/specifications]

[accesories]

Included in the Box FortiSwitch 1048G unit; Dual AC power supplies; Rack mounting kit; Documentation
Optional Accessories FortiSwitch Advanced Features License; Fortinet QSFP28 and SFP+ transceiver modules
Spare Power Supply Hot-swappable AC Power Supply (Refer to official datasheet for specific SKU based on region)

[/accesories]

The Fortinet FortiSwitch 1048G (FS-1048G) is a top-tier Layer 3 managed switch engineered for the rigorous demands of campus cores and high-performance data centers. It delivers dense 10G access connectivity alongside ultra-high-speed 100G uplinks, ensuring your network can handle bandwidth-intensive applications with ease. Built on a secure switching architecture, the FS-1048G offers low-latency forwarding, robust routing protocols, and seamless integration into the Fortinet Security Fabric.

Featuring 48 SFP+ ports and 6 QSFP28 uplinks capable of 40G or 100G speeds, this switch provides outstanding scalability for aggregation, virtualization, and heavy east-west traffic loads. Its compact 1RU design, front-to-back airflow, and redundant hot-swappable power supplies ensure enterprise-grade reliability and uptime.

  • High-Speed Port Density: Equipped with 48x 1G/10G SFP+ ports and 6x 40G/100G QSFP28 uplinks to support massive data throughput and core aggregation.
  • Advanced Layer 3 Routing: Comprehensive support for OSPF, BGP, IS-IS, RIP, VRRP, ECMP, and VXLAN enables scalable and resilient network topologies.
  • Ultra-Low Latency Performance: Achieves a switching capacity of 2160 Gbps and a forwarding rate of 2000 Mpps with sub-1µs latency.
  • Integrated Security Controls: Native support for ACLs, DHCP snooping, Dynamic ARP Inspection, private VLANs, MACsec, and 802.1X authentication reinforces network defense.
  • Enterprise-Grade Reliability: Designed with dual hot-swappable AC power supplies and support for Multi-Chassis Link Aggregation (MCLAG) to maximize operational continuity.
  • Enterprise campus core switching
  • Data center aggregation and spine architectures
  • High-density 10G server and storage connectivity
  • Virtualized and VXLAN-enabled network environments
  • Fortinet Security Fabric integrated infrastructures
  • Switching Capacity: 2160 Gbps (full duplex)
  • Forwarding Rate: 2000 Mpps
  • Ports: 48x 1G/10G SFP+ and 6x 40G/100G QSFP28
  • Layer Support: Layer 2 and Layer 3
  • Memory: 8 GB DDR4 RAM with 32 MB flash
  • Packet Buffer: 32 MB
  • Form Factor: 1RU rack-mountable
  • Power: Dual hot-swappable AC power supplies
  • Airflow: Front-to-back

Deploy the FortiSwitch 1048G to scale your network infrastructure with industry-leading performance and security. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] High-performance Layer 3 switch featuring 48x 1G/10G SFP+ ports, 6x 40G/100G QSFP28 uplinks, dual hot-swappable power supplies, and advanced Fortinet Security Fabric integration for data center and campus core environments. [/shortdesc]

[properties]

Model FortiSwitch 1048G
SKU FS-1048G
Product Type Managed Ethernet Switch
Series FortiSwitch Campus Core and Data Center G Series
Form Factor Rack-mountable 1 RU
Switching Layer Layer 2 / Layer 3
Total Ports 48 x 1G/10G SFP+ ports
Uplink Ports 6 x 40G/100G QSFP28/QSFP+
MAC Address Table 32K entries
Switching Capacity 2160 Gbps (full duplex)
Forwarding Rate 2000 Mpps
Latency < 1 µs
Airflow Front to back
Power Supply Dual hot-swappable AC power supplies
Redundancy 1+1 redundant power
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -13°F to 158°F (-25°C to 70°C)
Operating Humidity 10% to 90% RH non-condensing
Dimensions (H x D x W) 1.69 x 18.11 x 17.27 in (43 x 460 x 438.5 mm)
Weight 20.06 lbs (9.1 kg)

[/properties]

[specifications]

System Memory 8 GB DDR4
Flash Memory 32 MB
Packet Buffer 32 MB
Queues per Port 8
VLAN Support Up to 4000 VLANs
Spanning Tree Instances 64
Link Aggregation Up to 48 ports per LAG
Routing Protocols BGP, OSPF, OSPFv3, IS-IS, RIP, RIP-2, VRRP
Multicast IGMP Snooping, IGMP Proxy, PIM-SSM
Security Features ACL, Dynamic ARP Inspection, DHCP Snooping, MACsec, Private VLAN, Sticky MAC
Authentication 802.1X, RADIUS, MAC-based authentication
Management Protocols SNMP v1/v2c/v3, RMON, Telnet, SSH, HTTP, HTTPS, SFTP
High Availability Multi-Chassis Link Aggregation (MCLAG)
Power Input AC 100–240 V, 50–60 Hz
Maximum Power Consumption 585.78 W
MTBF > 10 years
Certifications FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS 2

[/specifications]

[accesories]

Included in the Box FortiSwitch 1048G unit; Dual AC power supplies; Rack mounting kit; Documentation
Optional Accessories FortiSwitch Advanced Features License; Fortinet QSFP28 and SFP+ transceiver modules
Spare Power Supply Hot-swappable AC Power Supply (Refer to official datasheet for specific SKU based on region)

[/accesories]

High-Density Core Switching for Campus and Data Center Networks

The Fortinet FortiSwitch 1048G (FS-1048G) is a top-tier Layer 3 managed switch engineered for the rigorous demands of campus cores and high-performance data centers. It delivers dense 10G access connectivity alongside ultra-high-speed 100G uplinks, ensuring your network can handle bandwidth-intensive applications with ease. Built on a secure switching architecture, the FS-1048G offers low-latency forwarding, robust routing protocols, and seamless integration into the Fortinet Security Fabric.

Featuring 48 SFP+ ports and 6 QSFP28 uplinks capable of 40G or 100G speeds, this switch provides outstanding scalability for aggregation, virtualization, and heavy east-west traffic loads. Its compact 1RU design, front-to-back airflow, and redundant hot-swappable power supplies ensure enterprise-grade reliability and uptime.

Key Benefits & Features
  • High-Speed Port Density: Equipped with 48x 1G/10G SFP+ ports and 6x 40G/100G QSFP28 uplinks to support massive data throughput and core aggregation.
  • Advanced Layer 3 Routing: Comprehensive support for OSPF, BGP, IS-IS, RIP, VRRP, ECMP, and VXLAN enables scalable and resilient network topologies.
  • Ultra-Low Latency Performance: Achieves a switching capacity of 2160 Gbps and a forwarding rate of 2000 Mpps with sub-1µs latency.
  • Integrated Security Controls: Native support for ACLs, DHCP snooping, Dynamic ARP Inspection, private VLANs, MACsec, and 802.1X authentication reinforces network defense.
  • Enterprise-Grade Reliability: Designed with dual hot-swappable AC power supplies and support for Multi-Chassis Link Aggregation (MCLAG) to maximize operational continuity.
Ideal Use Cases
  • Enterprise campus core switching
  • Data center aggregation and spine architectures
  • High-density 10G server and storage connectivity
  • Virtualized and VXLAN-enabled network environments
  • Fortinet Security Fabric integrated infrastructures
Technical Specifications
  • Switching Capacity: 2160 Gbps (full duplex)
  • Forwarding Rate: 2000 Mpps
  • Ports: 48x 1G/10G SFP+ and 6x 40G/100G QSFP28
  • Layer Support: Layer 2 and Layer 3
  • Memory: 8 GB DDR4 RAM with 32 MB flash
  • Packet Buffer: 32 MB
  • Form Factor: 1RU rack-mountable
  • Power: Dual hot-swappable AC power supplies
  • Airflow: Front-to-back
Build a Faster and More Secure Network Core

Deploy the FortiSwitch 1048G to scale your network infrastructure with industry-leading performance and security. Order today.
