[shortdesc] Firewall, desktop, 8x GE PoE+ ports, 128GB SSD, 10/10/7 Gbps throughput, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]
[properties]
| Model / SKU |
FortiGate / FG-81F-POE-BDL-809-12 |
| Bundle / Subscription |
Firewall plus FortiCare Premium and FortiGuard Enterprise Protection (1-Year Contract) |
| Form Factor |
Desktop / Wall Mount / Rack Tray |
| Internal Storage |
1x 128 GB SSD |
| Total PoE Power Budget |
96 W |
| Firewall Throughput (Max) |
10 Gbps |
| Interfaces |

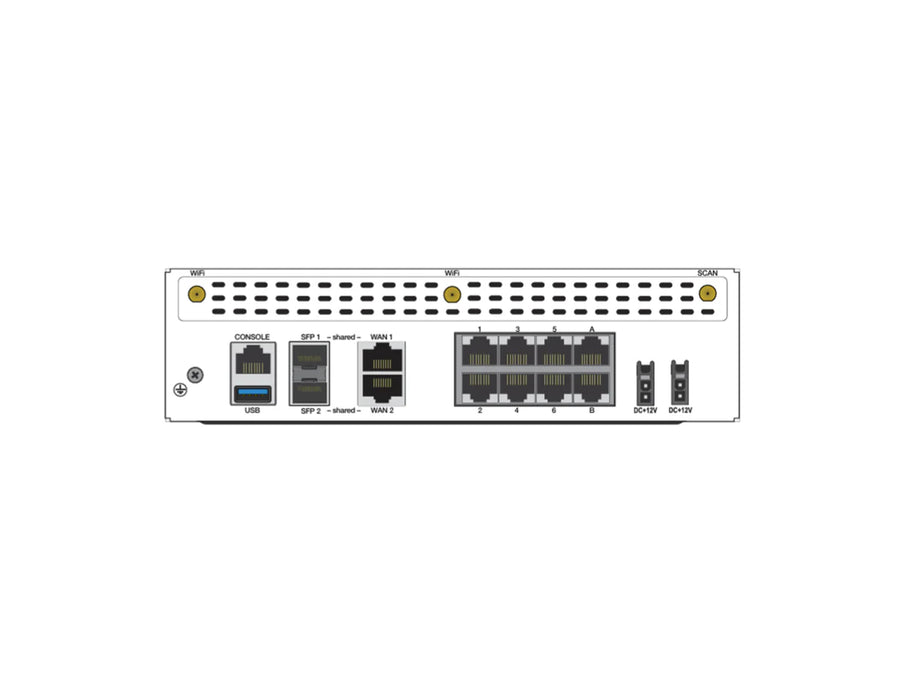

6x GE RJ45 PoE/+ Ports, 2x GE RJ45 PoE/+ FortiLink Ports (Default), 2x GE RJ45/SFP Shared Media Ports |
| Power Input |
+54V DC, 3A |
| Dimensions (H x W x L) |
60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches) |
| Weight |
1.4 kg (3.1 lbs) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Compliance / Certifications |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; USGv6/IPv6 |
[/properties]
[specifications]
| System Performance - Enterprise Traffic Mix |
| IPS Throughput |
1.4 Gbps |
| NGFW Throughput |
1 Gbps |
| Threat Protection Throughput |
900 Mbps |
| System Performance and Capacity |
| Firewall Throughput (1518/512/64 byte UDP) |
10 / 10 / 7 Gbps |
| Firewall Latency (64 byte UDP) |
3.23 μs |
| New Sessions/Second (TCP) |
45,000 |
| Concurrent Sessions (TCP) |
1.5 Million |
| Firewall Policies |
5,000 |
| IPsec VPN Throughput (512 byte) |
6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
200 |
| SSL-VPN Throughput |
950 Mbps |
| Concurrent SSL-VPN Users (Tunnel Mode) |
200 |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| Maximum Number of FortiSwitches Supported |
24 |
| Hardware & Interfaces |
| GE RJ45 PoE/+ Ports (Total) |
8 (6 Internal + 2 FortiLink) |
| GE RJ45/SFP Shared Media Pairs |
2 |
| USB Ports 3.0 |
1 |
| Console Port (RJ45) |
1 |
| Environment & Power |
| Power Consumption (Average / Maximum) |
98 W / 137 W |
| Heat Dissipation |
467.5 BTU/h |
| Storage Temperature |
-35°C to 70°C (-31°F to 158°F) |
| Humidity |
10% to 90% non-condensing |
| Noise Level |
31.56 dBA |
| Operating Altitude |
Up to 2250 m (7400 ft) |
[/specifications]
[accesories]
| Included Accessories |
External DC Power Adapter (1 adapter included) |
| Optional Accessories |
- Rack Mount Tray (SP-RACKTRAY-02)
- Wall Mount Kit (SP-FG60F-MOUNT-20)
- AC Power Adaptor (SP-FG80E-POE-PDC)
- 1 GE SFP RJ45 Transceiver Module (FN-TRAN-GC)
- 1 GE SFP SX Transceiver Module (FN-TRAN-SX)
- 1 GE SFP LX Transceiver Module (FN-TRAN-LX)
- 1GE SFP Transceiver, 90km Range (FR-TRAN-ZX)
|
[/accesories]
The FortiGate 81F-POE-BDL-809-12 is the ideal secure networking device for organizations looking to consolidate their branch office infrastructure. By integrating 8 Power over Ethernet (PoE/+) ports with a 96W budget, the device can power access points, IP phones, and cameras directly. Furthermore, the included 128GB SSD provides onboard storage to support deployments that benefit from local data storage on the appliance.
This Firewall runs on FortiOS, enabling secure SD-WAN capabilities. Accelerated by the custom-built Fortinet SP4 ASIC, the FG-81F-POE delivers ultra-low firewall latency and strong security performance, including up to 1.4 Gbps of IPS throughput and 6.5 Gbps of IPsec VPN throughput. This bundle includes FortiCare Premium and FortiGuard Enterprise Protection for 1 year.
