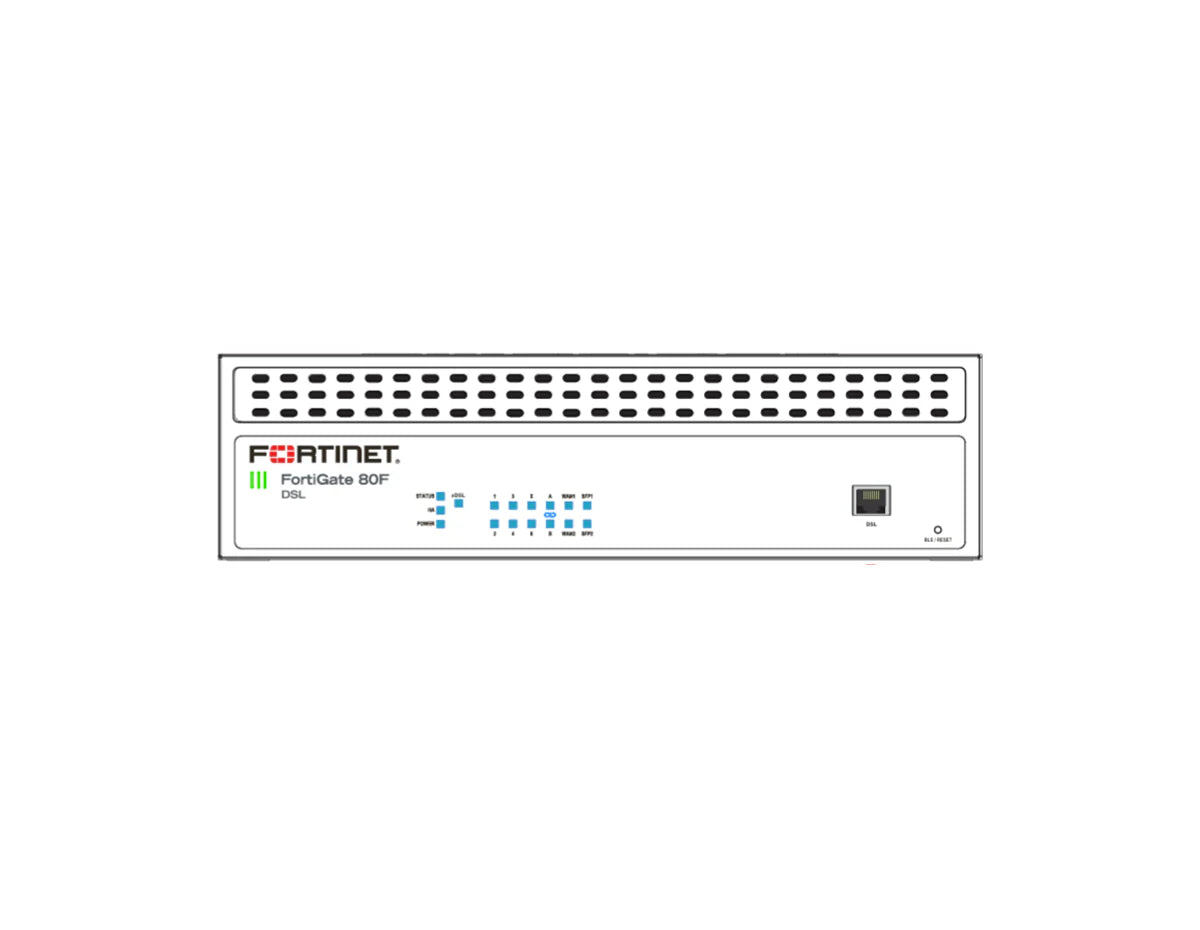

[shortdesc] Firewall with embedded DSL (VDSL2/ADSL2+), 10/10/7 Gbps, 1.4 Gbps IPS, desktop, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]
[properties]
| Model / SKU |
Fortigate / FG-80F-DSL-BDL-809-12 |
| Bundle / Subscription |
Includes FortiCare Premium and FortiGuard Enterprise Protection (1-Year Contract) |
| Form Factor |
Desktop / Wall Mount (Optional) |
| Integrated Modem |
DSL (VDSL2 / ADSL2 / ADSL2+ / G.DMT / T1.413 / G.Lite) |
| Firewall Throughput |
10 / 10 / 7 Gbps (1518 / 512 / 64 byte, UDP) |
| NGFW Throughput |
1 Gbps |
| Threat Protection Throughput |
900 Mbps |
| Interfaces |

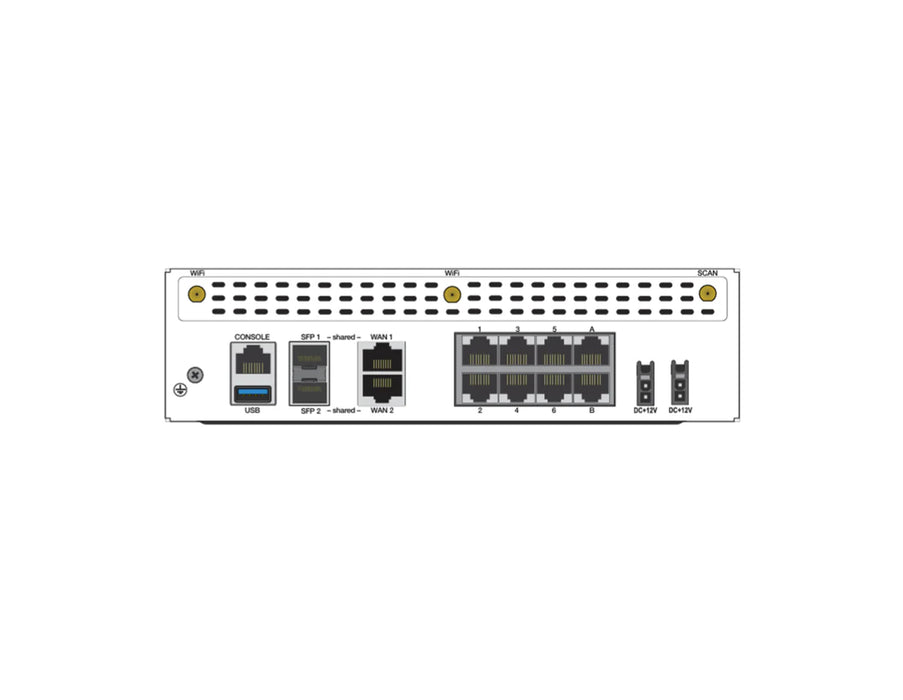

1x DSL RJ11, 2x GE RJ45/SFP Shared Media, 6x GE RJ45 Ports, 2x GE RJ45 FortiLink Ports (Default) |
| Power Input |
12V DC, 5A |
| Dimensions (H x W x L) |
60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches) |
| Weight |
1.39 kg (3.07 lbs) |
| Certifications |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, USGv6/IPv6 |
[/properties]
[specifications]
| System Performance — Enterprise Traffic Mix |
| IPS Throughput |
1.4 Gbps |
| System Performance and Capacity |
| Firewall Latency (64 byte UDP) |
3.23 μs |
| Firewall Throughput (Packets Per Second) |
10.5 Mpps |
| Concurrent Sessions (TCP) |
1.5 Million |
| New Sessions/Second (TCP) |
45,000 |
| Firewall Policies |
5,000 |
| IPsec VPN Throughput (512 byte) |
6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
200 |
| Client-to-Gateway IPsec VPN Tunnels |
2,500 |
| SSL-VPN Throughput |
950 Mbps |
| Concurrent SSL-VPN Users (Tunnel Mode) |
200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) |
715 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
700 |
| SSL Inspection Concurrent Sessions |
100,000 |
| Application Control Throughput (HTTP 64K) |
1.8 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| Maximum Number of FortiSwitches Supported |
24 |
| Maximum Number of FortiAPs (Total / Tunnel) |
96 / 48 |
| Maximum Number of FortiTokens |
500 |
| Hardware & Interfaces |
| DSL RJ11 Port |
1 |
| GE RJ45/SFP Shared Media Pairs |
2 |
| GE RJ45 Internal Ports |
6 |
| GE RJ45 FortiLink Ports (Default) |
2 |
| USB Ports |
1 |
| Console Port (RJ45) |
1 |
| Bluetooth Low Energy (BLE) |
— |
| DSL Modem Specifications |
| Supported Types |
Annex A, B, I, J, M & L |
| Environment & Power |
| Power Required |
Powered by up to 2 External DC Power Adapters (1 adapter included), 100-240V AC, 50/60 Hz |
| Power Consumption (Average / Maximum) |
28.0 W / 31.6 W |
| Heat Dissipation |
108 BTU/h |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
-31°F to 158°F (-35°C to 70°C) |
| Humidity |
10% to 90% non-condensing |
| Noise Level |
24.14 dBA |
| Operating Altitude |
Up to 7400 ft (2250 m) |
[/specifications]
[accesories]
| Included Accessories |
External DC Power Adapter (1 adapter included) |
| Optional Accessories |
- AC Power Adaptor (SP-FWF80F-PDC-5) (Power cable SP-FGPCOR-XX sold separately)
- Rack Mount Tray (SP-RACKTRAY-02)
- Wall Mount Kit (SP-FG60F-MOUNT-20)
- 1 GE SFP RJ45 Transceiver Module (FN-TRAN-GC)
- 1 GE SFP SX Transceiver Module (FN-TRAN-SX)
- 1 GE SFP LX Transceiver Module (FN-TRAN-LX)
- 1GE SFP Transceiver, 90km Range, -40°/85°C Operation (FR-TRAN-ZX)
|
[/accesories]
The FortiGate 80F-DSL-BDL-809-12 integrates specialized broadband connectivity directly into the security appliance, offering a seamless all-in-one solution for branch offices and retail locations. By incorporating a VDSL2/ADSL2+ DSL modem via a dedicated RJ11 port, this model supports direct broadband connection while maintaining enterprise-grade security controls through the Fortinet Security Fabric.
This bundle includes FortiCare Premium and FortiGuard Enterprise Protection for 1 year. The FG-80F-DSL platform delivers up to 10 / 10 / 7 Gbps of firewall throughput (1518 / 512 / 64 byte UDP) and 1.4 Gbps of IPS performance, helping keep secure connectivity from becoming a bottleneck while enabling advanced SD-WAN capabilities such as dynamic path selection and application steering.
