Firewall, 10x GE RJ45 (4x PoE+), 10/10/10 Gbps firewall, 60W PoE budget, including 5 Year FortiCare Premium and FortiGuard Enterprise Protection
| Feature | Details |
| Product SKU | FG-70G-POE-BDL-809-60 |
| Bundle Includes | FG-70G-POE firewall plus 5 Year FortiCare Premium and FortiGuard Enterprise Protection |
| Form Factor | Desktop (Fanless) |
| Firewall Throughput | 10 / 10 / 10 Gbps (1518 / 512 / 64 byte UDP packets) |

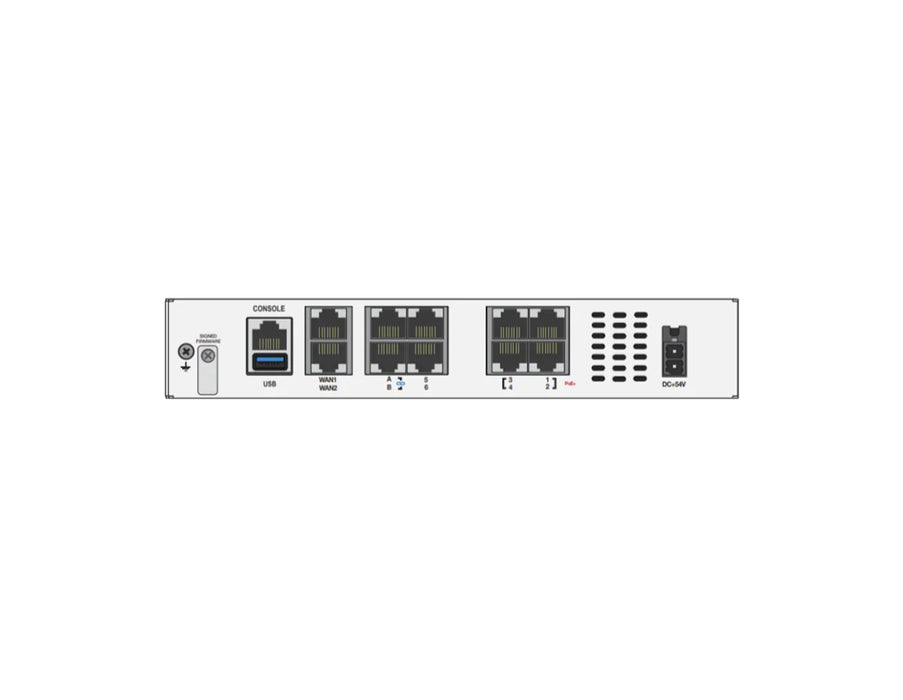

| Interfaces | 10x GE RJ45 Ports (2x GE RJ45 WAN Ports, 4x GE RJ45 FortiLink Ports (Default), 4x GE RJ45 PoE/+ Ports) |
| PoE Budget | 60 W (Total) |
| Threat Protection | 1.3 Gbps |
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz |
| Dimensions (H x W x L) | 1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm) |
| Weight | 2.145 lbs (0.973 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| System Performance & Capacity |
| IPS Throughput | 2.5 Gbps |
| NGFW Throughput | 1.5 Gbps |
| Firewall Latency | 2.46 μs |
| Concurrent Sessions (TCP) | 1.4 Million |
| New Sessions/Second (TCP) | 100,000 |
| Firewall Policies | 5,000 |
| VPN Performance |
| IPsec VPN Throughput (512 byte) | 7.1 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 500 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 1.4 Gbps |
| Hardware & Environment |
| USB Port | 1x USB |
| Console Port | 1x RJ45 |
| Power Consumption (Average / Max) | 70.3 W / 72.5 W |
| Heat Dissipation | 247.23 BTU/hr |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | Fanless |
| Compliance & Certifications | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; USGv6/IPv6 |
| Accessory Type | Description |
| Optional | Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), Mounting Ear Brackets (SP-EAR-FG90G-10), AC Power Adaptor (SP-FG50G-POE-PDC-5), AC Power Adaptor (SP-FG60E-PDC-5) |
The FortiGate 70G-POE series simplifies SD-Branch architecture by integrating advanced security, SD-WAN, and power delivery into a single compact appliance. Built on the Fortinet SP5 ASIC, it delivers high-speed inspection with 10 / 10 / 10 Gbps firewall throughput while providing 60W of total PoE power budget to drive essential devices such as wireless access points and IP phones directly from the firewall.
Designed for flexibility and reduced hardware footprint, the FG-70G-POE features a fanless desktop form factor ideal for noise-sensitive environments. It includes 4 dedicated PoE+ ports alongside GE RJ45 WAN ports and FortiLink ports, allowing for diverse connectivity options and seamless deployment in retail stores, small offices, and distributed enterprise sites.
