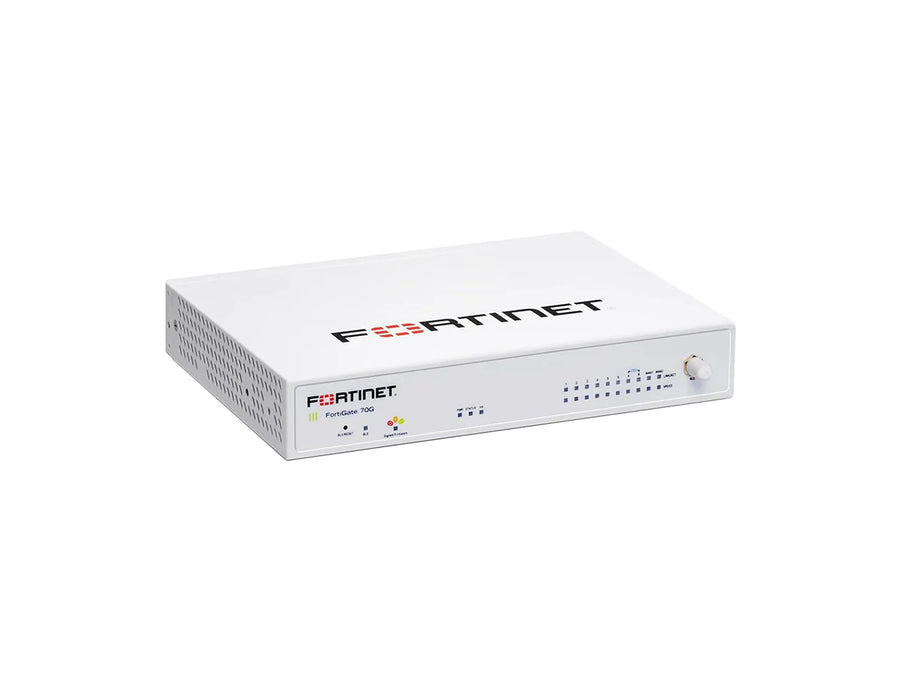

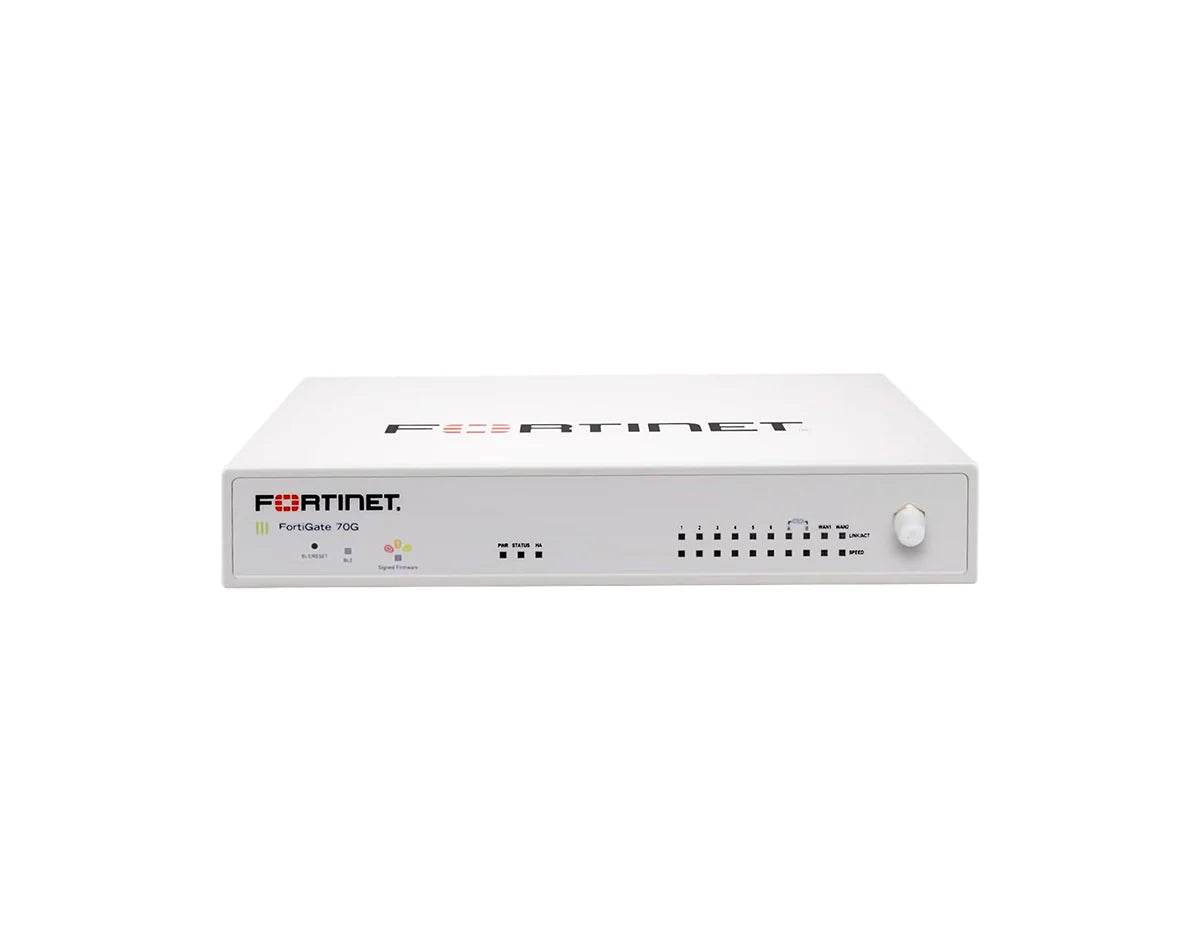

Firewall, NGFW security, fanless desktop, 10x GE RJ45, SP5 ASIC, 10/10/10 Gbps, 2.5 Gbps IPS, SD-WAN
| Feature | Details |
| Product SKU | FG-70G |
| Form Factor | Desktop (Fanless) |
| Firewall Throughput | 10 / 10 / 10 Gbps (1518 / 512 / 64 byte UDP packets) |
| Interfaces | 2 x GE RJ45 WAN ports, 6 x GE RJ45 ports, 2 x GE RJ45 FortiLink ports (default) |
| Threat Protection | 1.3 Gbps |
| Power Input | 12V DC, 3A |
| Dimensions (H x W x L) | 1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm) |
| Weight | 2.01 lbs (0.91 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| System Performance & Capacity |
| IPS Throughput | 2.5 Gbps |
| NGFW Throughput | 1.5 Gbps |
| Firewall Latency | 2.46 μs |
| Concurrent Sessions (TCP) | 1.4 M |
| New Sessions/Second (TCP) | 100,000 |
| Firewall Policies | 5,000 |
| VPN Performance |
| IPsec VPN Throughput (512 byte) | 7.1 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 500 |
| SSL Inspection Throughput | 1.4 Gbps |
| Hardware & Environment |
| USB Port | 1x USB Port |
| Console Port | 1x RJ45 |
| Power Consumption (Average / Max) | 12.3 W / 12.8 W |
| Heat Dissipation | 43.65 BTU/hr |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | Fanless |
| Compliance & Certifications | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; USGv6/IPv6 |
| Accessory Type | Description |
| Optional | Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), Mounting Ear Brackets (SP-EAR-FG90G-10), AC Power Adaptor (SP-FG60E-PDC-5, pack of 5; power cable SP-FG60CPCOR-XX sold separately). For PoE models: AC Power Adaptor (SP-FG50G-POE-PDC-5, pack of 5; power cable SP-FGPCOR-XX sold separately). |
The FortiGate 70G series runs on FortiOS, the industry's first converged networking and security operating system, enabling businesses to gain benefits of operational efficiency and unified protection. As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.
The 70G family is built on the patented SD-WAN-based ASIC SP5, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design and embedded multi-core processor further accelerate the convergence of networking and security functions in the 70G family to optimize secure connections and deliver a robust user experience at branch locations.
