[shortdesc] Firewall, embedded 5G/LTE, 5x GE RJ45, 64 GB SSD, 5 / 5 / 4 Gbps, including 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]
[properties]
| Feature | Details |
| Product SKU | FG-51G-5G-BDL-950-60 |
| Bundle Contents | Firewall appliance plus 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) |
| Form Factor | Desktop |
| Integrated Modem | Embedded 3G/4G/LTE/5G wireless WAN module |
| Internal Storage | 64 GB SSD |
| Firewall Throughput | 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets) |

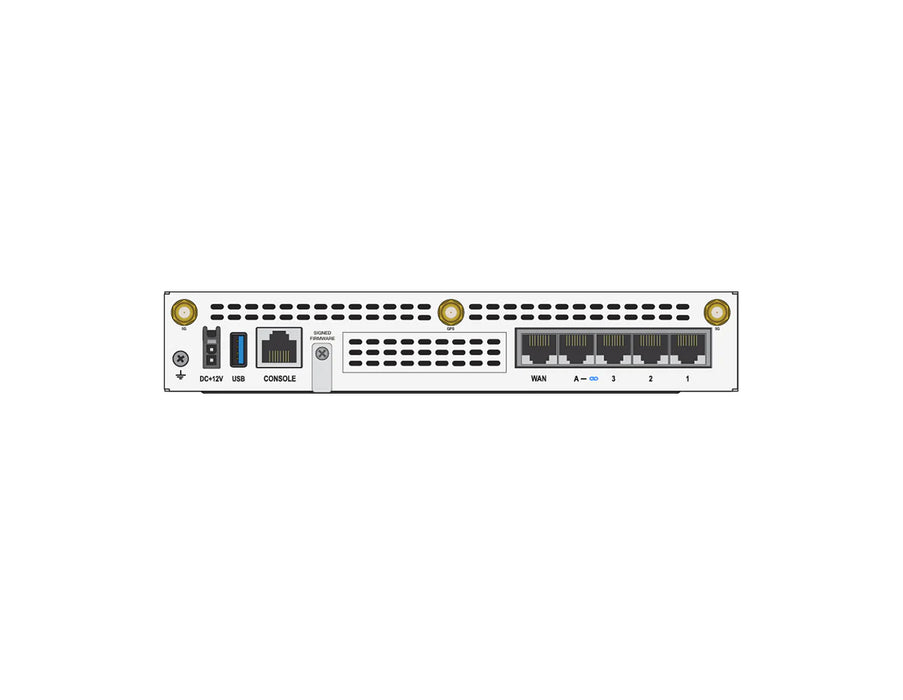

| Interfaces | 1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x USB, 1x RJ45 console, 5x SMA WWAN antenna ports |
| Threat Protection | 1.1 Gbps |
| Power Input | 12VDC, 3A |
| Dimensions (H x W x L) | 1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm) |
| Weight | 2.2 lbs (1.0 kg) |
[/properties]
[specifications]
| System Performance & Capacity |
| IPS Throughput | 2.25 Gbps |
| NGFW Throughput | 1.25 Gbps |
| Firewall Latency | 2.42 μs |
| Concurrent Sessions (TCP) | 720,000 |
| New Sessions/Second (TCP) | 85,000 |
| Firewall Policies | 2,000 |
| Wireless WAN (5G/LTE) Specifications |
| Modem Model | Telit Cinterion FN990A28-HP |
| 5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 support on n41, n77, n78, n79 bands) |
| LTE Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| SIM Slots | 2x Nano SIM (Active/Passive) |
| Carrier Certifications | PTCRB: Yes, ATT: Yes, T-Mobile: Target Q4, Verizon: Target Q4, Public Safety Network: Yes (FirstNet Capable) |
| VPN Performance |
| IPsec VPN Throughput (512 byte) | 4.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL Inspection Throughput | 1.3 Gbps |
| Hardware & Environment |
| USB Port | 1x USB |
| Console Port | 1x RJ45 |
| Power Consumption (Average / Max) | 8.3 W / 8.9 W |
| Heat Dissipation | 30.35 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Compliance & Certifications | Compliance: FCC, ISED, CE, UL/cUL, CB; Certifications: USGv6/IPv6 |
[/specifications]
[accesories]
| Accessory Type | Description |
| Included | 5x External SMA WWAN Antennas |
| Optional | Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG-40F-PA-10 (-XX)) |
[/accesories]

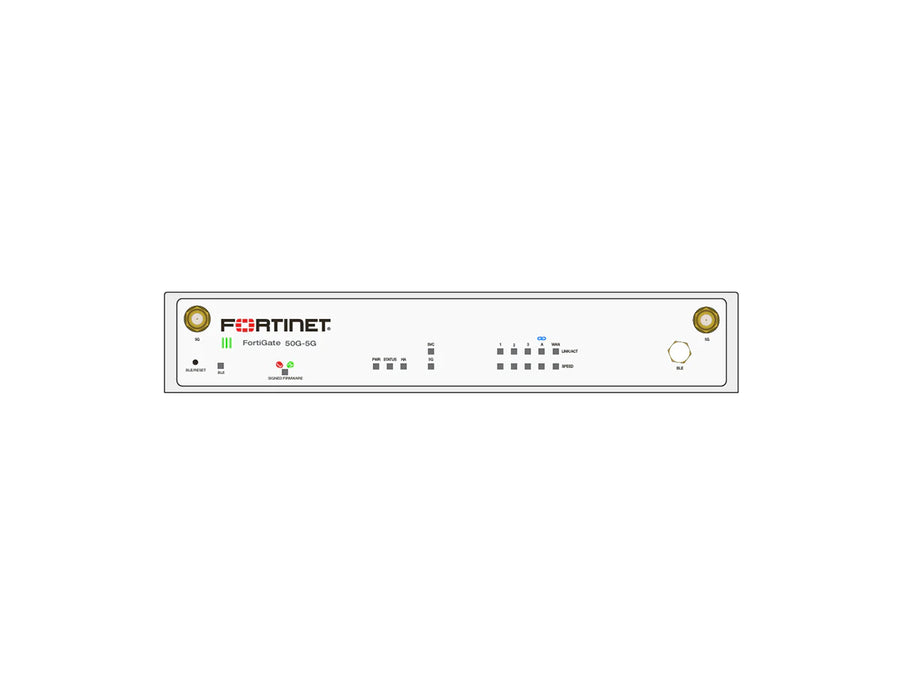

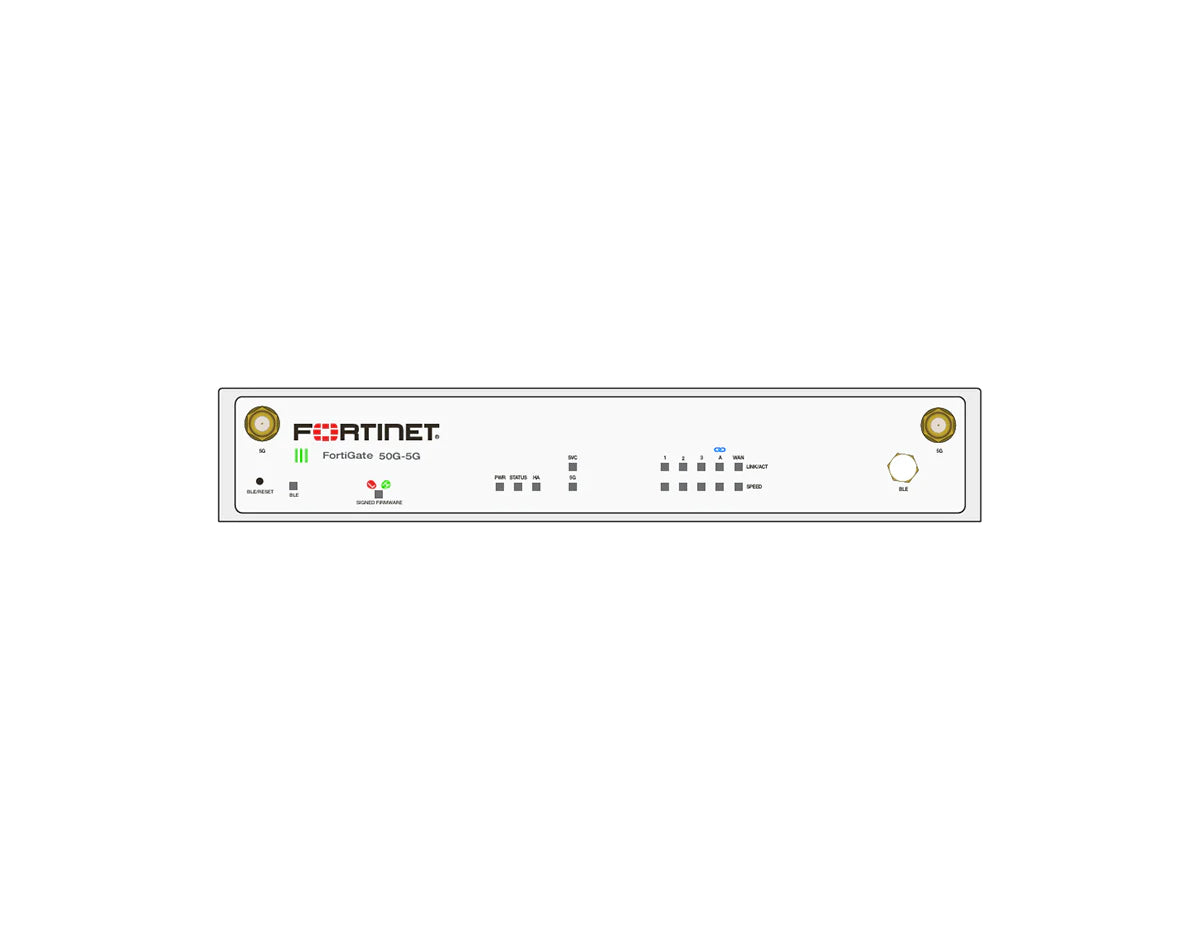

The FortiGate 51G-5G series brings together Next-Generation Firewall security, embedded 5G connectivity, and onboard SSD storage for distributed enterprise sites. Built on the Fortinet SP5 ASIC and running FortiOS, it delivers strong performance while integrating firewalling, SD-WAN, and security in one appliance. This bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for a 5-year contract term.
This compact desktop appliance features a Telit Cinterion FN990A28-HP modem supporting a wide range of 5G and LTE bands. With dual Nano SIM slots, it enables carrier redundancy to help maintain connectivity if one cellular network becomes unavailable. The FG-51G-5G includes 64 GB of internal SSD storage for local log storage.
