[shortdesc] Desktop firewall with PoE+ ports, SFP uplink, Secure SD-WAN ASIC SP5, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]
[properties]
| Feature | Details |
| Product SKU | FG-50G-SFP-POE-BDL-809-12 |
| Base Model | FG-50G-SFP-POE |
| Bundle Contents | Firewall plus FortiCare Premium and FortiGuard Enterprise Protection (1 Year Contract Term) |
| Form Factor | Desktop |
| Firewall Throughput | 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets) |
| Interfaces | 3x RJ45 PoE+ ports, 1x RJ45 PoE+ WAN, 1x RJ45 WAN port, 1x SFP port |
| PoE Budget | 60 W |
| Threat Protection | 1.1 Gbps |
| Power Input | 54VDC |
| Dimensions (H x W x L) | 1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Certifications | FCC, ISED, CE, UL/cUL, CB, USGv6/IPv6 |
[/properties]
[specifications]
| System Performance & Capacity |
| IPS Throughput | 2.25 Gbps |
| NGFW Throughput | 1.25 Gbps |
| Firewall Latency | 2.42 μs |
| Concurrent Sessions (TCP) | 720,000 |
| New Sessions/Second (TCP) | 85,000 |
| Firewall Policies | 2,000 |
| VPN Performance |
| IPsec VPN Throughput (512 byte) | 4.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL Inspection Throughput | 1.3 Gbps |
| Hardware & Environment |
| USB Port | 1x USB |
| Console Port | 1x RJ45 |
| Power Consumption (Average / Max) | 75.4 W / 76.3 W |
| Heat Dissipation | 260.48 BTU/h |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | Fanless (0 dBA) |
[/specifications]
[accesories]
| Accessory Type | Description |
| Optional | Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG50G-POE-PDC-5P), Power cable (SP-FGPCOR-XX) sold separately |
[/accesories]

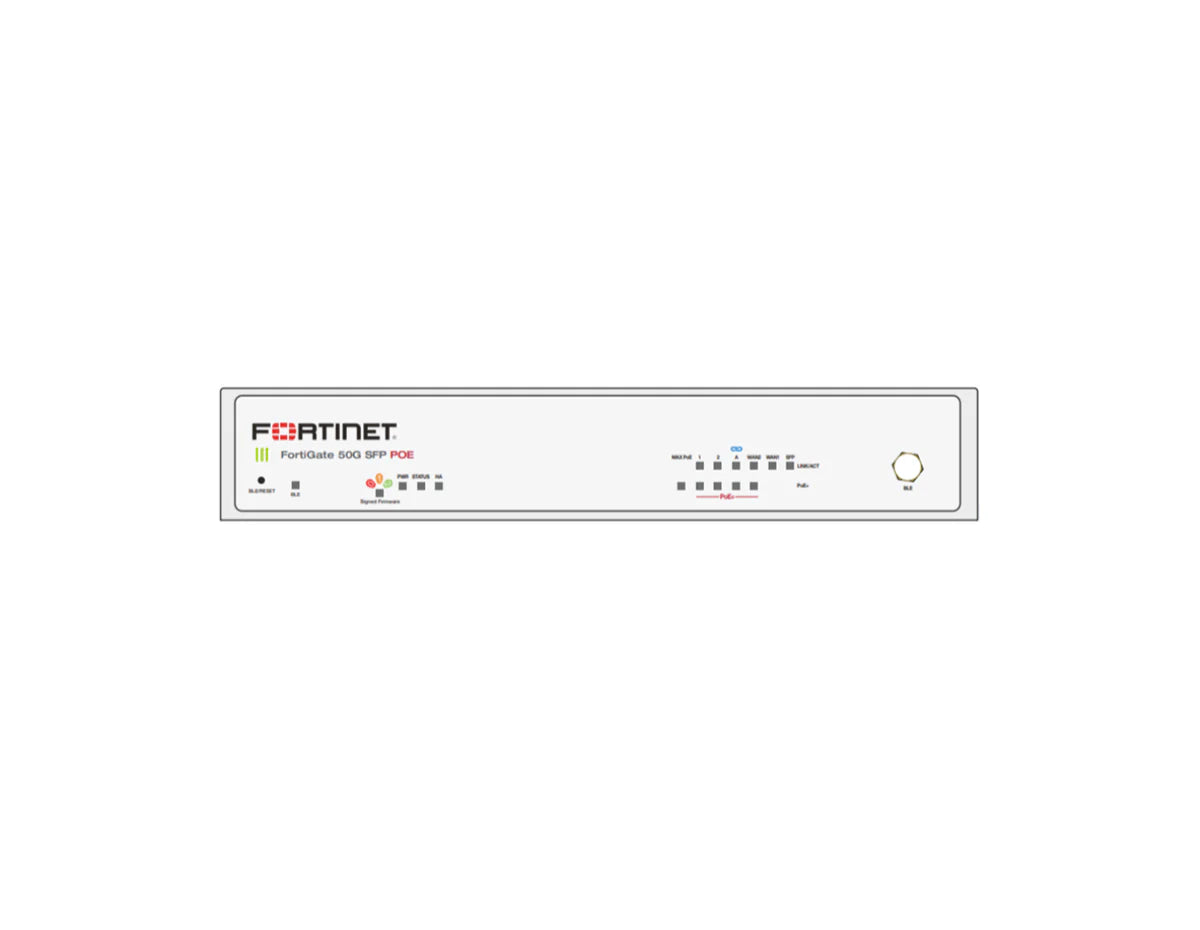

The FortiGate 50G-SFP-POE series simplifies SD-Branch architecture by integrating advanced security, SD-WAN, and power delivery into a single compact appliance. Built on the Fortinet Secure SD-WAN ASIC SP5, it delivers high-speed inspection while providing integrated PoE+ capabilities to support essential downstream devices such as wireless access points and IP phones directly from the firewall. This bundle includes FortiCare Premium and FortiGuard Enterprise Protection for a 1-year contract term.

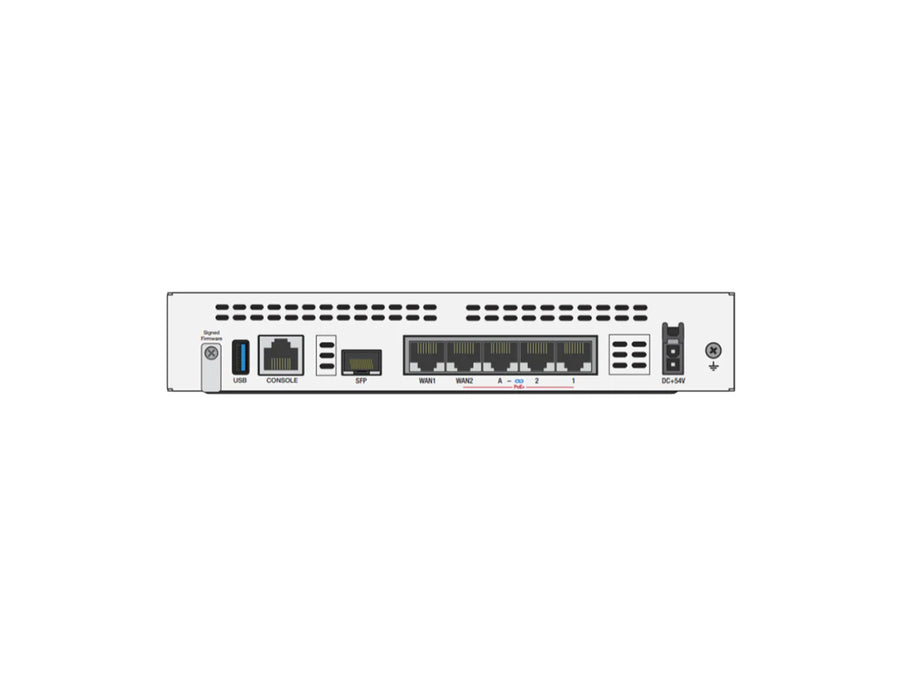

Designed for flexibility and reduced footprint, the FG-50G-SFP-POE features a fanless desktop form factor ideal for noise-sensitive environments. It includes a dedicated SFP port for fiber uplinks and multiple PoE+ capable RJ45 ports (including a PoE+ WAN port and FortiLink), allowing for diverse connectivity options and streamlined deployment in retail stores, small offices, and distributed enterprise sites.
