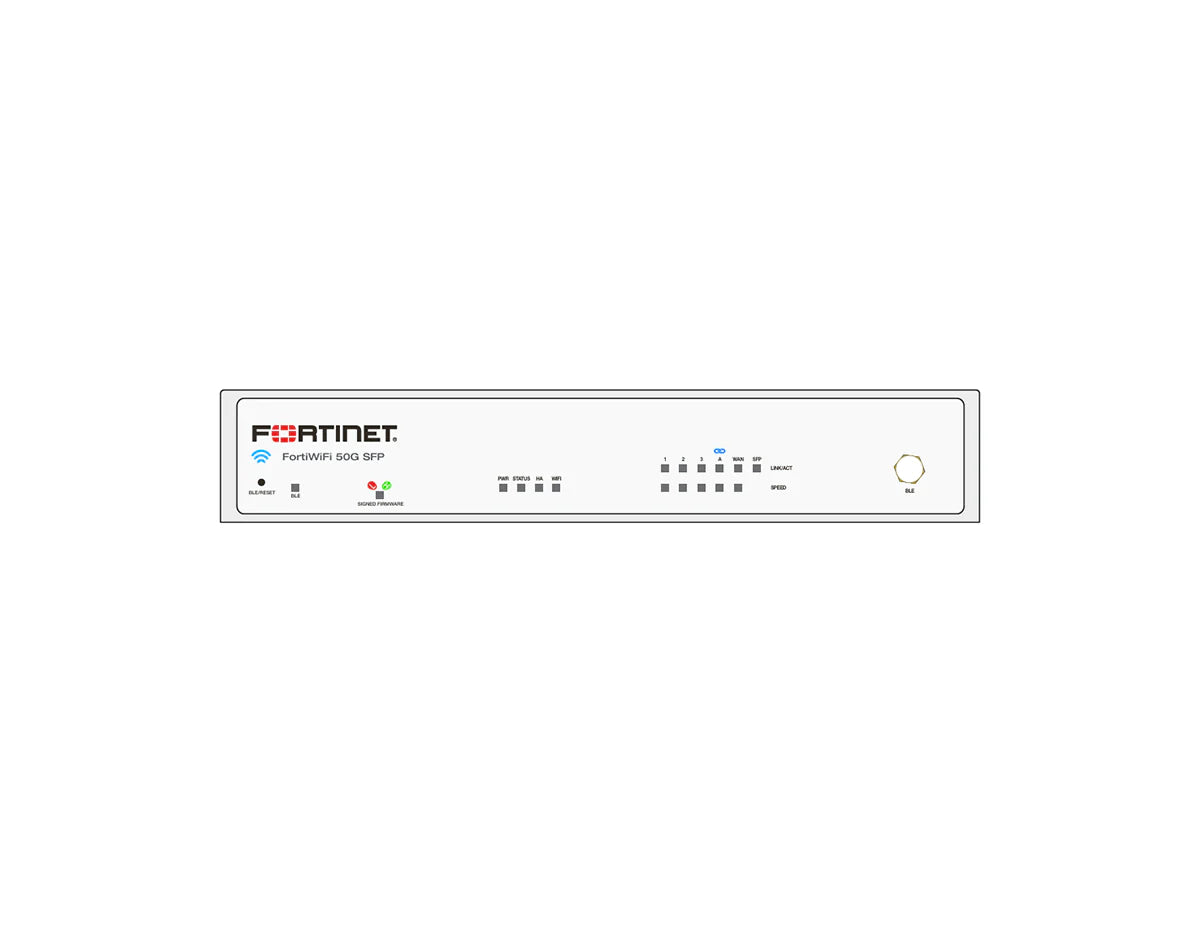

[shortdesc] Firewall, 1x GE SFP, 5x GE RJ45, 5/5/4 Gbps firewall (1518/512/64 UDP), fanless desktop, SD-WAN, including 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]
[properties]
| Feature |
Details |
| Product SKU |
FG-50G-SFP-BDL-950-12 |
| Base Model |
FG-50G-SFP |
| Bundle Contents |
Firewall plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (1 Year Contract) |
| Form Factor |
Desktop (Fanless) |
| Firewall Throughput (1518/512/64 byte UDP) |
5 / 5 / 4 Gbps |
| Interfaces |

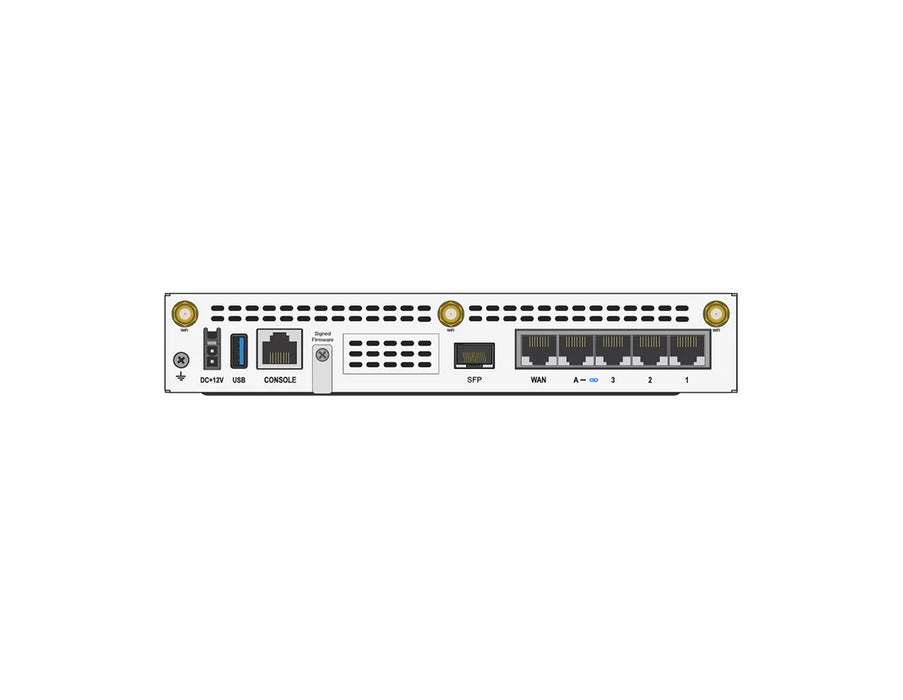

1x GE SFP Port, 1x GE RJ45 WAN Port, 1x GE RJ45 FortiLink Port (Default), 3x GE RJ45 Ethernet Ports |
| Threat Protection Throughput |
1.1 Gbps |
| Power Rating |
12VDC, 3A |
| Dimensions (H x W x L) |
1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm) |
| Weight |
2.2 lbs (1.0 kg) |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Compliance & Certifications |
Compliance: FCC, ISED, CE, UL/cUL, CB; Certifications: USGv6/IPv6 |
[/properties]
[specifications]
| System Performance & Capacity |
| IPS Throughput |
2.25 Gbps |
| NGFW Throughput |
1.25 Gbps |
| Firewall Latency |
2.42 μs |
| Concurrent Sessions (TCP) |
720,000 |
| New Sessions/Second (TCP) |
85,000 |
| Firewall Policies |
2,000 |
| VPN Performance |
| IPsec VPN Throughput (512 byte) |
4.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
200 |
| Client-to-Gateway IPsec VPN Tunnels |
250 |
| SSL Inspection Throughput |
1.3 Gbps |
| Hardware & Environment |
| USB Port |
1x USB |
| Console Port |
1x RJ45 |
| Power Consumption (Average / Max) |
8.3 W / 8.9 W |
| Heat Dissipation |
30.35 BTU/h |
| Storage Temperature |
-31°F to 158°F (-35°C to 70°C) |
| Humidity |
10% to 90% non-condensing |
| Noise Level |
Fanless 0 dBA |
[/specifications]
[accesories]
| Accessory Type |
Description |
| Optional |
Rack Mount Tray (SP-RACKTRAY-02), Mounting Ear Bracket (SP-EAR-FG90G-10, 10 pairs pack), Wall Mount Kit (SP-FG60F-MOUNT-20, pack of 20), AC Power Adaptor (SP-FG-40F-PA-10 (-XX), pack of 10; XX = country code) |
[/accesories]
The FortiGate 50G-SFP series runs on FortiOS, Fortinet’s converged networking and security operating system, enabling unified protection and simplified operations across security and networking functions. This bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for a 1-year contract term, providing security subscriptions and support coverage alongside the firewall platform.
The 50G-SFP family is built on the Fortinet SP5 ASIC to accelerate security inspection and networking functions in a compact platform. The inclusion of an SFP port allows for direct fiber connectivity, providing flexibility for longer distance uplinks.
