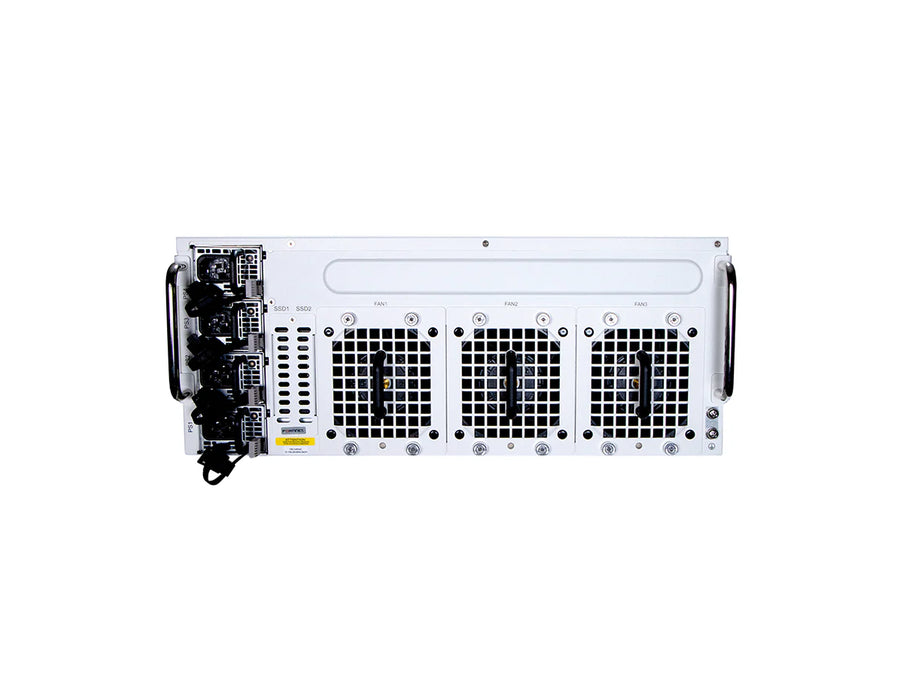

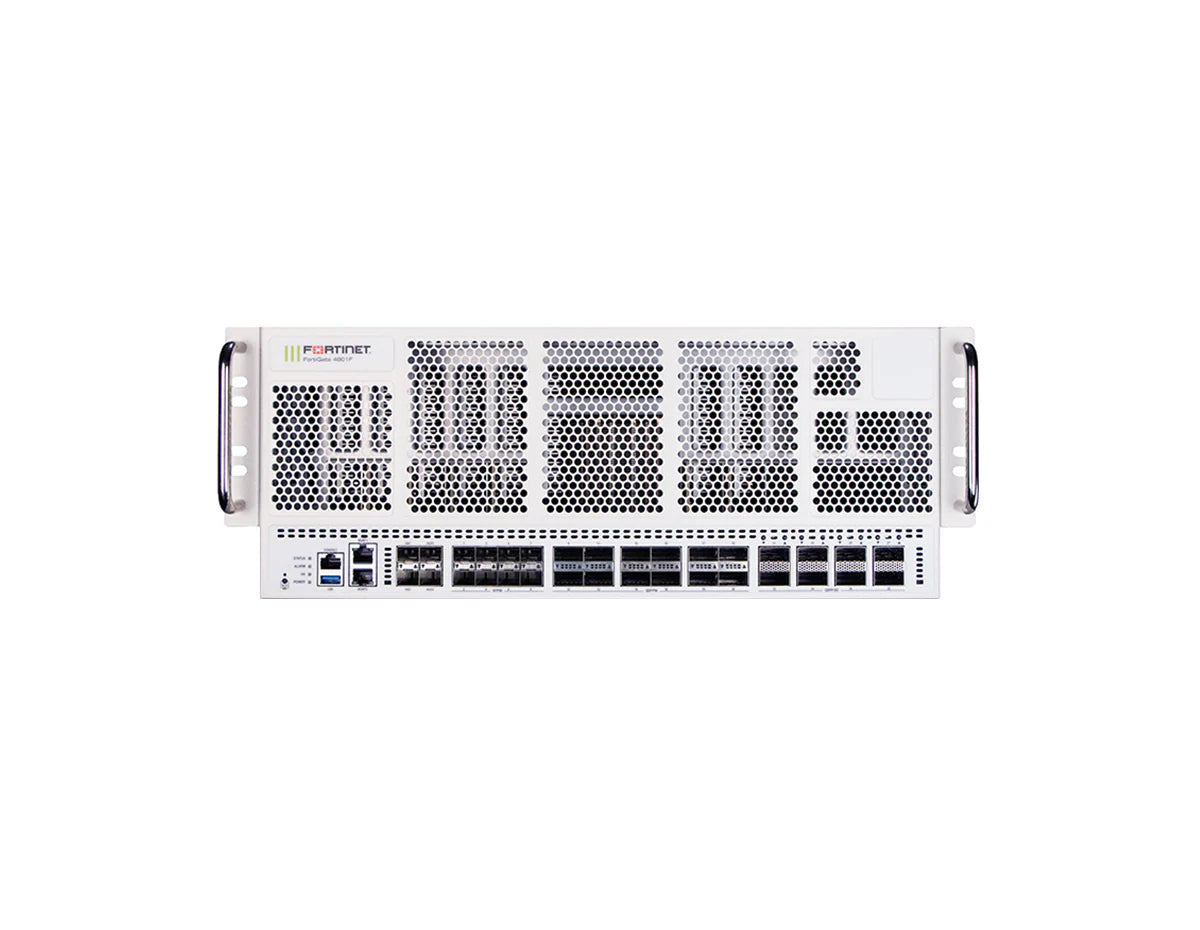

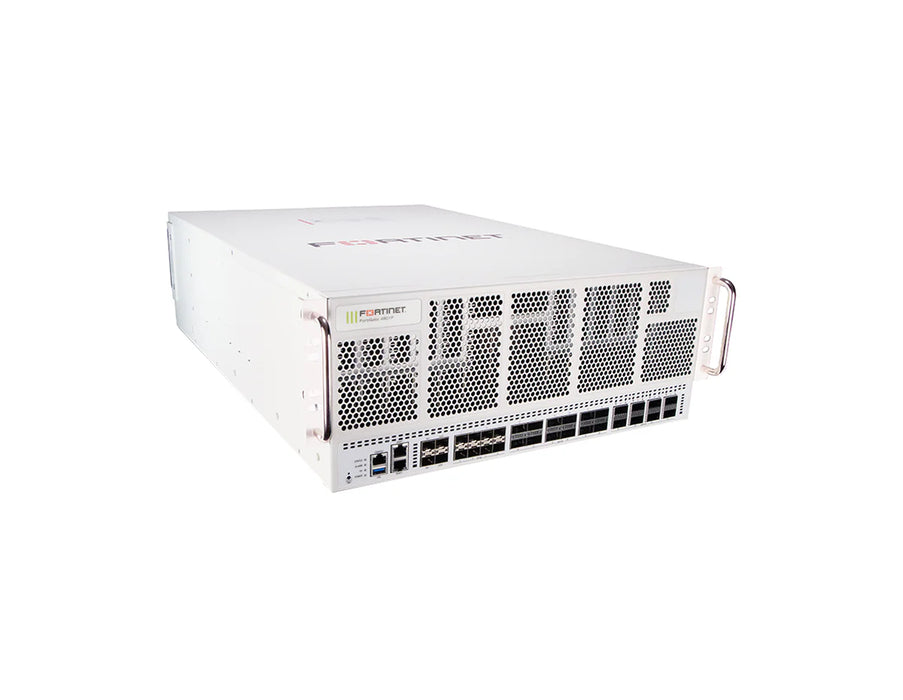

Fortinet FortiGate 4801F-DC Next-Generation Firewall
Clique ou role para ampliar
Toque ou belisque para ampliar
Fortinet FortiGate 4801F-DC Next-Generation Firewall
Clique ou role para ampliar
Toque ou belisque para ampliar
Fortinet FortiGate 4801F-DC Next-Generation Firewall
Fortinet FortiGate 4801F-DC Next-Generation Firewall

Fortinet FortiGate 4801F-DC Next-Generation Firewall

por Fortinet
Desconto de 32%
R$ 4.164.000,00
R$ 2.831.520,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]Firewall, 4 RU rack mount, 3.1 Tbps, 8x 400GE/200GE QSFP-DD, 2x 1.92TB SSD, -72V to -40V DC[/shortdesc]

[properties]

Model FortiGate 4801F-DC (FG-4801F-DC)
Form Factor 4 RU Rack Mount
Firewall Throughput 3.1 Tbps
High-Speed Interfaces 8x 400GE/200GE QSFP-DD, 12x 200GE/100GE/40GE QSFP56/28, 12x 50GE/25GE/10GE/GE SFP56/28 (8x SFP slots + 4x HA/Aux)
Internal Storage 2x 1.92 TB SSD
Power Input -72V to -40V DC
Dimensions 6.89 x 17.13 x 26.10 inches (175 x 435 x 663 mm)
Weight 90.83 lbs (41.2 kg)
Operating Temperature 32°F to 122°F (0°C to 50°C)

[/properties]

[specifications]

System Performance
IPv4 Firewall Throughput (1518/512/64 byte, UDP) 3.1 / 3.1 / 0.93 Tbps
IPv6 Firewall Throughput (1518/512/86 byte, UDP) 3.1 / 3.1 / 0.93 Tbps
Firewall Latency (64 byte, UDP) 3.6 μs
Firewall Throughput (Packet per Second) 1396 Mpps
IPsec VPN Throughput (512 byte) 800 Gbps
Threat Protection Throughput 75 Gbps
NGFW Throughput 77 Gbps
SSL-VPN Throughput 18 Gbps
IPS Throughput 87 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS) 63 Gbps
Application Control Throughput (HTTP 64K) 180 Gbps
System Capacity
Concurrent Sessions (TCP) 280 Million / 1.8 Billion (Hyperscale)
New Sessions/Second (TCP) 915,000 / 25 Million (Hyperscale)
Firewall Policies 200,000
Gateway-to-Gateway IPsec VPN Tunnels 40,000
Client-to-Gateway IPsec VPN Tunnels 200,000
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 30,000
Virtual Domains (Default / Maximum) 10 / 500
Hardware & Interfaces
400GE/200GE/100GE/40GE QSFP-DD Slots 8
200GE/100GE/40GE QSFP56/28 Slots 12
50GE/25GE/10GE/GE SFP56/28 Slots 8
50GE/25GE/10GE/GE SFP56/28 HA and Aux Slots 4
10GE/GE RJ45 Management Ports 2
USB Ports 1x USB Port (3.0)
Console Port 1x Console Port
Environment & Power
Power Consumption (Average) 1622 W
Power Consumption (Maximum) 1938.2 W
Heat Dissipation 6613.14 BTU/h
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Humidity 10% to 90% non-condensing
Noise Level 63.794 dBA
Forced Airflow Front to Back
Operating Altitude Up to 10,000 ft (3048 m)
Certifications
Compliance FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications USGv6/IPv6

[/specifications]

[accesories]

Included Accessories 4x DC Power Supplies (Included), 2x SFP+ (SR 10 GE) Transceivers (Included)
Optional Accessories Spare DC Power Supply (SP-FG4000F-DC-PS), Fan Tray (SP-FG4K6K-FAN), Transceivers (SFP/SFP+/SFP28/QSFP+/QSFP28/QSFP56/QSFP-DD), QSFP-DD DAC Cables (FN-CABLE-QSFPDD-DAC-01, FN-CABLE-QSFPDD-DAC-B5)

[/accesories]

The Fortinet FortiGate 4801F-DC is a high-performance Next-Generation Firewall (NGFW) engineered for hyperscale data centers and service providers requiring DC power infrastructure. Built on Fortinet's specialized NP7 and CP9 security processing units, this 4 RU rack mount appliance delivers up to 3.1 Tbps firewall throughput and ultra-low latency as low as 3.6 μs. It is designed to ensure that advanced security inspection can be deployed at scale without becoming a performance bottleneck in high-traffic environments.

Featuring a massive array of high-speed connectivity options, including 8x 400GE/200GE QSFP-DD slots and 12x 200GE/100GE/40GE QSFP56/28 slots, the FG-4801F-DC is built to handle high-volume traffic and elephant flows in modern data center architectures. The device includes 2x 1.92TB internal SSDs for local log storage and reporting, supporting operational visibility in demanding environments. With a dedicated DC power input range of -72V to -40V, it integrates cleanly into telecommunications and data center DC power grids.

  • 400GE/200GE Connectivity: Features 8x 400GE/200GE QSFP-DD slots to support high-bandwidth data center interconnects.
  • Hyperscale Performance: Powered by SPU NP7 and CP9 processors to deliver up to 3.1 Tbps firewall throughput and up to 1.8 billion concurrent sessions with the Hyperscale Firewall License.
  • Integrated Internal Storage: Includes 2x 1.92 TB SSDs for local log storage and reporting.
  • DC Power Optimization: Designed for DC infrastructures with a -72V to -40V DC input range.
  • 4 RU Form Factor: Delivers high interface density within a standard rack footprint.
  • Threat Protection Performance: Up to 75 Gbps threat protection throughput.
  • Hyperscale Data Centers: Ideal for securing high-volume data center traffic flows.
  • Service Providers: Supports high-volume multi-tenant architectures requiring segmentation and high-speed interconnects.
  • Telecommunications: Fits into DC-powered carrier networks for 4G/5G and IoT security use cases.
  • Latency-Sensitive Networks: 3.6 μs firewall latency supports environments requiring fast packet processing.
  • IPv4 Firewall Throughput (1518/512/64 byte, UDP): 3.1 / 3.1 / 0.93 Tbps
  • Firewall Latency (64 byte, UDP): 3.6 μs
  • IPS Throughput: 87 Gbps
  • NGFW Throughput: 77 Gbps
  • Threat Protection Throughput: 75 Gbps
  • IPsec VPN Throughput (512 byte): 800 Gbps
  • SSL-VPN Throughput: 18 Gbps
  • Interfaces: 8x QSFP-DD (400GE/200GE/100GE/40GE), 12x QSFP56/28 (200GE/100GE/40GE), 12x SFP56/28 (50GE/25GE/10GE/GE incl. 4x HA/Aux)
  • Storage: 2x 1.92 TB SSD
  • Power: -72V to -40V DC input; 1622 W average / 1938.2 W maximum
  • Physical / Environment / Compliance: 4 RU; 6.89 x 17.13 x 26.10 in; 90.83 lbs; 0°C to 50°C; FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6

Contact us today to configure the FortiGate 4801F-DC for your hyperscale data center requirements.
