[shortdesc] Firewall, 3RU rack mount, 8x 100GE/40GE QSFP28/QSFP+, 18x 25GE/10GE SFP28 plus 2x 25GE HA, 800 Gbps firewall throughput, -48V to -60V DC [/shortdesc]
[properties]
| Brand | Fortinet |
| Model / SKU | FG-4200F-DC |
| Form Factor | Rack Mount, 3 RU |
| Firewall Throughput | 800 Gbps |
| Threat Protection Throughput | 45 Gbps |
| Interfaces Summary | 8x 100GE/40GE QSFP28/QSFP+ slots, 16x 25GE SFP28 plus 2x 25GE AUX, 2x 25GE HA, 2x GE RJ45 Mgmt, 1x USB, 1x Console |
| Power Input | -48V to -60V DC |
| Dimensions (H x W x L) | 5.22 x 17.20 x 26.17 in (132.5 x 437 x 664.8 mm) |
| Weight | 59.75 lbs (27.1 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Certifications | USGv6/IPv6 |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) |
| IPS Throughput | 52 Gbps |
| NGFW Throughput | 47 Gbps |
| System Performance & Capacity |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) | 800 / 788 / 400 Gbps |
| IPv6 Firewall Throughput (1518/512/86 byte, UDP) | 800 / 788 / 400 Gbps |
| Firewall Latency (64 byte, UDP) | 3.02 μs |
| Firewall Throughput (Packet per Second) | 600 Mpps |
| Concurrent Sessions (TCP) | 210 Million / 450 Million* (with Hyperscale Firewall License) |
| New Sessions/Second (TCP) | 1 Million / 7 Million* (with Hyperscale Firewall License) |
| Firewall Policies | 400,000 |
| IPsec VPN Throughput (512 byte) | 210 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 40,000 |
| Client-to-Gateway IPsec VPN Tunnels | 200,000 |
| SSL-VPN Throughput | 16 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 50 Gbps |
| Application Control Throughput (HTTP 64K) | 135 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Interfaces & Modules |
| 100 GE QSFP28 / 40 GE QSFP+ Slots | 8 (Hardware Accelerated) |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 16 (Hardware Accelerated) |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP HA Slots | 2 (Hardware Accelerated) |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP AUX Slots | 2 (Hardware Accelerated) |
| GE RJ45 Management Ports | 2 |
| USB Port | 1 |
| Console Port | 1 |
| Power & Environment |
| DC Current (Average / Maximum) | 20A / 100Apk |
| Power Consumption (Average / Maximum) | 931 W / 1291 W |
| Heat Dissipation | 4405 BTU/h |
| Redundant Power Supplies | Default 1+1 Redundant, Hot Swappable |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 20% to 90% non-condensing |
| Noise Level | 57 dBA |
| Physical Specifications |
[/specifications]
[accesories]
| Included in Box | 2x DC power supplies, 2x SFP+ (SR 10 GE) Transceivers |
| Optional Accessories | Hyperscale Firewall License (LIC-FGT-HYPSC), Rack mount sliding rails (SP-FG3040B-RAIL), DC Power Supply (SP-FG4000F-DC-PS), Spare Fan Tray (SP-FG4K6K-FAN), Various SFP/QSFP Transceivers |
[/accesories]

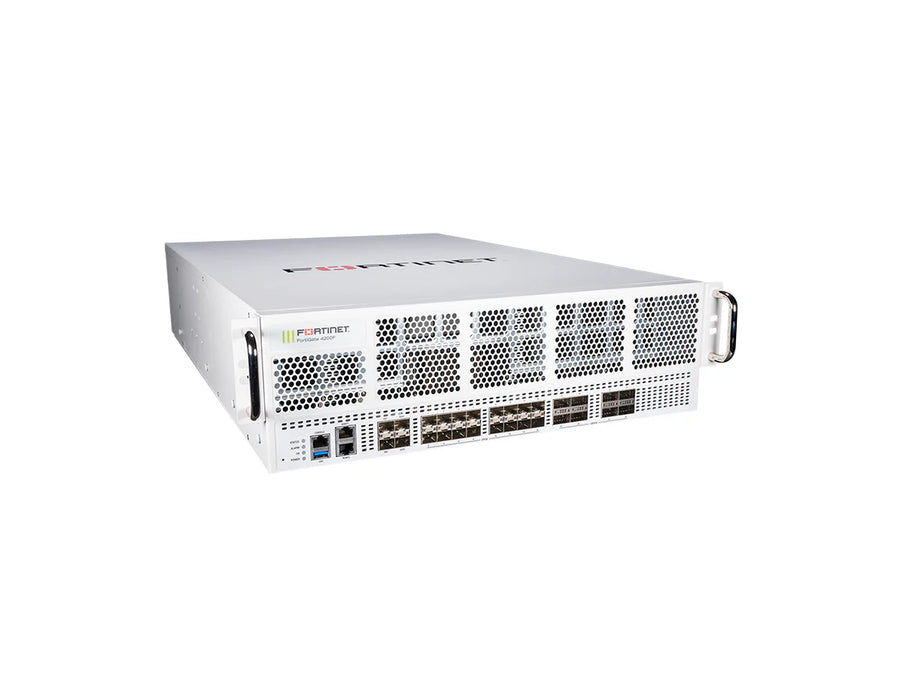

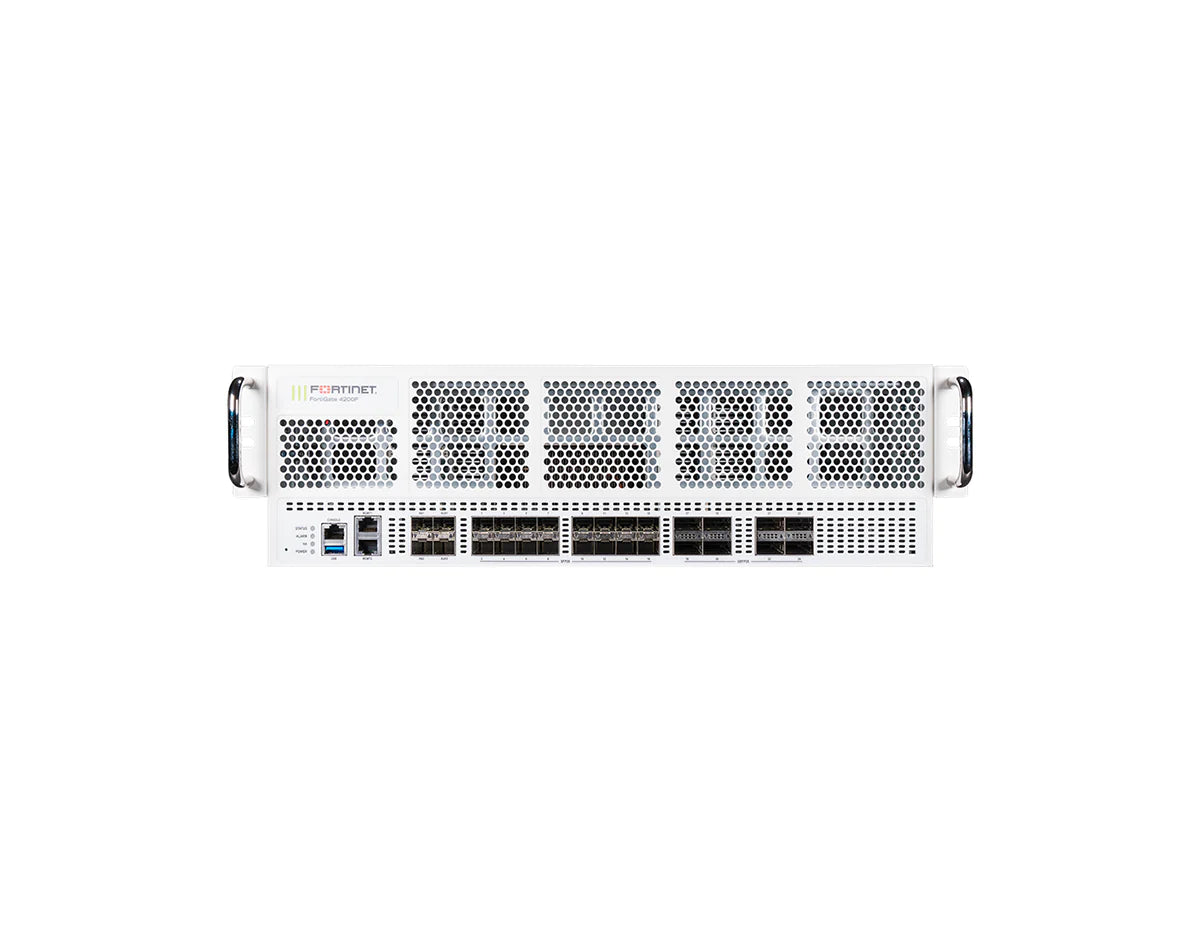

The Fortinet FortiGate 4200F-DC Series delivers uncompromising security and performance for large-scale enterprise data centers and service provider networks that rely on DC power infrastructure. By consolidating networking and security into a single platform, the FG-4200F-DC reduces complexity while providing deep visibility and protection. Its hyperscale architecture, driven by Fortinet's patented SPU NP7 technology, removes performance bottlenecks typically associated with software-based firewalls, enabling effective security for high-velocity traffic including elephant flows and VXLAN tunnels.

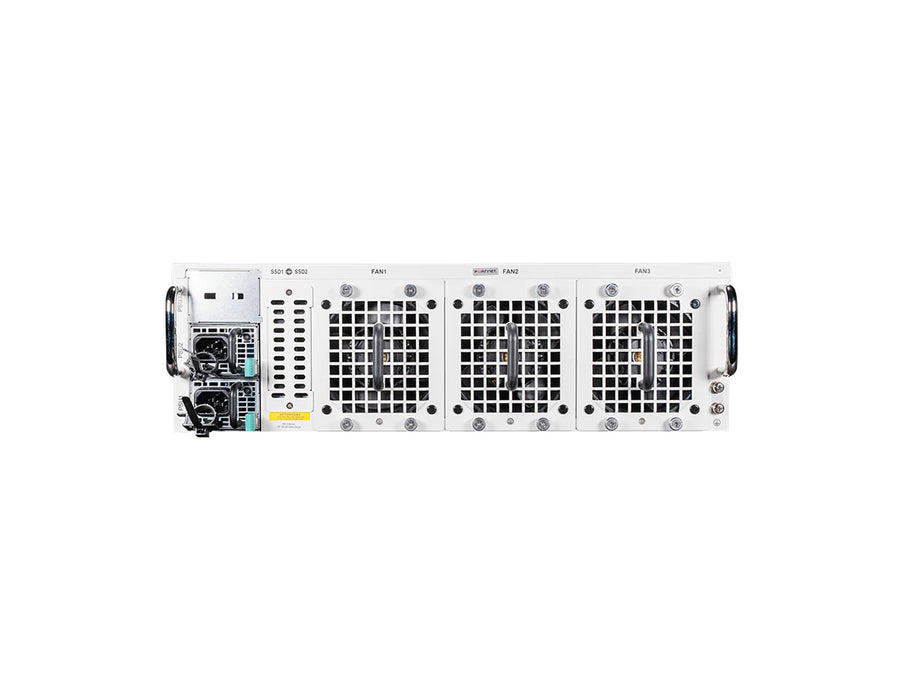

Designed for resilience and scalability, this appliance supports 210 million concurrent TCP sessions (up to 450 million with the Hyperscale Firewall License) and offers integrated Zero Trust Network Access (ZTNA) enforcement. The FortiGate 4200F-DC seamlessly weaves security into the network fabric, protecting against sophisticated threats with AI/ML-powered FortiGuard services. With a robust 3 RU form factor and redundant DC power supplies, it ensures continuous operation and business continuity for critical edge and core deployments.
