[shortdesc] Firewall, 4x 100GE QSFP28, 12x 25GE SFP28, 198 Gbps throughput, 2RU, dual DC power [/shortdesc]
[properties]
| Product Model | FortiGate 1800F-DC (FG-1800F-DC) |
| Form Factor | Rack Mount, 2RU |
| Max Firewall Throughput | 198 Gbps |
| Network Interfaces | 4x 100 GE QSFP28 / 40 GE QSFP+, 12x 25 GE SFP28 / 10 GE SFP+ / GE SFP, 2x 10 GE SFP+ / GE SFP HA, 8x GE SFP, 16x GE RJ45 + 2x GE RJ45 MGMT (18x GE RJ45 total) |
| Power Input | -48V to -60V DC |
| Dimensions (H x W x L) | 3.5 x 17.25 x 21.1 inches (88.4 x 438 x 536 mm) |
| Weight | 30.2 lbs (13.7 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Included Transceivers | 2x SFP+ (SR 10 GE) |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) |
| IPS Throughput | 22 Gbps |
| NGFW Throughput | 17 Gbps |
| Threat Protection Throughput | 15 Gbps |
| System Performance & Capacity |
| IPv4 Firewall Throughput (UDP) | 198 / 197 / 140 Gbps (1518 / 512 / 64 byte) |
| IPv6 Firewall Throughput (UDP) | 198 / 197 / 140 Gbps (1518 / 512 / 86 byte) |
| Firewall Latency | 3.22 µs |
| Firewall Throughput (Packets Per Second) | 210 Mpps |
| Concurrent Sessions (TCP) | 12 Million / 40 Million* |
| New Sessions/Second (TCP) | 750,000 / 2 Million* |
| Firewall Policies | 100,000 |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| SSL-VPN Throughput | 11 Gbps |
| Concurrent SSL-VPN Users (Recommended Max) | 10,000 |
| SSL Inspection Throughput (IPS, avg HTTPS) | 12 Gbps |
| Application Control Throughput (HTTP 64K) | 34 Gbps |
| CAPWAP Throughput (HTTP 64K) | 65 Gbps |
| Hardware & Interfaces |
| Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots | 4 |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 12 |
| 10 GE SFP+ / GE SFP HA Slots | 2 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated GE RJ45 Ports | 16 |
| GE RJ45 Management Ports | 2 |
| USB 3.0 Port | 1 |
| Console RJ45 Port | 1 |
| Onboard Storage | 0 |
| Dimensions & Environment |
| DC Current (Maximum) | 20A |
| Power Consumption (Average / Maximum) | 410.9 W / 459.1 W |
| Heat Dissipation | 1565.53 BTU/h |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | 62.74 dBA |
| Operating Altitude | Up to 7400 ft (2250 m) |
| Certifications & Compliance |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
[/specifications]
[accesories]
| Included in Box | 2x SFP+ (SR 10 GE) Transceivers |
| Optional Accessories | Rack Mount Sliding Rails (SP-FG3040B-RAIL), DC Power Supply (SP-FG1800F-DC-PS), Various Transceivers (1 GE, 10 GE, 25 GE, 40 GE, 100 GE), Direct Attach Cables |
[/accesories]

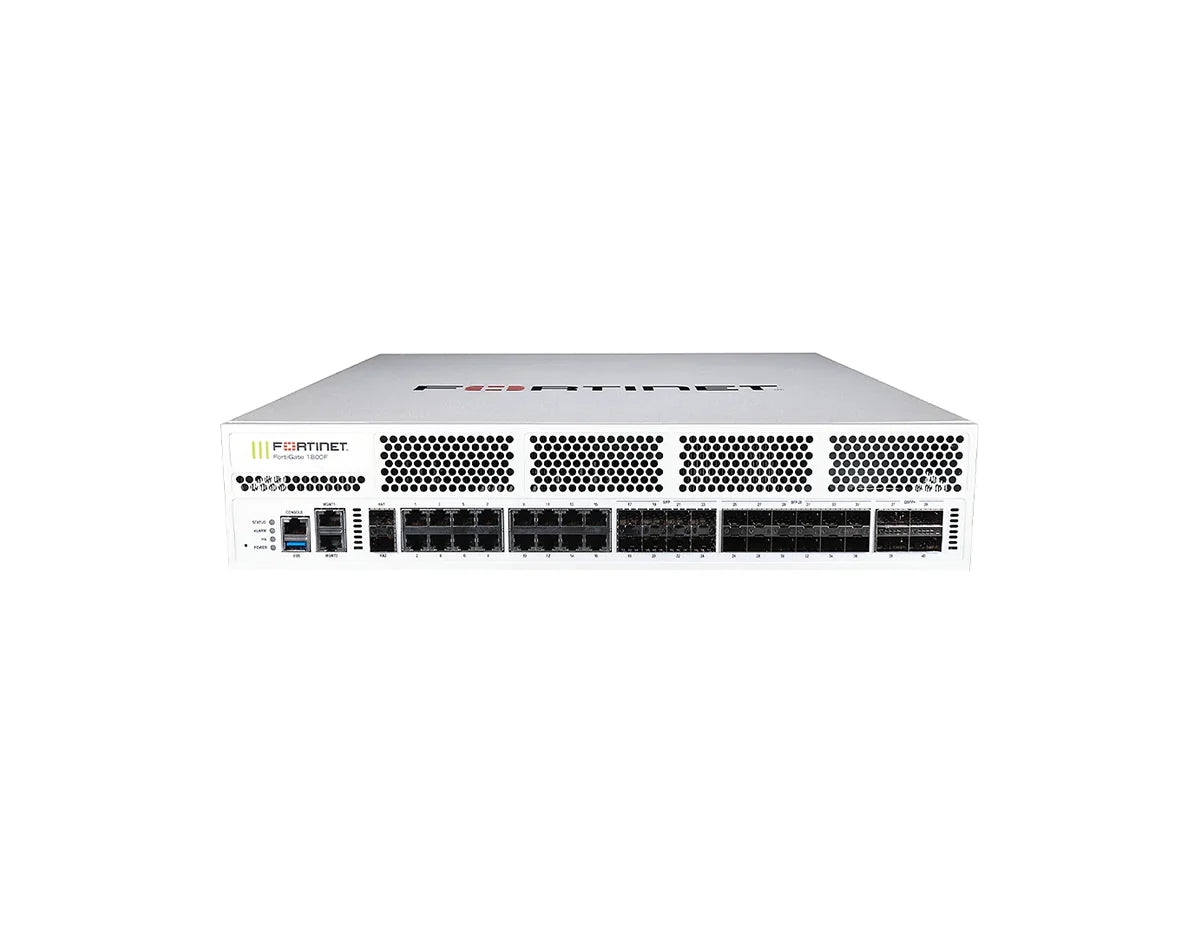

The FortiGate 1800F-DC Series enables organizations to build security-driven networks, forming the foundation of a robust Hybrid Mesh Firewall architecture. Designed for environments requiring DC power, this appliance weaves security deep into data centers and hybrid IT environments to protect any edge at any scale. Powered by Fortinet’s patented SPU NP7 and CP9 processors, the FG-1800F-DC delivers high performance and ultra-low latency, ensuring that security never becomes a network bottleneck.
With 4x 100 GE QSFP28 interfaces and 12x 25 GE SFP28 slots, the FortiGate 1800F-DC is built to handle massive traffic volumes. It features the industry's first integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution, automatically controlling, verifying, and facilitating user access to applications. Additionally, the device supports hyperscale security capabilities, including SPU-accelerated CGNAT and IPv6 migration options optimized for mobile networks (4G, 5G) and IoT deployments.
